Dual Timer Control Panel Assembly; For Models Mfd. Prior To November 3, 2000 - ADC ADG-758 Parts Manual

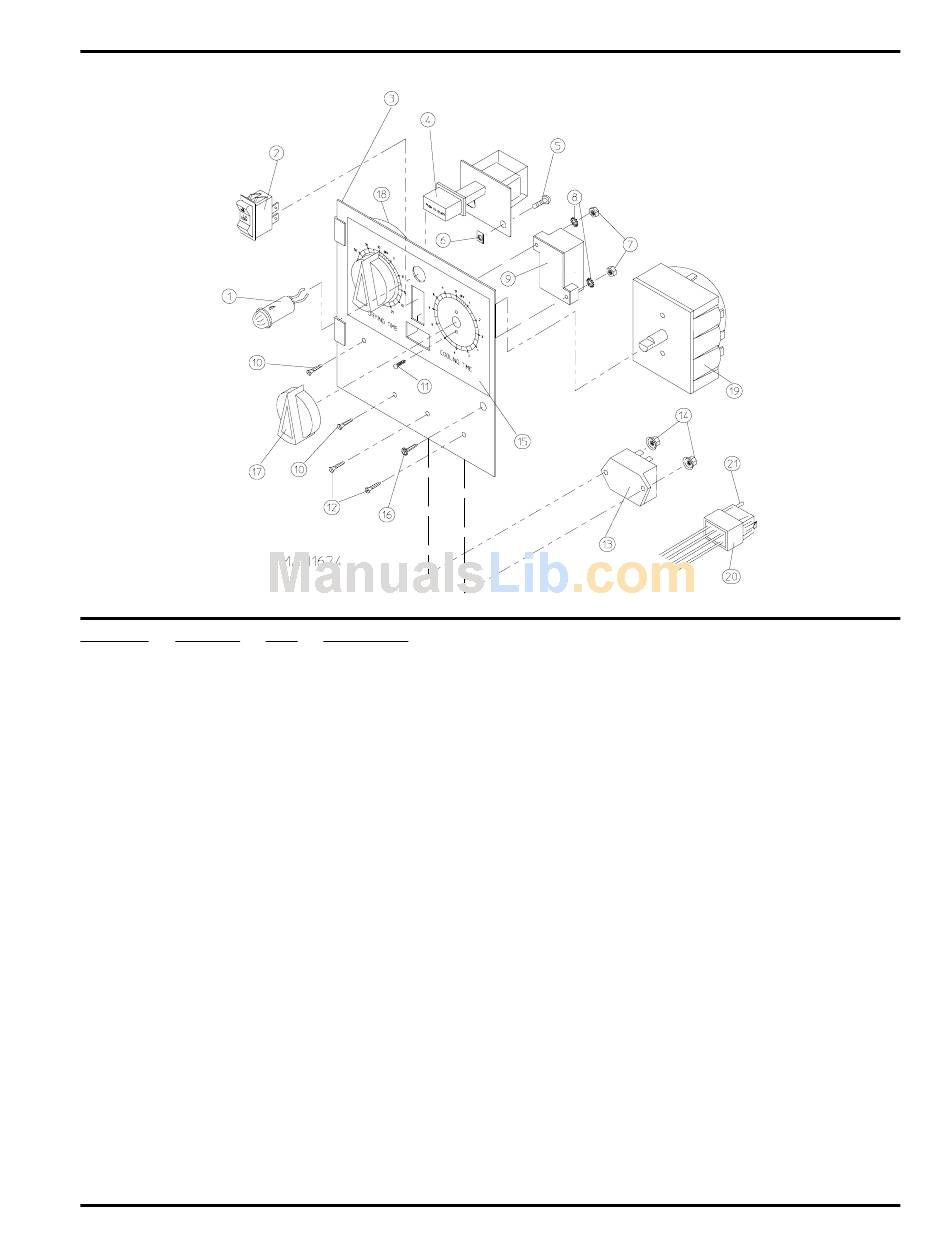

Dual Timer Control Panel Assembly

For Models Mfd. prior to November 3, 2000

Illus. No. Part No.
1 123005
2 122400
3 824015
800051
4 131917
5 150207
6 154001
7 152000
8 153010
9 120730
10 150002
11 150110
12 150001
13 131931
14 151000
15 112050
16 150309
17 124103
18 124025
19 124030
20 122602
21 122700
-- 122801
Telephone: (508) 678-9000
Qty. Description
1 Red Indicator Light - 24 VAC
1 Rocker Heat Selector Switch
1 Dual Timer Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 21)
1 Dual Timer Control Panel ONLY
1 Push-To-Start Relay - 24 VAC
2 #10-24 x 1/2" Round Head Machine Screw
2 #10-24 Speed Nut
2 #6-32 Hex Nut
2 #6 Star Washer
1 30-Position Terminal Block
2 #6-32 x 1" Phillips Round Head Machine Screw
4 #8-32 x 1/4" Phillips Round Head Machine Screw
2 #6-32 x 1/2" Phillips Round Head Machine Screw
1 Dual Timer Relay - 24 VAC
2 #6-32 Pal Nut
1 Dual Timer Label
1 #10-16 x 1/2" Hex Head TEK Crimptite Screw
2 Arrow Timer Knob
1 60-Minute Timer - 24 VAC
1 15-Minute Timer - 24 VAC
1 9-Pin Connector ONLY
8 Pin Terminal ONLY
1 Pin/Socket Extraction Tool...Not Illustrated
