Main Door "Cold Rolled Steel (Crs)" Assembly - ADC ADG-758 Parts Manual

14
Illus. No. Part No.
1 881150
2 102354
170730
170731
3 881152
4 150445
5 153031
6 881151
7 150445
150443
8 150683
9 152014
10 151010
11 150120
12 150683
13 152014
14 881210
15 102218
102360
170731
16 151013
American Dryer Corporation

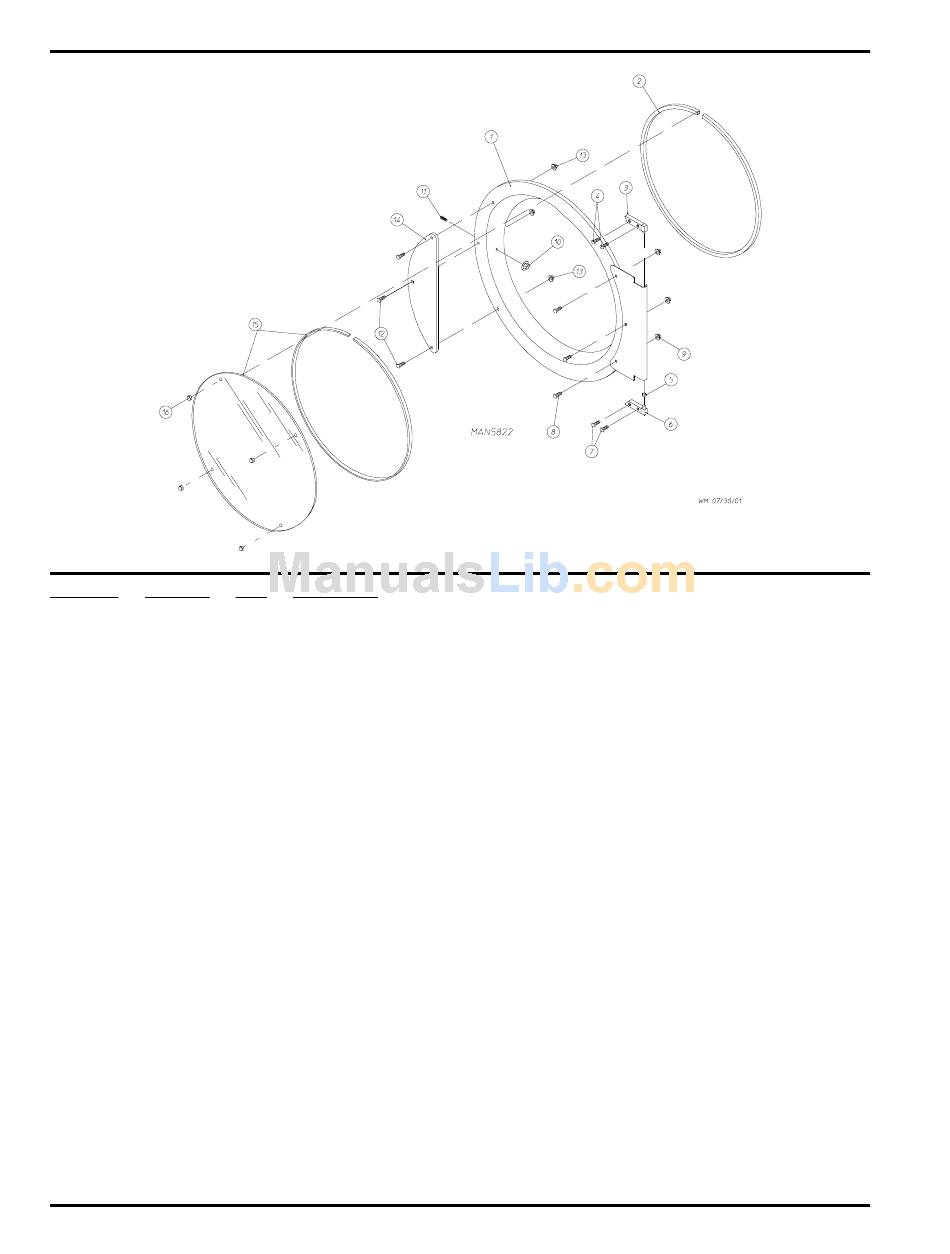

Main Door "Cold Rolled Steel (CRS)" Assembly

Qty. Description
1 Black Main Door Assembly Complete
(includes illus. nos. 1, 2, and 8 through 15)
1 Door Gasket
1 Clear Glass Adhesive (10.3 oz. cartridge)
1 Black Glass Adhesive (10.3 oz. cartridge)
1 Black Top Hinge Block Assembly
(includes illus. nos. 3 and 4)
2 1/4-20 x 3/4" Black Cap Head Setscrew
1 1/4" Nylon Washer
1 Black Bottom Hinge Block Assembly
(includes illus. nos. 5 through 7)
2 1/4-20 x 3/4" Black Cap Head Setscrew
2 1/4-20 x 3/4" Stainless Steel Cap Head Setscrew
3 1/4-20 x 5/8" Black Carriage Bolt
3 1/4-20 Free Spin Wash Nut
1 #10-32 Black Hex Acorn Nut
1 Door Latch Screw
3 1/4-20 x 5/8" Black Carriage Bolt
3 1/4-20 Free Spin Wash Nut
1 Black Main Door Handle
1 20-7/16" Door Glass
1 Glass/Door Gasket Tape
(for models mfd. as of February 9, 2001)
1 Black Glass Adhesive (10.3 oz. cartridge)
(for models mfd. prior to February 9, 2001)
4 #10-32 Black Nylon Acorn Nut
