Packing List; Replacing The Cable Gland Seal - SMA SUNNY SENSORBOX Installation Manual

Accessories

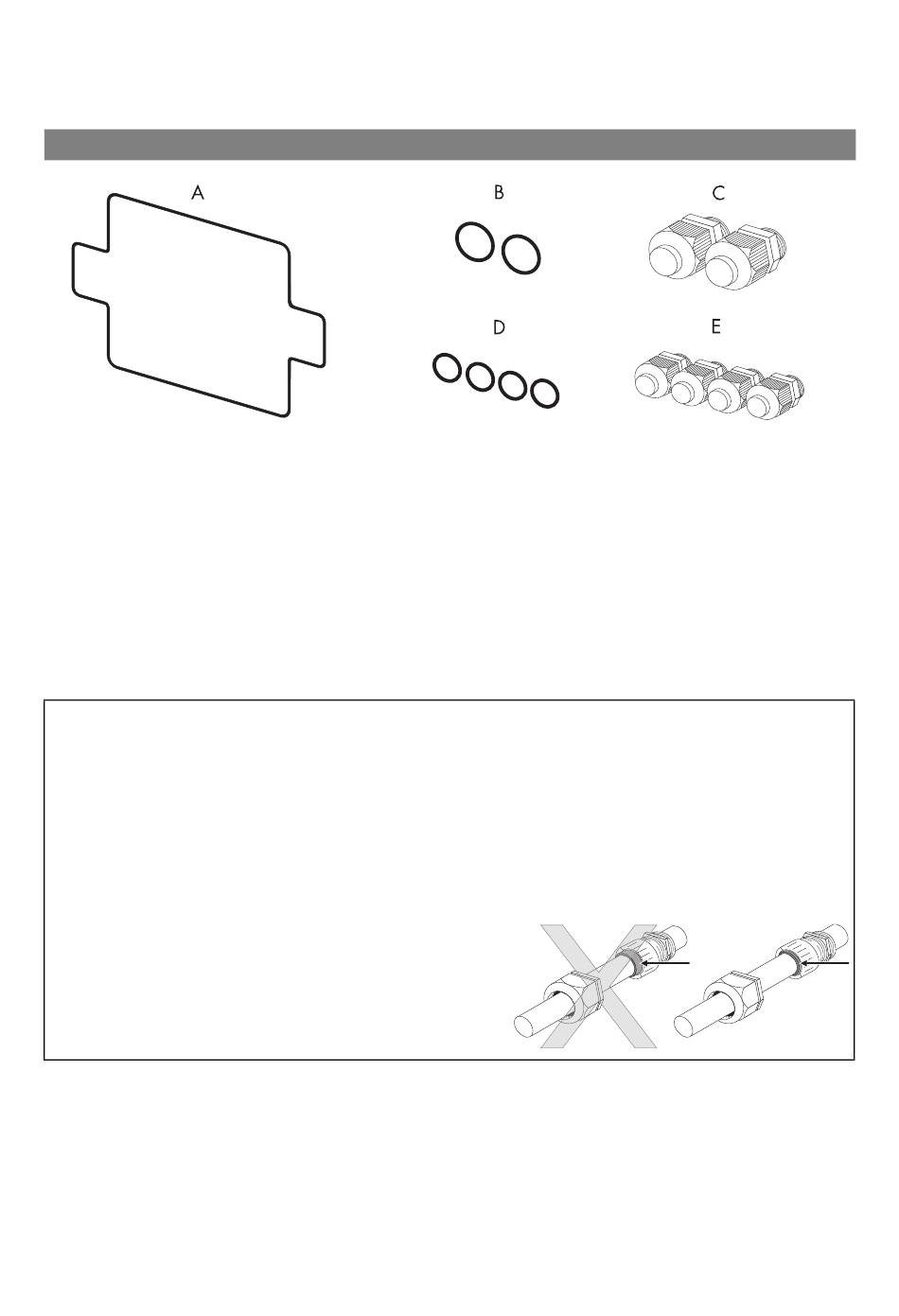

13.3.1 Packing List
SMA order number: Sealkit-Ssensor
A 1 Enclosure seal
B 2 Cable gland seals for the RS485 communication bus
C 2 Cable glands for the RS485 communication bus
D 4 Cable gland seals for the sensors
E 4 Cable glands for the sensors
13.3.2 Replacing the Cable Gland Seal
NOTICE!
Ingress of water when mounting and installing the Sunny SensorBox.
Damage to the Sunny Sensor Box.
• When working outdoors, make sure that no liquids (e. g. rain or snow) enter the open
Sunny SensorBox.
• When inserting and removing the cable
through the cable gland, make sure that
the grommet correctly fits into the cable
gland.
1. Pull the RS485-Power Injector's plug-in power supply out of the socket.
2. Open the Sunny SensorBox as described in section 10.1 "Opening the Sunny SensorBox"
(page 51).
3. Remove the connection cables of the respective sensor or the RS485 cable in the Sunny
SensorBox in the sequence opposite to the connection.
