13.5.4 Mounting the Anemometer
NOTICE!
Ingress of water due to wrong mounting of the anemometer.
Damage to the anemometer.
• Mount the anemometer vertically.
Fasten the provided mounting bracket depending on the installation method:

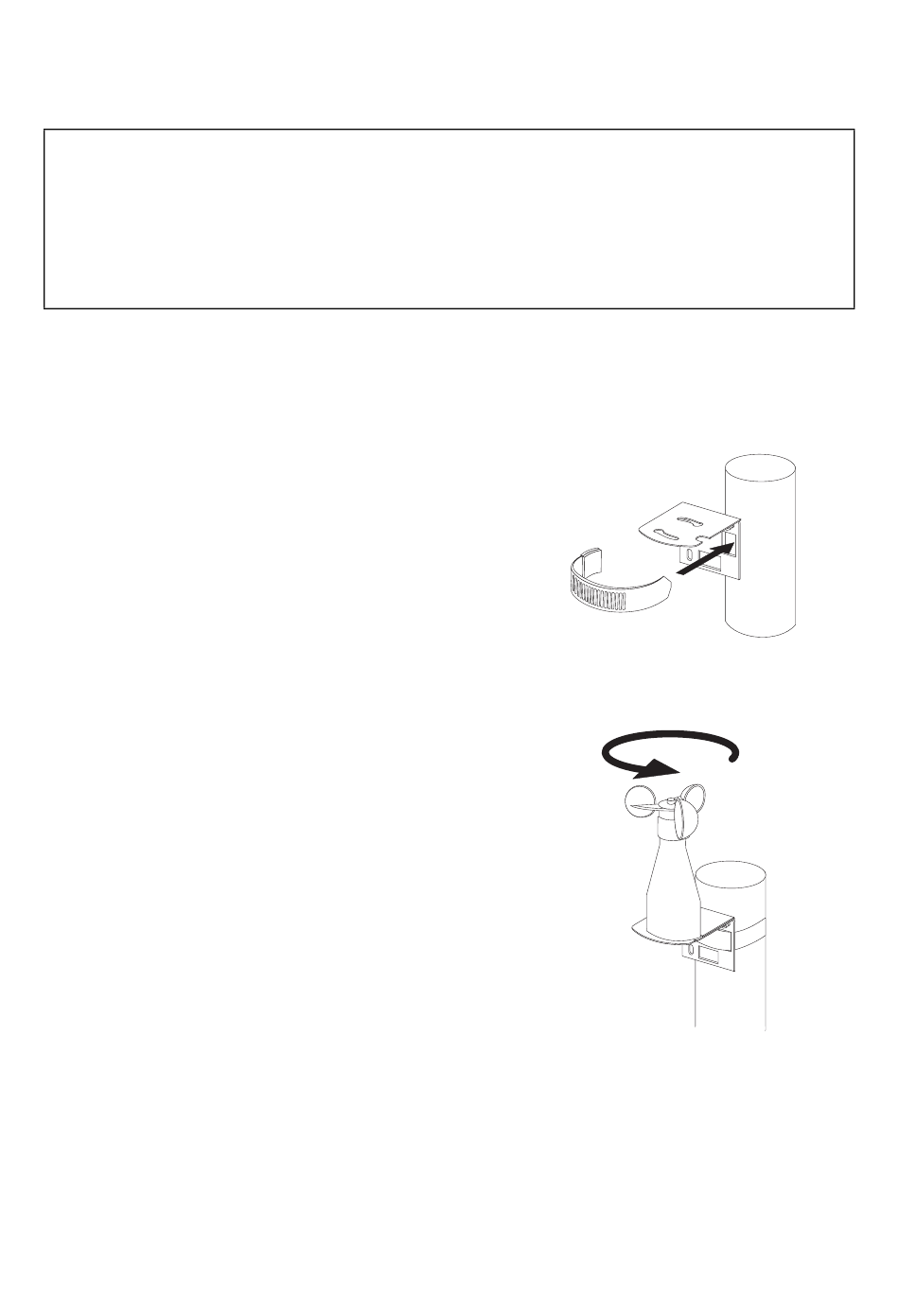

Pole mounting
1. Pull the clamp through the openings of the mounting
bracket.
2. Position the mounting bracket on the upper end of
the pole.
3. Tighten the clamp.
4. Turn the screw at the clamp in a clockwise direction.
5. Place the anemometer with its screws into the large
cutouts of the mounting bracket.
6. Turn the anemometer in a counterclockwise
direction up to the end of the narrow cut-outs.
7. Tighten the screws below the anemometer in a
clockwise direction.
☑ The anemometer is mounted.
