SMA Solar Technology AG

4.2.1 Mounting on a Module Frame

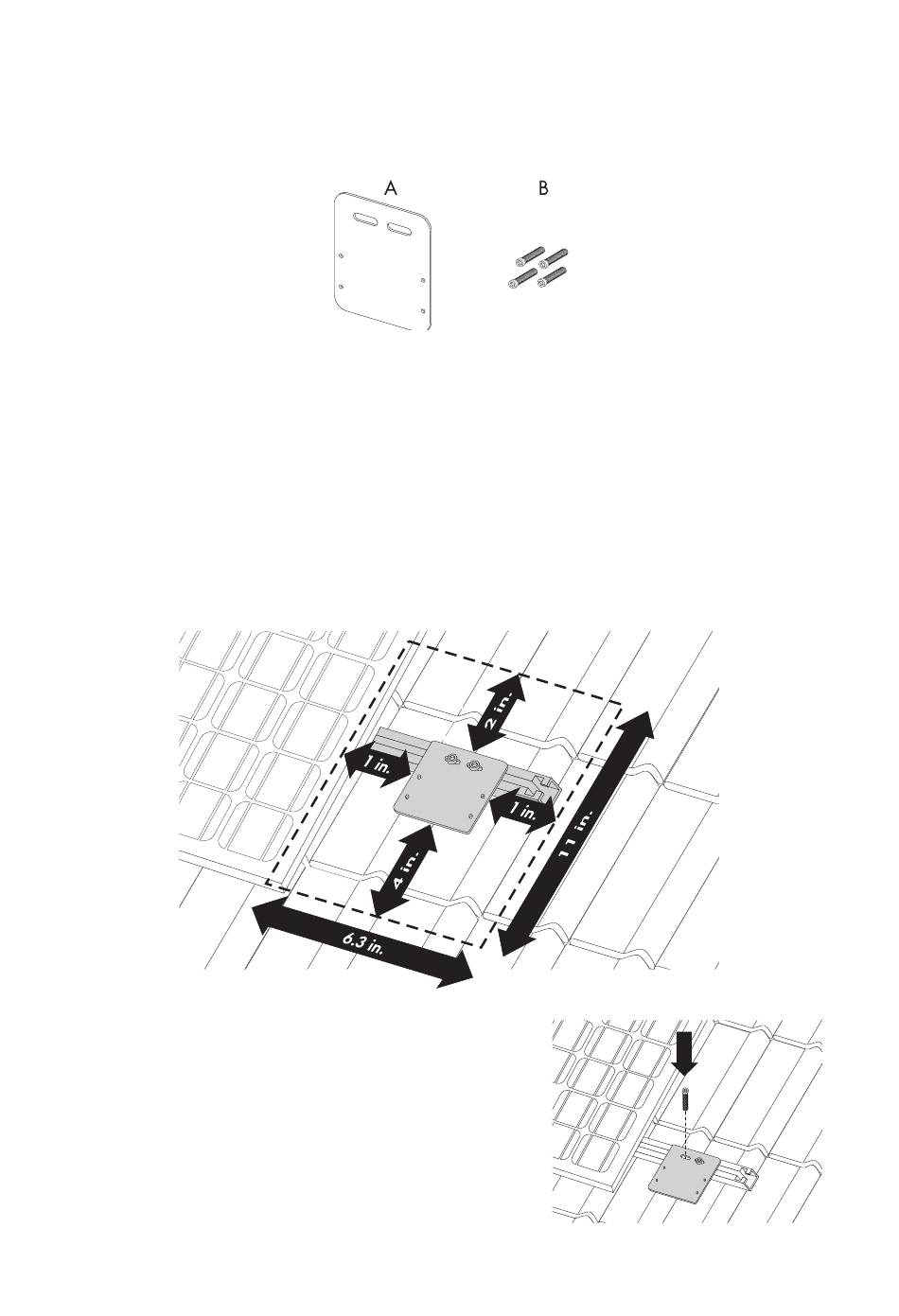

Mounting accessories provided

Mounting plate

Hexagonal screws

It is possible to mount the device on a module frame if the module frame protrudes about 6.3 in. out

of the side of the modules. The mounting plate is separately available as well, see section

13 "Accessories" (page 59).

Mounting the Sunny SensorBox on a module frame

1. Determine the installation location considering the installation space and the orientation

specified for the Sunny SensorBox (see page 18).

2. Attach the mounting plate to the module frame using

2 suitable screws and slot nuts (from the

manufacturer of the module frame).

Screws up to a maximum of 3/8" usually fit in the slot

nuts from the manufacturers of the module frame.

3. Tilt the two flaps on the right and left side on the

Sunny SensorBox towards the side (see also section

10.1 "Opening the Sunny SensorBox" (page 51)).

Installation Guide

Mounting the Device

Sensorbox-IUS084413
