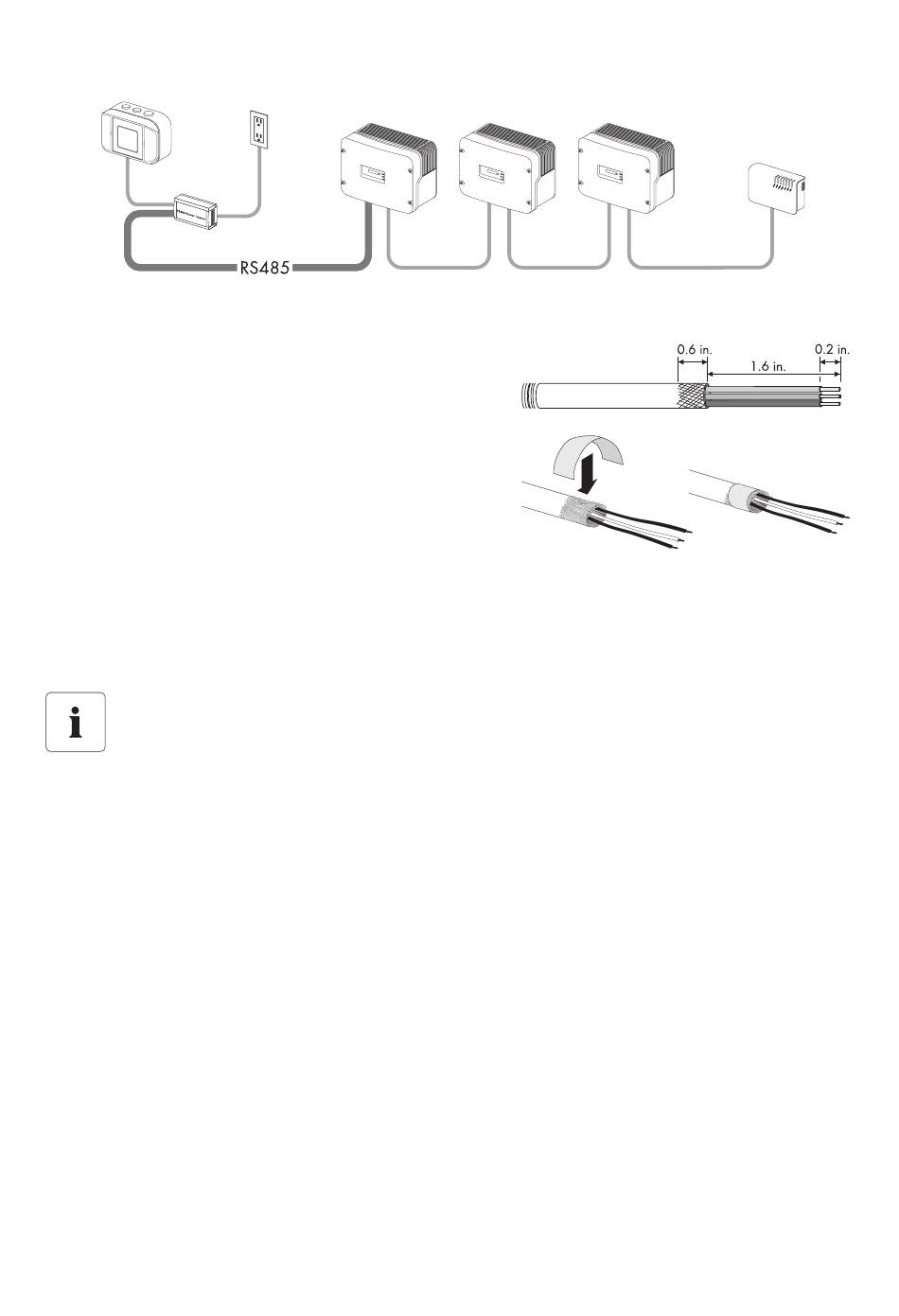

1. Connect the cable to the RS485 bus subscriber (for example inverter).
2. Remove 1.6 in. of cable sheath at the RS485-Power
Injector end of the RS485 communication cable.
3. Shorten the shield to 0.6 in.
4. Pull back the shield and cover with conductive
adhesive foil. This is where the shield clamp will be
attached later.
5. 3 insulated conductors are required for the
connection to the RS485-Power Injector. Observe the
configurations of the insulated conductors in the
RS485 communication bus. Shorten the fourth
insulated conductor not required down to the cable sleeve.
6. Strip approx. 0.2 in. off the insulated conductors.
Connection layout and system wiring
See the RS485 cabling plan poster for the connection layout and system wiring.
