13. Unscrew the cable gland's lock nut in the bottom
middle of the Sunny SensorBox in a
counterclockwise direction and remove the filler
plugs.
14. Thread the sensor cable through the lock nut and
tighten the cable gland of Sunny SensorBox
enclosure in a clockwise direction.

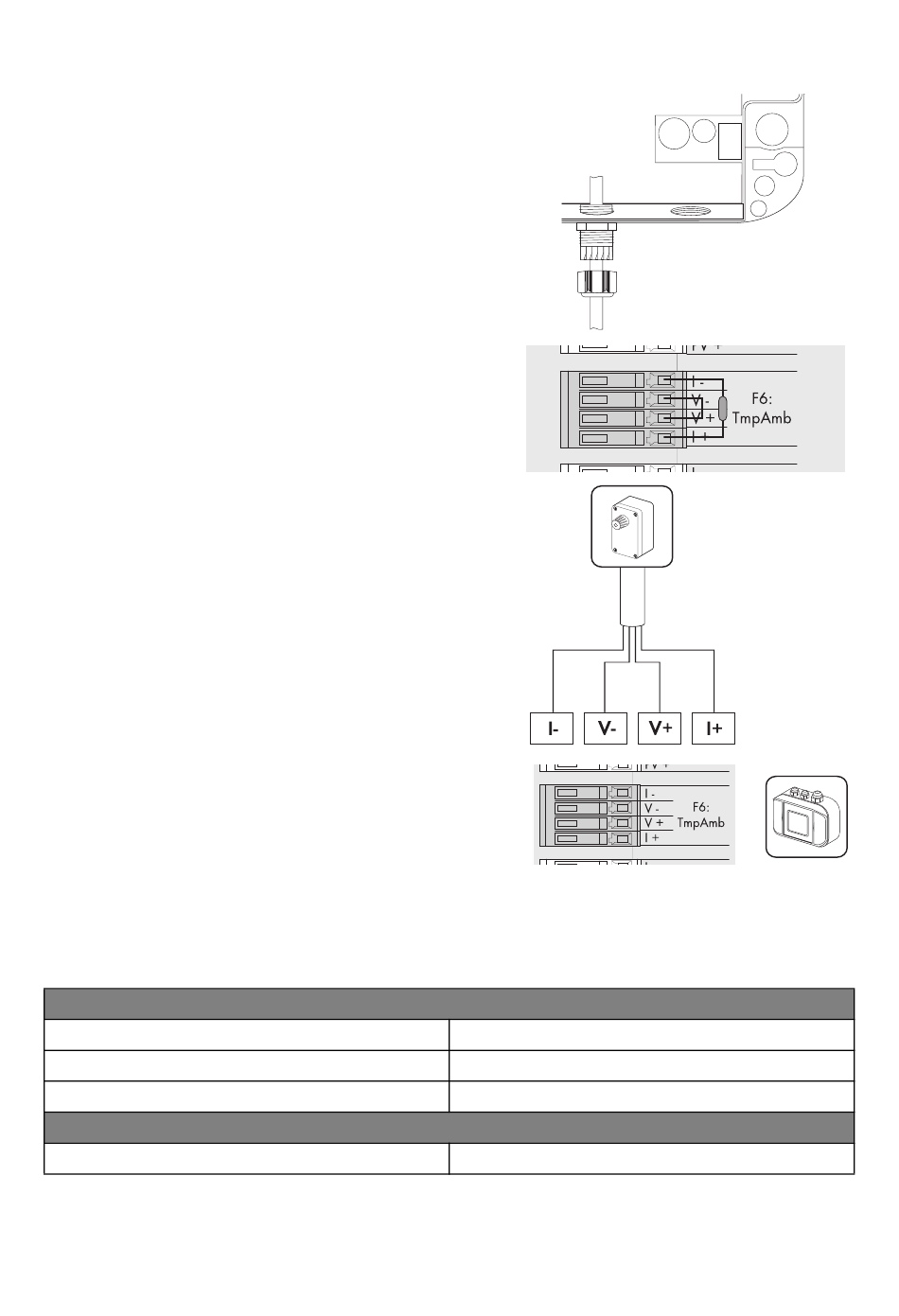

15. Remove the resistor and the bridge at the "F6:
TmpAmb" terminal in the Sunny SensorBox as
described in section 5.2.4 "Operating the
Terminals for the Sensors" (page 30).
16. Connect the sensor to the "F6: TmpAmb" terminal of
the Sunny SensorBox as described in section
.5.2.4 "Operating the Terminals for the Sensors"
(page 30) Note the indicated colors of the
insulated conductors.
17. Ensure that the grommet of the cable gland is
correctly in place.
18. Screw the lock nut hand-tight onto the cable gland
in a clockwise direction, in order to fix the cable
(torque: 7 in-lbs).
19. Lay the cable using suitable fastening material.
20. Mounting and connecting additional sensors.
21. Close the Sunny SensorBox as described in section
10.2 "Closing the Sunny SensorBox" (page 52).
☑ The ambient temperature sensor is connected.
13.4.6 Technical Data for the Ambient Temperature Sensor
General data
Dimensions (W /H /D ) in inches
Sensor resistor
Mounting location
Connection cable
Connection cable (for 4-conductor technology)
Installation Guide
3.94/2.05/2.64
PT100
outdoors
max. 98 ft.
