Thermally conductive adhesive
Mix the thermally conductive adhesive according to the manufacturer's instructions. When
processing, follow the processing and curing times specified by manufacturer.
1. Determine the installation location taking into account the sensor's cable length.
2. Prepare the thermally conductive adhesive according to the manufacturer's instructions.

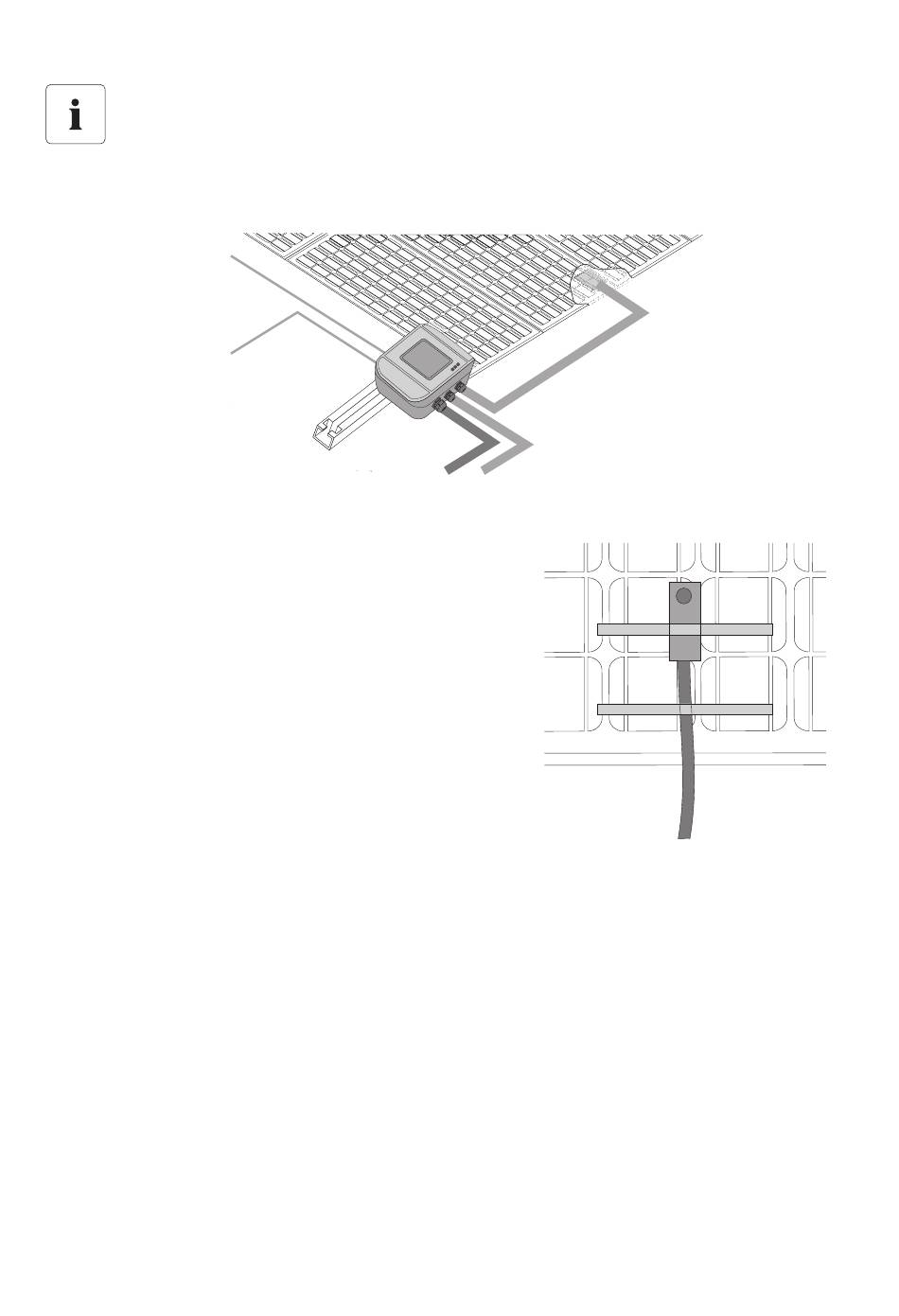

3. Position the module temperature sensor under a solar
cell. The round cutout points towards the solar cell.
4. Stick the module temperature sensor using the
thermally conductive adhesive provided.
5. Fix the module temperature sensor and the cable to
the bottom side of the solar cell using adhesive tape
strips.
6. After the thermally conductive adhesive has been
cured, the adhesive tape strips can be removed.
☑ The module temperature sensor is mounted.
