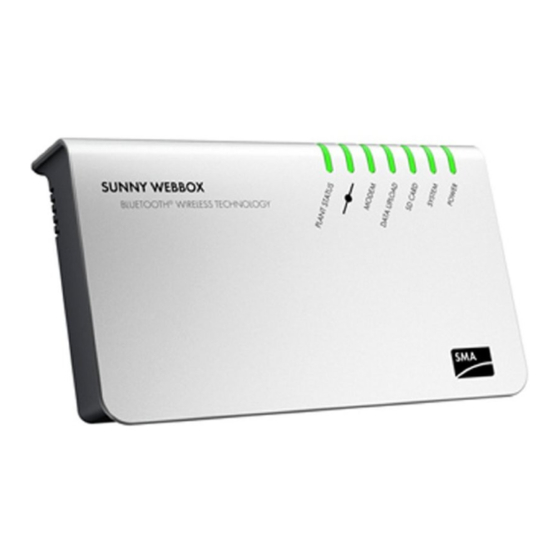

SMA SUNNY WEBBOX Bluetooth Wireless Technology Installation Manual

Device for plant monitoring with bluetooth wireless technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

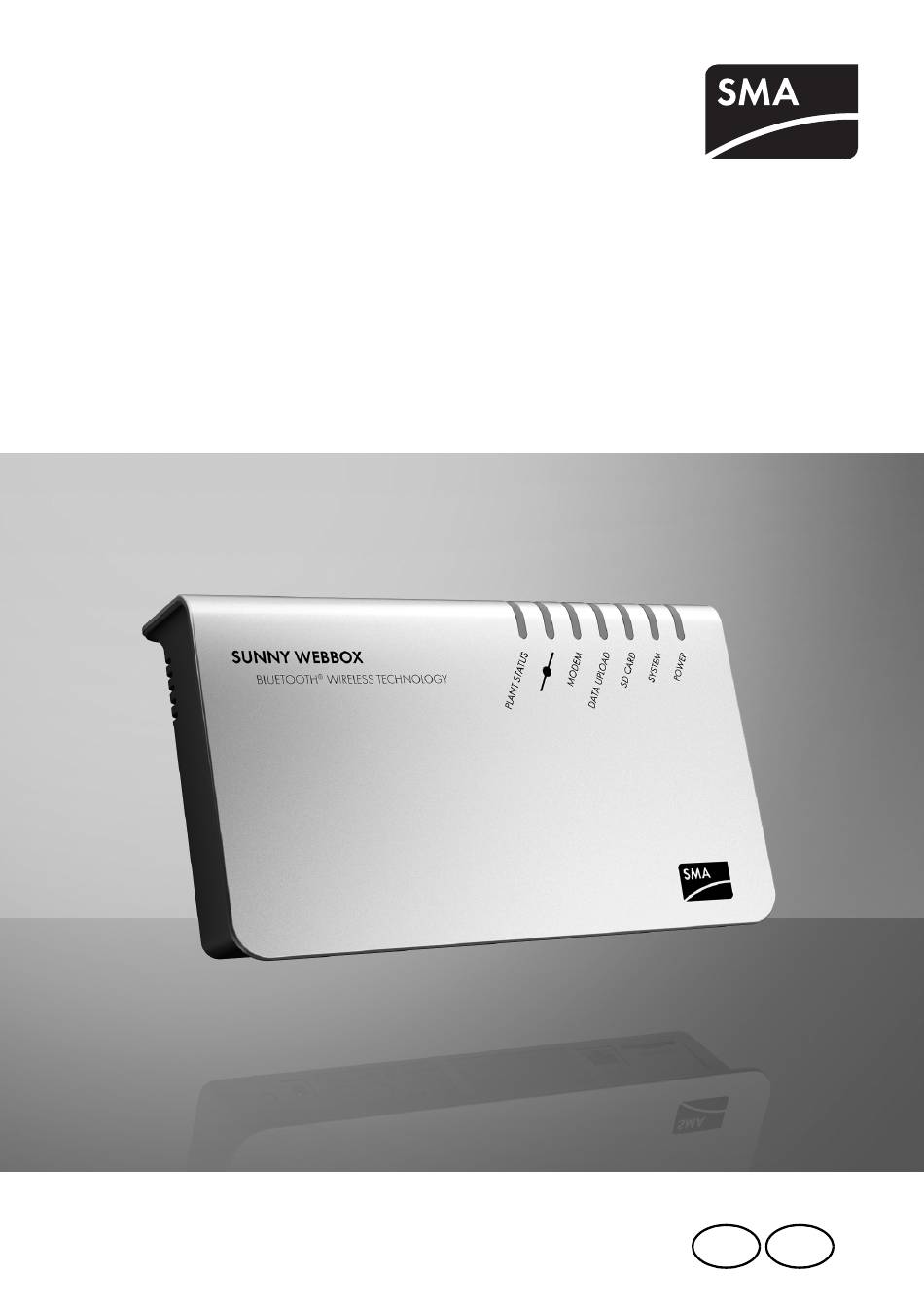

Device for Plant Monitoring
®
SUNNY WEBBOX with Bluetooth
Wireless Technology
Installation Guide
SWebBox20-eng-IUS111411 | 98-0031111 | Version 1.1
US
CA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNNY WEBBOX Bluetooth Wireless Technology and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMA SUNNY WEBBOX Bluetooth Wireless Technology

Summary of Contents for SMA SUNNY WEBBOX Bluetooth Wireless Technology

  • Page 1 Device for Plant Monitoring ® SUNNY WEBBOX with Bluetooth Wireless Technology Installation Guide SWebBox20-eng-IUS111411 | 98-0031111 | Version 1.1...
  • Page 3 All such warranties are expressly disclaimed. Neither SMA America, LLC nor its distributors or dealers nor SMA Solar Technology Canada Inc. nor its distributors or dealers shall be liable for any indirect, incidental, or consequential damages under any circumstances.
  • Page 4 A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the SMA equipment and/or other equipment connected to the SMA equipment or personal injury. DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 5 SMA America, LLC Important Safety Instructions Other symbols in this document In addition to the safety and hazard symbols described on the previous pages, the following symbol is also used in this installation guide: Information This symbol accompanies notes that call attention to supplementary information that you must know and use to ensure optimal operation of the system.
  • Page 6 For all repair and maintenance, always return the unit to an authorized SMA Service Center. Before installing or using the Sunny WebBox with Bluetooth, read all of the instructions, cautions, and warnings on the Sunny WebBox with Bluetooth in this installation guide.

  • Page 7: Table Of Contents

    Bluetooth PV Plants ........22 Information on SMA Bluetooth ........22 5.2.1...
  • Page 8 Table of Contents SMA America, LLC Mounting the Sunny WebBox on the Top-Hat Rail ..24 Commissioning ........25 Information on Commissioning .
  • Page 9 SMA America, LLC Table of Contents Restarting the Sunny WebBox via the User Interface ..47 Resetting the Sunny WebBox Using the Reset Button ..48 Determining Current Settings of the Sunny WebBox via the SD Card .
  • Page 10 Table of Contents SMA America, LLC Technical data........65 Sunny WebBox with Bluetooth .

  • Page 11: Information On This Manual

    Also read the user manual of the Sunny WebBox with Bluetooth which you can call via the Help button in the user interface. 1.4 Nomenclature Within this document, SMA America Production, LLC and SMA Solar Technology Canada Inc. are referred to in the following as SMA. ® In this document, the Sunny WebBox with Bluetooth is referred to in the following as Sunny WebBox.

  • Page 12: Safety

    Bluetooth network (e.g. Sunny Explorer or Sunny Beam), a maximum of 25 devices can be managed by the Sunny WebBox. A maximum of one Sunny WebBox is allowed in a Bluetooth network with the same NetID. Additional information about SMA Bluetooth Wireless Technology can be found in the download area at www.SMA-America.com.

  • Page 13: Supported Products

    – STP 10000TL-10/STP 12000TL-10/STP 15000TL-10/STP 17000TL-10 (STP = Sunny Tripower) • SMA inverters with upgraded SMA Bluetooth Piggy-Back from the software version 02.00.00.R. A list of the supported inverters can be found in the SMA Bluetooth Piggy-Back manual. • Sunny Matrix from firmware version 2.10.00 SMA Bluetooth Repeater •...

  • Page 14: Safety Instructions

    Safety SMA America, LLC 2.2 Safety Instructions Follow all operating and safety instructions in this guide. Failure to follow these instructions can result in damage to the device and be a danger to persons. If using the accessories, all the basic safety procedures must be followed, to avoid dangers like fire, electric shock and injuries to persons.
  • Page 15 SMA America, LLC Safety NOTICE Touching the components can result in electrostatic discharges. This can result in damage to or destruction of the device. • Only qualified personnel may install the Sunny WebBox. • Do not touch components' connections and plug contacts.

  • Page 16: Unpacking

    Network Cable (blue) Screws (M6) Screw anchors (M6) Installation Guide (The user manual of the Sunny WebBox can be called up directly from the user interface or downloaded from www.SMA-America.com) Drilling template Quick guide for Sunny WebBox commissioning SWebBox20-eng-IUS111411 Installation Guide...

  • Page 17: Identifying The Sunny Webbox

    SMA America, LLC Unpacking 3.2 Identifying the Sunny WebBox Type label You can identify the Sunny WebBox using the type label. The type plate can be found on the back of the enclosure. Firmware version The current firmware version can be found on the status bar in the user interface of the Sunny WebBox.

  • Page 18: Device Overview

    Device overview SMA America, LLC 4 Device overview 4.1 LED Overview LED name Status Meaning "PLANT STATUS" Glows green All devices in the PV plant have the status "OK". Glows orange At least 1 device in the PV plant has the "Warning"...

  • Page 19: Connection Area Overview

    SMA America, LLC Device overview LED name Status Meaning "SD CARD" Glows green The SD card is inserted, writeable, and the free memory capacity is more than 10 % of the overall capacity. Flashes green The SD card is currently being written to. The free memory capacity is more than 10 % of the overall capacity.

  • Page 20: Overview Bluetooth Module

    Device overview SMA America, LLC 4.3 Overview Bluetooth Module Position Description "MODE" rotary switch "NetID" rotary switch Bluetooth LED (blue) Connection display (not used) 4.3.1 Bluetooth Module LED Overview Status Meaning Bluetooth LED (blue) Bluetooth is switched on. glows Bluetooth is switched off.

  • Page 21: Assembly

    SMA America, LLC Assembly 5 Assembly 5.1 Mounting / Installation Location Requirements Please note the following information on the mounting / installation location of the Sunny WebBox: • The Sunny WebBox is only suitable for installation in enclosed spaces. • The ambient temperature must remain between –4 °F (–20 °C) and +149 °F (+65 °C).

  • Page 22: Determining The Mounting / Installation Location For Bluetooth Pv Plants

    5.2.3 Extending the Bluetooth Network with the SMA Bluetooth Repeater The SMA Bluetooth Repeater can help you extend the wireless range of your Bluetooth network. An SMA Bluetooth Repeater installed on the range limit of the Bluetooth network transmits the data traffic of the network in its own radio range.

  • Page 23: Mounting The Sunny Webbox On The Wall

    SMA America, LLC Assembly 5.3 Mounting the Sunny WebBox on the wall NOTICE Damage to the Sunny WebBox or the bracket. The Sunny WebBox could loosen itself and fall off the bracket. • Be sure to hold the Sunny WebBox with Bluetooth firmly in place when removing or inserting cables.

  • Page 24: Mounting The Sunny Webbox On The Top-Hat Rail

    Assembly SMA America, LLC 5.4 Mounting the Sunny WebBox on the Top-Hat Rail 1. Determine the mounting location taking into consideration the mounting / installation location requirements. 2. Hook the Sunny WebBox with both lower retainers into the lower edge of the top-hat rail.

  • Page 25: Commissioning

    Sunny WebBox. The Sunny WebBox Wizard is a software package with which you can carry out the basic configuration of the Sunny WebBox. You can download the Sunny WebBox Wizard from the download area at www.SMA-America.com. Also remember to refer to the Quick Guide for commissioning Sunny WebBox Proceed as follows: •...

  • Page 26: Configuring Bluetooth Settings For The Sunny Webbox

    At the present time, NetID 1 is not supported by the Sunny WebBox. A direct connection to an individual SMA Bluetooth device via NetID 1 is currently only possible with the Sunny Explorer software or the Sunny Beam with Bluetooth.

  • Page 27: Connecting The Sunny Webbox Directly To The Computer

    SMA America, LLC Commissioning 6.3 Connecting the Sunny WebBox Directly to the Computer 1. Use the blue network cable (Ethernet crossover cable) to connect the Sunny WebBox directly to the computer (see ➀ ). The terminal on the computer is generally marked with the same symbol as the network connection of the Sunny WebBox.

  • Page 28: Configuring Network Settings On The Computer

    Commissioning SMA America, LLC 6.4 Configuring Network Settings on the Computer 6.4.1 Information on Network Settings on the Computer Before you can operate the Sunny WebBox for the first time without the Sunny WebBox Wizard, you must set the computer to the network area of the Sunny WebBox in its delivered status. Read the section which relates to the operating system of your computer.
  • Page 29 SMA America, LLC Commissioning ☑ The "Local Area Connection Properties" window is displayed. 6. Select "Internet protocol version 4 (TCP/IPv4)" and select [Properties]. ☑ The window "Internet Protocol Version 4 (TCP/IPv4) Properties" opens. 7. Make a note of the network settings in the window "Internet Protocol Version 4 (TCP/IPv4) Properties".

  • Page 30: Windows Xp, Windows 2000

    Commissioning SMA America, LLC 6.4.3 Windows XP, Windows 2000 1. Start the computer. 2. In Windows, select "Start > Settings > Network connections". 3. Double-click the LAN connection via which the Sunny WebBox is connected. – If Windows displays several LAN connections, there are probably several network connections installed on the computer.
  • Page 31 SMA America, LLC Commissioning 7. Enter the following static network settings in the "Internet Protocol (TCP/IP) Properties" window: – Check the field "Use the following IP address". – Enter 192.168.0.100 in the "IP Address" field. – Enter 255.255.255.0 in the "Subnet mask" field.

  • Page 32: Logging In To The Sunny Webbox

    Commissioning SMA America, LLC 6.5 Logging in to the Sunny WebBox 1. Start Web browser (e.g. Internet Explorer). Enable JavaScript in the web browser The Sunny WebBox user interface needs JavaScript in order to be able to correctly display and execute the contents and functions of the Sunny WebBox. Enable JavaScript in your web browser.

  • Page 33: Configuring Sunny Webbox For The Local Network

    SMA America, LLC Commissioning 6.6 Configuring Sunny WebBox for the Local Network 6.6.1 Information on Integrating the Sunny WebBox into a Local Network. The next sections describe how to integrate the Sunny WebBox via static network settings into your local network with a router.
  • Page 34 Commissioning SMA America, LLC 5. Enter the Gateway IP address of your network into the "Gateway IP" field. Usually, the IP address of the router should be entered here. 6. In the "IP Address" field, enter the static IP address under which the Sunny WebBox is to be reachable in the local network (see section 13.7 ”Allocating an IP Address in a Local Network”...

  • Page 35: Connecting The Sunny Webbox To The Local Network

    SMA America, LLC Commissioning 6.6.3 Connecting the Sunny WebBox to the Local Network 1. Connect the Sunny WebBox directly to the receiver (e.g. router, switch or hub) of the local network using the red network cable (patch cable) (see ➀ ). The terminal of the receiver is normally identified by the same symbol as the Sunny WebBox network connection.

  • Page 36: Extended Configuration

    Extended Configuration SMA America, LLC 7 Extended Configuration 7.1 Ethernet Network 7.1.1 Information on Extended Network Settings Changing extended network settings Do not change any network settings in the network devices if you are not clear about the effects of the change. Changes to values could lead to the existing network not functioning at all or only working partially.

  • Page 37: Proxy Server

    SMA America, LLC Extended Configuration Deactivating DHCP 1. Select the Sunny WebBox in the plant tree and select "Settings" in the device menu Click the button "Settings" in the toolbar. 2. Select the parameter group "External Communication > Ethernet". 3. Select [Edit].

  • Page 38: Setting The Http Port

    Extended Configuration SMA America, LLC 7.1.4 Setting the HTTP Port Adjusting the network ports Changing the ports is only necessary in rare cases. Before adjusting the ports, contact your network administrator. The HTTP port is the network port at which the Sunny WebBox user interface is available. The HTTP Port is set to 80 by default.

  • Page 39: Service Functions

    SMA America, LLC Service Functions 8 Service Functions 8.1 Updating the Firmware for Sunny WebBox 8.1.1 Information You have the option of updating the Sunny WebBox firmware. The firmware update can be performed online from the Internet or locally via the SD card. The existing settings of the Sunny WebBox and data from the PV plant remain available after the update procedure.
  • Page 40 Service Functions SMA America, LLC 4. In the "Automatic update" field, select "Yes" in order to activate the automatic firmware update (status on delivery) In the "Automatic update" field, select "No" to deactivate the automatic firmware update. 5. Select [Save].

  • Page 41: Firmware Update Via The Sd Card

    Take note of the information on the SD card (see section 13.1 ”Information on the SD Card” (page 61)). 1. Select the required update file in the download section of www.SMA-America.com and download it to your computer. 2. Connect the SD card to the computer and create a folder called "UPDATE" on the SD card.

  • Page 42: Carrying Out Device Updates

    (SB = Sunny Boy) – SB 2000HF/SB 2500HF/SB 3000HF – STP 10000TL-10/STP 12000TL-10/STP 15000TL-10/STP 17000TL-10 (STP = Sunny Tripower) • SMA Bluetooth Piggy-Back from software version 02.00.00.R • SMA Bluetooth Repeater • SMA Power Injector with Bluetooth The device update can be performed online from the Internet or locally via the SD card. The existing settings of the Sunny WebBox and data from the PV plant remain available after the update procedure.
  • Page 43 SMA America, LLC Service Functions NOTICE Risk of Yield Loss! For some inverters, device updates are only possible from a specific DC input voltage. The inverters in question do not feed energy during a device update. This can result in temporary yield losses.

  • Page 44: Device Update Via The Internet (Recommended)

    Sunny WebBox downloads the device update from the Internet. In SMA inverters with upgraded SMA Bluetooth piggy-backs, the update process starts on the following day as a result of overnight shutdown (11 am). For all other supported SMA devices, the update process starts in the following night (4 am).

  • Page 45: Device Update Via The Sd Card

    SMA America, LLC Service Functions 4. Click [Send] when the Sunny WebBox has loaded the selected update file. ☑ The Sunny WebBox checks the saved files and sends the update file once a day to the devices in the PV plant on up to 5 consecutive days.
  • Page 46 • Wait until the devices in question are connected to the Sunny WebBox again before executing the automatic device update via SD card. 1. Select the required update file in the download section of www.SMA-America.com and download it to your computer.

  • Page 47: Restarting The Sunny Webbox Via The User Interface

    SMA America, LLC Service Functions 5. Start the update process: – Select "Name of your plant" in the plant tree, and select "Updates" in the device menu. – Select the device type (e.g. SB5000TL-20, SB4000TL-20) for which you want to carry out an update manually.

  • Page 48: Resetting The Sunny Webbox Using The Reset Button

    Service Functions SMA America, LLC 8.4 Resetting the Sunny WebBox Using the Reset Button You can reset the Sunny WebBox through a small hole in the rear side of the Sunny WebBox, behind which the Reset button is hidden. For this to be done, the Sunny WebBox must have electrical power.

  • Page 49: Determining Current Settings Of The Sunny Webbox Via The Sd Card

    SMA America, LLC Service Functions 8.5 Determining Current Settings of the Sunny WebBox via the SD Card The following steps allow you to determine the current settings and the current firmware of the Sunny WebBox if you do not have access to the user interface.

  • Page 50: Maintenance And Care

    Maintenance and Care SMA America, LLC 9 Maintenance and Care 9.1 Maintenance Conduct regular visual inspections of the Sunny WebBox to check for external damage or soiling. 9.2 Care NOTICE Damage to the device due to ingress of liquids. • The Sunny WebBox is not waterproof. Protect the Sunny WebBox from wet conditions.

  • Page 51: Decommissioning

    SMA America, LLC Decommissioning 10 Decommissioning 10.1 Disassembling the Sunny WebBox NOTICE Loss of plant data possible! Only disconnect the Sunny WebBox from the power distribution grid when the PV plant is not in operation (e.g. at night). Otherwise, losses may occur during the recording of the plant data.

  • Page 52: Packaging The Sunny Webbox

    Dispose of the Sunny WebBox at the end of its service life in accordance with the disposal regulations for electronic waste which apply at the installation site at that time. Alternatively, send it back to SMA with shipping paid by sender, and labeled "ZUR ENTSORGUNG" ("FOR DISPOSAL"). SWebBox20-eng-IUS111411...

  • Page 53: Failure Search

    SMA America, LLC Failure Search 11 Failure Search 11.1 General Troubleshooting for the Sunny WebBox No. Problem Cause Rectification The Sunny WebBox The Sunny WebBox is not • Connect the Sunny WebBox with the is not available via connected to the network or network cable directly to the the user interface.
  • Page 54 Sunny WebBox. Note that this can lead to loss of collected plant data. • Contact the SMA Serviceline. The "POWER" LED is The Sunny WebBox is not • Check the power supply of the off.
  • Page 55 SMA America, LLC Failure Search No. Problem Cause Rectification The Sunny WebBox The data transfer is • Check the settings of Sunny Portal or is not sending any incorrectly configured. FTP Push (see the Sunny WebBox data to the Sunny user manual).
  • Page 56 Failure Search SMA America, LLC No. Problem Cause Rectification The firmware update There is no internet • Reestablish Internet access. If for connected connection. necessary, contact your Internet devices failed. service provider. ☑ If you have set automatic device update, the automatic device update starts again the following day.
  • Page 57 SMA America, LLC Failure Search No. Problem Cause Rectification After a Sunny Duplicate Sunny Portal The Sunny WebBox supplied as a WebBox is registration replacement device logs into the Sunny replaced, Sunny Portal with a new plant ID. Sunny Portal...

  • Page 58: Bluetooth Connection

    Bluetooth system. plant. Further information on SMA Bluetooth can be found in the download section at www.SMA-America.com The Bluetooth connection Inverter is not •...
  • Page 59 Bluetooth is interrupted for some time because the inverters are carrying out a reboot of the communications interface. This does not relate to inverters with upgraded SMA Bluetooth Piggy-Backs. • Wait until the inverter has completed a restart. The inverter is then accessible again.

  • Page 60: Accessories

    Accessories SMA America, LLC 12 Accessories SMA Bluetooth Repeater SMA order number Description SMA Bluetooth repeater to increase the range of SMA Bluetooth products BTREP for use indoors SD Cards SMA order number Description SD-Card 128 MB 128 MB Secure Digital Memory Card for Sunny WebBox, I-Grade...

  • Page 61: Appendix

    13 Appendix 13.1 Information on the SD Card To ensure trouble-free working of the SD card, use SD cards available from SMA. Compatibility with all SD cards available on the market cannot be guaranteed. The Sunny WebBox does not support SD cards with storage capacities of more than 2 GB or SDHC cards.

  • Page 62: Structure Of An Xml Data File

    Appendix SMA America, LLC Setting Meaning DHCP Displays whether the network settings are acquired via DHCP. IP address The current IP address of the Sunny WebBox SubNetMask The current Subnet mask of the Sunny WebBox Gateway The set Gateway IP address...

  • Page 63: Information On Your Web Browser

    SMA America, LLC Appendix Setting Meaning CurrentPublic Data of the spot values Name of the element made up of device name, serial number of the device and the parameter name. Individual values are separated by a colon. Example: <Key>Sunny WebBox:155000234:Metering.TotWhOut</Key>...

  • Page 64: Activating Ipv6 In Windows Xp Sp2

    Appendix SMA America, LLC 13.6 Activating IPv6 in Windows XP SP2 In order to be able to locate the Sunny WebBox with the Sunny WebBox Wizard, IPv6 is required. IPv6 stands for Internet Protocol Version 6 and specifies the procedures that are necessary for data transfer via a package-switching data network.

  • Page 65: Technical Data

    5 % … 95 %, non condensing Degree of protection* IP20 *Degree of protection according to DIN EN 60529 Communication Sunny Boys, Windy Boys with SMA Bluetooth Bluetooth interface Computer 10 / 100 Mbit Ethernet Maximum number of SMA Bluetooth devices...

  • Page 66: Plug-In Power Supplies

    Technical data SMA America, LLC 14.2 Plug-in Power Supplies 14.2.1 CINCON, TRG30R 120 Mechanical Data Width x height x depth ⁄ in. x 2 ⁄ in. x 1 ⁄ (107.8 mm x 57.5 mm x 33.5 mm) Weight ⁄ oz. (300 g)

  • Page 67: Fcc Compliance Information

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • The user is cautioned that changes or modifications not expressly approved by SMA America, Inc. could void the user’s authority to operate this equipment. Installation Guide...

  • Page 68: Contact

    Contact SMA America, LLC 16 Contact If you have technical problems concerning our products, contact the SMA Serviceline. We require the following information in order to provide you with the necessary assistance: • The current firmware version of the Sunny WebBox •...
