Module Temperature Sensor; Mounting The Sunny Sensorbox - SMA SUNNY SENSORBOX Installation Manual

Mounting the Device
4.1.3 Module Temperature Sensor
Installation location requirements for the module temperature sensor:
• Select a solar cell which is never in the shade during the day.
• The module temperature sensor is adhered to the rear of the solar module.
• Observe the prefabricated cable length of 8.2 ft., the cable may not be extended or cut.
4.2 Mounting the Sunny SensorBox
The Sunny SensorBox can be mounted on a module frame, or on a rafter.
NOTICE!
Ingress of water due to wrong mounting of the Sunny SensorBox.
Possible damage of the electronics of the Sunny SensorBox.
• The Sunny SensorBox may be mounted with three orientations.
• The Sunny SensorBox must not be installed vertically with the SMA logo at the top,
as this allows water to enter the device (ventilation membrane).

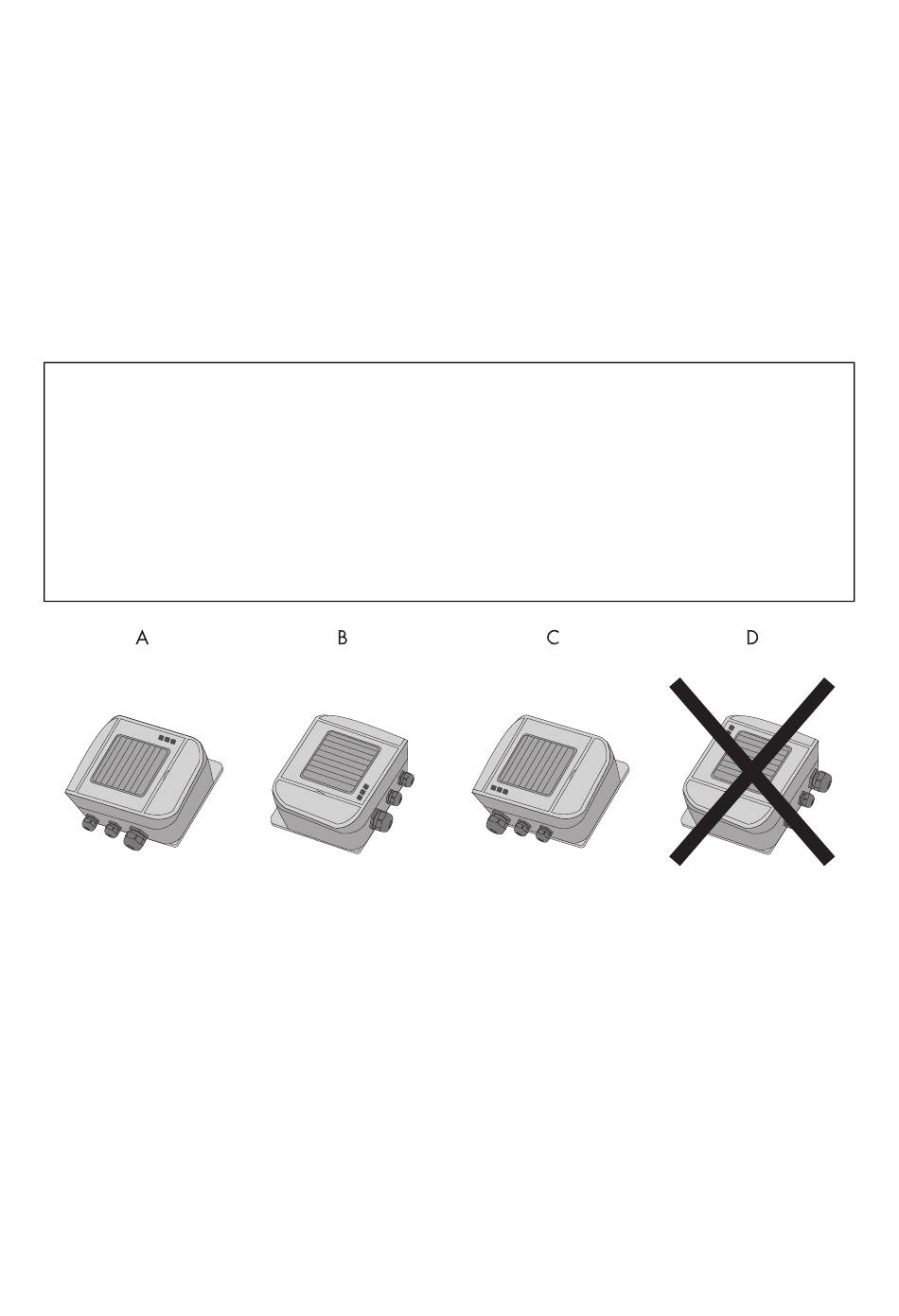

A Permitted: Sunny Sensor Box mounted horizontally. SMA Logo is on the top right.
B Permitted: Sunny Sensor Box mounted vertically. SMA Logo is on the bottom right.
C Permitted: Sunny Sensor Box mounted horizontally. SMA Logo is on the bottom left.
D Prohibited: Sunny Sensor Box mounted vertically. SMA Logo is on the top left.
