10 Opening and Closing the Sunny SensorBox
NOTICE!
Ingress of water into the opened Sunny SensorBox.
Damage to the Sunny SensorBox.
• When working outdoors, make sure that no liquids (e. g. rain or snow) enter the open
Sunny SensorBox.
10.1 Opening the Sunny SensorBox
1. Pull the RS485-Power Injector's plug-in power supply out of the socket.

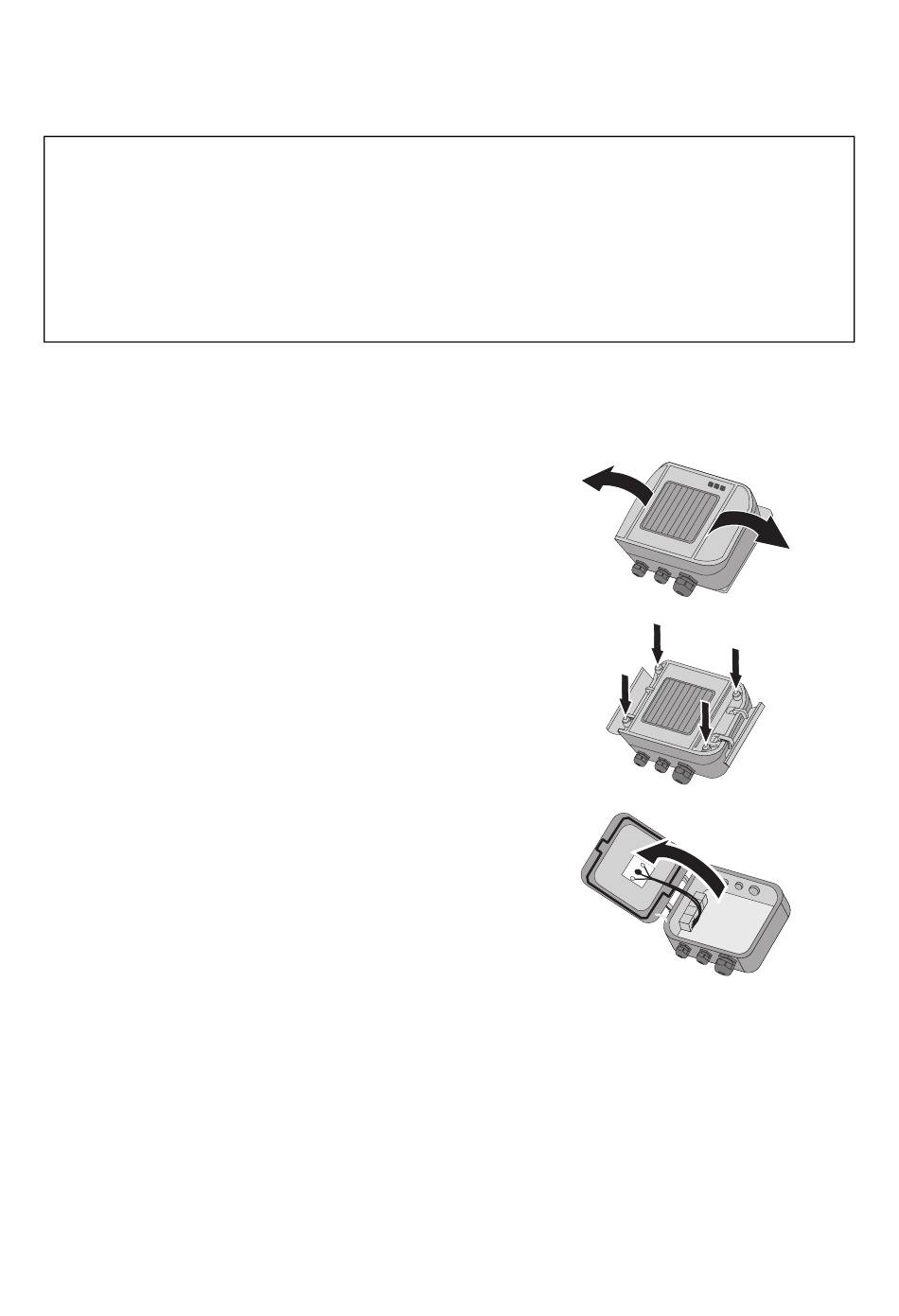

2. Flip the two flaps on the right and left side of the
Sunny SensorBox aside. Use the cutouts on the flaps
to do so.
☑ The flaps are opened.
3. Loosen the 4 screws on top and bottom in the corners
of the Sunny SensorBox in a counterclockwise
direction. The screws cannot be removed.
4. Open the enclosure lid up towards the left. The cover
is connected to the lower shell by hooks.
☑ The Sunny SensorBox is opened.
