SMA SUNNY SENSORBOX Installation Manual page 43

SMA Solar Technology AG

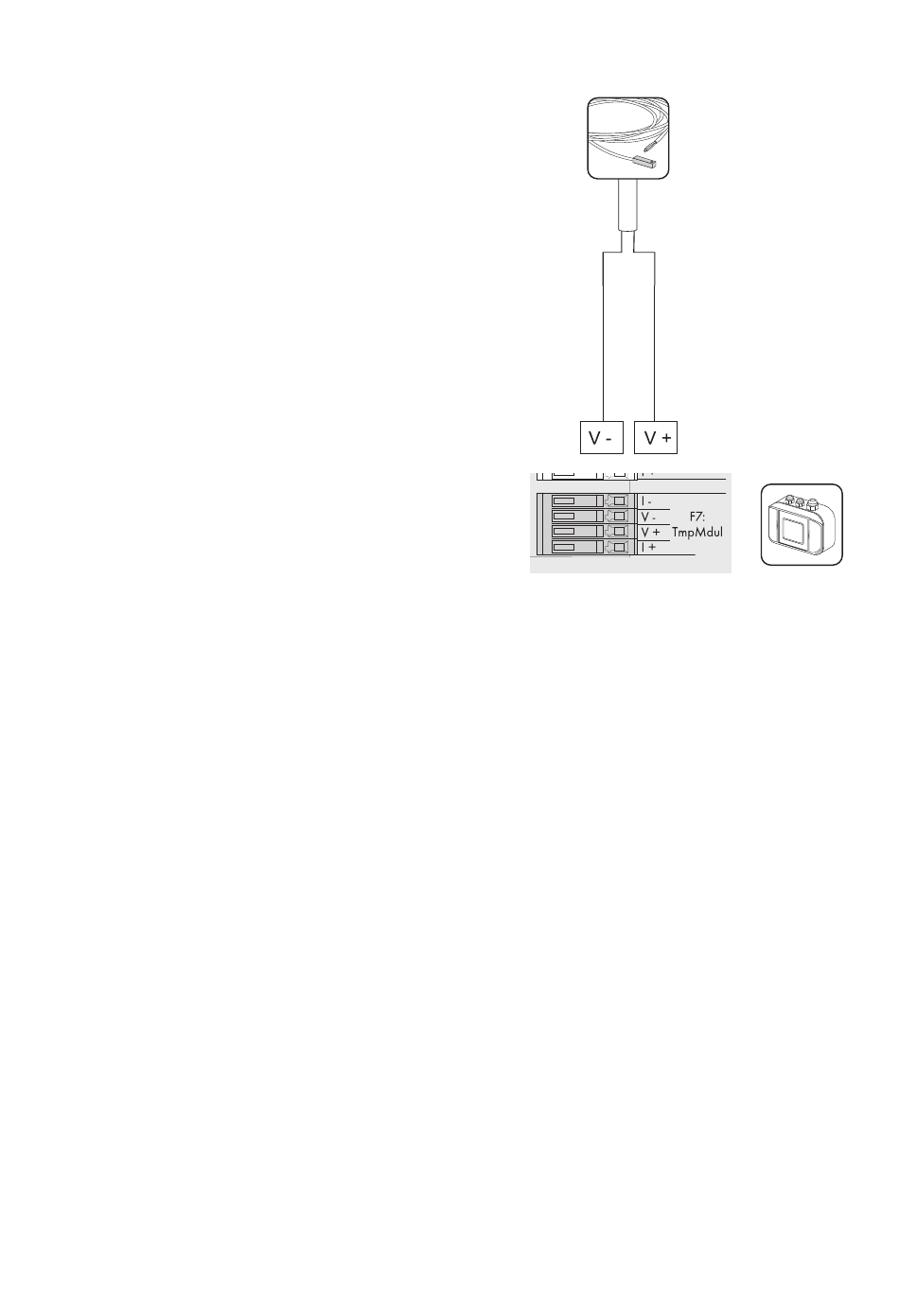

4. Connect the sensor to the "F7: TmpMdul" terminal of
the Sunny SensorBox as described in section
5.2.4 "Operating the Terminals for the Sensors"
(page 30).
5. Ensure that the grommet of the cable gland is
correctly in place.
6. Screw the lock nut hand-tight onto the cable gland in
a clockwise direction, in order to fix the cable
(torque: 7 in-lbs).
7. Securely lay the cable using suitable fastening
material.
8. Close the Sunny SensorBox as described in section
10.2 "Closing the Sunny SensorBox" (page 52).
☑ The module temperature sensor is connected.
Installation Guide
Electrical Connection
Sensorbox-IUS084413 43
