13.5 Anemometer

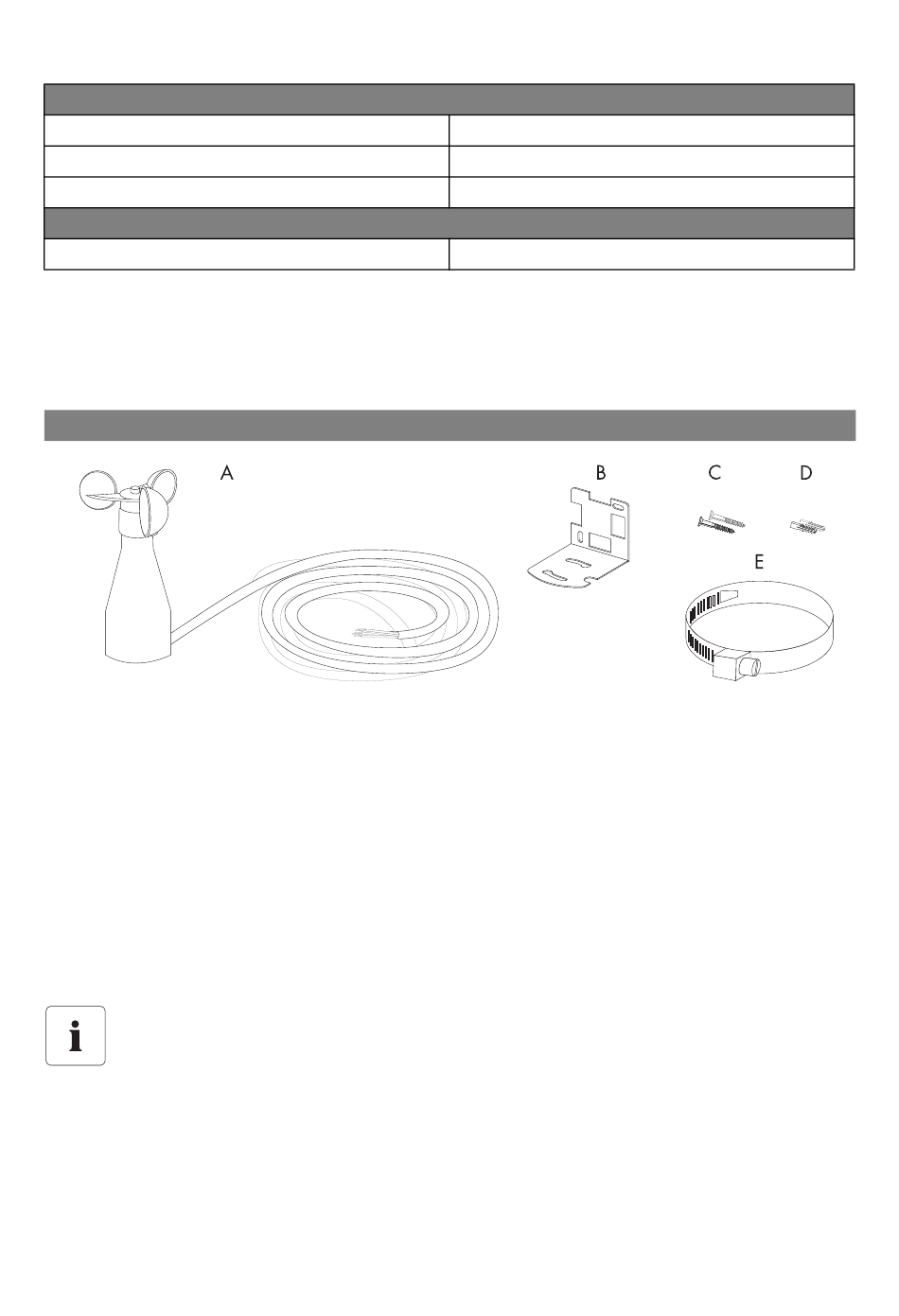

13.5.1 Packing List
SMA order number: WIND-SENSOR
A 1 Anemometer with a connection cable of 10 ft. and screws on the bottom side
B 1 Mounting bracket
C 2 Screws
D 2 Screw anchor
E 2 Straps
13.5.2 Cabling Recommendations
The cable length and quality have an effect on the signal quality. To achieve a good quality signal,
observe the following instructions regarding cabling:
For the anemometer, you only need to use two of the four conductors.
The cable details indicated below describe a 4-wire cable. You can use a 2-wire cable with
the same properties as well.
Outdoors
For the outdoors, use a communication cable with the following key properties.
• Cross-section: min. 4 x AWG 24
• External cable diameter: min. 0.16 in., max. 0.24 in.
66 Sensorbox-IUS084413
± 0.9 °F
-22 °F to +176 °F
0.18 °F
5 years
