When you have the Projector Mount in the desired position,
4.
move the Lock Switch on the Ball-Joint Mechanism back
into the locked position, securing the Projector in place.

Adjusting the Torque

Using the 5 mm Hex Key, remove the M6 x 12 mm Screws
1.
from the Ball-Joint Mechanism from either the Lower
Pole or the Ceiling Bracket, depending on your installation
method.
Using a Socket Wrench and 8 mm Socket, loosen or tighten
2.
the Nut located in the center of the Ball-Joint Mechanism.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

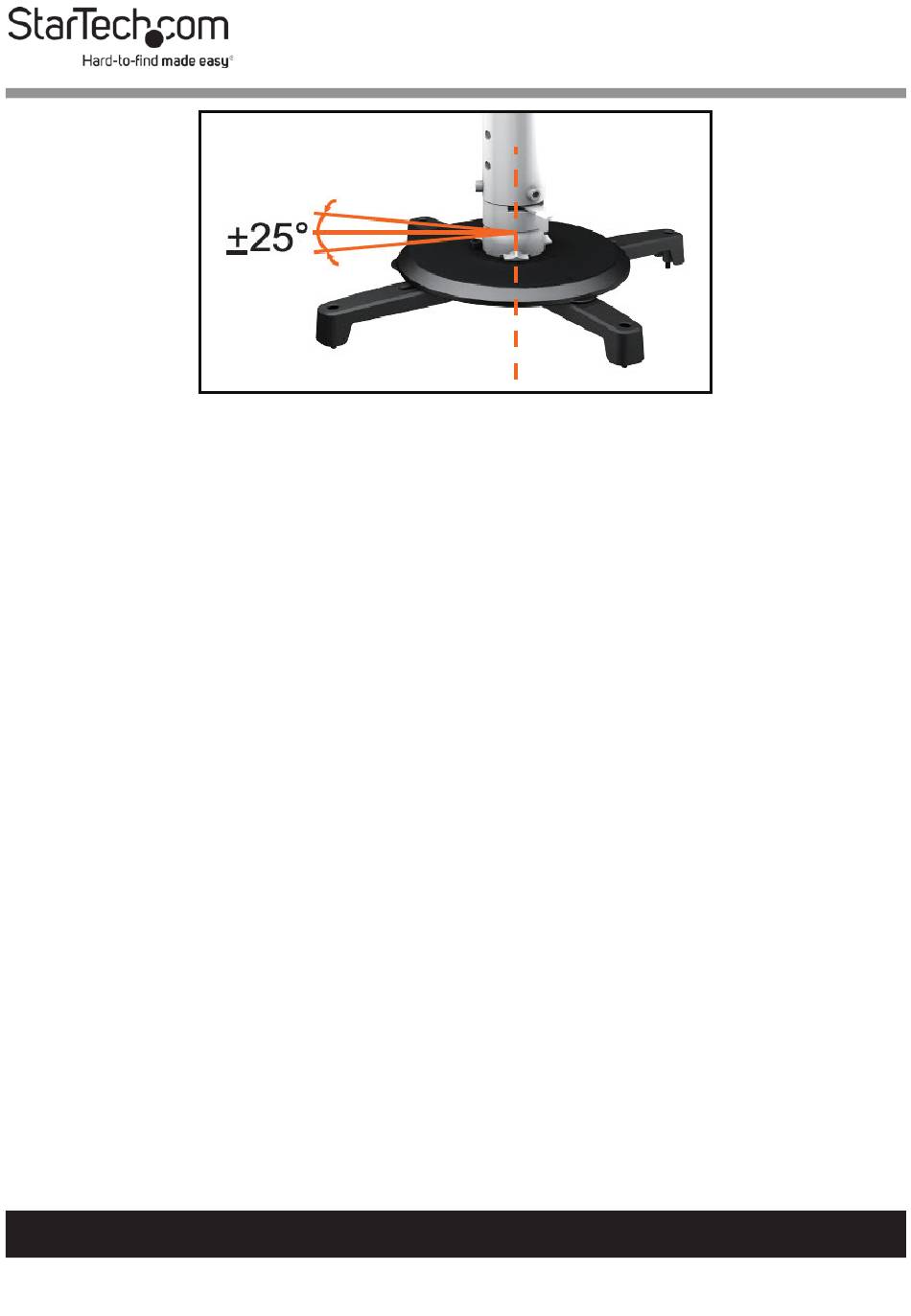

Adjusting the Tilt
