Attaching the Lower Pole to the Ball-Joint Mechanism

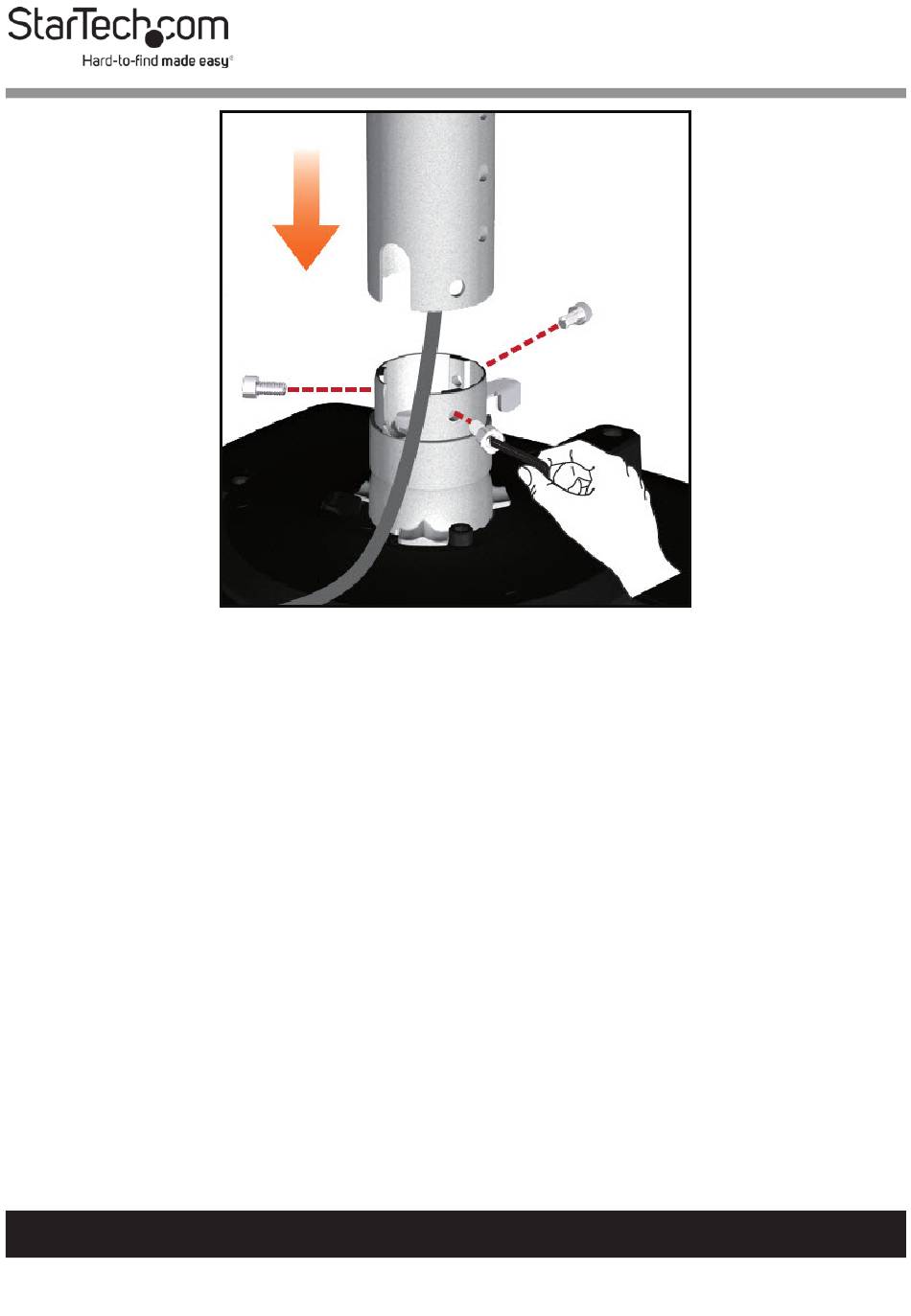

Feed the Projector Cables through the Upper Pole and
20.
slide the Upper Pole (with the two screw holes facing down)
down over-top of the Lower Pole.
Insert the M6 x 65 mm Screws ( x2) through the Screw
21.
Holes on the Upper Pole and the Adustment Holes Lower
Poles (at the appropriate height) and into a Nut on the
opposite side.
Using the 10 mm Wrench hold the Nut on the end of the
22.
M6 x 65 mm Screw, use the 5 mm Hex Key to tighten the
M6 x 65 mm Screws.
