When the Ceiling Plate is installed in a ceiling, slide both
3.
pieces of the Ceiling Plate Cover back over-top of the
Ceiling Plate, snaping them together.

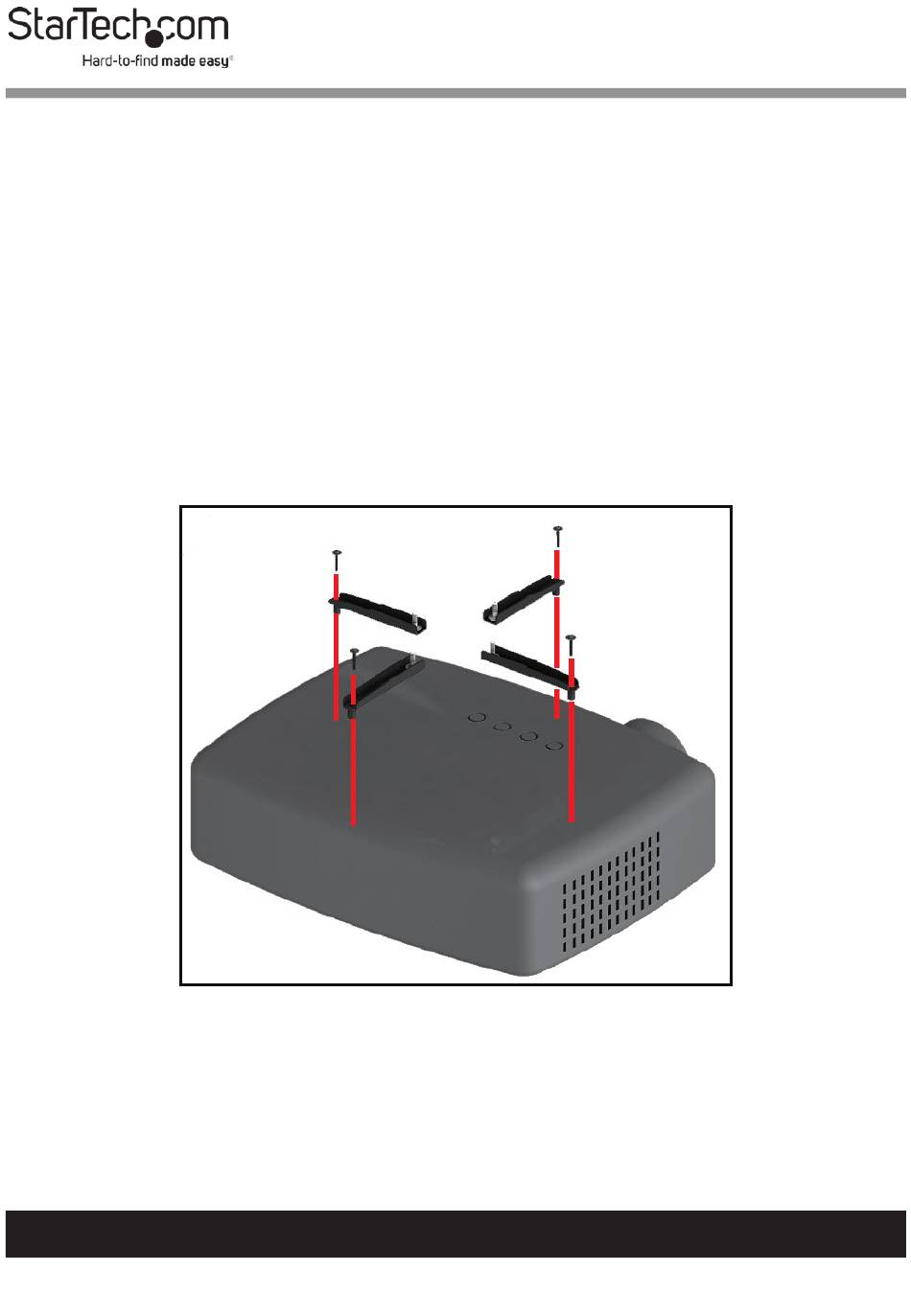

Align the Mounting Arms with the Mounting Holes on the
4.
top of the Projector.
Select the appropriate Installation Screws (M3 x 24 mm, M4
5.
x 24mm, M5 x 24 mm, or M6 x 24 mm).
Insert the selected Installation Screws (x 4), through the
6.
Mounting Holes in the Mounting Arms and into the
Mounting Holes on the Projector.
Using a Phillips Head Screwdriver, tighten the Installation
7.
Screws. Be careful not to over-tighten.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Installing the Mounting Arms
20
