Align the Mounting Holes on the Ball-Joint Mechanism
16.
with the Mounting Holes on the Ceiling Plate.
Insert an M6 x 12 mm Screw (x 2) through the Mounting
17.
Holes (x 2) in the Ball-Joint Mechanism and into the
Mounting Holes ( x 2) on the Ceiling Plate.
Using the 5 mm Hex Key, tighten the M6 x 12 mm Screws.
18.

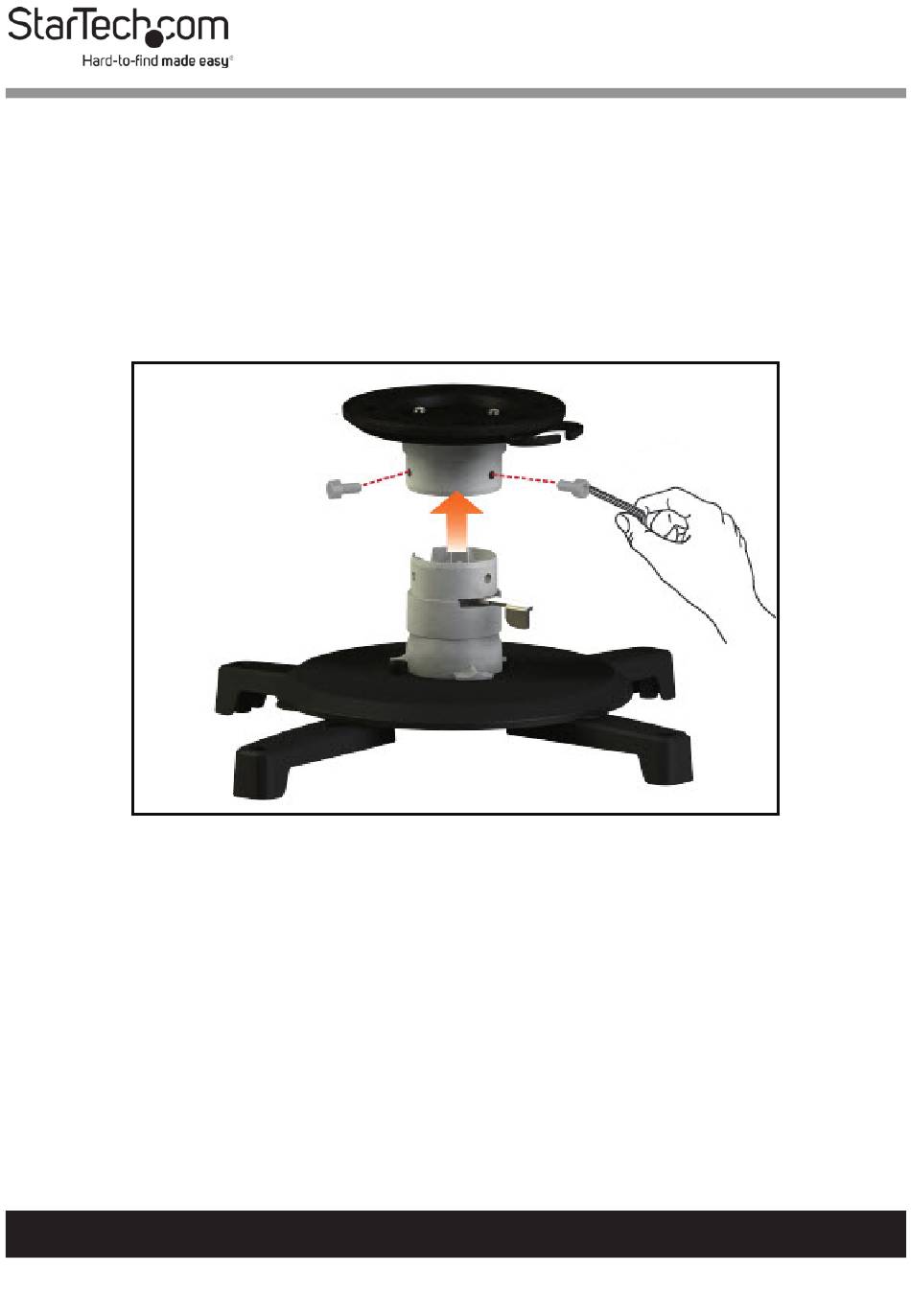

Installing the Ball-Joint Mechanism to the Ceiling Plate
