Place the Projector Plate Cover over the Projector Plate.
12.
Align the Protrusions on the bottom of the Ball-Joint
13.
Mechanism with the Slots in the top of the Projector Plate
Cover.
Insert the Protrusions into the Slots and rotate the Ball-
14.
Joint Mechanism clockwise until it locks into place.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

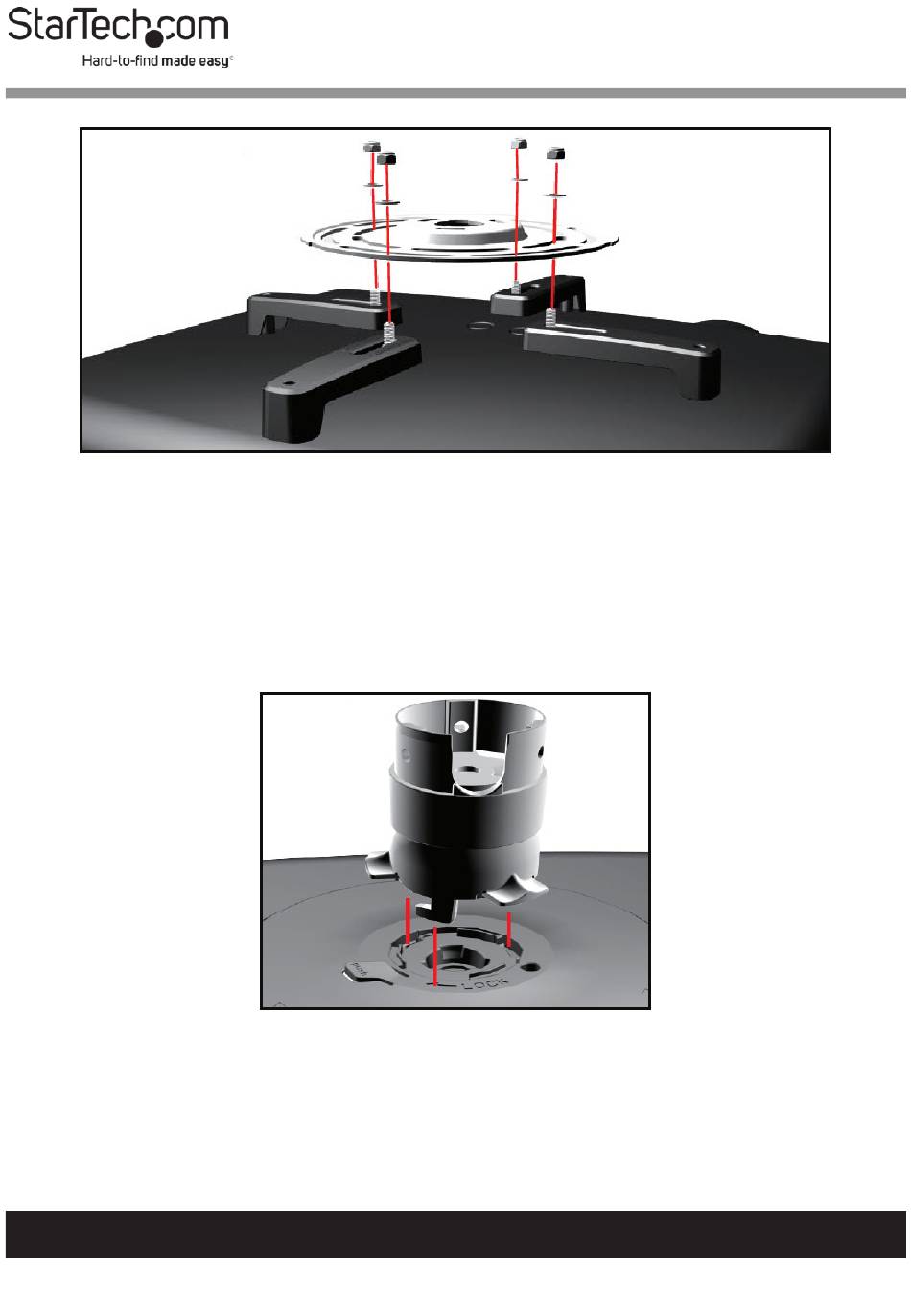

Installing the Projector Plate
Installing the Ball-Joint Mechanism
