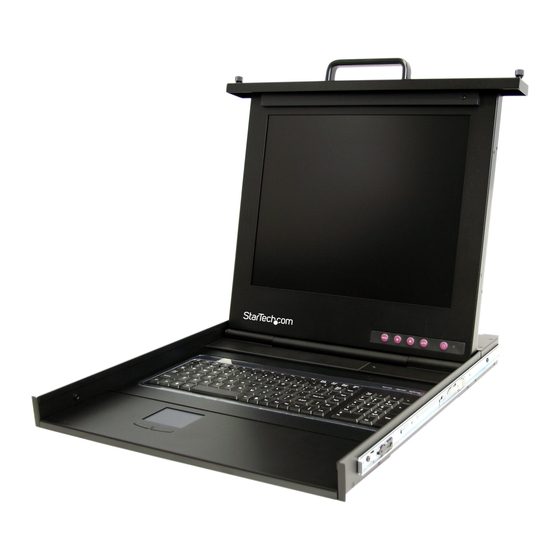

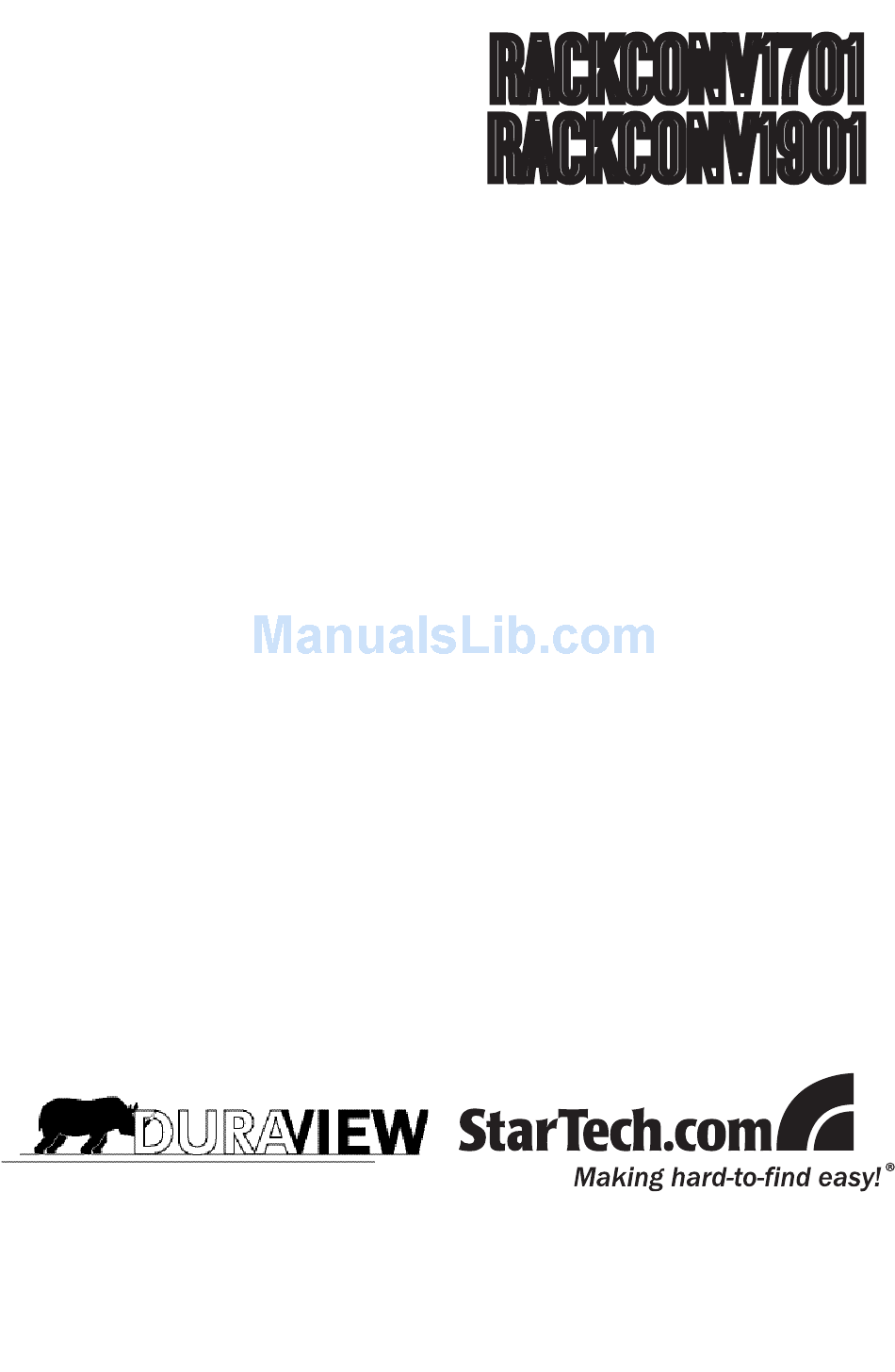

- Page 1 RACKCONV1701 RACKCONV1901 Instruction Manual Folding Rackmount Console 1U 17/19” Folding LCD Rackmount Console, USB - Value Series...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Connecting the Console ..............4 Turning on the Console ...............4 Configuring Display Settings ............4 Testing the Console ..............5 Panel Controls and OSD Functions ..........6 Specifications ..............10 RACKCONV1701 Dimensions ............11 RACKCONV1901 Dimensions ............11 Technical Support ............12 Warranty Information ............12... -
Page 4: Introduction
Introduction Packaging Contents • 1 x 1U LCD Rack Console Drawer • 1 x VGA cable • 1 x USB cable • 1 x Mounting Rails - Set • 1 x Power Adapter • 1 x Power Cord Installation Hardware Installation Hardware Kit Contents Screw kit (Used to attach... - Page 5 Mounting the console Adjust the sliding rail until the screw underneath is visible. Loosen (do not release) the two rear screws then adjust the rear bracket to fit the depth of your rack: Install the rail into the rack by attaching them to the front/rear posts using the appropriate screws and nuts for your rack (not included):...
-
Page 6: Install The Remaining Rail, Repeating Steps
Tighten the rear screws that were loosened in Step 1: Install the remaining rail, repeating Steps 1-3. Gently, but firmly insert the console into the left and right rails: Install two screws on each side of the rear console: Installation is now complete. -
Page 7: How To Use
How to Use Connecting the Console VGA input Power Connector USB output To connect the LCD console to a computer, perform the following steps: Turn off your computer. Connect the VGA video cable from the VGA output on the computer system to the VGA port on the rear of the rack console. -
Page 8: Testing The Console
Each video card has several controls that allow you to adjust the display settings, however, the software and driver for each video card is unique. In most cases, you can adjust these settings using a program or utility provided by the manufacturer of the video card. Most video cards use the Windows Display Properties control panel to configure the display. -
Page 9: Panel Controls And Osd Functions
Before you begin, make sure that power to all of the devices you will be connecting to the console have been turned off. To prevent damage to your installation due to ground potential difference, make sure that all of the devices being installed are properly grounded. Once all peripherals have been connected, please power them on. - Page 10 Contrast Press the Menu button. Use the Down and Up buttons to scroll to Contrast. Press the Menu button to enter. Use the Down and Up buttons to adjust the contrast of the display. Press the Menu button to save your selection. Color Press the Menu button.
- Page 11 Position Press the Menu button. Use the Down and Up buttons to scroll. Highlight Position and press the Menu button to enter, which will launch the following screen: Icon Description Image Pos To adjust the position of the image OSD Pos To adjust the position of the OSD Return To exit and return to the previous page...
- Page 12 Recall Press the Menu button. Use the Down and Up buttons to scroll to Recall. Press the Menu button to enter, where you will be able to select Yes/No using the Down and Up buttons. Once you have done so, press the Menu button.
-
Page 13: Specifications
Specifications RACKCONV1701 RACKCONV1901 Display Size 17” 19” Panel Type Active Matrix TFT LCD Resolution 1280x1024 @ 60Hz (max.) Capabilities Back Light four lamps Supported 16.7M Colors Colors (6-bit with FRC) Rising Time: 2ms Rising Time: 2ms Response Time Decay Time: 14ms... -
Page 14: Rackconv1701 Dimensions
RACKCONV1701 Dimensions RACKCONV1901 Dimensions... -
Page 15: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 16 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
