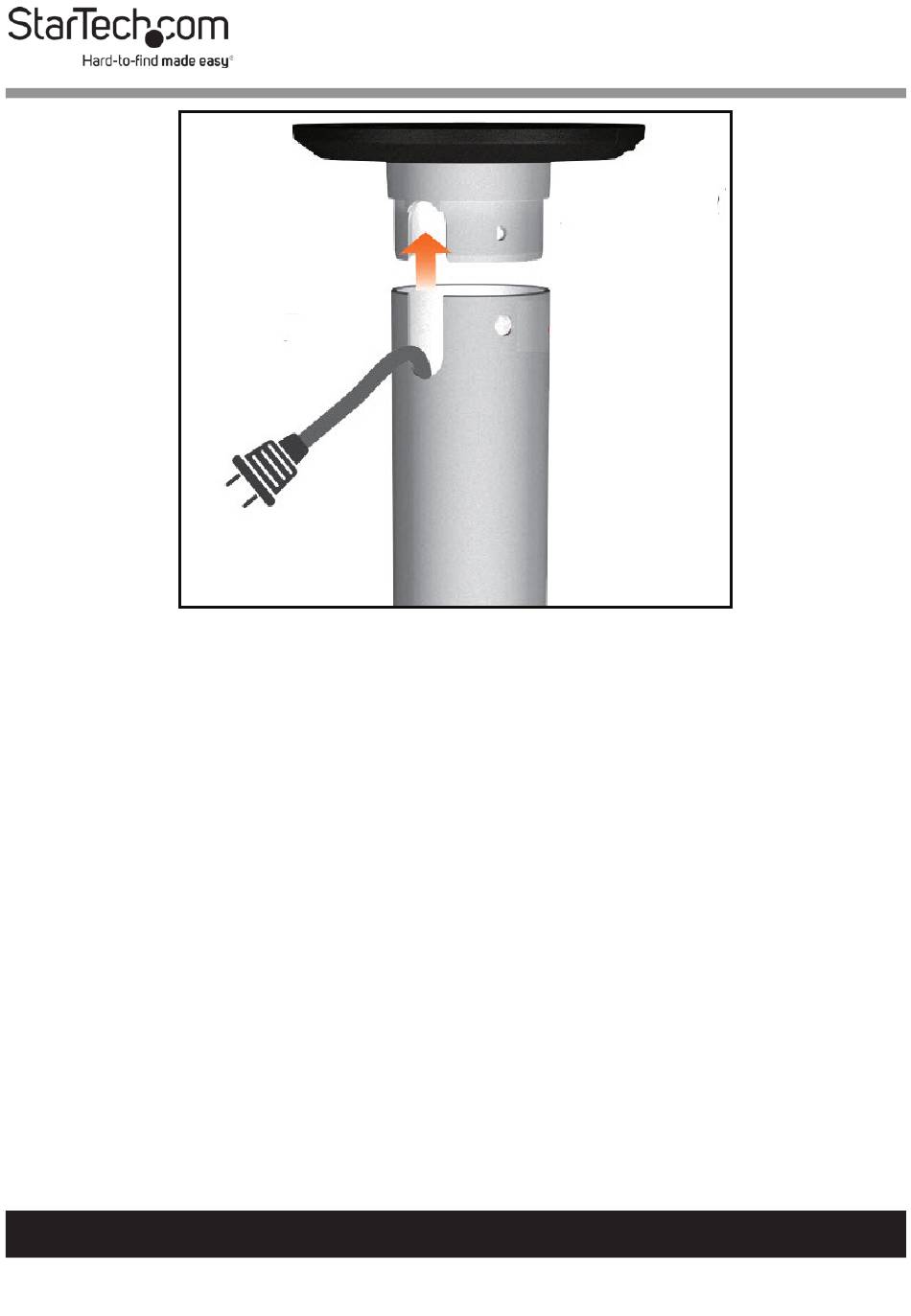

Attaching the Upper Pole to the Ceiling Mount
Align the Mounting Holes on the Upper Pole with the
24.
Mounting Holes on the Ceiling Bracket.
Insert a M6 x 12 mm Screw (x 3) through the Mounting
25.
Holes (x 3) in the Upper Pole and into the Mounting Holes (
x 3) on the Ceiling Bracket.
Using the 5 mm Hex Key, tighten the M6 x 12 mm Screws.
26.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
27
