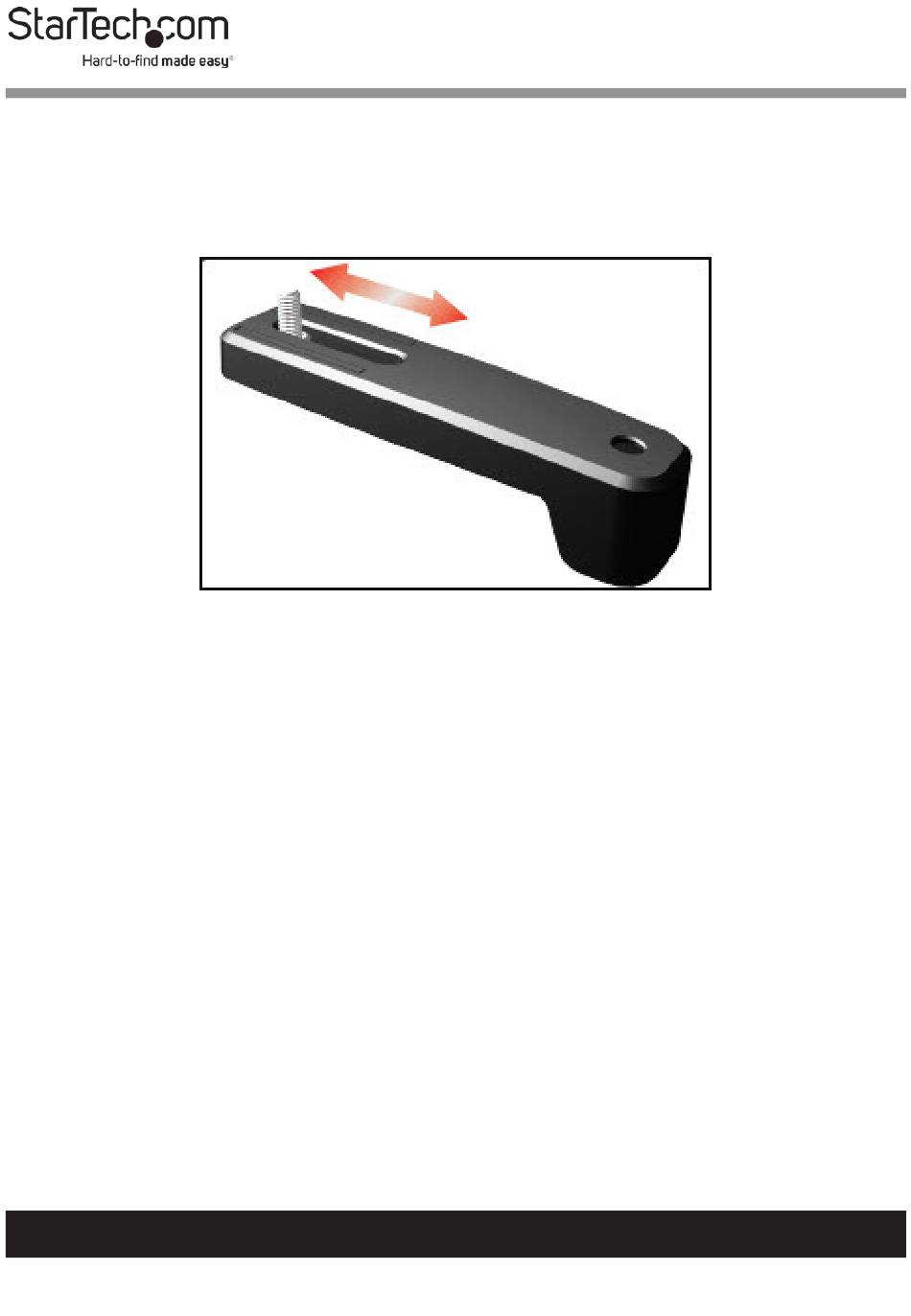

Place the Mounting Arm Covers over-top of the Mounting
8.
Arms, aligning them so that the Screw on the Mounting
Arm is protruding through the Slot in the Mounting Arm
Cover.
Align the Screws on the Mounting Arms with the
9.
appropriate Cut Outs on the Projector Plate.
Insert the Screws on the Mounting Arms through the Cut-
10.
Outs in the Projector Plate.
Place the Washers (x 4) and Nuts (x 4) onto the Screws (x 4)
11.
on the Mounting Arms and use an 8 mm Wrench to tighen
the Nuts.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Installing the Mounting Arm Covers
