- Page 1 Single Desk-Mount Monitor Arm | Full Motion Articulating with 2x USB 3.0 Ports Actual product may vary from photos User Manual SKU#: ARMPIVOT2USB3 For the latest information and specifications visit www.startech.com/ARMPIVOT2USB3 Manual Revision: 01/27/2020...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Warning Statements
• Assemblez ce produit conformément aux instructions. • Ne dépassez pas la capacité pondérale du produit. Une surcharge du produit peut entraîner des blessures ou des dommages matériels. Ce produit peut supporter 8 kg. • Ce produit est uniquement destiné à une utilisation en intérieur et ne doit pas être utilisé à l’extérieur. Warnhinweise • Beachten Sie bei der Montage dieses Produkts die Montageanweisungen. • Überschreiten Sie nicht die Tragkraft dieses Produkts. Ein Überladen dieses Produkts kann zu Verletzungen oder zur Beschädigung des Produkts führen. Dieses Produkt ist für folgendes Gewicht geeignet: 8 • Dieses Produkt ist nur zum Gebrauch in Innenräumen vorgesehen und sollte nicht im Freien verwendet werden. Dichiarazioni di avvertenza • Assicurarsi di Assemblare il prodotto secondo le istruzioni. • Non superare la capacità di carico del prodotto. Il sovraccarico del prodotto potrebbe causare danni o lesioni. Il prodotto è in grado di supportare i seguenti pesi: 8 kg. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • El uso de este producto es solo para interiores y no debe utilizarse en exteriores. Waarschuwingen • Zorg dat u dit product volgens de instructies in elkaar zet. • Overschrijd de maximale capaciteit van dit product niet. Overbelasting van dit product kan letsel of materiële schade veroorzaken. Dit product ondersteunt het volgende gewicht: 8 kg. • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり8kgまで支持 できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Safety Statements
Mesures de sécurité • Les câbles (y compris les câbles d’alimentation et de chargement) doivent être placés et acheminés de façon à éviter tout risque électrique, de chute ou de sécurité 安全対策 • ケーブル （電源ケーブルと充電ケーブルを含む） は、 適切な配置と引き回し を行い、 電気障害やつまづきの危険性など、 安全上のリスクを回避するよう にしてください。 Misure di sicurezza • I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. Säkerhetsåtgärder • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Table Of Contents
Adjusting the Monitor Mount ..............36 Adjusting the Spring Arm Tension ...................... 36 Adjusting the Tilt ............................37 Routing the Cables .................39 Using the 3.0 USB Passthough Ports ...........41 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram

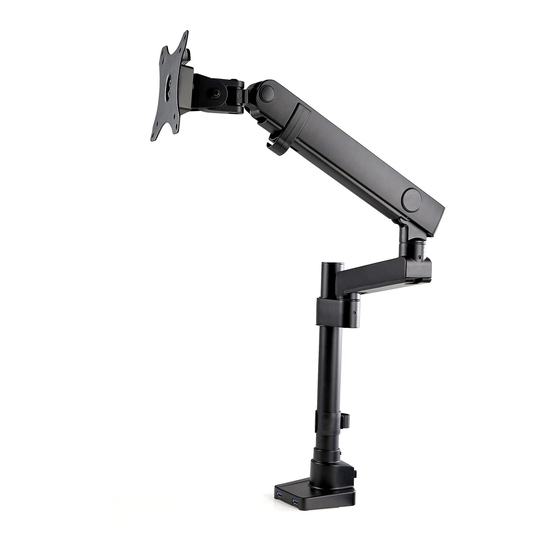

Product Diagram VESA Mount C-Clamp Upper Arm USB Ports Lower Arm Cable Clip Pole Grommet Clamp To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Dimensions
Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Rotation
Product Rotation To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Information
Product Information Pack Contents Base Clamp Assembly Upper Arm Qty: 1 Qty: 1 Lower Arm VESA Mount Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 11 Tool Clip Grommet Plate Qty: 1 Qty: 1 Grommet Screw 3 mm Hex Key Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 12 6 mm Hex Key M4 x 12 mm Screws Qty: 1 Qty: 4 M5 x 12 mm Screws Washers Qty: 4 Qty: 4 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 13 Arm Shoulder Cable Clip Qty: 1 Qty: 1 Pole Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 14: Product Specifications
Product Specifications 75 x 75 100 x 100 VESA - 90 to + 90 Rotation - 90 to + 90 Tilt 17.6 lb. (8 kg) Weight To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 15 15” to 34” Screen Size to +90 Swivel To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 16: Requirements
Requirements Tools Phillips Head Screwdriver x 1 • Displays 15” to 34” Display x 1 • Optional USB Cables x 2 • USB Compatible Devices x 2 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 17: Assembling The Monitor Mount Using The C-Clamp
C-Clamp Screw is located in the center of the Mounting Peg on the Base Clamp Assembly. Loosening the C-Clamp Screw Align the C-Clamp with the edge of the Mounting Surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 18 While supporting the C-Clamp under the Mounting Surface, use the 6 mm Hex Key to tighten the C-Clamp Screw until the C-Clamp Plate is pressed tightly against the bottom of the Mounting Surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 19 Assembly. Using the 3 mm Hex Key, tighten the small screw located on the Neck of the Mounting Hole on the Base Clamp Assembly to secure the Pole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 20 Mounting the Pole to the Base Clamp Assembly Slide the Cable Clip over-top of the Pole, sliding it down into position. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 21 Turn the Locking Lever on the Arm Shoulder clock-wise, securing the Arm Shoulder into place. Note: The Locking Lever may require multiple turns in order to properly secure the Arm Shoulder in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 22 Slide the Mounting Peg on the Lower Arm into the Mounting Hole on the Arm Shoulder. Using the 3 mm Hex Key, tighten the small screw located on the Arm Shoulder to secure the Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 23 Align the Mounting Peg on the bottom of the Upper Arm with the Mounting Hole on the top of the Lower Arm. Slide the Mounting Peg on the Upper Arm into the Mounting Hole on the Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 24 Mounting the Upper Arm to the Lower Arm Using the 3 mm Hex Key to tighten the Screw on the Lower Arm securing it to the Upper Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 25: Assembling The Monitor Mount Using The Grommet Clamp
Clamp Assembly. The C-Clamp Screw is located in the center of the Mounting Peg on the Base Clamp Assembly. Once the C-Clamp Screw is removed the C-Clamp will also detach from the Base Clamp Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 26 Grommet Hole on the Mounting Surface. Insert the Grommet Screw through the center of the Mounting Peg on the Base Clamp Assembly and out the Grommet Hole on the Mounting Surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 27 Inserting the Grommet Screw Underneath the Mounting Surface, thread the Grommet Hole on the Grommet Plate onto the Grommet Screw. Aligning the Grommet Plate To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 28 Assembly. Using the 3 mm Hex Key, tighten the small screw located on the Neck of the Mounting Hole on the Base Clamp Assembly to secure the Pole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 29 Mounting the Pole to the Base Clamp Assembly Slide the Cable Clip over-top of the Pole, sliding it down into position. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 30 Turn the Locking Lever on the Arm Shoulder clock-wise, securing the Arm Shoulder into place. Note: The Locking Lever may require multiple turns in order to properly secure the Arm Shoulder in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 31 Slide the Mounting Peg on the Lower Arm into the Mounting Hole on the Arm Shoulder. Using the 3 mm Hex Key, tighten the small screw located on the Arm Shoulder to secure the Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 32 Align the Mounting Peg on the bottom of the Upper Arm with the Mounting Hole on the top of the Lower Arm. Slide the Mounting Peg on the Upper Arm into the Mounting Hole on the Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 33 Mounting the Upper Arm to the Lower Arm Using the 3 mm Hex Key, tighten the Screw on the Lower Arm securing it to the Upper Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 34: Mounting The Monitor
Note: Be careful not to remove any of the Screws holding the Monitor’s Casing together. Align the Washers (included) with the VESA Mounting Holes on the back of the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 35 Note: Do not over-tighten the Screws. If you encounter re- sistance while you’re tightening the Screws, stop tightening. Failure to do so could result in damage to the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 36 VESA Holder on the Spring Arm. Slide the Mounting Plate on the VESA Mount down into the VESA Holder until the Mounting Plate is sitting on the bottom of the VESA Holder. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 37: Adjusting The Monitor Mount
Use the 6 mm Hex Key to rotate the Adjustment Screw located at the back of the Spring Arm, just above the joint. Rotate clockwise to increase tension or counter clockwise to decrease tension. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 38: Adjusting The Tilt
Note: Be careful not to pinch your hand when making ad- justments to the Monitor. Adjusting the Tilt Use the 6 mm Hex Key to loosen the Tilt Adjustment Screw located at the side of the VESA Holder. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 39 Note: Be careful not to pinch your hand when making ad- justments to the Monitor. When you have achieved the desired tilt, hold the Monitor in that position and tighten the Tilt Adjustment Screw. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 40: Routing The Cables
Run the Monitor Cables along the inside of the Upper Arm. Gently push the Monitor Cables into the Cable Clip located on the inside of the Upper Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 41 Lower Arm. Be careful not to pinch the Monitor Cable between the Cable Cover and Lower Arm. Run the Monitor Cable down the Pole and through the Cable Clip. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 42: Using The 3.0 Usb Passthough Ports
Ports on the Host Computer. Connect a USB Cable to the USB Ports on the front of the Base and the other end to a compatible USB Device. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 43 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
