Hardware layout and configuration

7 Hardware layout and configuration
The STM32F7308-DK Discovery kit is designed around the STM32F730I8K6 (176-pin in
UFBGA package). The hardware block diagram (see
between STM32F730I8K6 and peripherals (PSRAM, Quad-SPI Flash memory, LCD
connector, USB OTG HS and FS connectors, USART, Audio, Arduino™ Uno V3, Pmod™
and STMod+ shields and embedded ST-LINK).
these features on the STM32F7308-DK board. The mechanical dimensions of the
STM32F7308-DK board are showed in
1. Dotted lines identify the shared signals.
10/59
Figure

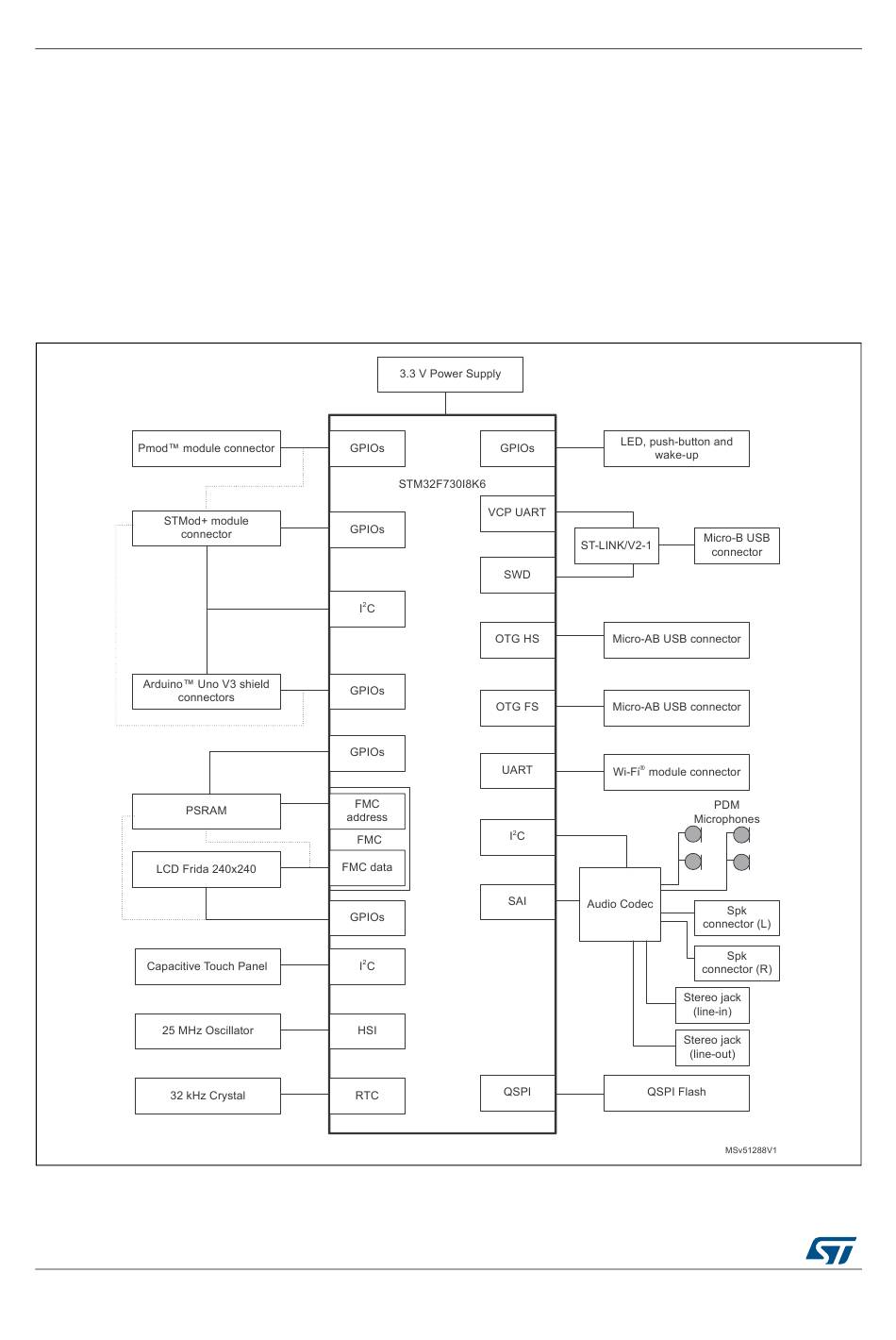

Figure 3. Hardware block diagram

UM2469 Rev 1
Figure 3) illustrates the connection
Figure 4 and Figure 5
6.
UM2469
help users to locate
