Hardware layout and configuration

7.1

Hardware block diagram and board layout

The STM32U575I-EV Evaluation board is designed around the STM32U575AII6Q target microcontroller.
illustrates STM32U575AII6Q connections with peripheral components.
components on the top side of the Evaluation board, and
the bottom side of the Evaluation board.
3 V battery
32 KHz crystal
HSE crystal (optional)
Extension connectors for
Octo-SPI module
Octo-SPI Flash memory
microSD™ card connector
USB Type-C
®
TS pad
CAN FD connector
Smartcard connector
RS-232 DB9 connector
Pmod™ connector
STMod+ connector
STLINK-V3E SWD/VCP
JTAG/SWD connector
TAG connector
STDC14 connector
Trace connector
Extension connector
UM2854 - Rev 1
Figure 3.
3.3 V power Adjustable power
supply supply (1.7 to 3.6 V)
VBAT
RTC
HSE
Octal-SPI1
Octal-SPI2
SDMMC1
USB FS, UCPD1
connector
TSC
FDCAN1
UART3
Smartcard
LPUART1
SPI3
USART1
JTAG / SWD
ETM
Figure 4
Figure 5 shows the location of the main components on

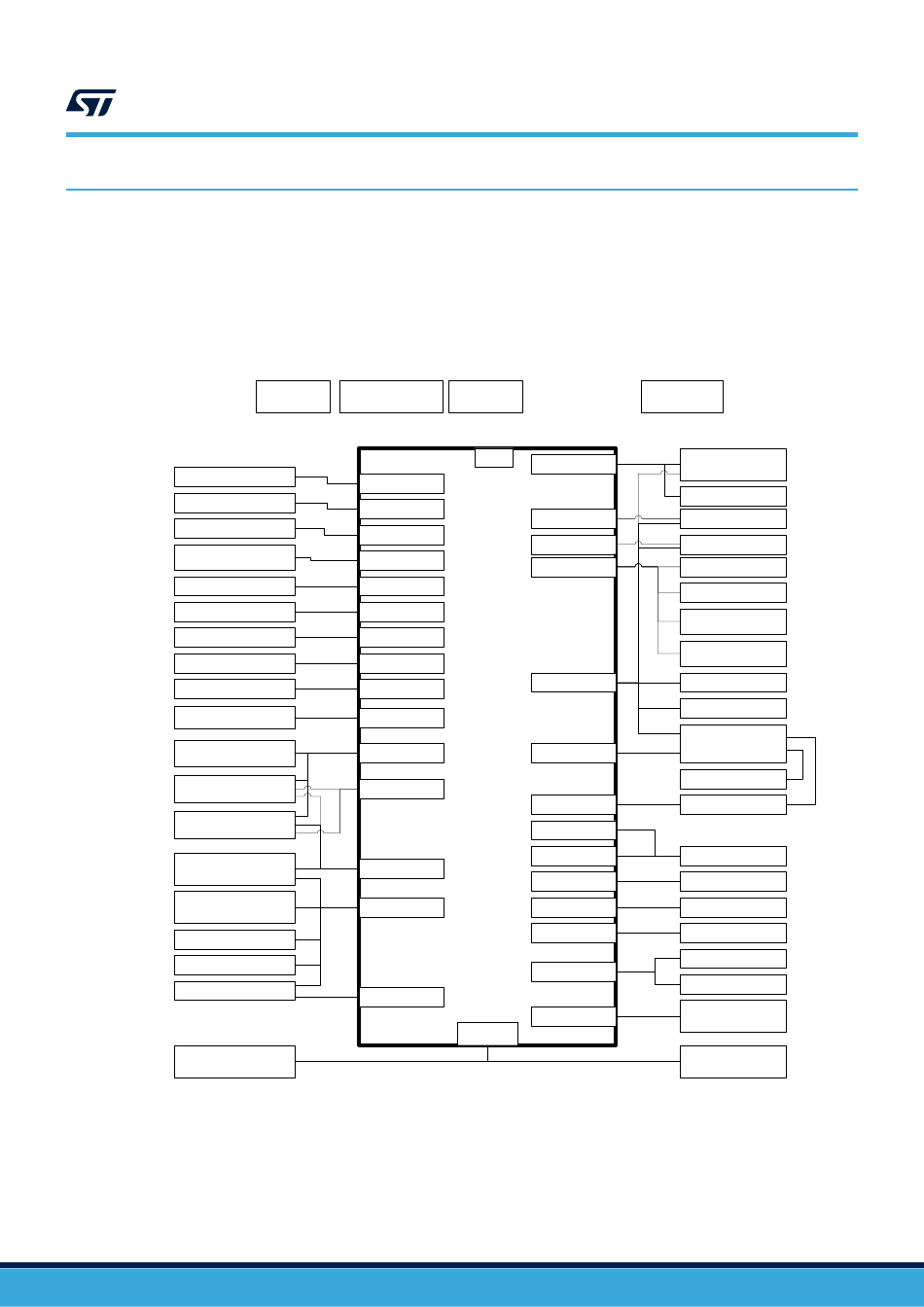

Hardware block diagram
1.8 V power
supply
INT-
SMPS
FMC
DCMI
SAI1
ADF1 / MDF1
I2C2
STM32
U575AII6Q
GPIO INT/RST
GPIO
Comp2
OpAmp1
ADC1/DAC1
NRST
BOOT0
GPIO
Shared GPIO
MCU GPIOs
STM32U575I-EV
Hardware layout and configuration
Figure 3
shows the location of the main
5V_SELECTION
TFT LCD and
touch panel
SRAM
CMOS camera
Audio codec
MEMS
External MEMS
STMPS2
Sigma-Delta
STMPS2
power metering
EEPROM
External I 2 C connector
MFX I/O-expander
Joystick
LED
Potentiometer/LDR
ADC/DAC connector
RESET
Boot mode
Wake-up key
Tamper key
Motor-control connector
Extension connector
