Connectors
8.8
Control Touch Panel (CTP) Frida connector

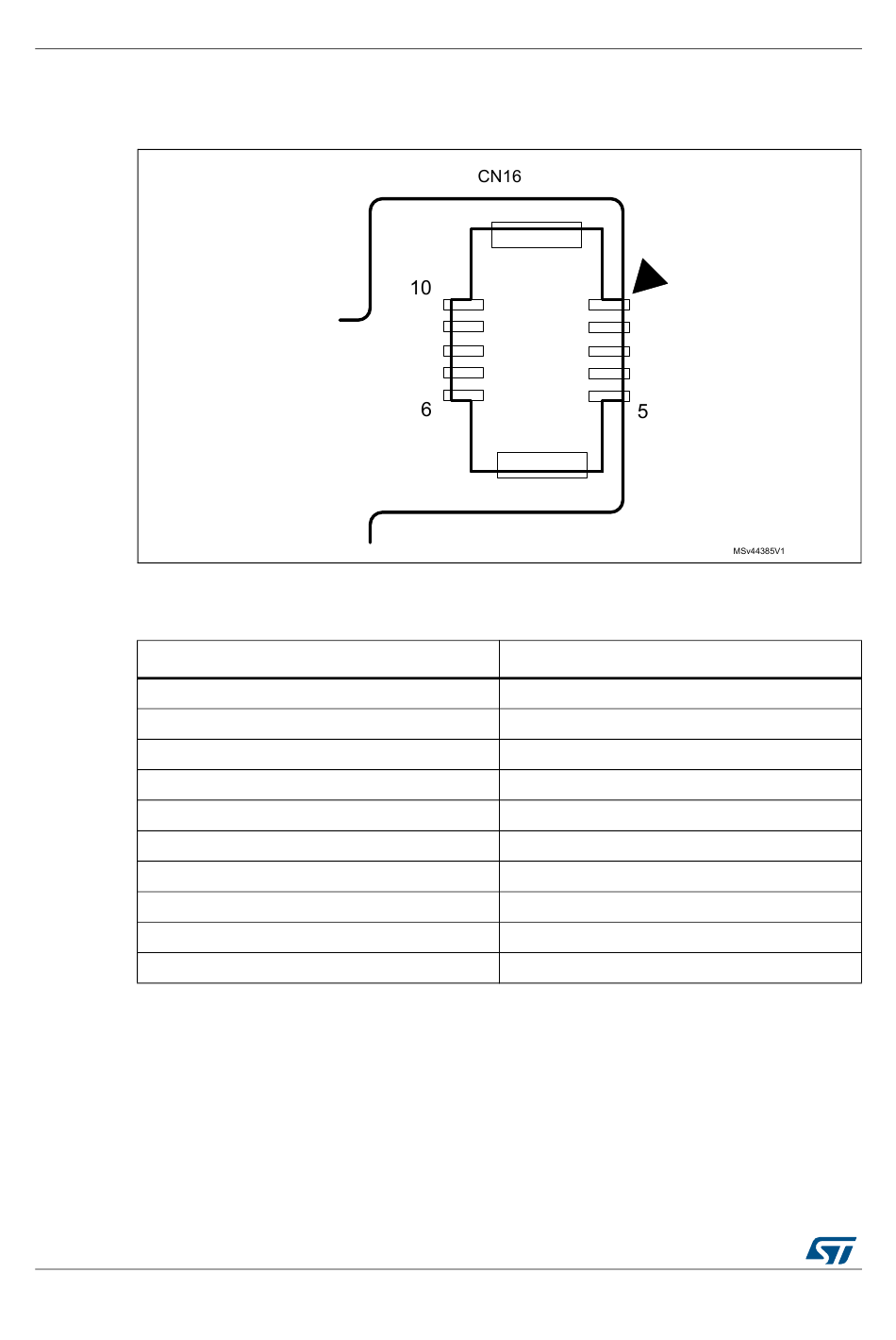

Figure 20. CTP connector ((Hirose DF37NB-10DS-0.4V (5x)) CN16 (front view)
30/59
Table 13. Pin description of the CTP connector CN16
Pin number
1
2
3
4
5
6
7
8
9
10
UM2469 Rev 1
UM2469
Description
GND
INT
GND
SDA
SCL
GND
RESET
IOVCC
VDD
GND
