LCD Frida connector

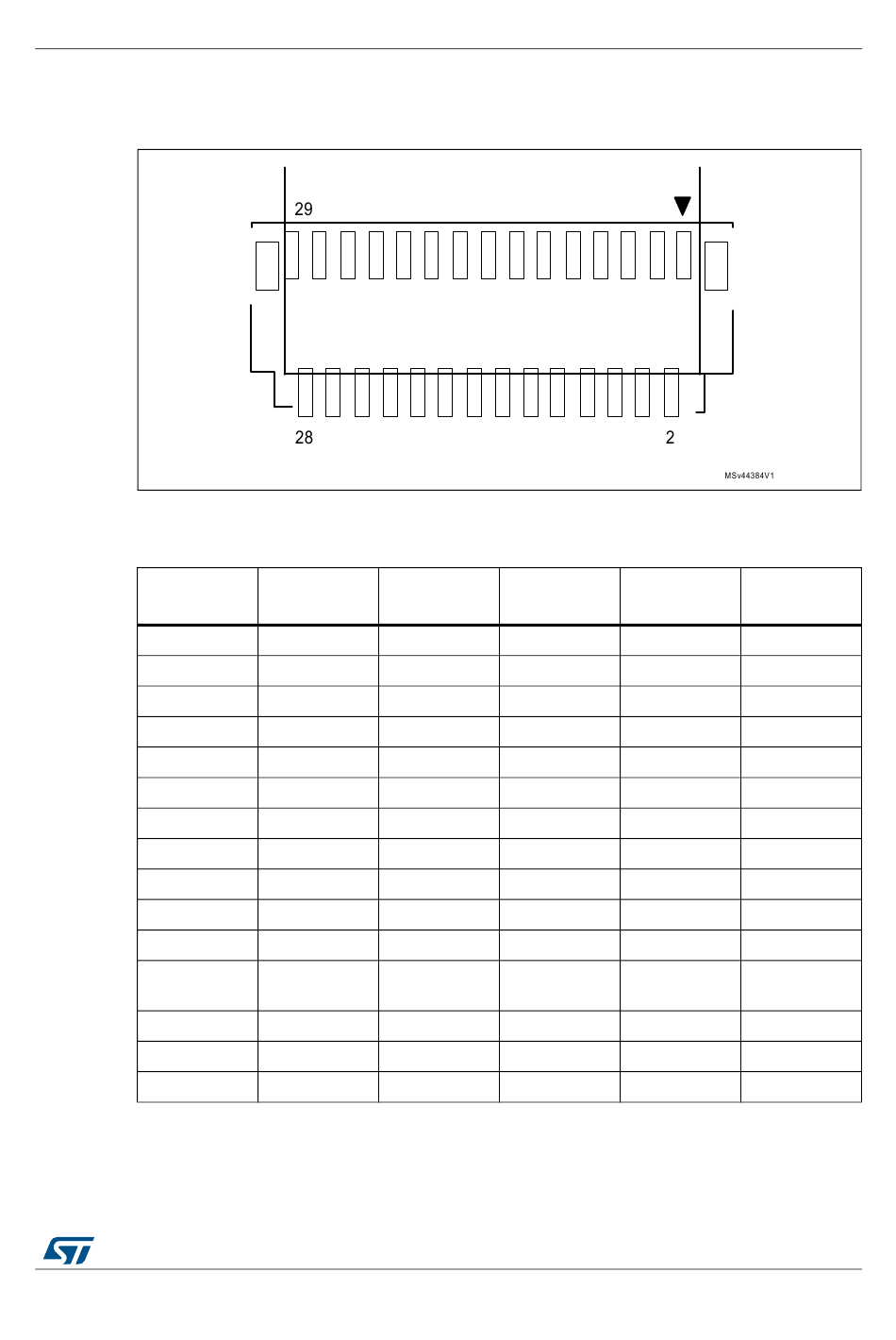

Figure 19. LCD Frida connector (Hirose FH26-29S-0.3SHW) CN17 (front view)

Pin number
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
Note: LEDA and LEDK backlight is controlled by STLD40DPUR (U12) with PH11 PWM.

Table 12. Pin description of the LCD Frida connector CN17

Description
connection
GND
DB15 FMC_D15
DB13 FMC_D13
DB11 FMC_D11
DB9 FMC_D9
DB7 FMC_D7
DB5 FMC_D5
DB3 FMC_D3
DB1 FMC_D1
NRD FMC_NOE
RS PF0 (FMC_A0)
RESET
(LCD_RST)
IOVCC
GND
LEDK
UM2469 Rev 1
Pin
Pin number
GND 2
4
6
8
10
12
14
16
18
20
22
PH7
24
VDD 26
GND 28
LEDK -
Connectors
Pin
Description
connection
FMARK PC8 (TE INT)
DB14 FMC_D14
DB12 FMC_D12
DB10 FMC_D10
DB8 FMC_D8
DB6 FMC_D6
DB4 FMC_D4
DB2 FMC_D2
DB0 FMC_D0
NWR FMC_NWE
NCS PG9 (NE)
IM VDD
VCI 3.3 V
LEDA LEDA
- -
