5.8

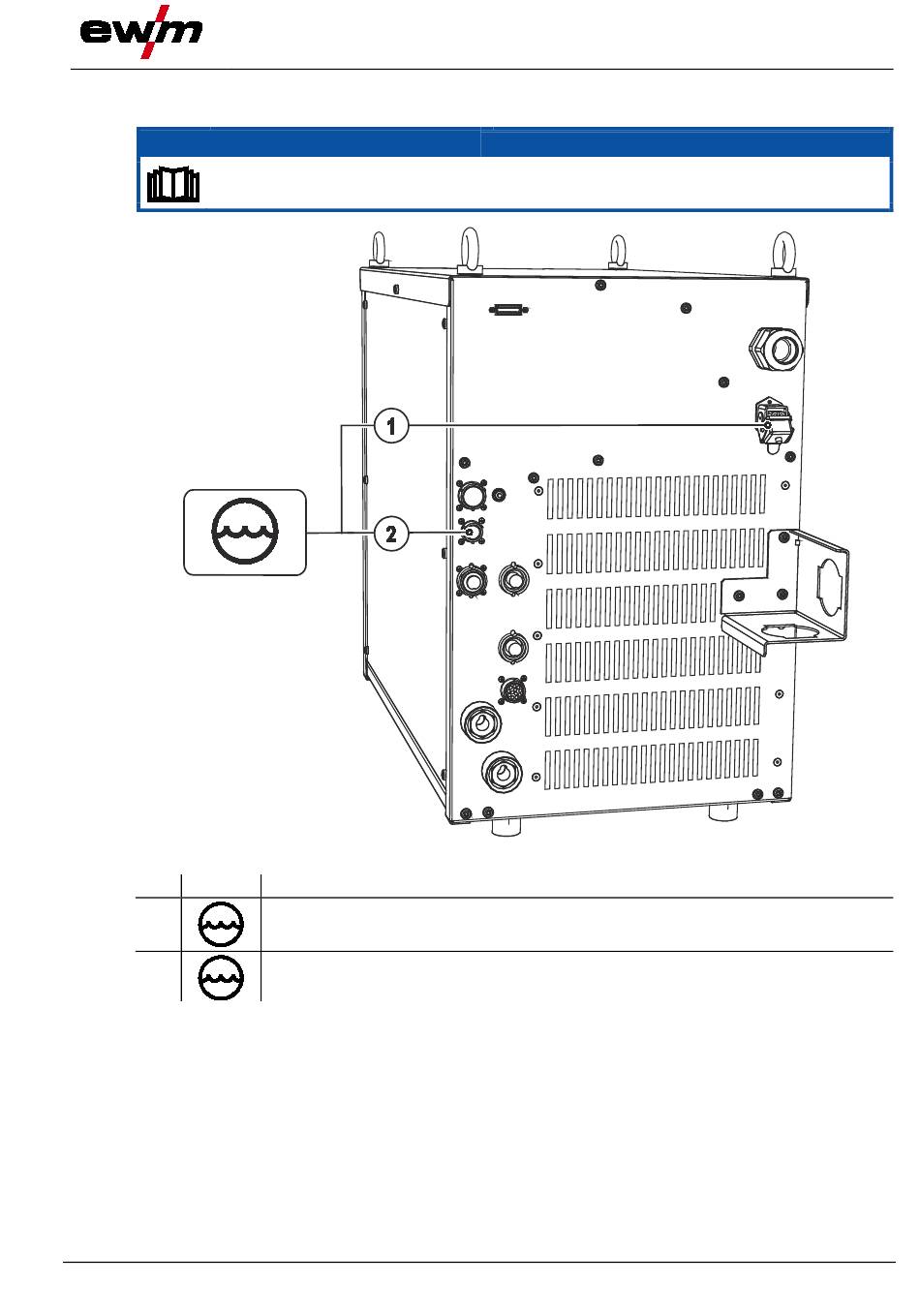

Connect the cooling module to the power source

Please note the relevant documentation of the accessory components.
Item Symbol
1
2
•
Insert and lock the 8-pole control lead plug on the cooling module into the 8-pole connection socket on
the welding machine.
•
Insert and lock the 5-pole supply plug on the cooling module into the 5-pole connection socket on the
welding machine.
099-005366-EW501
31.07.2014
Description 0
8-pole connection socket
Cooling unit control lead
Connection socket, 5-pole
Cooling unit voltage supply
Design and function
Connect the cooling module to the power source
NOTE
Figure 5-5
