Machine description – quick overview

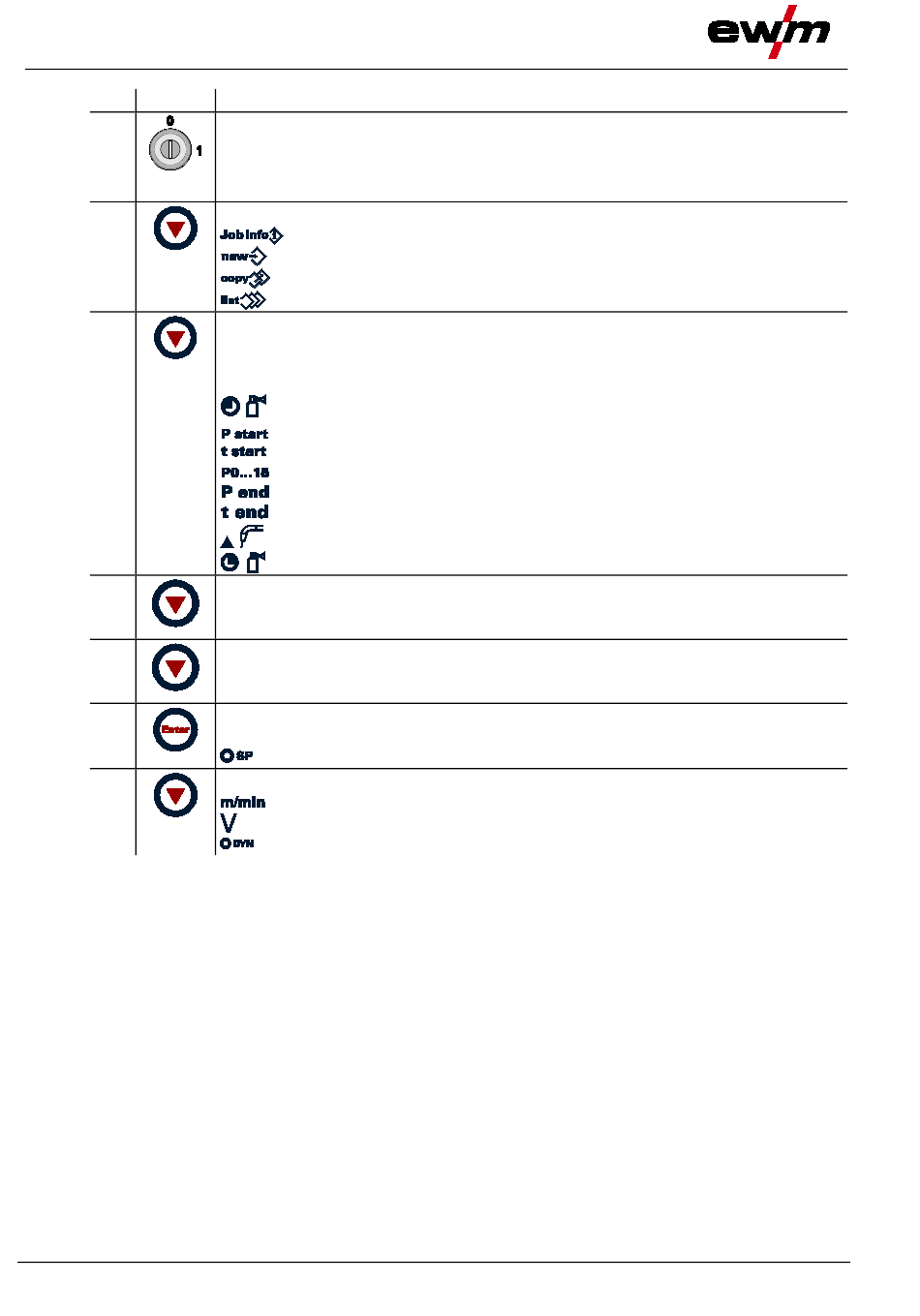

Machine control – Operating elements
Item Symbol
6
7
8
9
10
11
12
22
Description 0
Key switch for protection against unauthorised use
Position "1" > changes possible,
Position "0" > changes not possible.
"See 5.15 Protecting welding parameters from unauthorised access chapter".
"JOB Manager" button (organise welding tasks)
Display information on the current welding task selected
Define new welding task
Copy welding task
Display information on any welding task (job)
Button, "Program sequence"
During operation, the current position in the program sequence is shown.
Outside, the values can be selected and welding parameters changed by means of the
rotary dial.
Gas pre-flows (0.0 to 20.0 sec)
Start program (WFstart 0% to 200% / Ustart)
Start time (0.0 to 20.0 sec)
Current program display
End program (0% to 200%)
End time (0.0 to 20.0 sec)
Wire burn-back (2 to 500)
Gas post-flow time (0.0 s to 20.0 s)
Button, "Program selection 8 to 15"
Display the selected program during the welding process and select program outside
the welding process.
Button, "Program selection 0 to 7"
Display the selected program during the welding process and select program outside
the welding process.
"ENTER" button
Confirmation, e.g.: of JOB parameters
Superpuls
Button, "Program A" (operating point)
Wire speed
Voltage correction
Dynamics (signal light flashing)
