Design and function
Interfaces
Item Symbol
1
2
3
4
5
6
7
40
Description 0
7-pole connection socket (digital)
For connecting digital accessory components
Switching cabinet
Robot interface, Tetrix / Phoenix / alpha Q, RINT X12
Industrial bus interface, Tetrix / Phoenix / alpha Q, BUSINT X11
Interface casing
Connection cable, 7-pole
Connection between switching cabinet and power source
Connection lead
Connection between interface casing and switching cabinet

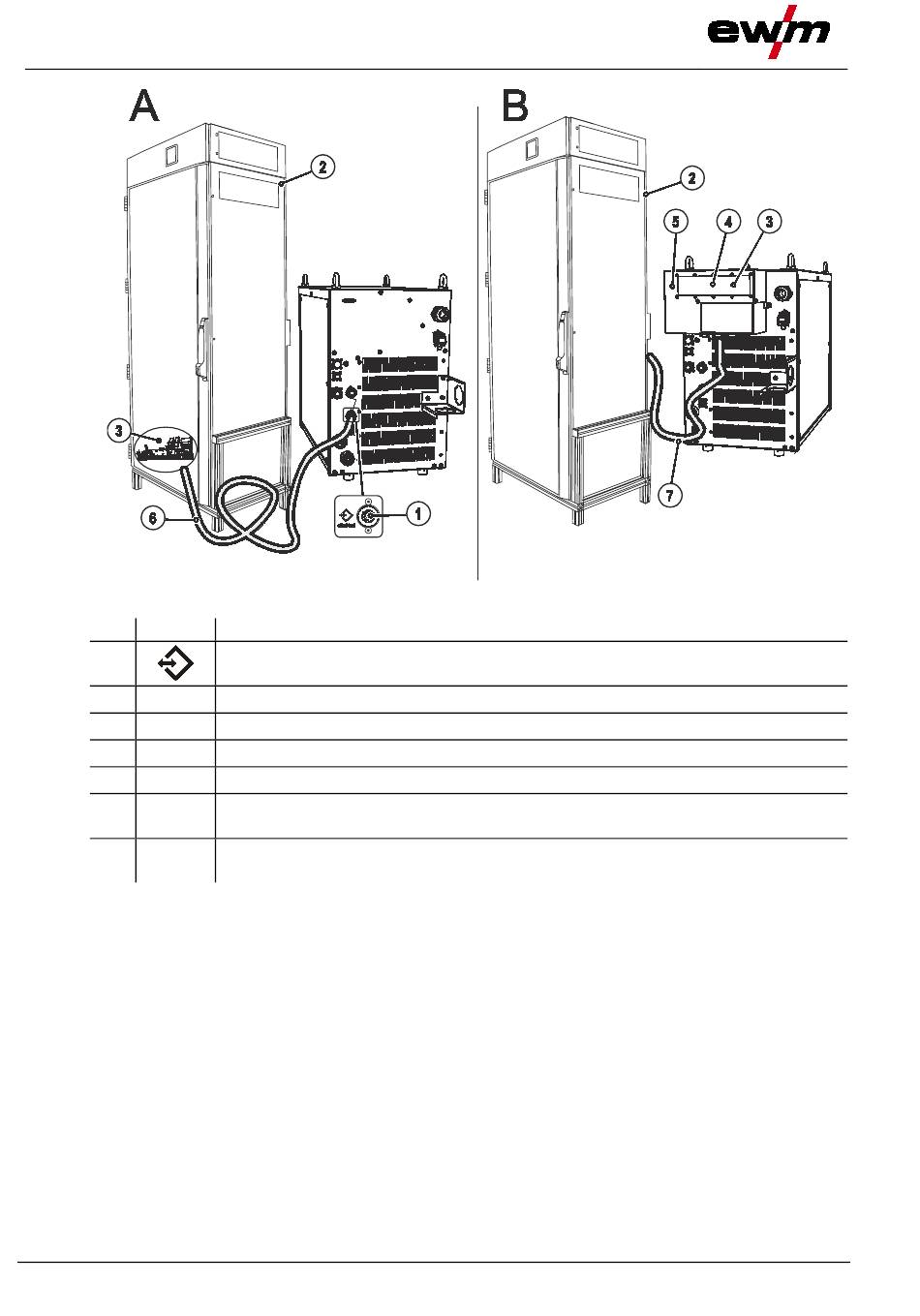

Figure 5-11
099-005366-EW501
