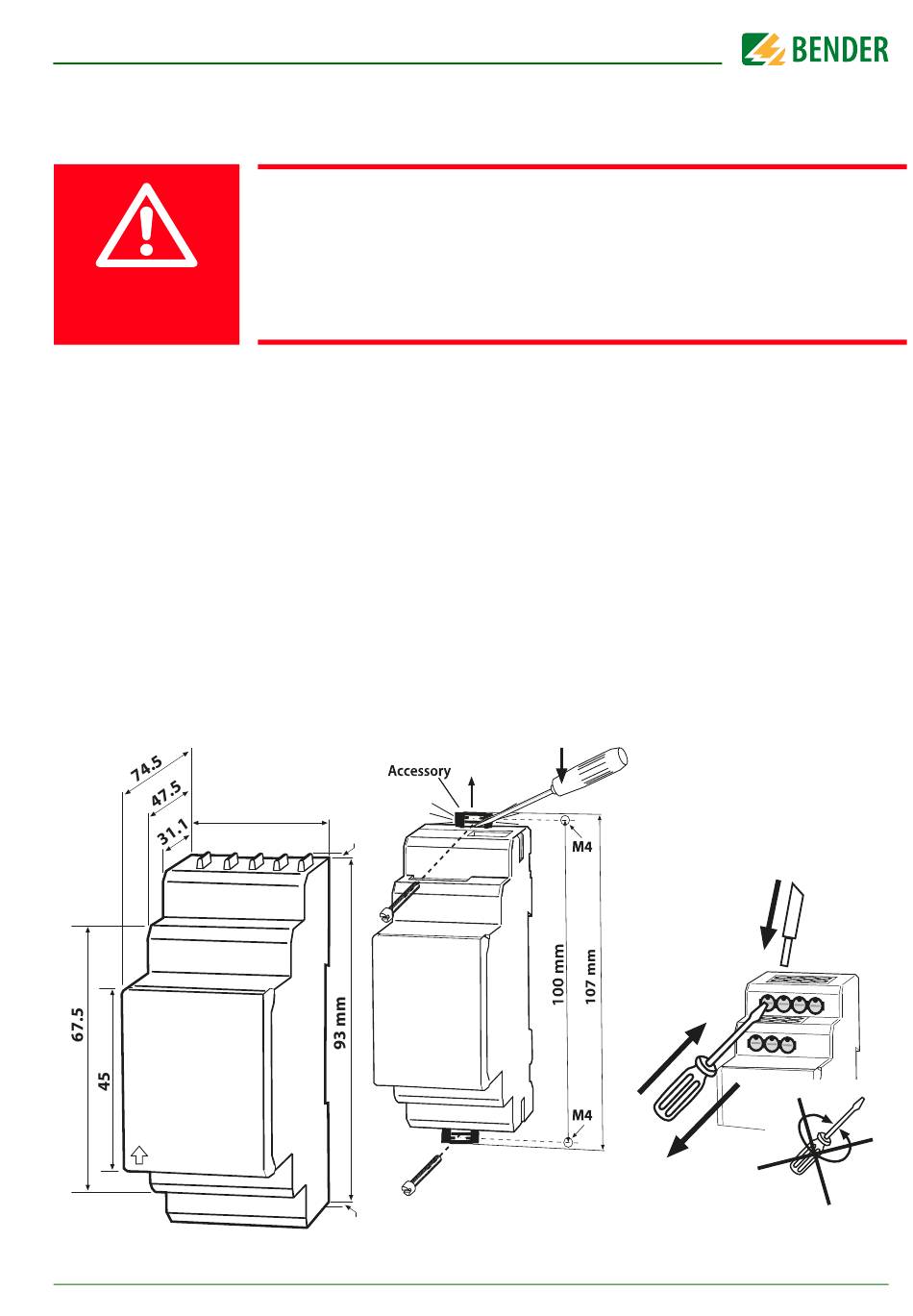

4. Installation and connection

DANGER
Consider a minimum distance to adjacent devices:
sides 0 mm; above and below 20 mm.

DIN rail mounting

Snap the mounting clip at the rear of the device onto the DIN rail so that it sits
so that it sits securely

Screw mounting

Use a tool to position the rear mounting clips (a second mounting clip is requi-
red, see ordering information in the manual) so that it protrudes over the
enclosure. Fix the device with two M4 screws (see below).
isoUG425_D00220_02_Q_DEEN / 05.2018
Risk of electric shock!
Avoid any physical contact with active conductors and
ensure compliance with the regulations for working on
electrical installations
36 mm
2
2
.
Click
1
2
3
21
