Installation, connection and commissioning
3
Installation, connection and commissioning
3.1
Dimensions
36

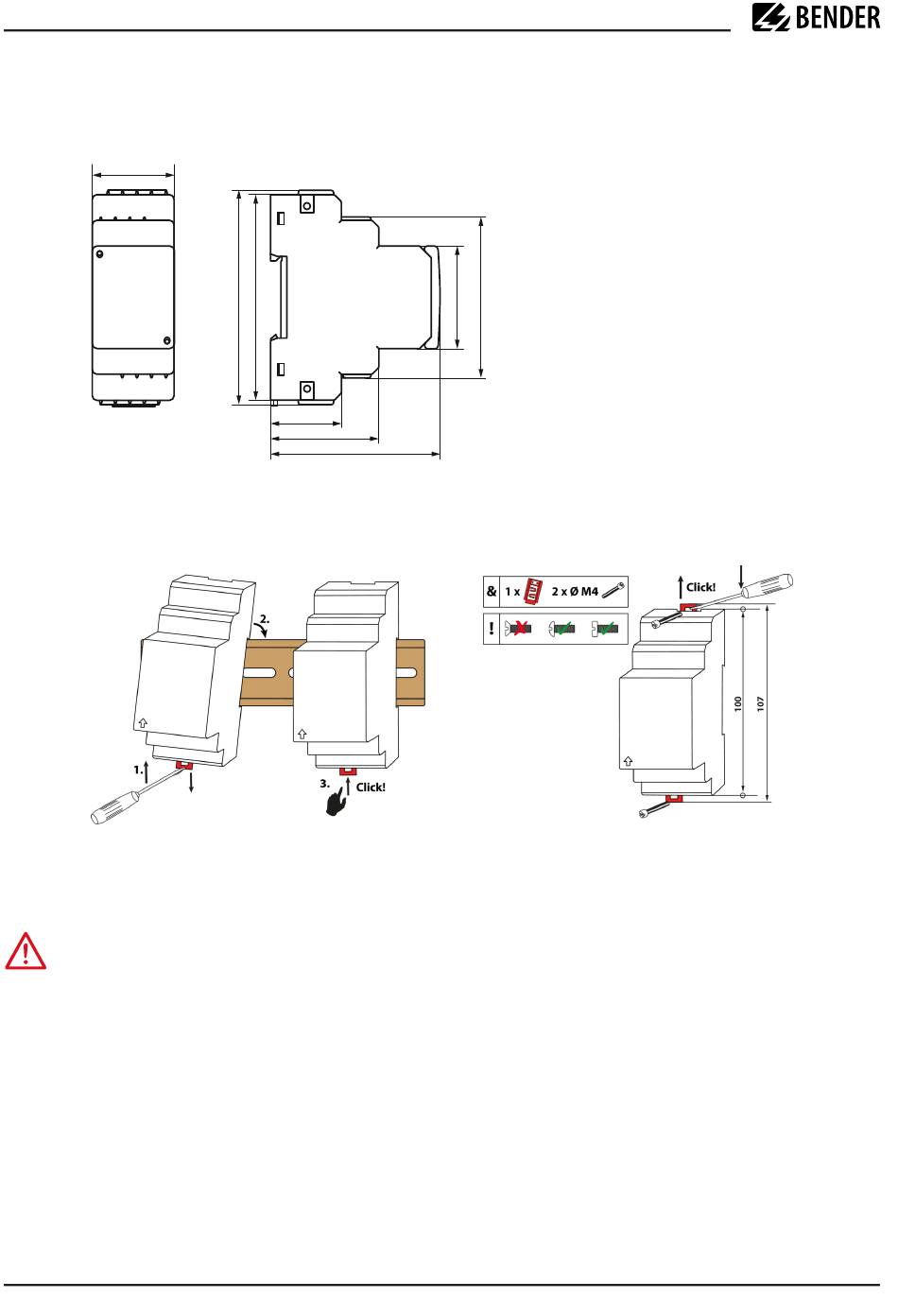

Figure: Dimension diagram (in mm)
3.2
Installation
Figure: DIN rail mounting (left) or screw mounting (right)
3.3
Connection
DANGER
Touching live parts of the system carries the risk of:
• Risk of electrocution due to electric shock
• Damage to the electrical installation
• Destruction of the device
Before installing the device and before working on its connections, make sure that the installation
has been de-energised. The rules for working on electrical systems must be observed.
For details about the conductor cross sections required for wiring, refer to chapter "6 Technical data".
16
isoCHA425_D00352_03_M_XXEN/08.2023
93
90
31.1
47.5
74.5
Risk of fatal injury due to electric shock!
45 70.5
