Installation, connection and commissioning

3.1

Dimensions

36

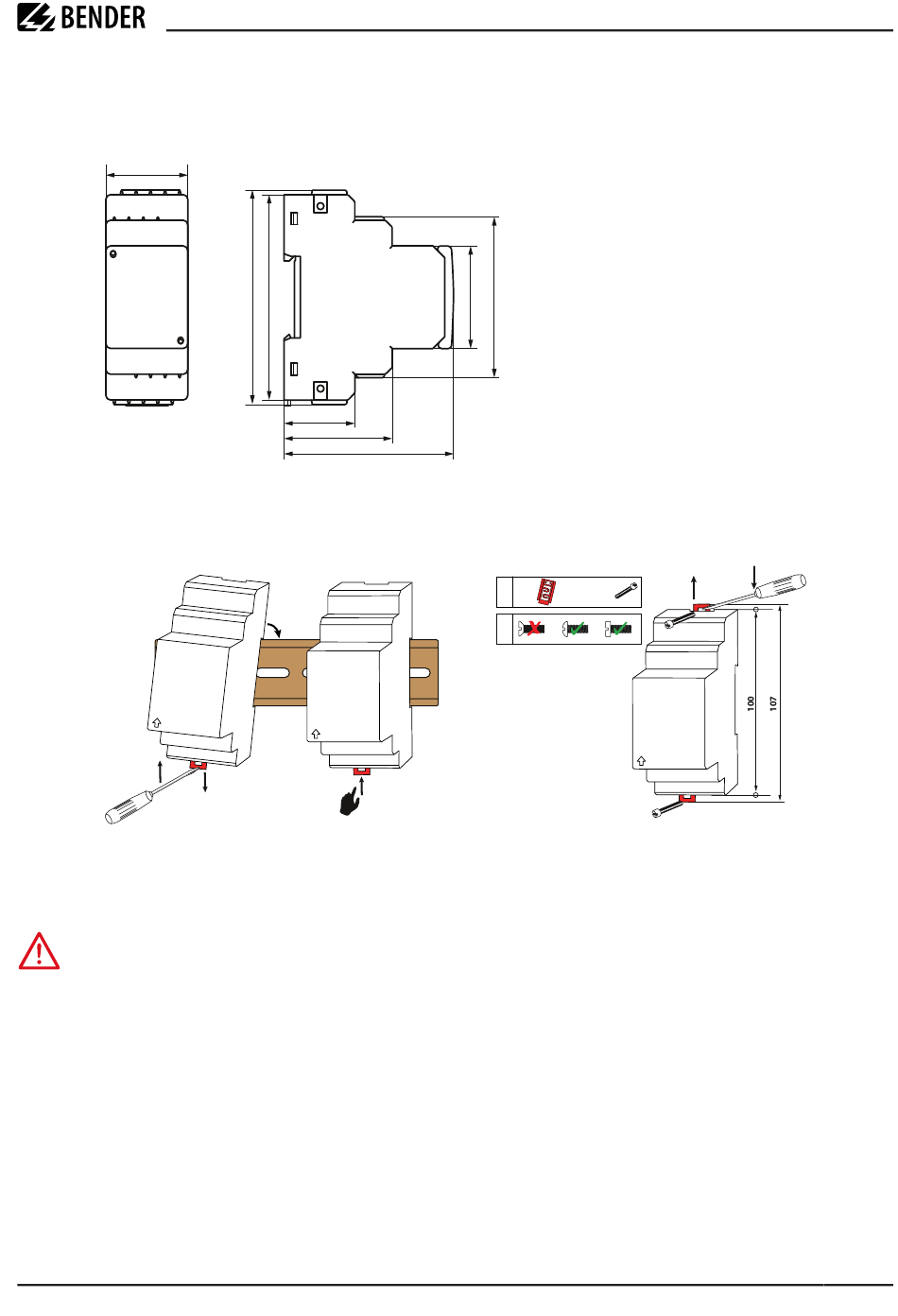

Figure: Dimension diagram
3.2

Mounting

1.
Figure: DIN rail mounting (left) or screw mounting (right)
3.3

Connection

DANGER
Touching live parts of the system carries the risk of:
• Risk of electrocution due to electric shock
• Damage to the electrical installation
• Destruction of the device
Before installing the device and before working on its connections, make sure that the installation
has been de-energised. The rules for working on electrical systems must be observed.
For details about the conductor cross sections required for wiring, refer to the technical data beginning with
6.1 Tabular representation.
93
90
31,1
47,5
74,5
2.
3.
Click!
Risk of fatal injury due to electric shock!
45 70,5
&
1 x
2 x Ø M4
!
isoGEN423_D00221_05_M_XXEN
ISOMETER® isoGEN423
Click!
15
