User Guide Version 2.60 I-button WHO 5th

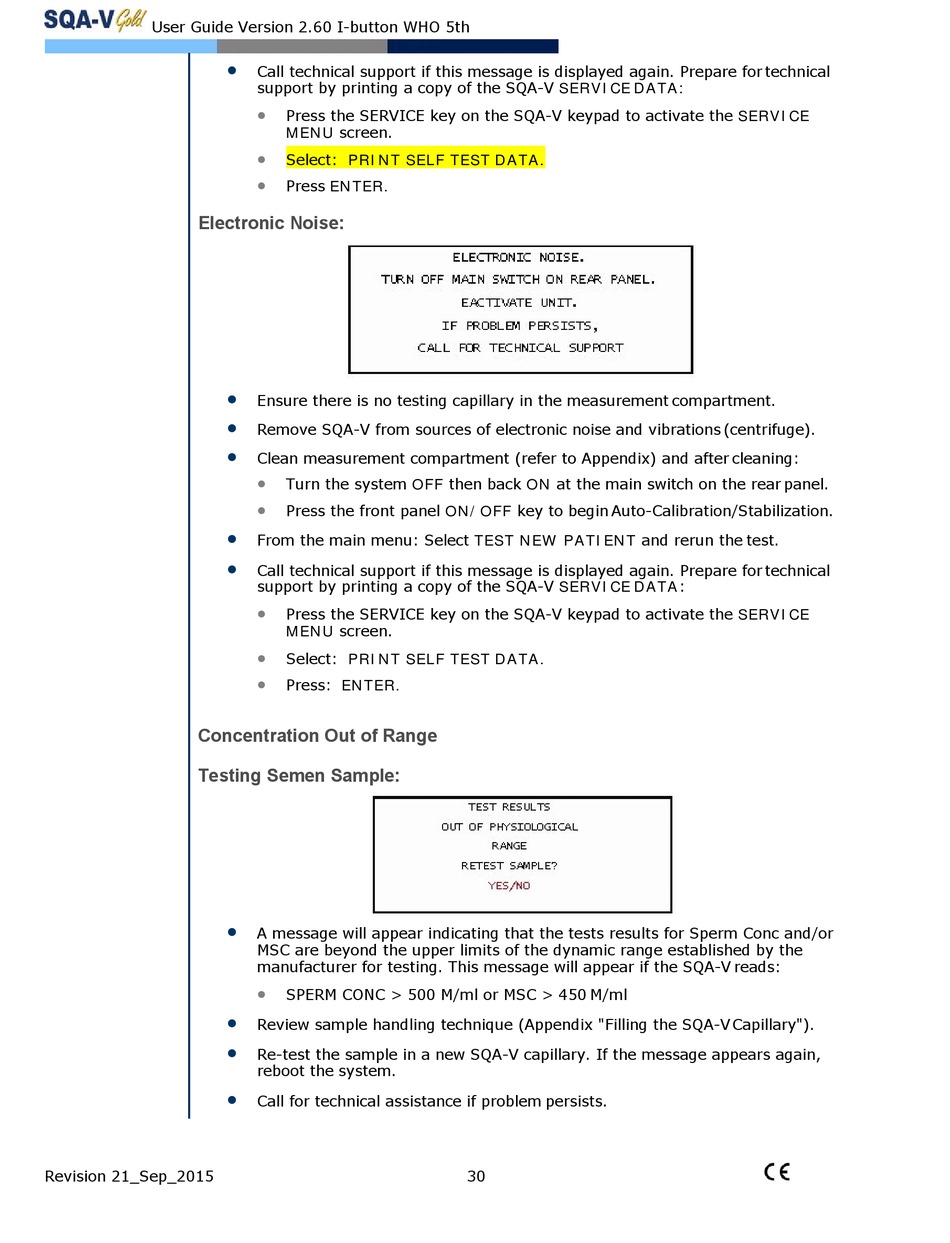

Electronic Noise:

Concentration Out of Range

Testing Semen Sample:
Revision 21_Sep_2015

Call technical support if this message is displayed again. Prepare for technical
support by printing a copy of the SQA-V SERVICE DATA:

Press the SERVICE key on the SQA-V keypad to activate the SERVICE
MENU screen.

Select: PRINT SELF TEST DATA.

Press ENTER.

Ensure there is no testing capillary in the measurement compartment.

Remove SQA-V from sources of electronic noise and vibrations (centrifuge).

Clean measurement compartment (refer to Appendix) and after cleaning:

Turn the system OFF then back ON at the main switch on the rear panel.

Press the front panel ON/OFF key to begin Auto-Calibration/Stabilization.

From the main menu: Select TEST NEW PATIENT and rerun the test.

Call technical support if this message is displayed again. Prepare for technical
support by printing a copy of the SQA-V SERVICE DATA:

Press the SERVICE key on the SQA-V keypad to activate the SERVICE
MENU screen.

Select: PRINT SELF TEST DATA.

Press: ENTER.

A message will appear indicating that the tests results for Sperm Conc and/or
MSC are beyond the upper limits of the dynamic range established by the
manufacturer for testing. This message will appear if the SQA-V reads:

SPERM CONC > 500 M/ml or MSC > 450 M/ml

Review sample handling technique (Appendix "Filling the SQA-V Capillary").

Re-test the sample in a new SQA-V capillary. If the message appears again,
reboot the system.

Call for technical assistance if problem persists.
30
