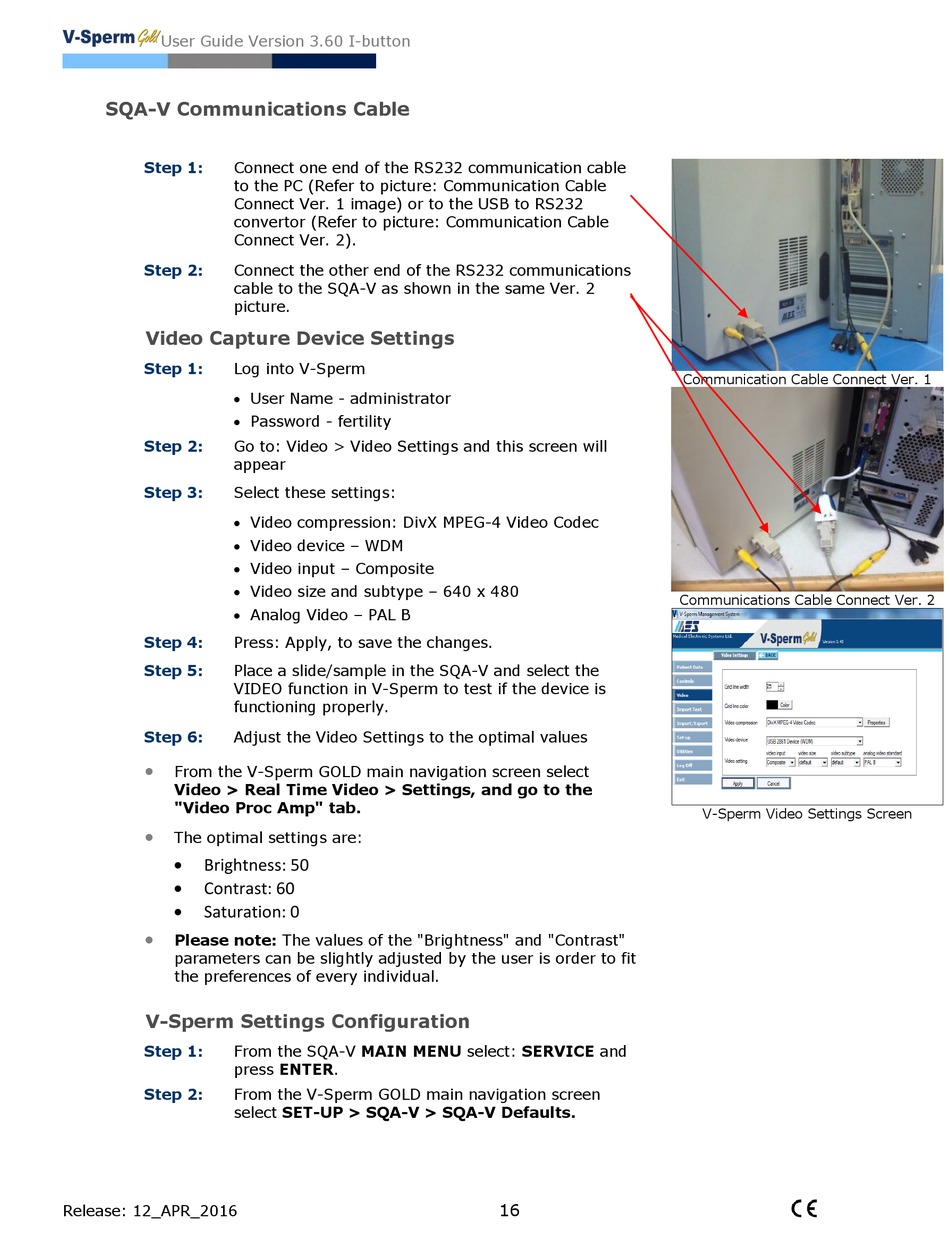

MES SQA-V Gold User Manual page 69

User Guide Version 3.60 I-button
SQA-V Communications Cable
Step 1: Connect one end of the RS232 communication cable
to the PC (Refer to picture: Communication Cable
Connect Ver. 1 image) or to the USB to RS232
convertor (Refer to picture: Communication Cable
Connect Ver. 2).
Step 2: Connect the other end of the RS232 communications
cable to the SQA-V as shown in the same Ver. 2
picture.
Video Capture Device Settings
Step 1: Log into V-Sperm
 User Name - administrator
 Password - fertility
Step 2: Go to: Video > Video Settings and this screen will
appear
Step 3: Select these settings:
 Video compression: DivX MPEG-4 Video Codec
 Video device – WDM
 Video input – Composite
 Video size and subtype – 640 x 480
 Analog Video – PAL B
Step 4: Press: Apply, to save the changes.
Step 5: Place a slide/sample in the SQA-V and select the
VIDEO function in V-Sperm to test if the device is
functioning properly.
Step 6: Adjust the Video Settings to the optimal values

From the V-Sperm GOLD main navigation screen select
Video > Real Time Video > Settings, and go to the
"Video Proc Amp" tab.

The optimal settings are:

Brightness: 50

Contrast: 60

Saturation: 0

Please note: The values of the "Brightness" and "Contrast"
parameters can be slightly adjusted by the user is order to fit
the preferences of every individual.
V-Sperm Settings Configuration
Step 1: From the SQA-V MAIN MENU select: SERVICE and
press ENTER.
Step 2: From the V-Sperm GOLD main navigation screen
select SET-UP > SQA-V > SQA-V Defaults.
Release: 12_APR_2016
16
Communication Cable Connect Ver. 1
Communications Cable Connect Ver. 2
V-Sperm Video Settings Screen
