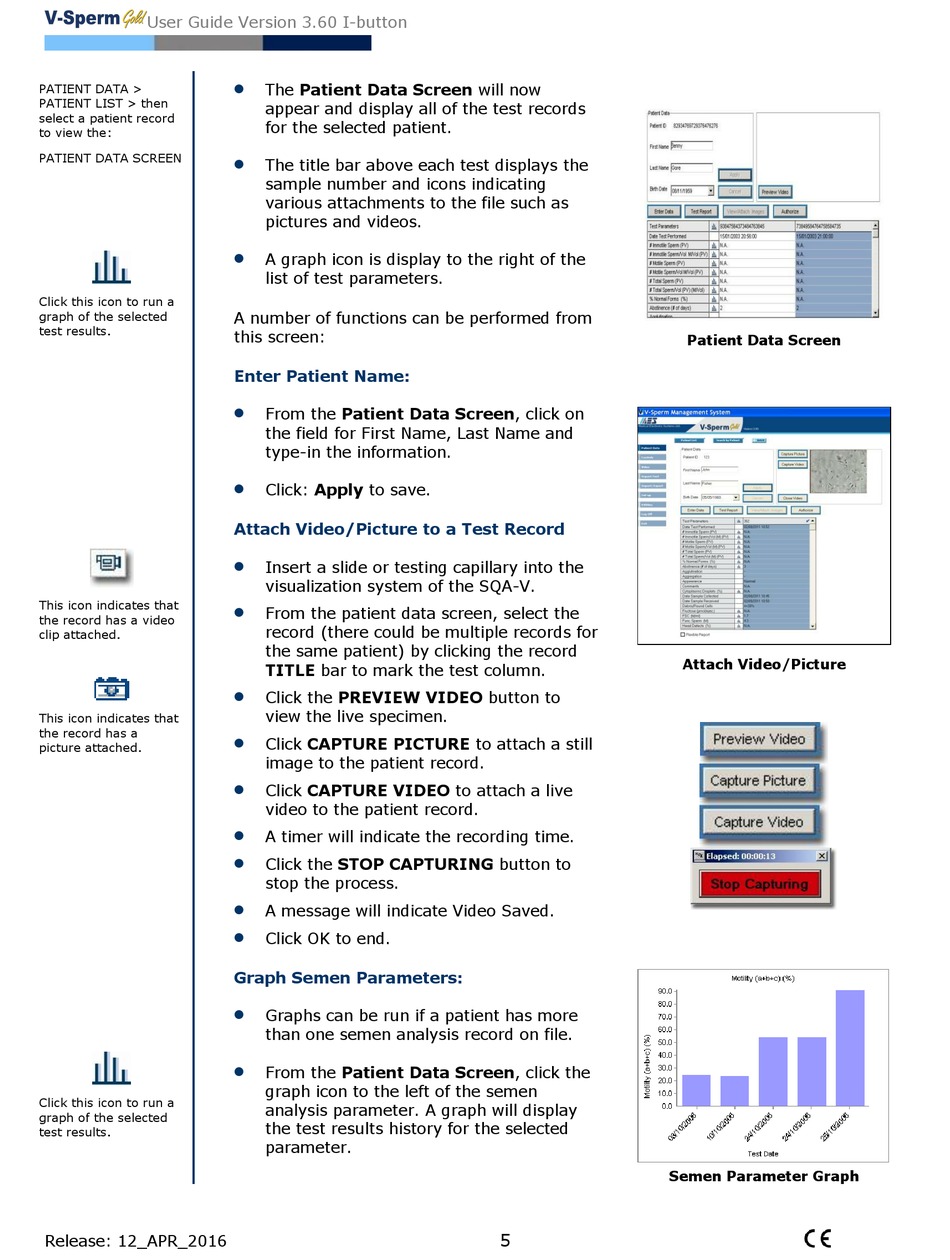

Enter Patient Name; Attach Video/Picture To A Test Record; Graph Semen Parameters - MES SQA-V Gold User Manual

User Guide Version 3.60 I-button
PATIENT DATA >
PATIENT LIST > then
select a patient record
to view the:
PATIENT DATA SCREEN
Click this icon to run a
graph of the selected
test results.
This icon indicates that
the record has a video
clip attached.
This icon indicates that
the record has a
picture attached.
Click this icon to run a
graph of the selected
test results.
Release: 12_APR_2016

The Patient Data Screen will now
appear and display all of the test records
for the selected patient.

The title bar above each test displays the
sample number and icons indicating
various attachments to the file such as
pictures and videos.

A graph icon is display to the right of the
list of test parameters.
A number of functions can be performed from
this screen:

Enter Patient Name:


From the Patient Data Screen, click on
the field for First Name, Last Name and
type-in the information.

Click: Apply to save.

Attach Video/Picture to a Test Record


Insert a slide or testing capillary into the
visualization system of the SQA-V.

From the patient data screen, select the
record (there could be multiple records for
the same patient) by clicking the record
TITLE bar to mark the test column.

Click the PREVIEW VIDEO button to
view the live specimen.

Click CAPTURE PICTURE to attach a still
image to the patient record.

Click CAPTURE VIDEO to attach a live
video to the patient record.

A timer will indicate the recording time.

Click the STOP CAPTURING button to
stop the process.

A message will indicate Video Saved.

Click OK to end.

Graph Semen Parameters:


Graphs can be run if a patient has more
than one semen analysis record on file.

From the Patient Data Screen, click the
graph icon to the left of the semen
analysis parameter. A graph will display
the test results history for the selected
parameter.
Semen Parameter Graph
5
Patient Data Screen
Attach Video/Picture
