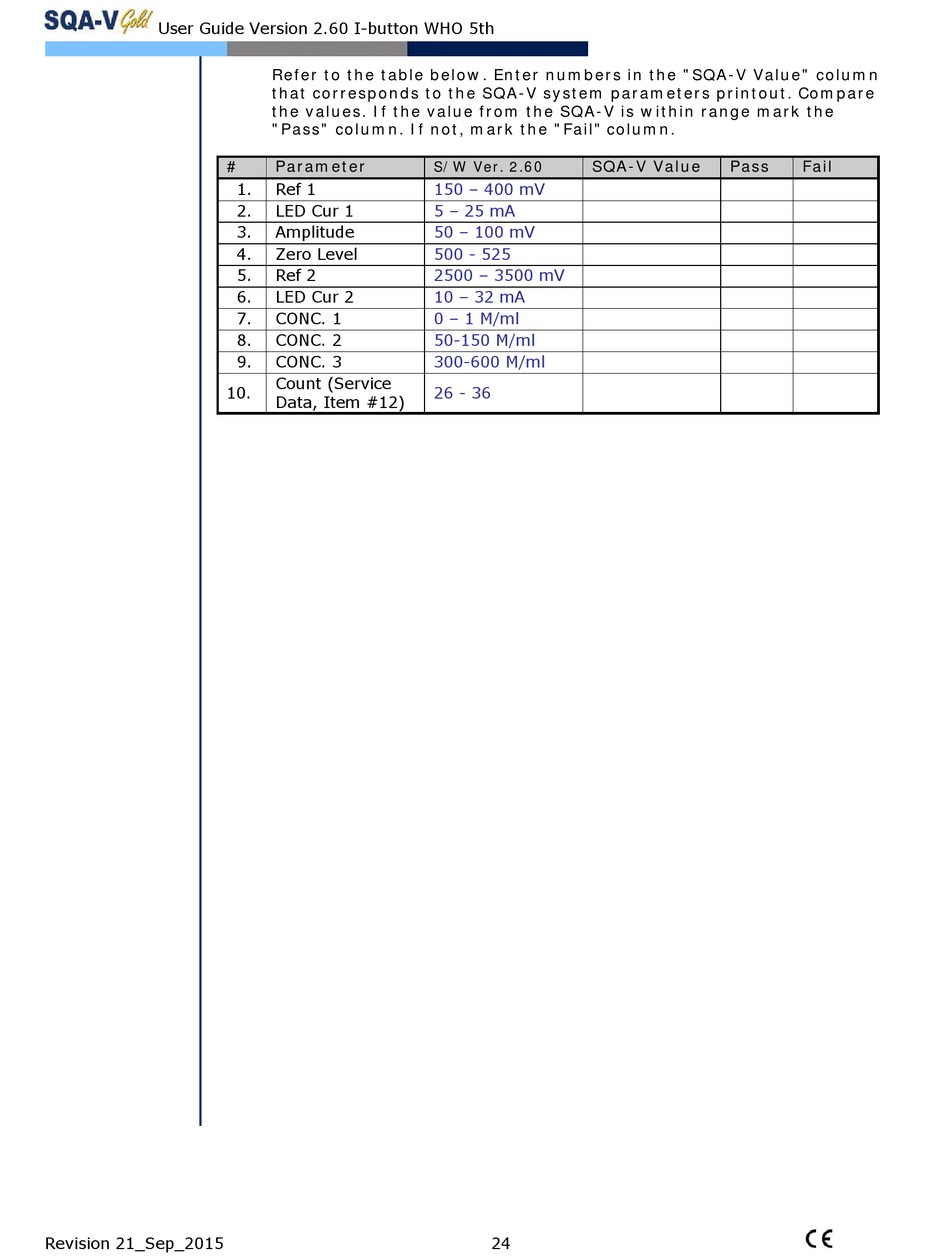

MES SQA-V Gold User Manual page 24

User Guide Version 2.60 I-button WHO 5th
Revision 21_Sep_2015
Refer to the table below. Enter numbers in the "SQA-V Value" column
that corresponds to the SQA-V system parameters printout. Compare
the values. If the value from the SQA-V is within range mark the
"Pass" column. If not, mark the "Fail" column.
# Parameter
1. Ref 1
2. LED Cur 1
3. Amplitude
4. Zero Level
5. Ref 2
6. LED Cur 2
7. CONC. 1
8. CONC. 2
9. CONC. 3
Count (Service
10.
Data, Item #12)
SQA-V Value
S/W Ver. 2.60
150 – 400 mV
5 – 25 mA
50 – 100 mV
500 - 525
2500 – 3500 mV
10 – 32 mA
0 – 1 M/ml
50-150 M/ml
300-600 M/ml
26 - 36
24

Pass Fail
