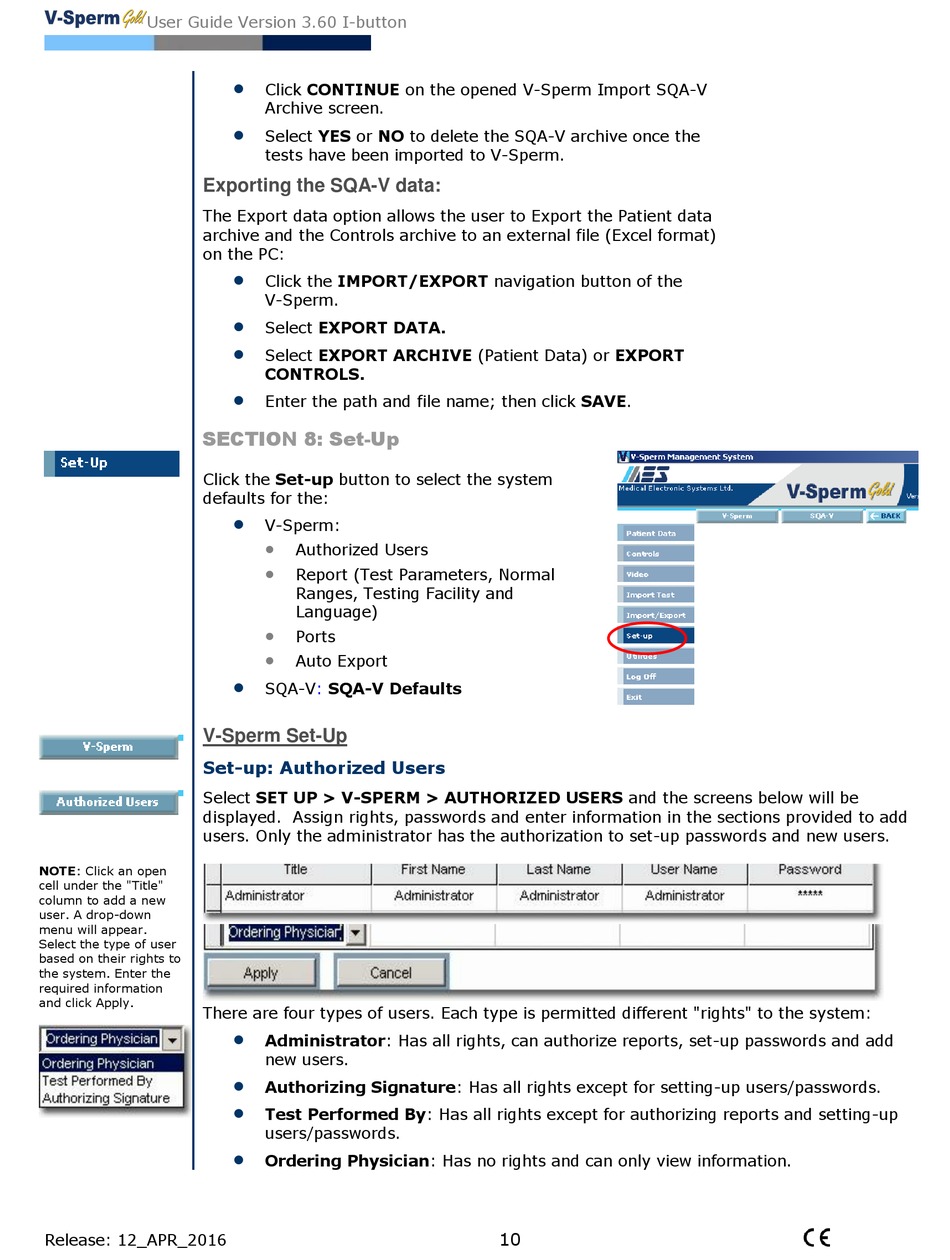

Section 8: Set-Up; V-Sperm Set-Up; Authorized Users - MES SQA-V Gold User Manual

User Guide Version 3.60 I-button
Exporting the SQA-V data:
The Export data option allows the user to Export the Patient data
archive and the Controls archive to an external file (Excel format)
on the PC:

SECTION 8: Set-Up

Click the Set-up button to select the system
defaults for the:

V-Sperm Set-Up

Set-up: Authorized Users
Select SET UP > V-SPERM > AUTHORIZED USERS and the screens below will be
displayed. Assign rights, passwords and enter information in the sections provided to add
users. Only the administrator has the authorization to set-up passwords and new users.
NOTE: Click an open
cell under the "Title"
column to add a new
user. A drop-down
menu will appear.
Select the type of user
based on their rights to
the system. Enter the
required information
and click Apply.
There are four types of users. Each type is permitted different "rights" to the system:
Release: 12_APR_2016

Click CONTINUE on the opened V-Sperm Import SQA-V
Archive screen.

Select YES or NO to delete the SQA-V archive once the
tests have been imported to V-Sperm.

Click the IMPORT/EXPORT navigation button of the
V-Sperm.

Select EXPORT DATA.

Select EXPORT ARCHIVE (Patient Data) or EXPORT
CONTROLS.

Enter the path and file name; then click SAVE.

V-Sperm:


Authorized Users


Report (Test Parameters, Normal
Ranges, Testing Facility and
Language)

Ports

Auto Export

SQA-V: SQA-V Defaults

Administrator: Has all rights, can authorize reports, set-up passwords and add
new users.

Authorizing Signature: Has all rights except for setting-up users/passwords.

Test Performed By: Has all rights except for authorizing reports and setting-up
users/passwords.

Ordering Physician: Has no rights and can only view information.
10
