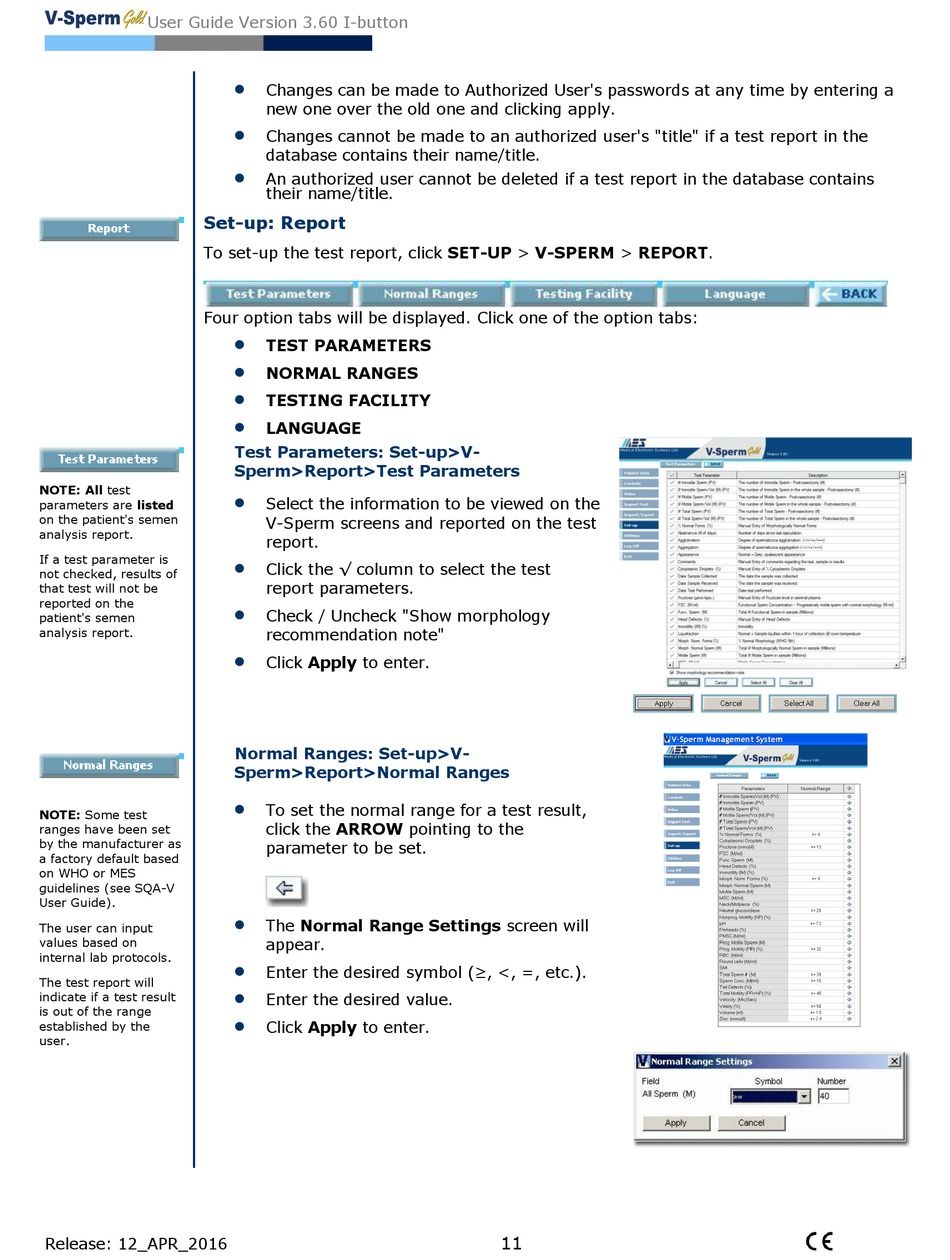

Report; Test Parameters; Normal Ranges - MES SQA-V Gold User Manual

User Guide Version 3.60 I-button
Set-up: Report
To set-up the test report, click SET-UP > V-SPERM > REPORT.
Four option tabs will be displayed. Click one of the option tabs:
NOTE: All test
parameters are listed
on the patient's semen
analysis report.
If a test parameter is
not checked, results of
that test will not be
reported on the
patient's semen
analysis report.
NOTE: Some test
ranges have been set
by the manufacturer as
a factory default based
on WHO or MES
guidelines (see SQA-V
User Guide).
The user can input
values based on
internal lab protocols.
The test report will
indicate if a test result
is out of the range
established by the
user.
Release: 12_APR_2016

Changes can be made to Authorized User's passwords at any time by entering a
new one over the old one and clicking apply.

Changes cannot be made to an authorized user's "title" if a test report in the
database contains their name/title.

An authorized user cannot be deleted if a test report in the database contains
their name/title.


TEST PARAMETERS



NORMAL RANGES


TESTING FACILITY

LANGUAGE
Test Parameters: Set-up>V-
Sperm>Report>Test Parameters

Select the information to be viewed on the
V-Sperm screens and reported on the test

report.


Click the √ column to select the test
report parameters.

Check / Uncheck "Show morphology
recommendation note"

Click Apply to enter.
Normal Ranges: Set-up>V-
Sperm>Report>Normal Ranges

To set the normal range for a test result,
click the ARROW pointing to the
parameter to be set.

The Normal Range Settings screen will
appear.

Enter the desired symbol (≥, <, =, etc.).

Enter the desired value.

Click Apply to enter.
11
