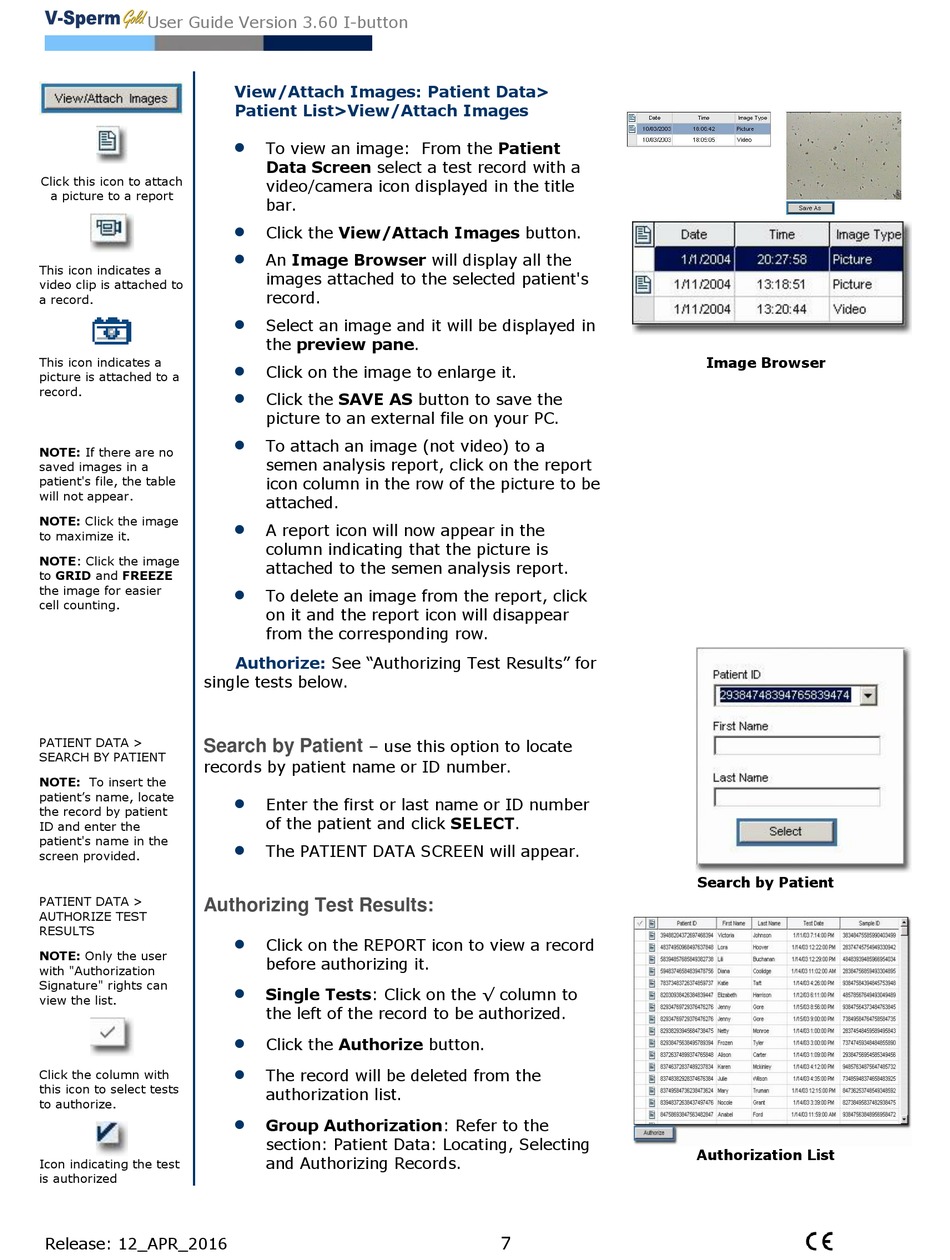

View/Attach Images; Authorize (Test Results); Search By Patient; Authorizing Test Results - MES SQA-V Gold User Manual

User Guide Version 3.60 I-button
Click this icon to attach
a picture to a report
This icon indicates a
video clip is attached to
a record.
This icon indicates a
picture is attached to a
record.
NOTE: If there are no
saved images in a
patient's file, the table
will not appear.
NOTE: Click the image
to maximize it.
NOTE: Click the image
to GRID and FREEZE
the image for easier
cell counting.
single tests below.
PATIENT DATA >

Search by Patient

SEARCH BY PATIENT
records by patient name or ID number.
NOTE: To insert the
patient's name, locate
the record by patient
ID and enter the
patient's name in the
screen provided.
PATIENT DATA >

Authorizing Test Results:

AUTHORIZE TEST
RESULTS
NOTE: Only the user
with "Authorization
Signature" rights can
view the list.
Click the column with
this icon to select tests
to authorize.
Icon indicating the test
is authorized
Release: 12_APR_2016
View/Attach Images: Patient Data>
Patient List>View/Attach Images

To view an image: From the Patient
Data Screen select a test record with a
video/camera icon displayed in the title
bar.

Click the View/Attach Images button.

An Image Browser will display all the
images attached to the selected patient's
record.

Select an image and it will be displayed in
the preview pane.

Click on the image to enlarge it.

Click the SAVE AS button to save the
picture to an external file on your PC.

To attach an image (not video) to a
semen analysis report, click on the report
icon column in the row of the picture to be
attached.

A report icon will now appear in the
column indicating that the picture is
attached to the semen analysis report.

To delete an image from the report, click
on it and the report icon will disappear
from the corresponding row.
Authorize: See "Authorizing Test Results" for
– use this option to locate

Enter the first or last name or ID number
of the patient and click SELECT.

The PATIENT DATA SCREEN will appear.

Click on the REPORT icon to view a record
before authorizing it.

Single Tests: Click on the √ column to
the left of the record to be authorized.

Click the Authorize button.

The record will be deleted from the
authorization list.

Group Authorization: Refer to the
section: Patient Data: Locating, Selecting
and Authorizing Records.
7
Image Browser
Search by Patient
Authorization List
