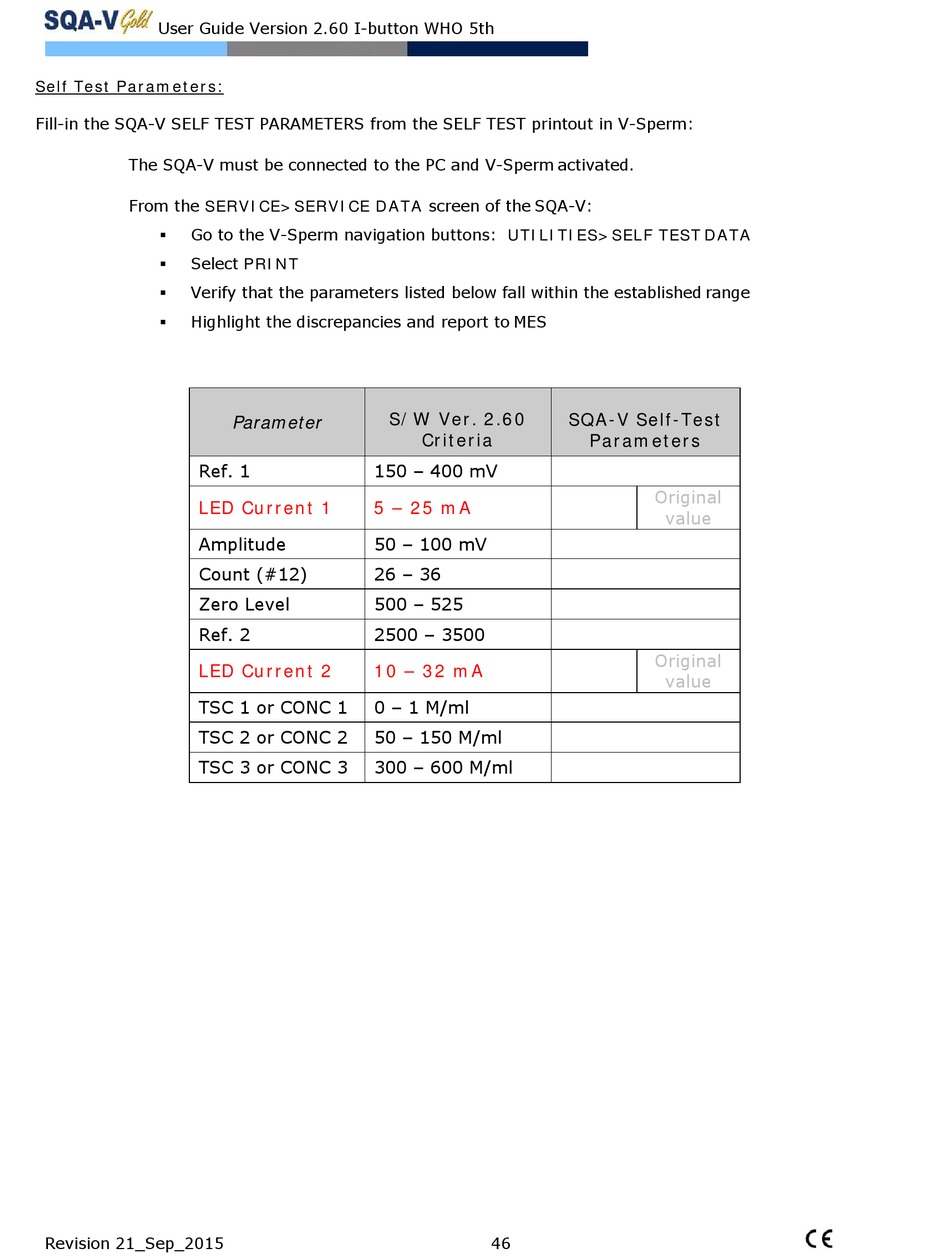

Self Test Parameters:
Fill-in the SQA-V SELF TEST PARAMETERS from the SELF TEST printout in V-Sperm:
The SQA-V must be connected to the PC and V-Sperm activated.
From the SERVICE>SERVICE DATA screen of the SQA-V:
Go to the V-Sperm navigation buttons: UTILITIES>SELF TEST DATA

Select PRINT

Verify that the parameters listed below fall within the established range

Highlight the discrepancies and report to MES

Ref. 1
LED Current 1
Amplitude
Count (#12)
Zero Level
Ref. 2
LED Current 2
TSC 1 or CONC 1
TSC 2 or CONC 2
TSC 3 or CONC 3
Revision 21_Sep_2015
S/W Ver. 2.60
Parameter
150 – 400 mV
5 – 25 mA
50 – 100 mV
26 – 36
500 – 525
2500 – 3500
10 – 32 mA
0 – 1 M/ml
50 – 150 M/ml
300 – 600 M/ml

