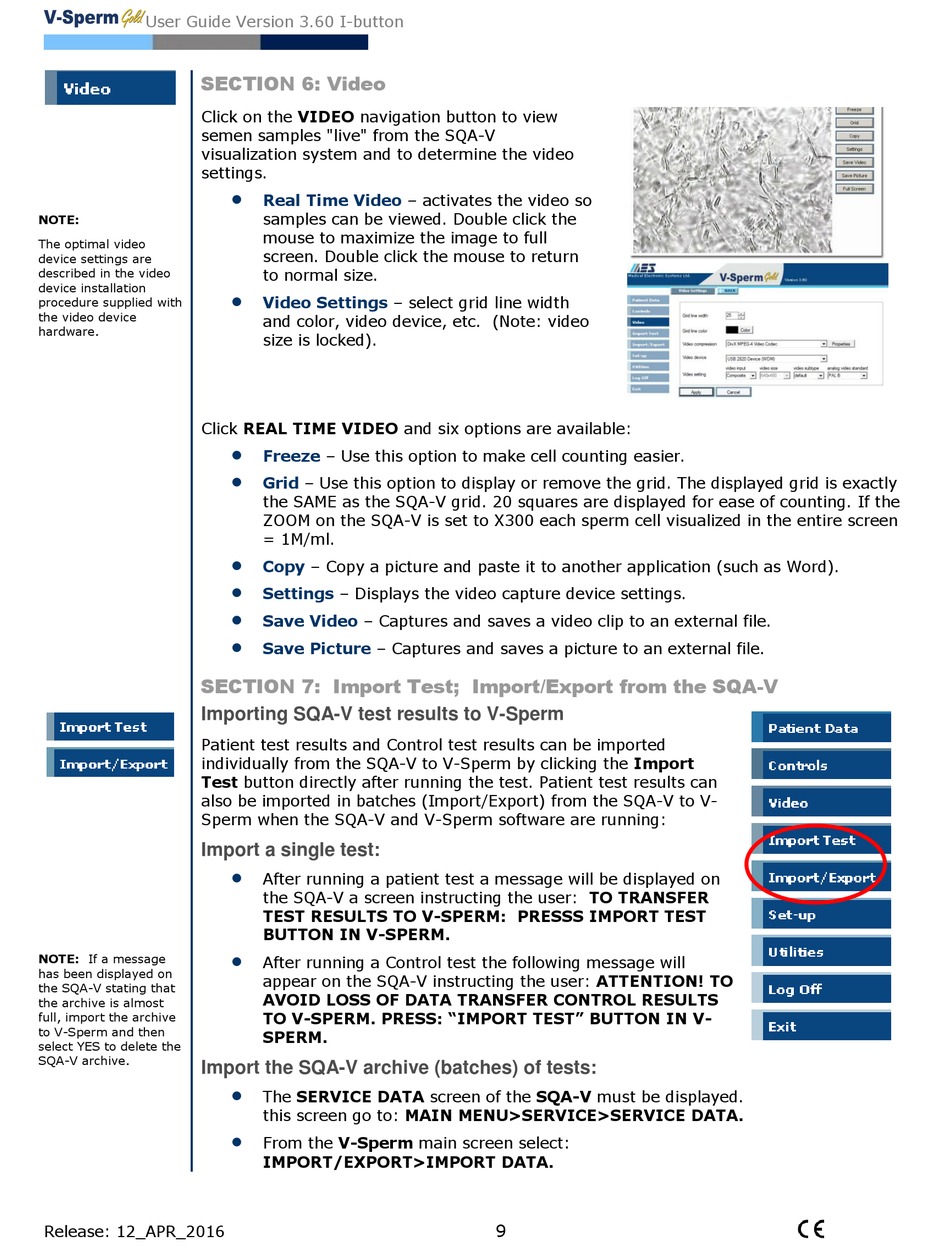

SECTION 6: Video

Click on the VIDEO navigation button to view
semen samples "live" from the SQA-V
visualization system and to determine the video
settings.
NOTE:
The optimal video
device settings are
described in the video
device installation
procedure supplied with
the video device
hardware.
Click REAL TIME VIDEO and six options are available:
SECTION 7: Import Test; Import/Export from the SQA-V
Importing SQA-V test results to V-Sperm
Patient test results and Control test results can be imported
individually from the SQA-V to V-Sperm by clicking the Import
Test button directly after running the test. Patient test results can
also be imported in batches (Import/Export) from the SQA-V to V-
Sperm when the SQA-V and V-Sperm software are running:
Import a single test:
NOTE: If a message
has been displayed on
the SQA-V stating that
the archive is almost
full, import the archive
to V-Sperm and then
select YES to delete the
SQA-V archive.
Import the SQA-V archive (batches) of tests:
Release: 12_APR_2016

Real Time Video – activates the video so
samples can be viewed. Double click the
mouse to maximize the image to full
screen. Double click the mouse to return
to normal size.

Video Settings – select grid line width
and color, video device, etc. (Note: video
size is locked).

Freeze – Use this option to make cell counting easier.

Grid – Use this option to display or remove the grid. The displayed grid is exactly
the SAME as the SQA-V grid. 20 squares are displayed for ease of counting. If the
ZOOM on the SQA-V is set to X300 each sperm cell visualized in the entire screen
= 1M/ml.

Copy – Copy a picture and paste it to another application (such as Word).

Settings – Displays the video capture device settings.

Save Video – Captures and saves a video clip to an external file.

Save Picture – Captures and saves a picture to an external file.

After running a patient test a message will be displayed on
the SQA-V a screen instructing the user: TO TRANSFER
TEST RESULTS TO V-SPERM: PRESSS IMPORT TEST
BUTTON IN V-SPERM.

After running a Control test the following message will
appear on the SQA-V instructing the user: ATTENTION! TO
AVOID LOSS OF DATA TRANSFER CONTROL RESULTS
TO V-SPERM. PRESS: "IMPORT TEST" BUTTON IN V-
SPERM.

The SERVICE DATA screen of the SQA-V must be displayed. To activate
this screen go to: MAIN MENU>SERVICE>SERVICE DATA.

From the V-Sperm main screen select:
IMPORT/EXPORT>IMPORT DATA.
