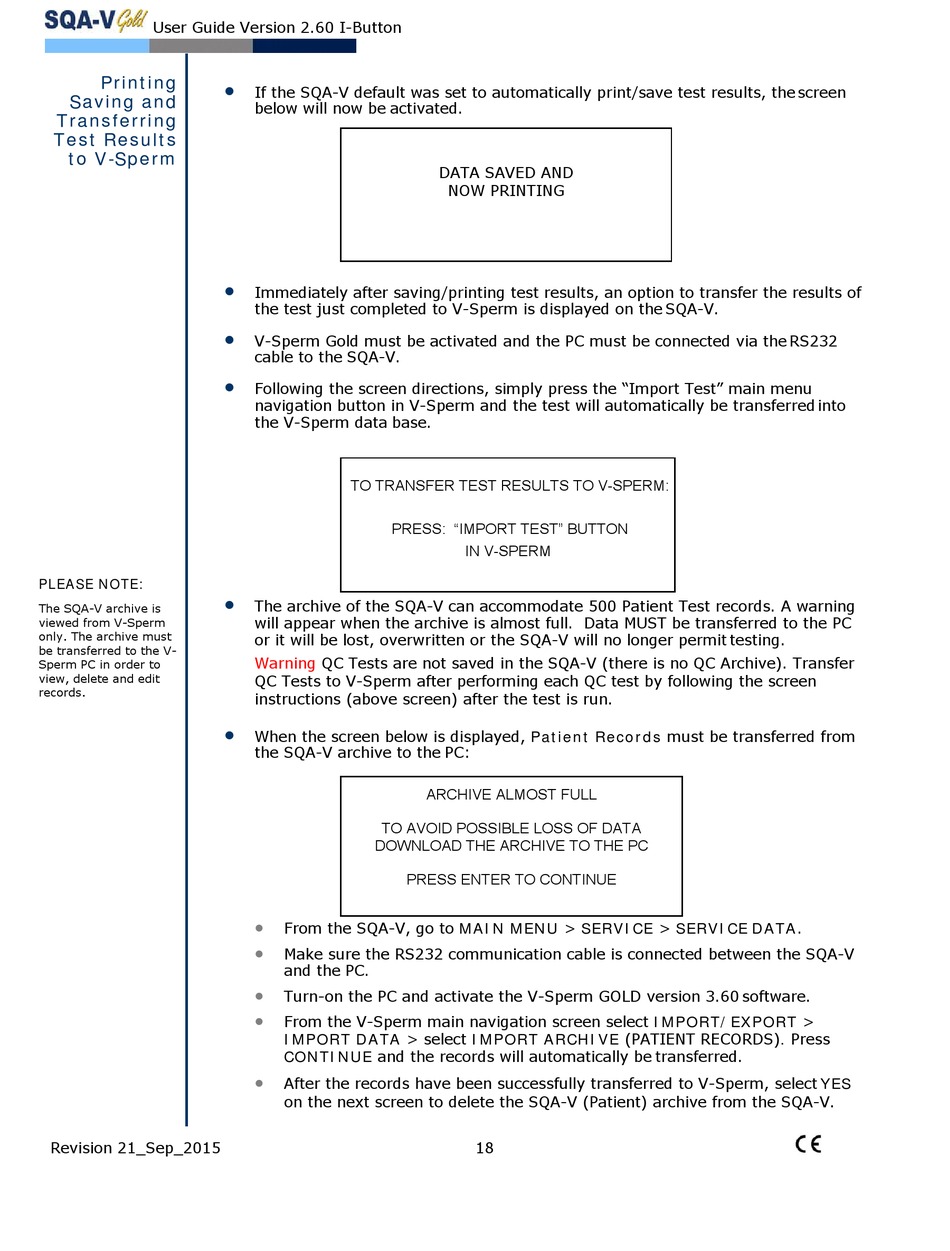

Printing, Saving And Transferring Results To V-Sperm Gold - MES SQA-V Gold User Manual

User Guide Version 2.60 I-Button
Printing
Saving and
Transferring
Test Results
to V-Sperm
PLEASE NOTE:
The SQA-V archive is
viewed from V-Sperm
only. The archive must
be transferred to the V-
Sperm PC in order to
view, delete and edit
records.
Revision 21_Sep_2015

If the SQA-V default was set to automatically print/save test results, the screen
below will now be activated.

Immediately after saving/printing test results, an option to transfer the results of
the test just completed to V-Sperm is displayed on the SQA-V.

V-Sperm Gold must be activated and the PC must be connected via the RS232
cable to the SQA-V.

Following the screen directions, simply press the "Import Test" main menu
navigation button in V-Sperm and the test will automatically be transferred into
the V-Sperm data base.
TO TRANSFER TEST RESULTS TO V-SPERM:
PRESS: "IMPORT TEST" BUTTON

The archive of the SQA-V can accommodate 500 Patient Test records. A warning
will appear when the archive is almost full. Data MUST be transferred to the PC
or it will be lost, overwritten or the SQA-V will no longer permit testing.
Warning QC Tests are not saved in the SQA-V (there is no QC Archive). Transfer
QC Tests to V-Sperm after performing each QC test by following the screen
instructions (above screen) after the test is run.

When the screen below is displayed, Patient Records must be transferred from
the SQA-V archive to the PC:
TO AVOID POSSIBLE LOSS OF DATA
DOWNLOAD THE ARCHIVE TO THE PC

From the SQA-V, go to MAIN MENU > SERVICE > SERVICE DATA.

Make sure the RS232 communication cable is connected between the SQA-V
and the PC.

Turn-on the PC and activate the V-Sperm GOLD version 3.60 software.

From the V-Sperm main navigation screen select IMPORT/EXPORT >
IMPORT DATA > select IMPORT ARCHIVE (PATIENT RECORDS). Press
CONTINUE and the records will automatically be transferred.

After the records have been successfully transferred to V-Sperm, select YES
on the next screen to delete the SQA-V (Patient) archive from the SQA-V.
DATA SAVED AND
NOW PRINTING
IN V-SPERM
ARCHIVE ALMOST FULL
PRESS ENTER TO CONTINUE
18
