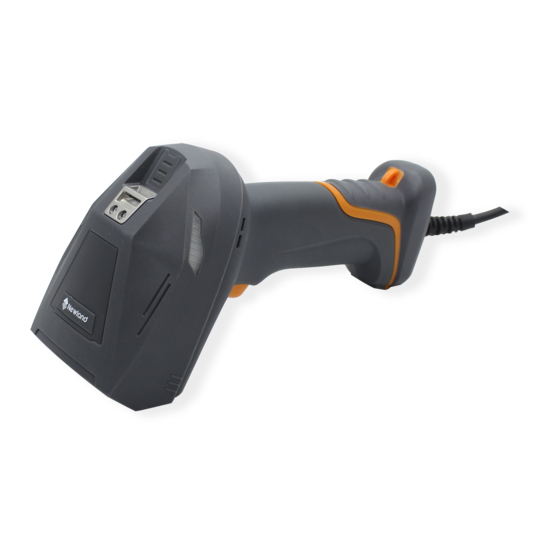

Page 1 NLS-NVH300 Industrial Handheld Barcode Scanner User Guide...
Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.
Page 3: Revision History
Revision History Version Description Date V1.0.0 Initial release. September 5th, 2019...
Page 4: Table Of Contents
Table of Contents Revision History ..................................- 3 - Table of Contents ..................................- 4 - Preface ......................................1 Introduction ..................................1 Chapter Description ................................. 1 Explanation of Icons ................................. 2 Chapter 1 Getting Started ................................3 Introduction ..................................3 Features of the NVH300 ..............................
Page 5 EasySetEX Programming ............................16 Programming Barcode/ Programming Command/Function .................... 17 Use of Programming Command ............................. 18 Command Syntax..............................18 Query Commands ..............................18 Responses ................................19 Examples ................................19 Use of Programming Barcode ............................20 Illumination ..................................21 Illumination Color ................................21 Interval Time of Illumination switching ........................
Page 6 Query Product Name .............................. 46 Query Firmware Version ............................46 Query Decoder Version ............................47 Query Hardware Version ............................47 Query Serial Number .............................. 47 Query Manufacturing Date ............................47 Chapter 4 RS-232 Interface ................................ 49 Introduction ..................................49 Baud Rate ..................................50 Parity Check ...................................
Page 7 Chapter 6 Symbologies ................................80 Introduction ..................................80 Global Settings ................................80 Enable/Disable All Symbologies ..........................80 Enable/Disable 1D Symbologies ..........................81 Enable/Disable 2D Symbologies ..........................81 Enable/Disable Postal Symbologies........................81 1D Twin Code ................................. 82 Enhance Poor Quality 1D Barcode Decoding ......................83 Code 128..................................
Page 8 UPC-E .................................... 99 Restore Factory Defaults ............................99 Enable/Disable UPC-E ............................100 Transmit Check Character ............................ 101 2-Digit Add-On Code ............................. 101 5-Digit Add-On Code ............................. 102 Add-On Code Required............................103 Add-On Code Separator ............................103 Transmit Preamble Character ..........................104 Convert UPC-E to UPC-A .............................
Page 9 Restore Factory Defaults ............................126 Enable/Disable Code 39 ............................126 Set Length Range for Code 39 ..........................127 Check Character Verification ..........................128 Transmit Start/Stop Character ..........................130 Enable/Disable Code 39 Full ASCII ........................130 Enable/Disable Code 32 (Italian Pharma Code) ....................131 Code 32 Prefix ..............................
Page 10 Code 11 ..................................154 Restore Factory Defaults ............................154 Enable/Disable Code 11 ............................154 Set Length Range for Code 11 ..........................156 Check Character Verification ..........................157 Transmit Check Character ............................ 159 ISBN ..................................... 160 Restore Factory Defaults ............................160 Enable/Disable ISBN.............................
Page 11 Code 16K ..................................185 Restore Factory Defaults ............................185 Enable/Disable Code 16K ............................. 185 Set Length Range for Code 16K ........................... 186 PDF417 ..................................191 Restore Factory Defaults ............................191 Enable/Disable PDF417 ............................191 Set Length Range for PDF417 ..........................192 PDF417 Twin Code ...............................
Page 12 Enable/Disable Data Matrix ........................... 213 Set Length Range for Data Matrix ......................... 214 Data Matrix Twin Code ............................215 Rectangular Barcode ............................216 Data Matrix Inverse ............................... 216 Character Encoding .............................. 218 Data Matrix ECI Output ............................218 Maxicode ..................................219 Restore Factory Defaults ............................
Page 13 Transmit Check Character ............................ 234 KIX Post ..................................234 Restore Factory Defaults ............................234 Enable/Disable KIX Post ............................234 Australian Postal ................................236 Restore Factory Defaults ............................236 Enable/Disable Australian Postal .......................... 236 Specific OCR-B ................................237 Restore Factory Defaults ............................237 Enable/Disable Specific OCR-B ..........................
Page 14 AIM ID Prefix ................................266 Code ID Prefix ................................267 Restore All Default Code IDs ..........................267 Modify Code ID ..............................267 Custom Suffix ................................277 Enable/Disable Custom Suffix ..........................277 Set Custom Suffix ..............................277 Terminating Character Suffix ............................278 Enable/Disable Terminating Character Suffix ......................
Page 15: Preface
Preface Introduction This manual provides detailed instructions for setting up and using the NLS-NVH300 Industrial Handheld Barcode Scanner (hereinafter referred to as “the NVH300” or “the scanner”). Chapter Description Chapter 1 Getting Started : Gives a general description of NVH300 scanner. Chapter 2 EasySetEX : Introduces a useful tool you can use to set up NVH300 scanner and develop new applications.
Page 16: Explanation Of Icons
Explanation of Icons This icon indicates something relevant to this manual. This icon indicates this information requires extra attention from the reader. This icon indicates handy tips that can help you use or configure the scanner with ease. This icon indicates practical examples that can help you to acquaint yourself with operations.
Page 17: Chapter 1 Getting Started
The NVH300 reads a 1D or 2D barcode by capturing its image. Adopting the advanced technology independently developed by Newland Auto-ID Tech, it provides several scan modes, including Manual mode,Pulse mode,Aim mode,Continuous mode and Batch mode, tailored to different scanning needs.
Page 18: Accessories
Accessories Name Specification Number NLS-NVH300 Scanner NLS-NVH300-DP/HD USB or RS232 Cable RJ45 to USB or RS232 Power Adapter Output: DC 5V,1.5A Quick Guide Paper Qualification Certificate Paper /Warranty Card Unpacking Open the package and take out the scanner and its accessories. Check to make sure everything on the packing list is present and intact.
Page 19: Nvh300 Scanner
NVH300 Scanner NVH300-DP Good Read/Network LED: Red LED: Device is started successfully. Green LED: Barcode is decoded successfully. NVH300-HD Good Read/Network LED: Red LED: Device is started successfully. Green LED: Barcode is decoded successfully.
Page 20: Dimensions Of The Scanner (Unit: Mm)
Dimensions of the Scanner (unit: mm) NVH300-DP NVH300-HD Left View Front View...
Page 21: Top View
Top View...
Page 22: Data Port
Data Port Data Port Pinout: Signal Type Function KB_CLK Keyboard Clock Signal KB_DATA Keyboard Data Signal Power, +5V RS-232 Output RS-232 Input PC_CLK PC Clock Signal PC_DATA PC Data Signal Ground USB Signal...
Page 23: Connecting The Nvh300 To A Host
Connecting the NVH300 to a Host The scanner must be connected to a host device in actual application, such as PC, POS or any intelligent terminal with USB or RS-232, using a communication cable (USB or RS-232 cable). USB port on the host device RS-232 RS-232 port on the host device PS/2...
Page 24: Using Rs-232 Cable
Using RS-232 Cable Connect the scanner to a host device through a RS-232 cable with RJ45 and RS-232 connectors and a power jack: Plug the RJ45 connector into the data port on the scanner. Plug the RS-232 connector into the RS-232 port on the host device. Plug the supplied power adapter into the power jack on the RS-232 cable.
Page 25: Connect The Nvh300-Dp Communication Data Cable
Plug the RJ45 connector into the data port on the scanner. Plug the PS/2 connector into the PS/2 port on the host device. Plug the supplied power adapter into the power jack on the PS/2 cable,when desired. Plug the common keyboard adapter into the RS-232 port on the host device,when desired. Connect the NVH300-DP Communication Data Cable Connect the Communication cable to NVH300-DP, the specific operation steps are as follows：...
Page 26: Removing The Cable Of Nvh300-Hd
2. Move the cable sheet ② in the direction shown by the arrow on the left, and open the chuck; 3. Gently pull out the end of the data line connected with the scanner and move the cable sheet toward the direction shown by the arrow in the right picture.
Page 27: Maintenance
Maintenance  The scan window should be kept clean.  Do not scratch the scan window.  Use soft brush to remove the stain from the scan window.  Use the soft cloth to clean the window, such as eyeglass cleaning cloth. ...
Page 29: Chapter 2 Easysetex
Chapter 2 EasySetEX Introduction EasySetEX Setup Tool is a User Interface client application developed by Fujian Newland Auto-ID Tech. Co., Ltd. That simplifies initial reader setup and changing parameters of the scanners you use. The EasySetEX is a common platform across all models. It is installed in and runs on Windows-based PCs (usually laptops), and connection takes place through several different interface.
Page 30: Chapter 3 System Settings
Besides the two methods mentioned above, you can conveniently perform scanner configuration through EasySetEX too. EasySetEX is a Windows-based configuration tool particularly designed for Newland products, enabling users to gain access to decoded data and captured images and to configure scanners. For more information about this tool, refer to the EasySetEX User Guide.
Page 31: Programming Barcode/ Programming Command/Function
Programming Barcode/ Programming Command/Function The figure above is an example that shows you the programming barcode and command for the Level Mode function: 1. The Level Mode barcode. 2. The Level Mode command. 3. The description of feature/option. 4. ** indicates factory default settings. Note: “@”...
Page 32: Use Of Programming Command
Use of Programming Command Besides the barcode programming method, the scanner can also be configured by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters. Command Syntax Prefix StorageType Tag SubTag {Data} [,SubTag {Data}] [;Tag SubTag {Data}] […] Suffix Prefix: “~<SOH>0000”...
Page 33: Responses
The value of the StoreType field in a query command can be either “@” (HEX: 40) or “#” (HEX: 23). A query command with the SubTag field omitted means to query all the settings concerning a tag. For example, to query all the current settings about Code 11, you should enter 7E 01 30 30 30 30 40 43 31 31 2A 3B 03 (i.e.
Page 34: Use Of Programming Barcode
Use of Programming Barcode Programming barcode data (i.e. the characters under programming barcode) can be transmitted to the host device. Scan the appropriate barcode below to enable or disable the transmission of programming barcode data to the host device. @SETUPT0 ** Do Not Transmit Programming Barcode Data @SETUPT1 Transmit Programming Barcode Data...
Page 35: Illumination
Illumination @ILLSCN1 ** On @ILLSCN0 Illumination Color @ILLCLR0 Red LED @ILLCLR1 White LED @ILLCLR2 ** Red LED and White LED @ILLCLR4 Blue LED...
Page 36: Interval Time Of Illumination Switching
@ILLCLR5 Red LED,White LED and Blue LED Interval Time of Illumination switching This parameter sets the Interval Time of Illumination switching. The default value is 2000ms. @ILLSCT Interval Time of Illumination switching Aiming When scanning/capturing image, the scanner projects an aiming pattern which allows positioning the target barcode within its field of view and thus makes decoding easier.
Page 37 @AMLENA2 Always On...
Page 38: Good Read Led
Good Read LED The green LED can be programmed to be On or Off to indicate good read. @GRLENA1 ** On @GRLENA0...
Page 39: Good Read Led Duration
Good Read LED Duration This parameter sets the amount of time the Good Read LED remains on following a good read. It is programmable in 10ms increments from 20ms to 10,000ms. @GRLDUR20 ** Short (20ms) @GRLDUR120 Medium (120ms) @GRLDUR220 Long (220ms) @GRLDUR320 Prolonged (320ms) @GRLDUR...
Page 40: Power On Beep
Power On Beep The scanner can be programmed to beep when it is powered on. Scan the Off barcode if you do not want a power on beep. @PWBENA1 ** On @PWBENA0 Good Read Beep Scanning the Off barcode can turn off the beep that indicates successful decode; scanning the On barcode can turn it back @GRBENA1 ** On @GRBENA0...
Page 41: Good Read Beep Duration
Good Read Beep Duration This parameter sets the length of the beep the scanner emits on a good read. It is programmable in 10ms increments from 20ms to 300ms. @GRBDUR40 Short (40ms) @GRBDUR80 ** Medium (80ms) @GRBDUR120 Long (120ms) @GRBDUR Custom (20 - 300ms) Set the Good Read Beep duration to 200ms: Scan the Custom barcode.
Page 42: Good Read Beep Frequency
Good Read Beep Frequency This parameter is programmable in 1Hz increments from 20Hz to 20,000Hz. @GRBFRQ800 Extra Low (800Hz) @GRBFRQ1600 Low (1600Hz) @GRBFRQ2730 ** Medium (2730Hz) @GRBFRQ4200 High (4200Hz) @GRBFRQ Custom (20 - 20,000Hz) Set the Good Read Beep frequency to 2,000Hz: 1.
Page 43: Number Of Good Read Beeps
Number of Good Read Beeps The number of beeps of a good read can be programmed from 1 to 9. To change the number of beeps, scan the barcode below and then scan a numeric barcode (1-9) and the Save barcode. The default value is 1. @GRBNUM Number of Good Read Beeps...
Page 44: Good Read Beep Interval Time
Good Read Beep Interval Time Good Read Beep Interval Time modifies the interval time between beeps, and it becomes effective when the Number of Good Read Beeps is greater than one. @GRBITV0 ** Short @GRBITV1 Medium Good Read Vibration You may choose whether or not to let the scanner vibrate when a barcode is successfully read by scanning the appropriate barcode below.
Page 45: Good Read Vibration Duration
Good Read Vibration Duration This parameter sets the length for the Good Read Vibration. It is programmable in 1ms increments from 100ms to 2,000ms. The default value is 300ms. @GRVDUR Set Good Read Vibration Duration Set the Good Read Vibration duration to 800ms: 1.
Page 46 Pre-Aiming Mode:When the user holds the scanner , the scanner lights up the aiming light to indicate the current position of the scanner before the user presses the button. After pressing the button, the scanner starts to read the bar code( the aimer is turned on or off according to the configuration of aimer mode.
Page 47 @SCNMOD13 ** Pre-Aiming Mode...
Page 48: Decode Session Timeout
Decode Session Timeout This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 1ms to 3,600,000ms. When it is set to 0, the timeout is infinite. The default setting is 3,000ms. @ORTSET Decode Session Timeout Set the decode session timeout to 1,500ms:...
Page 49: Reread Timeout
Reread Timeout Reread Timeout can avoid undesired rereading of same barcode in a given period of time. This feature is only applicable to Continuous modes. Enable Reread Timeout: Do not allow the scanner to reread same barcode before the reread timeout expires. Disable Reread Timeout: Allow the scanner to reread same barcode.
Page 50: Good Read Delay
Good Read Delay Good Read Delay sets the minimum amount of time before the scanner can read another barcode. This parameter is programmable in 1ms increments from 1ms to 3,600,000ms. The default setting is 500ms. Scan the appropriate barcode below to enable or disable the delay. @GRDENA1 Enable Good Read Delay @GRDENA0...
Page 51: Image Decoding Timeout
Image Decoding Timeout Image Decoding Timeout specifies the maximum time the scanner will spend decoding an image. This parameter is programmable in 1ms increments from 1ms to 3,000ms. The default timeout is 350ms. @DETSET Image Decoding Timeout Set the image decoding timeout to 800ms: 1.
Page 52: Scanning Preference
Scanning Preference Normal Mode: Select this mode when reading barcodes on paper. Screen Mode: Select this mode when reading barcodes on the screen. High Motion Tolerance Mode: Select this mode when reading barcodes on moving objects. Wide Adaptive Mode：Select this mode when application scenarios and code types are diversified. @EXPLVL0 ** Normal Mode @EXPLVL4...
Page 53: Read Barcode On/Off
Read Barcode On/Off Sending the Read Barcode Off command ~<SOH>0000#SCNENA0;<ETX> to the scanner can disable it from reading barcode, and the scanner is unable to scan barcode unless you send the Read Barcode On command ~<SOH>0000#SCNENA1;<ETX> to it or power cycle it. By default, Read Barcode is On. Transmit Not Good Read Message ...
Page 54: Decode Area
Decode Area Whole Area Decoding: The scanner attempts to decode barcode(s) within its field of view, from the center to the periphery, and transmits the barcode that has been first decoded. Specific Area Decoding: The scanner attempts to read barcode(s) within a specified decoding area and transmits the barcode that has been first decoded.
Page 55 @CADENA0 ** Whole Area Decoding @CADENA1 Specific Area Decoding @CADENA2 Aiming Bar Code Decoding If Specific Area Decoding is enabled, the scanner only reads barcodes that intersect the predefined decoding area. The default decoding area is an area of 40% top, 60% bottom, 40% left and 60% right of the scanner’s field of view You can define the decoding area using the Top of Decoding Area, Bottom of Decoding Area, Left of Decoding Area and Right of Decoding Area barcodes as well as numeric barcode(s) that represent(s) a desired percentage (0-100).
Page 56 @CADLEF Left of Decoding Area @CADRIG Right of Decoding Area Barcode 1 Barcode 2 Program the scanner to only read Barcode 1 in the figure above by setting the decoding area to 10% top, 45% bottom, 15% left and 30% right: 1.
Page 57: Image Flipping
11. Scan the numeric barcode “0” from the “Digit Barcodes” section in Appendix. 12. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix. 13. Scan the Right of Decoding Area barcode. 14. Scan the numeric barcodes “3” and “0” from the “Digit Barcodes” section in Appendix. 15.
Page 58: Default Settings
Default Settings Factory Defaults Scanning the following barcode can restore the scanner to the factory defaults. You may need to reset all parameters to the factory defaults when:  scanner is not properly configured so that it fails to decode barcodes. ...
Page 59: Custom Defaults
Custom Defaults Scanning the Restore All Custom Defaults barcode can reset all parameters on the scanner to the custom defaults. Scanning the Save as Custom Defaults barcode can set the current settings as custom defaults. Custom defaults are stored in the non-volatile memory. @CUSSAV Save as Custom Defaults @CUSDEF...
Page 60: Query Scanner Information
Query Scanner Information After scanning the barcode below, the scanner information (including product name, firmware version, decoder version, hardware version, product serial number, OEM serial number and manufacturing date) will be sent to the host device. @QRYSYS Query Scanner Information Query Product Name @QRYPDN Query Product Name...
Page 61: Query Decoder Version
Query Decoder Version @QRYDCV Query Decoder Version Query Hardware Version @QRYHWV Query Hardware Version Query Serial Number @QRYPSN Query Serial Number Query Manufacturing Date @QRYDAT Query Manufacturing Date...
Page 63: Chapter 4 Rs-232 Interface
Chapter 4 RS-232 Interface Introduction When the cradle is connected to the RS-232 port of a host device, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) on the cradle to match the host device so that two devices can communicate with each other.
Page 64: Baud Rate
Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the host requirements. @232BAD8 ** 115200 @232BAD7 57600 @232BAD6 38400 @232BAD5 19200 @232BAD4 14400...
Page 65: Parity Check
@232BAD3 9600 @232BAD2 4800 @232BAD1 2400 @232BAD0 1200 Parity Check Set the parity type to match the host requirements. Odd Parity: If the data contains an odd number of 1 bits, the parity bit value is set to 0. Even Parity: If the data contains an even number of 1 bits, the parity bit value is set to 0. None: Select this option when no parity bit is required.
Page 66 @232PAR1 Even Parity @232PAR2 Odd Parity...
Page 67: Data Bit
Data Bit Set the number of data bits to match the host requirements. @232DAT1 7 Data Bits @232DAT0 ** 8 Data Bits Stop Bit The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream.
Page 68: Hardware Auto Flow Control
Hardware Auto Flow Control If this feature is enabled, the cradle determines whether to transmit data based on CTS signal level. When CTS signal is at a low level which means the serial port’s cache memory of receiving device (such as PC) is full, the cradle sends data through RS-232 port until CTS signal is set to high level by receiving device.
Page 69: Chapter 5 Usb Interface
Chapter 5 USB Interface Introduction There are two options for USB connection between the cradle and host device:  USB HID Keyboard: The cradle’s transmission is simulated as USB keyboard input with no need for command configuration or a driver. Barcode data could be entered by the virtual keyboard directly and it is also convenient for the host device to receive data.
Page 70: Usb Hid Keyboard
USB HID Keyboard When the cradle is connected to the USB port on a host device, you can enable the USB HID Keyboard feature by scanning the barcode below. The cradle’s transmission will be simulated as USB keyboard input. The Host receives keystrokes on the virtual keyboard.
Page 71: Usb Country Keyboard Types
USB Country Keyboard Types Keyboard layouts vary from country to country. The default setting is U.S. keyboard. @KBWCTY0 ** U.S. (English) @KBWCTY1 Belgium @KBWCTY2 Brazil @KBWCTY3 Canada (French) @KBWCTY4 Czechoslovakia @KBWCTY5 Denmark...
Page 72 @KBWCTY6 Finland (Swedish) @KBWCTY7 France @KBWCTY8 Germany/ Austria @KBWCTY9 Greece @KBWCTY10 Hungary @KBWCTY11 Israel (Hebrew) @KBWCTY12 Italy...
Page 73 @KBWCTY13 Latin America/ South America @KBWCTY14 Netherlands (Dutch) @KBWCTY15 Norway @KBWCTY16 Poland @KBWCTY17 Portugal @KBWCTY18 Romania @KBWCTY19 Russia...
Page 74 @KBWCTY21 Slovakia @KBWCTY22 Spain @KBWCTY23 Sweden @KBWCTY24 Switzerland (German) @KBWCTY25 Turkey_F @KBWCTY26 Turkey_Q @KBWCTY27...
Page 75: Beep On Unknown Character
@KBWCTY28 Japan Beep on Unknown Character Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard. As a result, the scanner fails to transmit the unknown characters. Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected. @KBWBUC0 ** Do Not Beep on Unknown Character @KBWBUC1...
Page 76: Emulate Alt+Keypad
Emulate ALT+Keypad When Emulate ALT+Keypad is turned on, any ASCII character (0x00 - 0xFF) is sent over the numeric keypad no matter which keyboard type is selected. ALT Make Enter the number corresponding to a desired character on the keypad. ALT Break After Emulate ALT+Keypad ON is selected, you need to choose the code page with which the barcodes were created and to turn Unicode Encoding On or Off depending on the encoding used by the application software.
Page 77: Code Page
Code Page Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the barcode being scanned was created using a code page that is different from the one the host program is expecting.
Page 78 @KBWCPG5 Code Page 1255 (Hebrew) @KBWCPG6 Code Page 1256 (Arabic) @KBWCPG7 Code Page 1257 (Baltic) @KBWCPG8 Code Page 1258 (Vietnamese) @KBWCPG9 Code Page 936 (Simplified Chinese, GB2312,GBK） @KBWCPG10 Code Page 950 (Traditional Chinese, Big5) @KBWCPG11 Code Page 874(Thai)
Page 79 @KBWCPG12 Code Page 932（Japanese, Shift-JIS）...
Page 80: Unicode Encoding
Unicode Encoding Different host program may use different character encodings for handling incoming barcode data. For instance, Microsoft Office Word uses Unicode encoding and therefore you should turn Unicode Encoding on, whereas Microsoft Office Excel or Notepad uses Code Page encoding and therefore you should turn Unicode Encoding off. This feature is only effective when Emulate ALT+Keypad is turned on.
Page 81: Function Key Mapping
Function Key Mapping When Ctrl+ASCII Mode is selected, function characters (0x00 - 0x1F) are sent as ASCII sequences. CTRL Make Press function key CTRL Break @KBWFKM0 ** Disable @KBWFKM1 Ctrl+ASCII Mode If Ctrl+ASCII Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, barcode data “A<HT>(i.e.
Page 82: Ascii Function Key Mapping Table
ASCII Function Key Mapping Table ASCII Function ASCII Value (HEX) Function Key Mapping Disabled Ctrl+ASCII Null Ctrl+@ Keypad Enter Ctrl+A Caps Lock Ctrl+B Ctrl+C Null Ctrl+D CTRL Ctrl+E Null Ctrl+F Enter Ctrl+G Left Arrow Ctrl+H Horizontal Tab Ctrl+I Down Arrow Ctrl+J Vertical Tab Ctrl+K...
Page 83: Ascii Function Key Mapping Table (Continued)
ASCII Function Key Mapping Table (Continued) The last five characters (0x1B~0x1F) in the table above apply to US keyboard layout only. The following chart provides the equivalents of these five characters for other countries. Country Ctrl+ASCII United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+-...
Page 84: Inter-Keystroke Delay
Inter-Keystroke Delay This parameter specifies the delay between emulated keystrokes. @KBWDLY0 ** No Delay @KBWDLY40 Long Delay (40ms) @KBWDLY20 Short Delay (20ms) Caps Lock The Caps Lock ON option can invert upper and lower case characters contained in barcode data. This inversion occurs regardless of the state of Caps Lock key on the host device’s keyboard.
Page 85: Convert Case
Convert Case You may scan the appropriate barcode below to convert all barcode data to your desired case. @KBWCAS0 ** No Case Conversion @KBWCAS1 Convert All to Upper Case @KBWCAS2 Convert All to Lower Case When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”. If Emulate ALT+Keypad ON is selected, Convert All to Lower Case and Convert All to Upper Case do not function.
Page 86 Do Not Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on main keyboard. Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on numeric keypad. The state of Num Lock on the simulated numeric keypad is determined by its equivalent on the host device. If Num Lock on the host device is turned off, the output of simulated numeric keypad is function key instead of number.
Page 87 Emulate ALT+Keypad ON prevails over Emulate Numeric Keypad. Supposing the Emulate Numeric Keypad 1 feature is enabled: if Num Lock on the host device is ON, “A4.5” is transmitted as “A4.5”; if Num Lock on the host device is OFF, “A4.5” is transmitted as “.A”: 1.
Page 88: Polling Rate
Polling Rate This parameter specifies the polling rate for a USB keyboard. If the Host drops characters, change the polling rate to a bigger value. @KBWPOR0 @KBWPOR1 @KBWPOR2 @KBWPOR3 ** 4ms @KBWPOR4...
Page 89 @KBWPOR5 @KBWPOR6 @KBWPOR7 @KBWPOR8 @KBWPOR9 10ms...
Page 90: Usb Cdc
USB CDC If your cradle is connected to the USB port on a host device, the USB CDC feature allows the host device to receive data in the way as a serial port does. A driver is needed when using this feature. You may download it from our website at www.newlandaidc.com.
Page 91: Access The Scanner With Your Program
USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland’s vendor ID is 1EAB (Hex). A range of PIDs are used for each Newland product family. Every PID...
Page 92 Product Interface PID (Hex) PID (Dec) 1E03 7683 USB HID Keyboard HR42 1E06 7686 USB CDC USB HID-POS 1E10 7696...
Page 94: Chapter 6 Symbologies
Chapter 6 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner. Global Settings Enable/Disable All Symbologies If the Disable All Symbologies feature is enabled, the scanner will not be able to read any non-programming barcodes...
Page 95: Enable/Disable 1D Symbologies
Enable/Disable 1D Symbologies @ALL1DC1 Enable 1D Symbologies @ALL1DC0 Disable 1D Symbologies Enable/Disable 2D Symbologies @ALL2DC1 Enable 2D Symbologies @ALL2DC0 Disable 2D Symbologies Enable/Disable Postal Symbologies...
Page 96: 1D Twin Code
@ALLPST1 Enable All Postal Symbologies @ALLPST0 Disable All Postal Symbologies 1D Twin Code 1D twin code is two 1D barcodes of a symbology or of different symbologies paralleled vertically. Both barcodes must have similar specifications and be placed closely together. There are 3 options for reading 1D twin code: ...
Page 97: Enhance Poor Quality 1D Barcode Decoding
Enhance Poor Quality 1D Barcode Decoding @ALL1DE0 ** Off @ALL1DE1...
Page 98: Code 128
Code 128 Restore Factory Defaults @128DEF Restore the Factory Defaults of Code 128 Enable/Disable Code 128 @128ENA1 Enable Code 128 @128ENA0 Disable Code 128 If the scanner fails to identify Code 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 128 barcode.
Page 99: Set Length Range For Code 128
Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @128MIN Set the Minimum Length (Default: 1) @128MAX...
Page 100: Restore Factory Defaults
EAN-8 Restore Factory Defaults @EA8DEF Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 @EA8ENA1 ** Enable EAN-8 @EA8ENA0 Disable EAN-8 If the scanner fails to identify EAN-8 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-8 barcode. Transmit Check Character EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data.
Page 101: 2-Digit Add-On Code
@EA8CHK1 Do Not Transmit EAN-8 Check Character 2-Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a two-digit add-on code. @EA8AD20 ** Disable 2-Digit Add-On Code @EA8AD21...
Page 102: 5-Digit Add-On Code
5-Digit Add-On Code An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a five-digit add-on code. @EA8AD50 ** Disable 5-Digit Add-On Code @EA8AD51...
Page 103: Add-On Code Separator
@EA8REQ0 ** EAN-8 Add-On Code Not Required Add-On Code Separator When this feature is on, there is a space between the data from the barcode and the data from the add-on code. When turned off, there is no space. @EA8SEP0 ** Off @EA8SEP1 Convert EAN-8 to EAN-13...
Page 104 @EA8EXP1 Convert EAN-8 to EAN-13...
Page 105: Restore Factory Defaults
EAN-13 Restore Factory Defaults @E13DEF Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 @E13ENA1 ** Enable EAN-13 @E13ENA0 Disable EAN-13 If the scanner fails to identify EAN-13 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-13 barcode.
Page 106: Transmit Check Character
Transmit Check Character @E13CHK2 ** Transmit EAN-13 Check Character @E13CHK1 Do Not Transmit EAN-13 Check Character 2-Digit Add-On Code An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a two-digit add-on code.
Page 107 2-digit add-on codes. Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit add-on codes.
Page 108: 5-Digit Add-On Code
5-Digit Add-On Code An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a five-digit add-on code. @E13AD50 ** Disable 5-Digit Add-On Code @E13AD51...
Page 109: Add-On Code Separator
@E13REQ1 EAN-13 Add-On Code Required Add-On Code Separator When this feature is on, there is a space between the data from the barcode and the data from the add-on code. When turned off, there is no space. @E13SEP0 ** Off @E13SEP1 EAN-13 Beginning with 290 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”.
Page 110: Ean-13 Beginning With 378/379 Add-On Code Required
@E132900 Do Not Require Add-On Code @E132901 Require Add-On Code EAN-13 Beginning with 378/379 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “378” or “379”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “378”...
Page 111: Ean-13 Beginning With 434/439 Add-On Code Required
or “419”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.
Page 112: Ean-13 Beginning With 977 Add-On Code Required
EAN-13 Beginning with 977 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted.
Page 113: Ean-13 Beginning With 979 Add-On Code Required
@E139781 Require Add-On Code EAN-13 Beginning with 979 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted.
Page 114: Enable/Disable Upc-E
Enable/Disable UPC-E @UPEENA1 ** Enable UPC-E @UPEENA0 Disable UPC-E @UPEEN01 ** Enable UPC-E0 @UPEEN00 Disable UPC-E0 @UPEEN11 Enable UPC-E1 @UPEEN10 ** Disable UPC-E1...
Page 115: Transmit Check Character
Transmit Check Character UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data. @UPECHK2 ** Transmit UPC-E Check Character @UPECHK1 Do Not Transmit UPC-E Check Character 2-Digit Add-On Code A UPC-E barcode can be augmented with a two-digit add-on code to form a new one.
Page 116: 5-Digit Add-On Code
presented with a UPC-E plus 2-digit add-on barcode. It can also decode UPC-E barcodes without 2-digit add-on codes. Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit add-on codes. 5-Digit Add-On Code A UPC-E barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a five-digit add-on code.
Page 117: Add-On Code Required
Add-On Code Required When UPC-E Add-On Code Required is selected, the scanner will only read UPC-E barcodes that contain add-on codes. @UPEREQ1 UPC-E Add-On Code Required @UPEREQ0 ** UPC-E Add-On Code Not Required Add-On Code Separator When this feature is on, there is a space between the data from the barcode and the data from the add-on code. When turned off, there is no space.
Page 118: Transmit Preamble Character
Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble. @UPEPRE1 ** System Character @UPEPRE0...
Page 119: Upc-A
@UPEEXP1 Convert UPC-E to UPC-A UPC-A Restore Factory Defaults @UPADEF Restore the Factory Defaults of UPC-A Enable/Disable UPC-A @UPAENA1 Enable UPC-A @UPAENA0 Disable UPC-A If the scanner fails to identify UPC-A barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-A barcode.
Page 120: 2-Digit Add-On Code
@UPACHK2 Transmit UPC-A Check Character @UPACHK1 Do Not Transmit UPC-A Check Character 2-Digit Add-On Code A UPC-A barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a two-digit add-on code. @UPAAD20 ** Disable 2-Digit Add-On Code @UPAAD21...
Page 121 presented with a UPC-A plus 2-digit add-on barcode. It can also decode UPC-A barcodes without 2-digit add-on codes. Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit add-on codes.
Page 122: 5-Digit Add-On Code
5-Digit Add-On Code A UPC-A barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a five-digit add-on code. @UPAAD50 ** Disable 5-Digit Add-On Code @UPAAD51...
Page 123: Add-On Code Separator
@UPAREQ0 ** UPC-A Add-On Code Not Required Add-On Code Separator When this feature is on, there is a space between the data from the barcode and the data from the add-on code. When turned off, there is no space. @UPASEP0 ** Off @UPASEP1 Transmit Preamble Character...
Page 124 @UPAPRE1 System Character @UPAPRE2 System Character & Country Code...
Page 125: Interleaved 2 Of 5
Interleaved 2 of 5 Restore Factory Defaults @I25DEF Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 @I25ENA1 ** Enable Interleaved 2 of 5 @I25ENA0 Disable Interleaved 2 of 5 If the scanner fails to identify Interleaved 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Interleaved 2 of 5 barcode.
Page 126: Set Length Range For Interleaved 2 Of 5
Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @I25MIN Set the Minimum Length (Default: 6) @I25MAX...
Page 127: Check Character Verification
Check Character Verification A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. ...
Page 128: Febraban
Febraban @I25FBB0 **Enable Febraban @I25FBB1 Enable Febraban, Do Not Expand @I25FBB2 Enable Febraban, Expand Febraban Barcode Transmit Delay  Febraban Transmit Delay per Character @FEBSEN0 ** Disable @FEBSEN1 Enable  Febraban Custom Transmit Delay per Character...
Page 129 @FEBSDT0 @FEBSDT5 @FEBSDT10 10ms @FEBSDT15 15ms @FEBSDT20 20ms @FEBSDT25 25ms @FEBSDT30 30ms...
Page 130 @FEBSDT35 35ms @FEBSDT40 40ms @FEBSDT45 45ms @FEBSDT50 50ms @FEBSDT55 55ms @FEBSDT60 60ms @FEBSDT65 65ms...
Page 131 @FEBSDT70 ** 70ms @FEBSDT75 75ms...
Page 132: 118
ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. ITF-14 priority principle: Forthe Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.
Page 133 scanner only decodes Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character.
Page 134: 120
ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.
Page 135 An example of the ITF-6 priority principle: when ITF-6 is enabled and Interleaved 2 of 5 is disabled, the scanner only decodes Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character.
Page 136: Matrix 2 Of 5
Matrix 2 of 5 Restore Factory Defaults @M25DEF Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 @M25ENA1 ** Enable Matrix 2 of 5 @M25ENA0 Disable Matrix 2 of 5 If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Matrix 2 of 5 barcode.
Page 137: Set Length Range For Matrix 2 Of 5
Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @M25MIN Set the Minimum Length (Default: 4) @M25MAX...
Page 138: Check Character Verification
Check Character Verification A check character is optional for Matrix 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Matrix 2 of 5 barcodes as is. ...
Page 139 characters including the check character cannot be read.)
Page 140: Code 39
Code 39 Restore Factory Defaults @C39DEF Restore the Factory Defaults of Code 39 Enable/Disable Code 39 @C39ENA1 ** Enable Code 39 @C39ENA0 Disable Code 39 If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 39 barcode.
Page 141: Set Length Range For Code 39
Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @C39MIN Set the Minimum Length (Default: 1) @C39MAX...
Page 142: Check Character Verification
Check Character Verification A check character is optional for Code 39 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Code 39 barcodes as is. ...
Page 143 including the check character cannot be read.)
Page 144: Transmit Start/Stop Character
Transmit Start/Stop Character Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. @C39TSC0 ** Do Not Transmit Start/Stop Character @C39TSC1 Transmit Start/Stop Character Enable/Disable Code 39 Full ASCII...
Page 145: Enable/Disable Code 32 (Italian Pharma Code)
Enable/Disable Code 32 (Italian Pharma Code) Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate barcode below to enable or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this parameter to function.
Page 146: Transmit Code 32 Start/Stop Character
Transmit Code 32 Start/Stop Character Code 32 must be enabled for this parameter to function. @C39T320 ** Do Not Transmit Code 32 Start/Stop Character @C39T321 Transmit Code 32 Start/Stop Character Transmit Code 32 Check Character Code 32 must be enabled for this parameter to function. @C39C320 ** Do Not Transmit Code 32 Check Character @C39C321...
Page 147: Codabar
Codabar Restore Factory Defaults @CBADEF Restore the Factory Defaults of Codabar Enable/Disable Codabar @CBAENA1 ** Enable Codabar @CBAENA0 Disable Codabar If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Codabar barcode.
Page 148: Set Length Range For Codabar
Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @CBAMIN Set the Minimum Length (Default: 2) @CBAMAX Set the Maximum Length (Default: 60) If minimum length is set to be greater than maximum length, the scanner only decodes Codabar...
Page 149: Check Character Verification
Check Character Verification A check character is optional for Codabar and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Codabar barcodes as is. ...
Page 150 including the check character cannot be read.)
Page 151: Start/Stop Character
Start/Stop Character You can set the start/stop characters and choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. @CBATSC0 ** Do Not Transmit Start/Stop Character @CBATSC1 Transmit Start/Stop Character @CBASCF0 ** ABCD/ABCD as the Start/Stop Character @CBASCF1 ABCD/TN*E as the Start/Stop Character @CBASCF2...
Page 152 @CBASCF3 abcd/tn*e as the Start/Stop Character...
Page 153: Code 93
Code 93 Restore Factory Defaults @C93DEF Restore the Factory Defaults of Code 93 Enable/Disable Code 93 @C93ENA1 Enable Code 93 @C93ENA0 ** Disable Code 93 If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 93 barcode.
Page 154: Set Length Range For Code 93
Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @C93MIN Set the Minimum Length (Default: 1) @C93MAX...
Page 155: Check Character Verification
Check Character Verification Check characters are optional for Code 93 and can be added as the last two characters, which are calculated values used to verify the integrity of the data.  Disable: The scanner transmits Code 93 barcodes as is. ...
Page 156 characters including the two check characters cannot be read.)
Page 157: China Post 25
China Post 25 Restore Factory Defaults @CHPDEF Restore the Factory Defaults of China Post 25 Enable/Disable China Post 25 @CHPENA1 Enable China Post 25 @CHPENA0 ** Disable China Post 25 If the scanner fails to identify China Post 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable China Post 25 barcode.
Page 158: Set Length Range For China Post 25
Set Length Range for China Post 25 The scanner can be configured to only decode China Post 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @CHPMIN Set the Minimum Length (Default: 1) @CHPMAX...
Page 159: Check Character Verification
Check Character Verification A check character is optional for China Post 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits China Post 25 barcodes as is. ...
Page 160 characters including the check character cannot be read.)
Page 161: Gs1-128 (Ucc/Ean-128)
GS1-128 (UCC/EAN-128) Restore Factory Defaults @GS1DEF Restore the Factory Defaults of GS1-128 Enable/Disable GS1-128 @GS1ENA1 ** Enable GS1-128 @GS1ENA0 Disable GS1-128 If the scanner fails to identify GS1-128 barcodes, you may first try this solution by scanning the Enable GS1-128 barcode.
Page 162: Set Length Range For Gs1-128
Set Length Range for GS1-128 The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @GS1MIN Set the Minimum Length (Default: 1) @GS1MAX Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128...
Page 163 AIM 128 Restore Factory Defaults @AIMDEF Restore the Factory Defaults of AIM 128 Enable/Disable AIM 128 @AIMENA1 Enable AIM128 @AIMENA0 ** Disable AIM 128 If the scanner fails to identify AIM 128 barcodes, you may first try this solution by scanning the Enable AIM 128 barcode.
Page 164 Set Length Range for AIM 128 The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @AIMMIN Set the Minimum Length (Default: 1) @AIMMAX...
Page 165 ISBT 128 Restore Factory Defaults @IBTDEF Restore the Factory Defaults of ISBT 128 Enable/Disable ISBT 128 @IBTENA1 Enable ISBT 128 @IBTENA0 ** Disable ISBT 128 If the scanner fails to identify ISBT-128 barcodes, you may first try this solution by scanning the Enable ISBT-128 barcode.
Page 166: Gs1 Databar (Rss)
GS1 Databar (RSS) Restore Factory Defaults @RSSDEF Restore the Factory Defaults of GS1 Databar Enable/Disable GS1 Databar @RSSENA1 ** Enable GS1 Databar @RSSENA0 Disable GS1 Databar If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Databar barcode.
Page 167: Gs1 Composite (Ean· Ucc Composite)
@RSSTAI0 Do Not Transmit Application Identifier “01” GS1 Composite (EAN· UCC Composite) Restore Factory Defaults @CPTDEF Restore the Factory Defaults of GS1 Composite Enable/Disable GS1 Composite @CPTENA1 Enable GS1 Composite @CPTENA0 ** Disable GS1 Composite If the scanner fails to identify GS1 Composite barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Composite barcode.
Page 168: Enable/Disable Upc/Ean Composite
Enable/Disable UPC/EAN Composite @CPTUPC1 Enable UPC/EAN Composite @CPTUPC0 ** Disable UPC/EAN Composite Code 11 Restore Factory Defaults @C11DEF Restore the Factory Defaults of Code 11 Enable/Disable Code 11 @C11ENA1 Enable Code 11...
Page 169 @C11ENA0 ** Disable Code 11 If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 11 barcode.
Page 170: Set Length Range For Code 11
Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @C11MIN Set the Minimum Length (Default: 4) @C11MAX...
Page 171: Check Character Verification
Check Character Verification Check characters are optional for Code 11 and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits Code 11 barcodes as is. @C11CHK0 Disable @C11CHK1...
Page 172 @C11CHK5 One Check Character, MOD11 (Len<=10) Two Check Characters, MOD11/MOD9 (Len>10)
Page 173: Transmit Check Character
Transmit Check Character @C11TCK0 Do Not Transmit Code 11 Check Character @C11TCK1 Transmit Code 11 Check Character If you select a check character algorithm and the Do Not Transmit Check Character option, Code 11 barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded.
Page 174: Isbn
ISBN Restore Factory Defaults @ISBDEF Restore the Factory Defaults of ISBN Enable/Disable ISBN @ISBENA1 Enable ISBN @ISBENA0 ** Disable ISBN...
Page 175: Set Isbn Format
Set ISBN Format @ISBT101 ** ISBN-10 @ISBT100 ISBN-13...
Page 176: Issn
ISSN Restore Factory Defaults @ISSDEF Restore the Factory Defaults of ISSN Enable/Disable ISSN @ISSENA1 Enable ISSN @ISSENA0 ** Disable ISSN...
Page 177: Industrial 25
Industrial 25 Restore Factory Defaults @L25DEF Restore the Factory Defaults of Industrial 25 Enable/Disable Industrial 25 @L25ENA1 Enable Industrial 25 @L25ENA0 ** Disable Industrial 25 If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enable Industrial 25 barcode.
Page 178: Set Length Range For Industrial 25
Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @L25MIN Set the Minimum Length (Default: 6) @L25MAX...
Page 179: Check Character Verification
Check Character Verification A check character is optional for Industrial 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Industrial 25 barcodes as is. ...
Page 180 characters including the check character cannot be read.)
Page 181: Standard 25
Standard 25 Restore Factory Defaults @S25DEF Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 @S25ENA1 Enable Standard 25 @S25ENA0 ** Disable Standard 25 If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enable Standard 25 barcode.
Page 182: Set Length Range For Standard 25
Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @S25MIN Set the Minimum Length (Default: 6) @S25MAX...
Page 183: Check Character Verification
Check Character Verification A check character is optional for Standard 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits Standard 25 barcodes as is. ...
Page 184 COOP 25 Restore Factory Defaults @COPDEF Restore the Factory Defaults of COOP 25 Enable/Disable COOP 25 @COPENA1 **Enable COOP 25 @COPENA0 Disable COOP 25...
Page 185 Set Length Range for COOP 25 The scanner can be configured to only decode COOP 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @COPMIN Set the Minimum Length (Default: 1) @PLYMAX...
Page 186 Check Character Verification A check character is optional for COOP 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.  Disable: The scanner transmits COOP 25 barcodes as is. ...
Page 187 Deutsche 14 Restore Factory Defaults @D14DEF Restore the Factory Defaults of Deutsche 14 Enable/Disable Deutsche 14 @D14ENA1 Enable Deutsche 14 But Do Not Transmit Check Digit @D14ENA2 Enable Deutsche 14 and Transmit Check Digit @D14ENA0 **Disable...
Page 188 Deutsche 12 Restore Factory Defaults @D12DEF Restore the Factory Defaults of Deutsche 12 Enable/Disable Deutsche 12 @D12ENA1 Enable Deutsche 12 But Do Not Transmit Check Digit @D12ENA2 Enable Deutsche 12 and Transmit Check Digit @D12ENA0 **Disable...
Page 189: Plessey
Plessey Restore Factory Defaults @PLYDEF Restore the Factory Defaults of Plessey Enable/Disable Plessey @PLYENA1 Enable Plessey @PLYENA0 ** Disable Plessey If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Plessey barcode.
Page 190: Set Length Range For Plessey
Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @PLYMIN Set the Minimum Length (Default: 4) @PLYMAX Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes...
Page 191: Check Character Verification
Check Character Verification Check characters are optional for Plessey and can be added as the last two characters, which are calculated values used to verify the integrity of the data.  Disable: The scanner transmits Plessey barcodes as is.  Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check character algorithm.
Page 192 including the check characters cannot be read.)
Page 193: Msi-Plessey
MSI-Plessey Restore Factory Defaults @MSIDEF Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey @MSIENA1 Enable MSI-Plessey @MSIENA0 ** Disable MSI-Plessey If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enable MSI-Plessey barcode.
Page 194: Set Length Range For Msi-Plessey
Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @MSIMIN Set the Minimum Length (Default: 4) @MSIMAX Set the Maximum Length (Default: 48) If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey...
Page 195: Check Character Verification
Check Character Verification Check characters are optional for MSI-Plessey and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is. @MSICHK0 Disable @MSICHK1...
Page 196: Transmit Check Character
Transmit Check Character @MSITCK1 Transmit MSI-Plessey Check Character @MSITCK1 Do Not Transmit MSI-Plessey Check Character If you select a check character algorithm and the Do Not Transmit Check Character option, MSI-Plessey barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded.
Page 197: Code 49
Code 49 Restore Factory Defaults @C49DEF Restore the Factory Defaults of Code 49 Enable/Disable Code 49 @C49ENA1 Enable Code 49 @C49ENA0 ** Disable Code 49 If the scanner fails to identify Code 49 barcodes, you may first try this solution by scanning the Enable Code 49 barcode.
Page 198: Set Length Range For Code 49
Set Length Range for Code 49 The scanner can be configured to only decode Code 49 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @C49MIN Set the Minimum Length (Default: 1) @C49MAX...
Page 199: Code 16K
Code 16K Restore Factory Defaults @16KDEF Restore the Factory Defaults of Code 16K Enable/Disable Code 16K @16KENA1 Enable Code 16K @16KENA0 ** Disable Code 16K If the scanner fails to identify Code 16K barcodes, you may first try this solution by scanning the Enable Code 16K barcode.
Page 200: Set Length Range For Code 16K
Set Length Range for Code 16K The scanner can be configured to only decode Code 16K barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @16KMIN Set the Minimum Length (Default: 1) @16KMAX...
Page 201 Telepen Restore Factory Defaults @TLPDEF Restore the Factory Defaults of Telepen Enable/Disable Telepen @TLPENA1 Enable Code Telepen @TLPENA0 ** Disable Telepen If the scanner fails to identify Code 16K barcodes, you may first try this solution by scanning the Enable Telepen barcode.
Page 202 Set Length Range for Telepen The scanner can be configured to only decode Telepen barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @TLPMIN Set the Minimum Length (Default: 1) @TLPMAX Set the Maximum Length (Default: 80) If minimum length is set to be greater than maximum length, the scanner only decodes Telepen...
Page 203 Check Character Verification Check characters are optional for Telepen and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits Telepen barcodes as is. @TLPCHK0 **Disable @TLPCHK1...
Page 204 @TLPASC2 Full ASCII and Numeric Only Output...
Page 205: Pdf417
PDF417 Restore Factory Defaults @PDFDEF Restore the Factory Defaults of PDF417 Enable/Disable PDF417 @PDFENA1 ** Enable PDF417 @PDFENA0 Disable PDF417...
Page 206: Set Length Range For Pdf417
Set Length Range for PDF417 The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @PDFMIN Set the Minimum Length (Default: 1) @PDFMAX Set the Maximum Length (Default: 2710) Minimum length is not allowed to be greater than maximum length.
Page 207: Pdf417 Twin Code
PDF417 Twin Code PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading PDF417 twin codes: ...
Page 208: Pdf417 Inverse
PDF417 Inverse Regular barcode: Dark bars on a bright background. Inverse barcode: Bright bars on a dark background. @PDFINV0 ** Decode Regular PDF417 Barcodes Only @PDFINV1 Decode Inverse PDF417 Barcodes Only @PDFINV2 Decode Both Character Encoding @PDFENC0 ** Default Character Encoding...
Page 209 @PDFENC1 UTF-8...
Page 210: Pdf417 Eci Output
PDF417 ECI Output @PDFECI0 Disable PDF417 ECI Output @PDFECI1 Enable PDF417 ECI Output...
Page 211: Micro Pdf417
Micro PDF417 Restore Factory Defaults @MPDDEF Restore the Factory Defaults of Micro PDF417 Enable/Disable Micro PDF417 @MPDENA1 Enable Micro PDF417 @MPDENA0 ** Disable Micro PDF417 If the scanner fails to identify Micro PDF417 barcodes, you may first try this solution by scanning the Enable Micro PDF417 barcode.
Page 212: Set Length Range For Micro Pdf417
Set Length Range for Micro PDF417 The scanner can be configured to only decode Micro PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @MPDMIN Set the Minimum Length (Default: 1) @MPDMAX...
Page 213: Qr Code
QR Code Restore Factory Defaults @QRCDEF Restore the Factory Defaults of QR Code Enable/Disable QR Code @QRCENA1 ** Enable QR Code @QRCENA0 Disable QR Code If the scanner fails to identify QR Code barcodes, you may first try this solution by scanning the Enable QR Code barcode.
Page 214: Set Length Range For Qr Code
Set Length Range for QR Code The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @QRCMIN Set the Minimum Length (Default: 1) @QRCMAX...
Page 215: Qr Twin Code
QR Twin Code QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading QR twin codes: ...
Page 216: Qr Inverse
QR Inverse Regular barcode: Dark bars on a bright background. Inverse barcode: Bright bars on a dark background. @QRCINV0 Decode Regular QR Barcodes Only @QRCINV1 Decode Inverse QR Barcodes Only @QRCINV2 ** Decode Both Character Encoding @QRCENC0 ** Default Character Encoding...
Page 217 @QRCENC1 UTF-8...
Page 218: Qr Eci Output
QR ECI Output @QRCECI0 Disable QR ECI Output @QRCECI1 Enable QR ECI Output...
Page 219: Micro Qr Code
Micro QR Code Restore Factory Defaults @MQRDEF Restore the Factory Defaults of Micro QR Enable/Disable Micro QR @MQRENA1 ** Enable Micro QR @MQRENA0 Disable Micro QR If the scanner fails to identify Micro QR barcodes, you may first try this solution by scanning the Enable Micro QR barcode.
Page 220: Set Length Range For Micro Qr
Set Length Range for Micro QR The scanner can be configured to only decode Micro QR barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @MQRMIN Set the Minimum Length (Default: 1) @MQRMAX...
Page 221: Aztec
Aztec Restore Factory Defaults @AZTDEF Restore the Factory Defaults of Aztec Code Enable/Disable Aztec Code @AZTENA1 Enable Aztec Code @AZTENA0 ** Disable Aztec Code If the scanner fails to identify Aztec Code barcodes, you may first try this solution by scanning the Enable Aztec Code barcode.
Page 222: Set Length Range For Aztec Code
Set Length Range for Aztec Code The scanner can be configured to only decode Aztec barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @AZTMIN Set the Minimum Length (Default: 1) @AZTMAX Set the Maximum Length (Default: 3832)
Page 223: Read Multi-Barcodes On An Image
Read Multi-barcodes on an Image There are three options:  Mode 1: Read one barcode only.  Mode 2: Read fixed number of barcodes only. @AZTMOD1 ** Mode 1 @AZTMOD2 Mode 2...
Page 224: Set The Number Of Barcodes
Set the Number of Barcodes @AZTMUL1 ** 1 @AZTMUL2 @AZTMUL3 @AZTMUL4 @AZTMUL5 @AZTMUL6...
Page 225 @AZTMUL7 @AZTMUL8...
Page 226: Character Encoding
Character Encoding @AZTENC0 ** Default Character Encoding @AZTENC1 UTF-8 Aztec ECI Output @AZTECI0 Disable Aztec ECI Output @AZTECI1 Enable Aztec ECI Output...
Page 227: Data Matrix
Data Matrix Restore Factory Defaults @DMCDEF Restore the Factory Defaults of Data Matrix Enable/Disable Data Matrix @DMCENA1 ** Enable Data Matrix @DMCENA0 Disable Data Matrix If the scanner fails to identify Data Matrix barcodes, you may first try this solution by scanning the Enable Data Matrix barcode.
Page 228: Set Length Range For Data Matrix
Set Length Range for Data Matrix The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @DMCMIN Set the Minimum Length (Default: 1) @DMCMAX...
Page 229: Data Matrix Twin Code
Data Matrix Twin Code Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading Data Matrix twin codes: ...
Page 230: Rectangular Barcode
Rectangular Barcode Data Matrix has two formats: Square barcodes having the same amount of modules in length and width: 10*10, 12*12..144*144. Rectangular barcodes having different amounts of models in length and width: 6*16, 6*14...14*22. @DMCREC1 ** Enable Rectangular Barcode @DMCREC0 Disable Rectangular Barcode Data Matrix Inverse...
Page 231 @DMCINV2 ** Decode Both...
Page 232: Character Encoding
Character Encoding @DMCENC0 ** Default Character Encoding @DMCENC1 UTF-8 Data Matrix ECI Output @DMCECI0 Disable Data Matrix ECI Output @DMCECI1 Enable Data Matrix ECI Output...
Page 233: Maxicode
Maxicode Restore Factory Defaults @MXCDEF Restore the Factory Defaults of Maxicode Enable/Disable Maxicode @MXCENA1 Enable Maxicode @MXCENA0 ** Disable Maxicode If the scanner fails to identify Maxicode barcodes, you may first try this solution by scanning the Enable Maxicode barcode.
Page 234: Set Length Range For Maxicode
Set Length Range for Maxicode The scanner can be configured to only decode Maxicode barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @MXCMIN Set the Minimum Length (Default: 1) @MXCMAX Set the Maximum Length (Default:150) Minimum length is not allowed to be greater than maximum length.
Page 235: Gm Code
GM Code Restore Factory Defaults @GMCDEF Restore the Factory Defaults of GM Enable/Disable GM @GMCENA1 Enable GM @GMCENA0 ** Disable GM If the scanner fails to identify GM barcodes, you may first try this solution by scanning the Enable GM barcode.
Page 236: Set Length Range For Gm
Set Length Range for GM The scanner can be configured to only decode GM barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @GMCMIN Set the Minimum Length (Default: 1) @GMCMAX Set the Maximum Length (Default: 2751) Minimum length is not allowed to be greater than maximum length.
Page 237: Code One
Code One Restore Factory Defaults @ONEDEF Restore the Factory Defaults of Code One Enable/Disable Code One @ONEENA1 Enable Code One @ONEENA0 ** Disable Code One If the scanner fails to identify Code One barcodes, you may first try this solution by scanning the Enable Code One barcode.
Page 238: Set Length Range For Code One
Set Length Range for Code One The scanner can be configured to only decode Code One barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @ONEMIN Set the Minimum Length (Default: 1) @ONEMAX...
Page 239: Chinese Sensible Code
Chinese Sensible Code Restore Factory Defaults @CSCDEF Restore the Factory Defaults of Chinese Sensible Code Enable/Disable Chinese Sensible Code @CSCENA1 Enable Chinese Sensible Code @CSCENA0 ** Disable Chinese Sensible Code If the scanner fails to identify Chinese Sensible Code barcodes, you may first try this solution by scanning the Enable Chinese Sensible Code barcode.
Page 240: Set Length Range For Chinese Sensible Code
Set Length Range for Chinese Sensible Code The scanner can be configured to only decode Chinese Sensible Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. @CSCMIN Set the Minimum Length (Default: 1) @CSCMAX...
Page 241: Chinese Sensible Twin Code
Chinese Sensible Twin Code Chinese Sensible twin code is 2 Chinese Sensible barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading Chinese Sensible twin codes: ...
Page 242: Chinese Sensible Code Inverse
Chinese Sensible Code Inverse Regular barcode: Dark bars on a bright background. Inverse barcode: Bright bars on a dark background. @CSCINV0 ** Decode Regular Chinese Sensible Barcodes Only @CSCINV1 Decode Inverse Chinese Sensible Barcodes Only @CSCINV2 Decode Both...
Page 243: Usps Postnet
USPS Postnet Restore Factory Defaults @PNTDEF Restore the Factory Defaults of USPS Postnet Enable/Disable USPS Postnet @PNTENA1 Enable USPS Postnet @PNTENA0 ** Disable USPS Postnet If the scanner fails to identify USPS Postnet barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable USPS Postnet barcode.
Page 244: Usps Intelligent Mail
@PNTCHK2 ** Transmit USPS Postnet Check Character USPS Intelligent Mail Restore Factory Defaults @ILGDEF Restore the Factory Defaults of USPS Intelligent Mail Enable/Disable USPS Intelligent Mail @ILGENA1 Enable USPS Intelligent Mail @ILGENA0 ** Disable USPS Intelligent Mail If the scanner fails to identify USPS Intelligent Mail barcodes, you may first try this solution by scanning...
Page 245 the Enable USPS Intelligent Mail barcode.
Page 246: Royal Mail
Royal Mail Restore Factory Defaults @ROYDEF Restore the Factory Defaults of Royal Mail Enable/Disable Royal Mail @ROYENA1 Enable Royal Mail @ROYENA0 ** Disable Royal Mail If the scanner fails to identify Royal Mail barcodes, you may first try this solution by scanning the Enable Royal Mail barcode.
Page 247: Usps Planet
USPS Planet Restore Factory Defaults @PLADEF Restore the Factory Defaults of USPS Planet Enable/Disable USPS Planet @PLAENA1 Enable USPS Planet @PLAENA0 ** Disable USPS Planet If the scanner fails to identify USPS Planet barcodes, you may first try this solution by scanning the Enable USPS Planet barcode.
Page 248: Transmit Check Character
Transmit Check Character @PLACHK1 Do Not Transmit USPS Planet Check Character @PLACHK2 ** Transmit USPS Planet Check Character KIX Post Restore Factory Defaults @KIXDEF Restore the Factory Defaults of KIX Post Enable/Disable KIX Post @KIXENA1 Enable KIX Post...
Page 249 @KIXENA0 ** Disable KIX Post If the scanner fails to identify KIX Post barcodes, you may first try this solution by scanning the Enable KIX Post barcode.
Page 250: Australian Postal
Australian Postal Restore Factory Defaults @APLDEF Restore the Factory Defaults of Australian Postal Enable/Disable Australian Postal @APLENA1 Enable Australian Postal @APLENA0 ** Disable Australian Postal If the scanner fails to identify Australian Postal barcodes, you may first try this solution by scanning the Enable Australian Postal barcode.
Page 251: Specific Ocr-B
Specific OCR-B Restore Factory Defaults @SOBDEF Restore the Factory Defaults of Specific OCR-B Enable/Disable Specific OCR-B @SOBENA1 Enable Specific OCR-B @SOBENA0 ** Disable Specific OCR-B If the scanner fails to identify Specific OCR-B barcodes, you may first try this solution by scanning the Enable Specific OCR-B barcode.
Page 252: Passport Ocr
Passport OCR Restore Factory Defaults @PASDEF Restore the Factory Defaults of Passport OCR Enable/Disable Passport OCR @PASENA1 Enable Passport OCR @PASENA0 ** Disable Passport OCR If the scanner fails to identify Passport OCR barcodes, you may first try this solution by scanning the Enable Passport OCR barcode.
Page 253: Chapter 8 Data Formatter
Chapter 8 Data Formatter Introduction You may use the Data Formatter to modify the scanner’s output. For example, you can use the Data Formatter to insert characters at certain points in barcode data or to suppress/ replace/ send certain characters in barcode data as it is scanned.
Page 254 Step 1: Scan the Add Data Format barcode. @DFMADD Add Data Format Step 2: Select a label (Format_0 or Format_1 or Format_2 or Format_3). Scan a numeric barcode 0 or 1 or 2 or 3 to label this data format Format_0 or Format_1 or Format_2 or Format_3. Step 3: Select formatter command type.
Page 255 Example: Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters applicable, send all characters followed by “A”. 1. Scan the Add Data Format barcode Add a data format 2. Scan the 0 barcode Select Format_0 as the label 3.
Page 256: Programming With Serial Commands
Programming with Serial Commands A data format can also be created by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters. The syntax consists of the following elements: Prefix: “~<SOH>0000” (HEX: 7E 01 30 30 30 30), 6 characters. Storage type: “@”...
Page 257: Enable/Disable Data Formatter
Enable/Disable Data Formatter When Data Formatter is disabled, the barcode data is outputted to the host as read, including prefixes and suffixes. @DFMENA0 ** Disable Data Formatter You may wish to require the data to conform to a data format you have created. The following settings can be applied to your data format: Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled).
Page 258: Non-Match Error Beep
@DFMENA1 Enable Data Formatter, Required, Keep Prefix/Suffix @DFMENA2 Enable Data Formatter, Required, Drop Prefix/Suffix @DFMENA3 Enable Data Formatter, Not Required, Keep Prefix/Suffix @DFMENA4 Enable Data Formatter, Not Required, Drop Prefix/Suffix Non-Match Error Beep If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not match your required data format.
Page 259 @DFMTON1 ** Non-Match Error Beep On...
Page 260: Data Format Selection
Data Format Selection After enabling the Data Formatter, you can select a data format you want to use by scanning the appropriate barcode below. @DFMUSE0 ** Format_0 @DFMUSE1 Format_1 @DFMUSE2 Format_2 @DFMUSE3 Format_3...
Page 261: Change Data Format For A Single Scan
Change Data Format for a Single Scan You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here, then reverts to the format you have selected above. For example, you may have set your scanner to the data format you saved as Format_3.
Page 262: Clear Data Format
Clear Data Format There are two methods to remove data format created from your scanner: Delete one data format: Scan the Clear One barcode, a numeric barcode (0-3) and the Save barcode. For example, to delete Format_2, you should scan the Clear One barcode, the 2 barcode and the Save barcode Delete all data formats: Scan the Clear All barcode.
Page 263 @DFMQFA Query Preset Data Formats...
Page 264: Formatter Command Type 6
Formatter Command Type 6 When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For the hex value of ASCII characters involved in the commands, refer to the “ASCII Table”...
Page 265 F3 Send all characters up to a particular character Syntax=F3ssxx (ss: The particular character’s hex value; xx: The insert character’s hex value) Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular character “ss,”...
Page 266 E9 and F4 Example: Send all but the last characters, followed by 2 tabs Send all characters except for the last 8 from the barcode above, followed by 2 tabs. Command string: E908F40902 E9 is the “Send all but the last characters” command 08 is the number of characters at the end to ignore F4 is the “Insert a character multiple times”...
Page 267: Move Commands
B3 and B4 Example: Insert the symbology name and length Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with spaces. End with a carriage return. Command string: B3F42001B4F42001F10D B3 is the “Insert symbology name” command F4 is the “Insert a character multiple times”...
Page 268 F5 Example: Move the cursor forward and send the data Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above. End with a carriage return. Command string: F503F10D F5 is the “Move the cursor forward a number of characters” command 03 is the number of characters to move the cursor F1 is the “Send all characters”...
Page 269: Search Commands
Search Commands F8 Search forward for a character Syntax＝F8xx (xx: The search character’s hex value) Search the input message forward for “xx” character from the current cursor position, leaving the cursor pointing to the “xx” character. F8 Example: Send barcode data that starts after a particular character Search for the letter “D”...
Page 270 B0 Search forward for a string Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string) Search forward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example, B0000454657374 will search forward for the first occurrence of the 4-character string “Test.”...
Page 271 E6 Search forward for a non-matching character Syntax=E6xx (xx: The search character’s hex value) Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character. E6 Example: Remove zeros at the beginning of barcode data This example shows a barcode that has been zero filled.
Page 272: Miscellaneous Commands
Miscellaneous Commands FB Suppress characters Syntax＝FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of the characters to be suppressed) Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands.
Page 273 E4 Example: Replace zeros with CRs in barcode data If the barcode has characters that the host application does not want included, you can use the E4 command to replace those characters with something else. In this example, you will replace the zeros in the barcode above with carriage returns.
Page 274 BA Replace a string with another Syntax＝BAnnNN nn: The count of replacements to be made, if nn=00 or nn>=the number of occurrences of a string to be replaced, then replace all occurrences of that string. : The length of the string to be replaced, NN >0.
Page 275 41 is the hex value for A (character in the replacement string) 42 is the hex value for B (character in the replacement string) 43 is the hex value for C (character in the replacement string) F1 is the “Send all characters” command 00 is the hex value for a NUL The data is output as: 1ABC4AbcABCR01ABCU BA Example: Remove only the first occurrence of “23”s in barcode data...
Page 276 EF Insert a delay Syntax＝EFnnnn (nnnn: The delay in 5ms increments, up to 9999) Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. This command can only be used with USB HID Keyboard. EF Example: Insert a delay of 1s between the 5 and 6 character...
Page 277: Chapter 9 Prefix & Suffix
Chapter 9 Prefix & Suffix Introduction A 1D barcode could contain digits, letters, symbols, etc. A 2D barcode could contain more data, such as Chinese characters and other multi-byte characters. However, in real applications, they do not and should not have all information we need, such as barcode type, data acquisition time and delimiter, in order to keep the barcodes short and flexible.
Page 278: Global Settings
Global Settings Enable/Disable All Prefixes/Suffixes Disable All Prefixes/Suffixes: Transmit barcode data with no prefix/suffix. Enable All Prefixes/Suffixes: Allow to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character to the barcode data before the transmission. @APSENA0 Disable All Prefixes/Suffixes @APSENA1 Enable All Prefixes/Suffixes Prefix Sequence...
Page 279: Custom Prefix
Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters. For example, if the custom prefix is “AB” and the barcode data is “123”, the Host will receive “AB123”. @CPRENA0 ** Disable Custom Prefix @CPRENA1...
Page 280: Aim Id Prefix
AIM ID Prefix AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the “AIM ID Table” section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding. @AIDENA0 ** Disable AIM ID Prefix @AIDENA1...
Page 281: Code Id Prefix
Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters. @CIDENA0 ** Disable Code ID Prefix @CIDENA1 Enable Code ID Prefix Restore All Default Code IDs For the information of default Code IDs, see the “Code ID Table”...
Page 282 Modify PDF417 Code ID to be “p” (HEX: 0x70): 1. Scan the Modify PDF417 Code ID barcode. 2. Scan the numeric barcodes “7” and “0” from the “Digit Barcodes” section in Appendix. 3. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix. Restore the default Code IDs of all symbologies: 1.
Page 283 1D symbologies: @CID002 Modify Code 128 Code ID @CID003 Modify GS1-128 Code ID @CID004 Modify EAN-8 Code ID @CID005 Modify EAN-13 Code ID @CID006 Modify UPC-E Code ID @CID007 Modify UPC-A Code ID...
Page 284 @CID008 Modify Interleaved 2 of 5 Code ID @CID009 Modify ITF-14 Code ID @CID010 Modify ITF-6 Code ID @CID011 Modify Matrix 2 of 5 Code ID @CID013 Modify Code 39 Code ID @CID015 Modify Codabar Code ID...
Page 285 @CID017 Modify Code 93 Code ID @CID019 Modify China Post 25 Code ID @CID023 Modify ISSN Code ID...
Page 286 @CID024 Modify ISBN Code ID @CID025 Modify Industrial 25 Code ID @CID026 Modify Standard 25 Code ID @CID027 Modify Plessey Code ID @CID028 Modify Code 11 Code ID @CID029 Modify MSI-Plessy Code ID...
Page 287 @CID030 Modify GS1 Composite Code ID @CID031 Modify GS1 Databar Code ID...
Page 288 2D symbologies: @CID032 Modify PDF417 Code ID @CID033 Modify QR Code ID @CID034 Modify Aztec Code ID @CID035 Modify Data Matrix Code ID @CID036 Modify Maxicode Code ID @CID039 Modify Chinese Sensible Code ID...
Page 289 @CID042 Modify Micro PDF417 Code ID @CID043 Modify Micro QR Code ID...
Page 290 Postal symbologies: @CID096 Modify USPS Postnet Code ID @CID097 Modify USPS Inteligent Mail Code ID @CID098 Modify Royal Mail Code ID @CID099 Modify USPS Planet Code ID @CID100 Modify KIX Post Code ID @CID101 Modify Australian Postal Code ID...
Page 291: Custom Suffix
Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters. For example, if the custom suffix is “AB” and the barcode data is “123”, the Host will receive “123AB”. @CSUENA0 ** Disable Custom Suffix @CSUENA1...
Page 292: Terminating Character Suffix
4. Scan the Enable Custom Suffix barcode. Terminating Character Suffix Enable/Disable Terminating Character Suffix A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it. @TSUENA0 Disable Terminating Character Suffix @TSUENA1...
Page 293 @TSUSET0D0A Set Terminating Character to CRLF (0x0D,0x0A) Set the terminating character suffix to 0x0A: 1. Scan the Set Terminating Character Suffix barcode. 2. Scan the numeric barcodes “0” and “A” from the “Digit Barcodes” section in Appendix. 3. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix. 4.
Page 294: Chapter 10 Batch Programming
Chapter 10 Batch Programming Introduction Batch programming enables users to integrate a batch of commands into a single batch barcode. Listed below are batch programming rules: 1. Command format: Command + Parameter Value. 2. Each command is terminated by a semicolon (;). Note that there is no space between a command and its terminator semicolon.
Page 295: Create A Batch Command
Create a Batch Command A batch command may contain a number of individual commands each of which is terminated by a semicolon (;). For more information, refer to the “Use of Programming Command” section in Chapter 3. Create a Batch Barcode Batch barcodes can be produced in the format of PDF417, QR Code or Data Matrix.
Page 296: Use Batch Barcode
Use Batch Barcode To put a batch barcode into use, scan the following barcodes. (Use the example above.) @BATCHS Enable Batch Barcode Batch Barcode...
Page 297: Appendix
Appendix Digit Barcodes @DIGIT0 @DIGIT1 @DIGIT2 @DIGIT3 @DIGIT4...
Page 298 @DIGIT5 @DIGIT6 @DIGIT7 @DIGIT8 @DIGIT9...
Page 299 @DIGITA @DIGITB @DIGITC @DIGITD @DIGITE @DIGITF...
Page 300: Save/Cancel Barcodes
Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.
Page 301: Factory Defaults Table
Factory Defaults Table Parameter Factory Default Remark System Settings Barcode Programming Disabled (Exit Setup) Programming Barcode Data Do not transmit Illumination Illumination Color Red LED and White LED Interval Time of Illumination switching 2000ms Aiming Normal Good Read LED Good Read LED Duration Short (20ms) Power On Beep Good Read Beep...
Page 302 Baud Rate 115200 Parity Check None Data Bits Stop Bits Hardware Auto Flow Control Disabled USB Interface USB Country Keyboard US keyboard USB HID Keyboard Emulate ALT+Keypad USB HID Keyboard Code Page Code Page 1252 (West European Latin) USB HID Keyboard Unicode Encoding USB HID Keyboard Function Key Mapping...
Page 303 Add-On Code Separator EAN-13 Beginning with 290 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 378/379 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 414/419 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 434/439 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 977 Add-On Code...
Page 304 ITF-14 ITF-14 Disabled ITF-6 ITF-6 Disabled Matrix 2 of 5 Matrix 2 of 5 Enabled Check Character Verification Disabled Maximum Length Minimum Length Code 39 Code 39 Enabled Check Character Verification Disabled Start/Stop Character Do not transmit Code 39 Full ASCII Disabled Code 32 Disabled...
Page 305 Minimum Length GS1-128 (UCC/EAN-128) GS1-128 Enabled Check Character Do not transmit Maximum Length Minimum Length AIM 128 AIM 128 Disabled Maximum Length Minimum Length ISBT 128 ISBT 128 Disabled GS1 Databar GS1 Databar Enabled Application Identifier “01” Transmit GS1 Composite (EAN•UCC Composite) GS1 Composite Disabled UPC/EAN Composite...
Page 306 Minimum Length COOP 25 COOP 25 Enabled Check Character Verification Disabled Maximum Length Minimum Length Deutsche 14 Deutsche 14 Disabled Deutsche 12 Deutsche 12 Disabled Plessey Plessey Disabled Check Character Verification Disabled Maximum Length Minimum Length MSI-Plessey MSI-Plessey Disabled Check Character Transmit Check Character Verification One Check Character, MOD10...
Page 307 PDF417 Inverse Decode Regular PDF417 Barcodes Only Character Encoding Default Character Encoding PDF417 ECI Output Enabled Maximum Length 2710 Minimum Length MicroPDF417 MicroPDF417 Disabled Maximum Length Minimum Length QR Code QR Code Enabled Read Single QR Only Enabled QR Inverse Read regular &...
Page 308 Maxicode Maxicode Disabled Maximum Length Minimum Length Chinese Sensible Code Chinese Sensible Code Disabled Read Single Chinese Sensible Code Only Enabled Decode regular Chinese Sensible Chinese Sensible Code Inverse barcodes only Maximum Length 7827 Minimum Length GM Code Disabled Maximum Length 2751 Minimum Length Code One...
Page 309 Data Formatter Data Formatter Disabled Non-Match Error Beep Data Format Selection Format_0 Prefix & Suffix Prefix Sequence Code ID+ Custom +AIM ID Custom Prefix Disabled Max.: 10 characters AIM ID Prefix Disabled Code ID Prefix Disabled One or two English letters Custom Suffix Disabled Max.: 10 characters...
Page 310: Aim Id Table
AIM ID Table Symbology AIM ID Possible AIM ID Modifiers (m) Code 128 GS1-128 (UCC/EAN-128) EAN-8 EAN-8 with Addon EAN-13 EAN-13 with Addon UPC-E UPC-E with Addon UPC-A UPC-A with Addon Interleaved 2 of 5, Febraban 0, 1, 3 ITF-14 1, 3 ITF-6 1, 3...
Page 311 Symbology AIM ID Possible AIM ID Modifiers (m) PDF417 QR Code Aztec 0-9, A-C Data Matrix Maxicode Chinese Sensible Code (0~9) Micro PDF417 Micro QR Code One USPS Postnet USPS Inteligent Mail Royal Mail USPS Planet KIX Post Australian Postal Specific OCR-B Passport OCR Note: “m”...
Page 312: Code Id Table
Code ID Table Symbology Code ID Code 128 GS1-128 (UCC/EAN-128) EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5, Febraban ITF-14 ITF-6 Matrix 2 of 5 Code 39, Code 32 Codabar Code 93 China Post 25 ISSN ISBN Industrial 25 Standard 25 COOP 25 AIM 128 ISBT 128...
Page 313 QR Code Aztec Data Matrix MaxiCode Chinese Sensible Code GM Code Micro PDF417 Micro QR Code One USPS Postnet USPS Inteligent Mail Royal Mail USPS Planet KIX Post Australian Postal Specific OCR-B Passport OCR...
Page 315: Symbology Id Number
Symbology ID Number Symbology ID Number Code 128 GS1-128 (UCC/EAN-128) EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5, Febraban ITF-14 ITF-6 Matrix 2 of 5 Code 39, Code 32 Codabar Code 93 China Post 25 AIM 128 ISBT 128 COOP 25 ISSN ISBN Industrial 25...
Page 316 Symbology ID Number Micro PDF417 Micro QR Code One Specific OCR-B Passport OCR USPS Postnet USPS Inteligent Mail Royal Mail USPS Planet KIX Post Australian Postal Deutsche 14 Deutsche 12 Telepen Code 49 Code 16K...
Page 317: Ascii Table
ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3) (Device Control 4)
Page 318 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Left/ Opening Parenthesis) (Right/ Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus/ Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign)
Page 319 Char > (Greater Than) (Question Mark) (AT Symbol) (Left/ Opening Bracket) (Back Slash) (Right/ Closing Bracket)
Page 320 Char (Caret/ Circumﬂex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/ Closing Brace) (Tilde) (Delete)
Page 322 Newland Auto-ID Tech. Co., Ltd. (Headquarters) 3F, Building A, No.1, Rujiang West Rd., Mawei, Fuzhou, Fujian, China 350015 Tel: +86 - (0) 591-83978605 Fax: +86 - (0) 591-83979216 E-mail: contact@nlscan.com Web: www.newlandaidc.com Newland Europe BV Rolweg 25, 4104 AV Culemborg, The Netherlands...

This manual is also suitable for:

Nls-nvh300-dp Nls-nvh300-hd

Newland NLS-NVH300 Series User Manual

Revision History

Preface

Chapter 1 Getting Started

Chapter 2 Easysetex

Chapter 3 System Settings

Chapter 4 RS-232 Interface

Chapter 5 USB Interface

Chapter 6 Symbologies

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland NLS-NVH300 Series

Summary of Contents for Newland NLS-NVH300 Series
