Newland NLS-HR100 User Manual

Hand-held 1d barcode scanner
Hide thumbs Also See for NLS-HR100:
Table of Contents

Advertisement

Quick Links

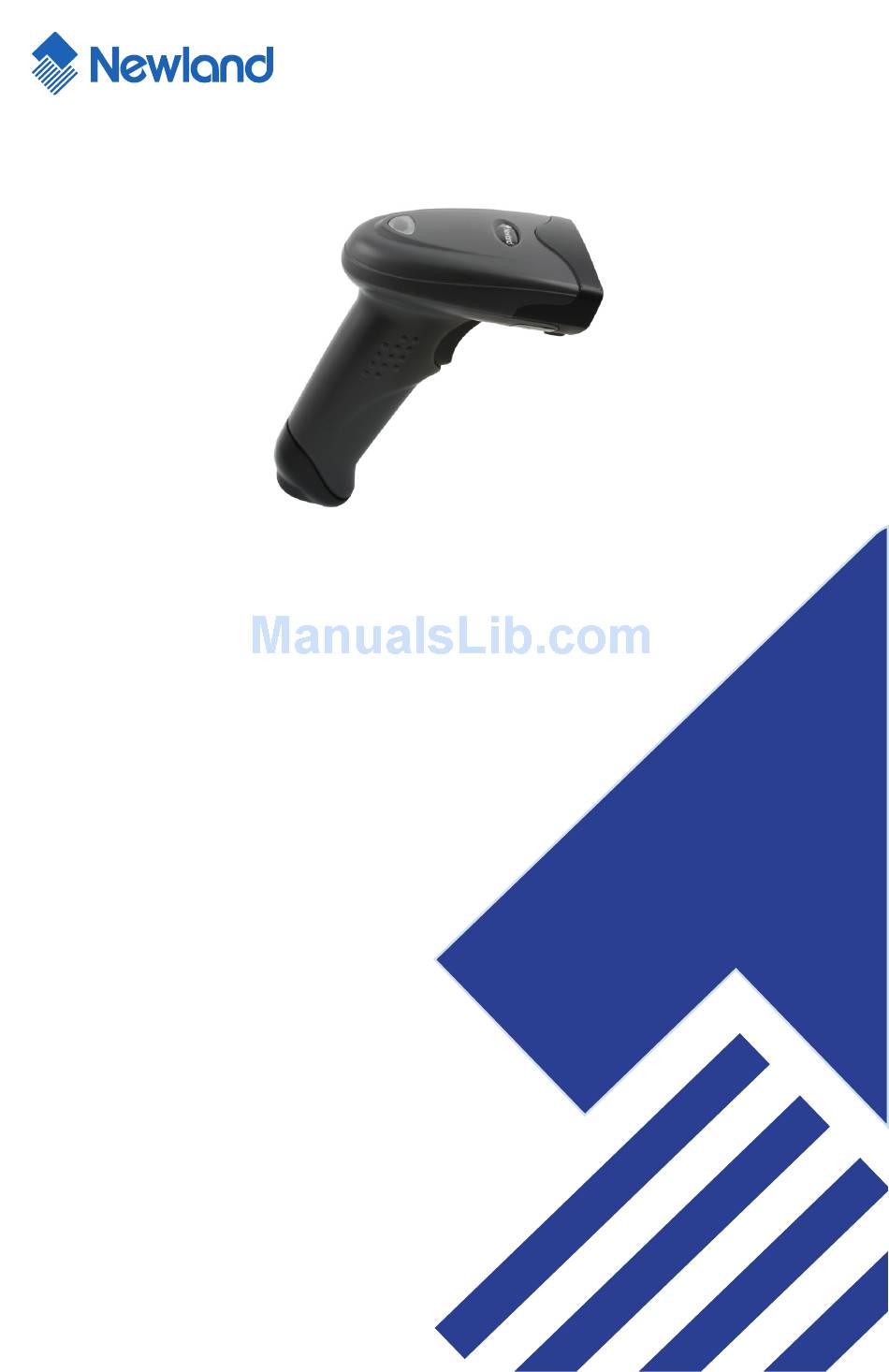

NLS-HR100
Hand-held 1D Barcode Scanner
User Guide
Pre-release version 09/08/26

Advertisement

Table of Contents
loading

Related Manuals for Newland NLS-HR100

Summary of Contents for Newland NLS-HR100

  • Page 1 NLS-HR100 Hand-held 1D Barcode Scanner User Guide Pre-release version 09/08/26...
  • Page 2 Newland Auto-ID. No right to copy a licensed program in whole or in part is granted except as permitted under copyright law or as hereinafter expressly provided. The user agrees to maintain Newland Auto-ID’s copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes in whole or in part.

  • Page 3: Table Of Contents

    请更换节标题 Content About this guide Introduction ..............................1 Chapter Description ............................. 1 Graphic Notations ............................2 Newland Auto-ID Support Center ....................... 2 Getting to Start Introduction ..............................3 Unpacking ..............................4 Unpacking ............................. 4 Outline of HR100 ..........................4 Data Interface ............................5 Communication Ports ..........................
  • Page 4 Table of Contents Interval Mode ............................24 Sensor Mode ............................25 Continuous Mode ..........................26 Delayed Sensor Mode ......................... 27 Command Triggered Mode ......................... 28 Security Level ............................29 Beeper ................................ 30 Others ................................. 31 Start/Stop Analog Trigger ........................31 Start/Stop Temporary Mute.........................
  • Page 5 Table of Contents Symbols Introduction ..............................47 Code 128 ..............................48 Load Factory Default .......................... 48 Enable/Disable Code 128 ........................48 Code 128 Code ID ..........................48 Select Message Length ........................49 UCC/EAN-128 ............................50 Load Factory Default .......................... 50 Enable/Disable UCC/EAN-128 ......................
  • Page 6 Table of Contents Transmit Default “0” ........................66 UPC-E Expand to UPC-A ........................66 UPC-A ................................ 67 Load Factory Default .......................... 67 Disable/Enable UPC-A ........................67 UPC-A Code ID ..........................67 Check Digit ............................68 Transmit Default “0” ........................68 2 Digits Addenda Code ........................
  • Page 7 Table of Contents Standard 25 Code ID .......................... 86 Check Digit ............................87 Select Message Length ........................88 Code 39 ..............................89 Load Factory Default .......................... 89 Enable/Disable Code 39 ........................89 Code 39 Code ID ..........................89 Check Digit ............................90 Transmit Start &...
  • Page 8 Table of Contents Appendix Factory Default List ..........................110 AIM ID List ..............................116 Code ID List ..............................117 Digit Code ..............................118 Save and Abort ............................120 nlscan.com Page VI...

  • Page 9: About This Guide

    About this guide Introduction This NLS-HR100 (“HR100”) Barcode Scanner User Guide provides general instructions for how to use it . Chapter Description Getting to Start: The chapter of Getting to Start gives a brief description of the HR100. It covers the general, overall specifications of the HR100.

  • Page 10: Graphic Notations

    Example – Illustration of how to use a feature. Newland Auto-ID Support Center If you have a problem with your equipment, contact the Newland Support Center in your region. Before call- ing, have the model number, serial number, and several of your barcodes at hand.

  • Page 11: Getting To Start

    Getting to Start Introduction HR100 is a 1D barcode reader. Newland Auto-ID patented technology ensure HR100 fast image capture and accurate decoding. It provides the customer the best value. HR100 can be used as a hand-held reader. Ergonomically designed to provide comfortable and easy use.

  • Page 12: Unpacking

    Getting to Start Unpacking Unpacking Unpack HR100 and accessories. Check with the packing list. Make sure that there is no damage or missing part(s). If any damage or missing parts, please keep the original package and contact your supplier for services.

  • Page 13: Data Interface

    Getting to Start Unpacking Data Interface PIN 10 PIN 1 Cable Slot Function Type Name CLK1 Keyboard Clock Signal DATA1 Keyboard Data Signal Power DC5V Serial Port Output，RS232 Serial Port Input，RS232 CLK2 PC Clock Signal DATA2 PC Data Signal Ground USB Data Signal nlscan.com Page 5...

  • Page 14: Communication Ports

    Getting to Start Communication Ports HR100 must connect to a Host to operate. A Host can be PC, POS, or any intelligent terminal with at least one of the following communication ports: USB, RS232, or PS/2. 1、 USB port on Host： 2、...

  • Page 15: Connecting With Usb Cable

    Getting to Start Connecting with USB Cable 1、 Insert USB Cable (RJ45 male head) into HR100 cable slot; 2、 Insert USB Cable (USB male head) into Host’s (female) USB connector; 3、 Click the HR100 Trigger to switch the unit on and it is ready to use. nlscan.com Page 7...

  • Page 16: Connecting With Rs232 Cable

    Getting to Start Connecting with RS232 Cable 1、 Insert RS232 cable (RJ45 male head) into HR100 cable slot; 2、 Insert RS232 cable (RS232 male head) into Host’s (female) RS232 connector; 3、 Connect RS232 cable and the mains with power adapter; 4、...

  • Page 17: Connecting With Ps/2 Cable

    Getting to Start Connecting with PS/2 Cable 1、 Insert PS/2 cable (RJ 45 male DIN) into HR100 cable slot; 2、 Insert PS/2 cable (PS/2 male DIN) into Host PS/2 female slot; 3、 Connect PS/2 cable and the mains with power adapter; 4、...

  • Page 18: Removal Of Communication Cable

    Getting to Start Removal of Communication Cable A Pin that fit the HR100 “Dismount hole” is needed. A paper clip could be ideal. Stretch one end of the paper clip to fit the “Dismount Hole”. Follow the steps: 1、 For RS232 and PS/2 connections, unplug the power adaptor. 2、...

  • Page 19: On, Off, Idle, Restart

    Getting to Start ON, OFF, IDLE, RESTART Power On Connect HR100 and Host. One click the "Trigger". HR100 powers on and in "Idle" (ready to use) state (factory default). Power Off There are 4 ways to "Power OFF": Remove Cable Off HR100; »...

  • Page 20: Reading

    Getting to Start Reading 1、Ensure HR100, cables, and the Host are connected, then turn the unit Power ON 2、Press & hold Trigger. Illumination LED cast an Illumination Pattern (red light line) ; 3、 Keep Illumination Pattern in the center of a bar code. Zoom in and zoom out to allocate the Optimum Reading Stance.

  • Page 21: Decode Zones

    Getting to Start Decode Zones 42° 45mm Code 39(10mil) 200mm 50mm Code 39(15mil) 450mm 60mm EAN-8(10mil) 210mm 25mm EAN-8(15mil) 330mm 60mm EAN-13(10mil) 200mm 40mm Code 128(10mil) 200mm nlscan.com Page 13...

  • Page 22: Dimensions Of Hr100 Unit

    Getting to Start Dimensions of HR100 Unit HR100 Left View The figure 1 HR100 Left View has the height dimensions. Unit：mm Figure 1. HR100 Front View HR100 Front View The Figure 2 HR100 Front View has the length dimensions of scan window and handle. Unit：mm Figure 2.

  • Page 23: General Programming

    General Programming Introduction There are 2 ways to program (configure) the Engine, Code Programming and Command Programming. Code Programming The Engine reads a set of specially encoded barcodes to program options and features. In the following sections, we will explain the options and features available and provide the barcodes to program them. This method of programming the Engine is most straight forward.

  • Page 24: Programming Notation

    General Programming General Programming Programming Notation Tools Code Programming ON Code Programming OFF Code Programming Off 【Pro CMD：99900032】 This is the notation to disable the Code Programming. There are 3 parts of a notation: 1、 The barcode for Code Programming 2、...

  • Page 25: Code Programming

    General Programming General Programming Code Programming Tools Code Programming ON Read the “Code Programming ON” barcode to activate “Code Program- ming” function. More than one Code Programming barcodes can be read to configure the Engine. Code Programming OFF If an option or feature needs additional parameters, such as digits, they can be found at the end of this chapter.

  • Page 26: Command Programming

    General Programming Command Programming Commands under RS232 connection mean using 0x20-0x7D（the displayable characters）to express all commands information. 1、 Configuration State The engine should be in configuration state when programming functions under RS232 connection. In the state, the engine would only accept and execute the commands from communication and feed back.
  • Page 27 General Programming Command Programming 3、Flow Chart Host sends“$$$$” and receives“@@@@” Non-Configuration Configuration 5 seconds timeout， receives“^^^^” State State Host sends“%%%%” and receives“^^^^” Host sends commands， such as“#XXXX ” Receives feedback which Executing Unsuccessful begins with “?”and Commands ends with“;” Successful Receives feedback which Is it a query begins with “!”and...

  • Page 28: Default

    General Programming General Programming Default Tools Code Programming ON Factory Default Read “Load All Factory Default” to reset all parameters to factory default. Code Programming OFF Applicable conditions: User options programming wrong configuration leads to reading mal- » function Forget details of previous programming and start over. »...

  • Page 29: Working Mode

    General Programming General Programming Working Mode Tools Code Programming ON Code Programming OFF Shut Down 【Pro CMD：99900100】 Test Mode 【Pro CMD：99900103】 Deep Sleep 【Pro CMD：99900101】 Restart 【Pro CMD：99900104】 Sleep 【Pro CMD：99900102】 Note: 1、 engine couldn’t be awaked. It must restart or power on. 2、...

  • Page 30: Reading Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Hand-held Mode Factory Default, scan engine will begin to scan when triggered. And when it scans Code Programming OFF successfully or the trigger is released, the engine will stop scanning. Hand-held Mode 【Pro CMD：99900110】...

  • Page 31: Auto Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Auto Mode First program the engine, then trigger it, the engine will start to scan. After a scan, the Code Programming OFF engine will not stop but start a new one automatically until another trigger. By default, the engine will not repeat reading a same barcode.

  • Page 32: Interval Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Interval Mode After programming, the engine will start interval scan without trigger. The interval Code Programming OFF beween two scans is fixed whether the scan is successful or not. The value of interval could be programmed by user and the default value is 500ms.

  • Page 33: Sensor Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Sensor Mode After programming, the engine will start to sense the environment without trigger. Code Programming OFF After a scan, it will stop and keep sensing to wait another illumination changing. In sesor mode, a trigger also can start a scan.

  • Page 34: Continuous Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Continuous Mode After programming, the engine will be in continuous mode without trigger. After a Code Programming OFF successful scan，the engine will be in waiting state until another scan, then wait again.

  • Page 35: Delayed Sensor Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Delayed Sensor Mode After programming, the engine will start to sense the environment without trigger. Code Programming OFF There will be a delay before a sacn. After a scan, it will stop and keep sensing to wait another illumination changing.

  • Page 36: Command Triggered Mode

    General Programming General Programming Reading Mode Tools Code Programming ON Command Triggered Mode After programming, sending a command to the engine will start a reading. Code Programming OFF Command Triggered Mode 【Pro CMD：99900116】 If a reading is failed, the engine will send a character which means a reading failure. Users could set the character themselves.

  • Page 37: Security Level

    General Programming General Programming Security Level Tools Code Programming ON The higher the value of Security Level is, the lower the probility of mis-decoding and the decoding speed are. Otherwise, the speed is higher. Code Programming OFF Security Level 1 【Pro CMD：99900120】...

  • Page 38: Beeper

    General Programming General Programming Beeper Tools Code Programming ON Code Programming OFF No Beeper Output 【Pro CMD：99900130】 Low Frequency & Loud Volume 【Pro CMD：99900137】 High Frequency & Loud Volume 【Pro CMD：99900131】 Low Frequency & Medium Volume 【Pro CMD：99900140】 High Frequency & Medium Volume 【Pro CMD：99900132】...

  • Page 39: Others

    General Programming General Programming Others Tools Code Programming ON Start/Stop Analog Trigger Code Programming OFF Start Analog Trigger 【Pro CMD：99900035】 StopAnalog Trigger 【Pro CMD：99900036】 Start/Stop Temporary Mute Temporary Mute Start 【Pro CMD：99900040】 Temporary Mute Stop 【Pro CMD：99900041】 nlscan.com Page 31...

  • Page 40: Query Command

    Query Command Tools Introduction Code Programming ON After reading interrelated programming barcodes, the engine will feed information needed back to the Host to achieve the purpose of query. Code Programming OFF Query Product Information 【Pro CMD：99900300】 Query Manufacturing Date 【Pro CMD：99900303】 Query Hardware Version 【Pro CMD：99900301】...

  • Page 41: Communication Programming

    Communication Programming Introduction Under RS232 connection the engine and the Host use the same communication parameters: baud rate, parity check, data bits select and stop bits select. nlscan.com Page 33...

  • Page 42: Serial Port Programming

    Communication Setup Serial Port Programming Tools Code Programming ON Under RS232 connection, the engine and the Host should set communication baud rate to the same to keep normal communication. Baud rate is the bits transmitted per second (8 bits per bytes). The engine and the Code Programming OFF Host must communicate at the same baud rate.

  • Page 43: Check

    Communication Programming Communication Programming Serial Port Programming Tools Code Programming ON Check Code Programming OFF No Check 【Pro CMD：99902120】 Even Check 【Pro CMD：99902122】 Odd Check 【Pro CMD：99902121】 nlscan.com Page 35...

  • Page 44: Usb Virtual Keyboard

    Communication Programming Communication Programming USB Programming Tools Code Programming ON USB Virtual Keyboard Code Programming OFF USB Virtual Keyboard 【Pro CMD：99902300】 USB COM Port Emulation USB COM Port Emulation 【Pro CMD：99902301】 nlscan.com Page 36...

  • Page 45: Usb Keyboard & Ps/2 Keyboard Programming

    Communication Programming Communication Programming USB Keyboard & PS/2 Keyboard Programming Tools Code Programming ON Keyboard Layout Code Programming OFF No. 0 Chinese(Factory Default) 【Pro CMD：99902200】 No.6 Autrichien,German 【Pro CMD：99902206】 No.1 American 【Pro CMD：99902201】 No.7 Italian 【Pro CMD：99902207】 No.2 Belgian 【Pro CMD：99902202】 No.8 Norwegian 【Pro CMD：99902210】...

  • Page 46: Character Delay

    Communication Programming Communication Programming USB Keyboard & PS/2 Keyboard Programming Tools Code Programming ON Character Delay Character delay time is 0 to 150ms. Code Programming OFF Chracter Delay 【Pro CMD：99902220】 Character Conversion Constant 【Pro CMD：99902230】 All Small 【Pro CMD：99902232】 All Capital 【Pro CMD：99902231】...

  • Page 47: Function Key

    Communication Programming Communication Programming USB Keyboard & PS/2 Keyboard Programming Tools Code Programming ON Function Key Code Programming OFF Caps Lock 【Pro CMD：99902240】 Nums Unlock 【Pro CMD：99902243】 Caps Unlock 【Pro CMD：99902241】 Scroll Lock 【Pro CMD：99902244】 Nums Lock 【Pro CMD：99902242】 Scroll Unlock 【Pro CMD：99902245】...

  • Page 48: Data Format

    Data Format Introduction 1D barcodes could contain digits, letters and symbols, etc. 2D barcodes could contain more data, such as Chinese characters and other multi-byte characters. However, in reality, they do not and should not have enough information we need, such as barcode type, date and time of scan, delimiter, and so on, in order to keep the code short and flexible.

  • Page 49: Prefix Sequences

    Data Format Data Format Prefix Sequences Tools Code Programming ON Code Programming OFF CodeID+User Prefix+AIMID 【Pro CMD：99904010】 User Prefix+CodeID+AIMID 【Pro CMD：99904011】 nlscan.com Page 41...

  • Page 50: User Prefix

    Data Format Data Format User Prefix Tools Code Programming ON Disable or Enable User Prefix Code Programming OFF User Prefix is added before barcode message. For example, if the user prefix is “AB” and the barcode message is “123”, the Host receives “AB123”.

  • Page 51: Aim Prefix

    Data Format Data Format AIM Prefix Tools Code Programming ON AIM (Automatic Identification Manufactures) defines AIM prefix for many standard barcode formats. The engine will add the identifier before the barcodes. And this identifier is the AIM Prefix. And please see Appendix to find the AIM Code Programming OFF ID list.

  • Page 52: Code Id Prefix

    Data Format Data Format Code ID Prefix Tools Code Programming ON Besides AIM prefix, Code ID prefix can be used to denote barcode format and can be customized. Code Programming OFF The Code ID prefix MUST be one (1) visible English letter, capital or small, only. No Code ID Prefix 【Pro CMD：99904040】...

  • Page 53: User Suffix

    Data Format Data Format User Suffix Tools Code Programming ON Disable or Enable User Suffix Code Programming OFF User suffix is appended to the right of barcode message. For example, if user suffix is “AB”, and the barcode message is “123”, The Host receives “123AB”. Disable User Suffix 【Pro CMD：99904100】...

  • Page 54: Stop Suffix

    Data Format Data Format Stop Suffix Tools Code Programming ON Disable or Enable Stop Suffix “Stop Suffix” is the termination for a string of barcode messages. It is fixed to Code Programming OFF the right and the very end of a barcode transmission. The major difference between "Stop Suffix"...

  • Page 55: Introduction

    Symbols Introduction Each type of barcode has its unique attribute. With the programming code, the engine will adjust to the changes of these attributes. Disabling reading of the symbols which do not apply will improve reading performance. nlscan.com Page 47...

  • Page 56: Code 128

    Symbols Code 128 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 128 Factory Default 【Pro CMD：99910000】 Enable/Disable Code 128 Enable Code 128 【Pro CMD：99910002】 Disable Code 128 【Pro CMD：99910001】 When the engine can not read Code 128, please read“Enable Code 128” and try again. Code 128 Code ID Code ID Setting 【Pro CMD：99910005】...

  • Page 57: Select Message Length

    Symbols Code 128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 128. The engine will send an error beep, if the decoded data length does not match the valid Code Programming OFF length.

  • Page 58: Ucc/Ean-128

    Symbols UCC/EAN-128 Tools Code Programming ON Load Factory Default Code Programming OFF Load UCC/EAN-128 Factory Default 【Pro CMD：99910100】 Enable/Disable UCC/EAN-128 Enable UCC/EAN-128 【Pro CMD：99910102】 Disable UCC/EAN-128 【Pro CMD：99910101】 When the engine can not read UCC/EAN-128, please read “Enable UCC/EAN-128” and try again.

  • Page 59: Select Message Length

    Symbols UCC/EAN-128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of UCC/EAN-128. The engine will send an error beep, if the decoded data length does not match the valid Code Programming OFF length.

  • Page 60: Aim 128

    Symbols AIM 128 Tools Code Programming ON Load Factory Default Code Programming OFF Load AIM 128 Factory Default 【Pro CMD：99910200】 Enable/Disable AIM 128 Enable AIM 128 【Pro CMD：99910202】 Disable AIM 128 【Pro CMD：99910201】 When the engine can not read AIM 128, please read “Enable AIM 128” and try again. AIM 128 Code ID Code ID Setting 【Pro CMD：99910205】...

  • Page 61: Select Message Length

    Symbols AIM 128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of AIM 128. The engine will send an error beep, if the decoded data length does not match the valid length. Code Programming OFF AIM 128 Message Length is defined by “Min.

  • Page 62: Load Factory Default

    Symbols EAN-8 Tools Code Programming ON Load Factory Default Code Programming OFF Load EAN-8 Factory Default 【Pro CMD：99910400】 Enable/Disable EAN-8 Enable EAN-8 【Pro CMD：9991402】 Disable EAN-8 【Pro CMD：99910401】 When the engine can not read EAN-8, please read “Enable EAN-8” and try again. EAN-8 Code ID Code ID Setting 【Pro CMD：99910416】...

  • Page 63: Digits Addenda Code

    Symbols EAN-8 Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda Code 【Pro CMD：99910405】 Only Read With 2 digits Addenda Code 【Pro CMD：99910407】...

  • Page 64: Expand To Ean-13

    Symbols EAN-8 Tools Code Programming ON EAN-8 expand to EAN-13 “ Do Not Expand to EAN-13 “ — keep original type and digits, do not Code Programming OFF expand. “Expand to EAN-13 by Adding Leading 0s “ — expand to EAN-13 but keep code type.

  • Page 65: Load Factory Default

    Symbols EAN-13 Tools Code Programming ON Load Factory Default Code Programming OFF Load EAN-13 Factory Default 【Pro CMD：99910500】 Disable/Enable EAN-13 Enable EAN-13 【Pro CMD：99910502】 Disable EAN-13 【Pro CMD： 99910501 】 When the engine can not read EAN-13, please read “Enable EAN-13” and try again. nlscan.com Page 57...

  • Page 66: Check Digit

    Symbols EAN-13 Tools Code Programming ON Check Digit EAN-13 is fixed 13 digits barcode and the last digit is check digit. Check digit Code Programming OFF is a value caculated from all digits. It is used for checking if the all 13 digits are right.

  • Page 67: Digits Addenda Code

    Symbols EAN-13 Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda Code 【Pro CMD：99910505】 Only Read With 2 digits Addenda Code 【Pro CMD：99910507】...

  • Page 68: Issn

    Symbols ISSN Tools Code Programming ON Load Factory Default Code Programming OFF Load ISSN Factory Default 【Pro CMD：99910600】 Enable/Disable ISSN Enable ISSN 【Pro CMD：99910602】 Disable ISSN 【Pro CMD：99910601】 When the engine can not read ISSN, please read “Enable ISSN” and try again. ISSN Code ID Code ID Setting 【Pro CMD：99910603】...

  • Page 69: Isbn

    Symbols ISBN Tools Code Programming ON Load Factory Default Code Programming OFF Load ISBN Factory Default 【Pro CMD：99910700】 Enable/Disable ISBN Enable ISBN 【Pro CMD：99910702】 Disable ISBN 【Pro CMD：99910701】 When the engine can not read ISBN, please read “Enable ISBN” and try again. nlscan.com Page 61...

  • Page 70: Issn Digits

    Symbols ISBN Tools Code Programming ON ISSN Digits Code Programming OFF Use 13 Digits 【Pro CMD：99910704】 Use 10 Digits 【Pro CMD：99910703】 ISSN Code ID Code ID Setting 【Pro CMD：99910705】 Example of setting ISSN Code ID to “p” (0x70) 1. Read Enable Code Programming barcode. 2.

  • Page 71: Upc-E

    Symbols UPC-E Tools Code Programming ON Load Factory Default Code Programming OFF Load UPC-E Factory Default 【Pro CMD：99911000】 Disable/Enable UPC-E Enable UPC-E 【Pro CMD：99911002】 Disable UPC-E 【Pro CMD：99911001】 When the engine can not read UPC-E, please read “Enable UPC-E” and try again. nlscan.com Page 63...

  • Page 72: Check Digit

    Symbols UPC-E Tools Code Programming ON Check Digit UPC-E is fixed 8 digits barcode and the last digit is check digit. Check digit Code Programming OFF is a value caculated from all digits. It is used for checking if the all 8 digits are right.

  • Page 73: Digits Addenda Code

    Symbols UPC-E Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda 【Pro CMD：99911005】 Only Read With 2 digits Addenda Code 【Pro CMD：99911007】...

  • Page 74: Transmit Default "0

    Symbols UPC-E Tools Code Programming ON Transmit Default “0” The first byte of UPC-E is default to “0”. Code Programming OFF Do Not Transmit “0” 【Pro CMD：99911013】 Transmit “0” 【Pro CMD：99911014】 UPC-E Expand to UPC-A “ Do Not Expand “ — keep original type and digits, do not expand. “Expand to UPC-A “...

  • Page 75: Upc-A

    Symbols UPC-A Tools Code Programming ON Load Factory Default Code Programming OFF Load UPC-A Factory Default 【Pro CMD：99911100】 Disable/Enable UPC-A Enable UPC-A 【Pro CMD：99911102】 Disable UPC-A 【Pro CMD：99911101】 When the engine can not read UPC-A, please read “Enable UPC-A” and try again. UPC-A Code ID Code ID Setting 【Pro CMD：99911115】...

  • Page 76: Check Digit

    Symbols UPC-A Tools Code Programming ON Check Digit UPC-A is fixed 13 digits barcode and the last digit is check digit. Check digit Code Programming OFF is a value caculated from all digits. It is used for checking if the all 13 digits are right.

  • Page 77: Digits Addenda Code

    Symbols UPC-A Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF Disable 2 Digits Addenda Code 【Pro CMD：99911105】 Only Read With 2 digits Addenda Code 【Pro CMD：99911107】...

  • Page 78: Interleaved 2 Of 5

    Symbols Interleaved 2 of 5 Tools Code Programming ON Load Factory Default Code Programming OFF Load Interleaved 2 of 5 Factory Default 【Pro CMD：99911200】 Disable/Enable Interleaved 2 of 5 Enable Interleaved 2 of 5 【Pro CMD：99911202】 Disable Interleaved 2 of 5 【Pro CMD：99911201】...

  • Page 79: Check Digit

    Symbols Interleaved 2 of 5 Tools Code Programming ON Check Digit Interleaved 2 of 5 may include Check Digit (not compulsory) following its barcode messages. If included, it could be the last digit. It verifies the barcode Code Programming OFF message.

  • Page 80: Select Message Length

    Symbols Interleaved 2 of 5 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Interleaved 2 of 5. The engine Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 81: Itf-6

    Symbols ITF-6 Tools Code Programming ON ITF-6 is a fixed length 6 bytes Interleaved 2 of 5 barcode with check digit. When enabled, ITF-6 precedes 6-byte Interleaved 2 of 5 barcode. Code Programming OFF Load ITF-6 Factory Default 【Pro CMD：99911300】 Disable ITF-6 User Selection 【Pro CMD：99911301】...

  • Page 82: Itf-14

    Symbols ITF-14 Tools Code Programming ON ITF-14 is a fixed length of 14 bytes Interleaved 2 of 5 barcode with Check digit. By factory default, it is disabled. Code Programming OFF When enabled, ITF-14 precedes 14-byte Interleaved 2 of 5 barcode. Load ITF-14 Factory Default 【Pro CMD：99911400】...

  • Page 83: Deutshe14

    Symbols Deutshe14 Tools Code Programming ON Load Factory Default Code Programming OFF Load Deutshe14 Factory Default Deutshe14 Factory Default Factory Default 【Pro CMD：99911500】 Disable/Enable Deutshe14 Enable Deutshe14，Do Not Transmit Check Digit 【Pro CMD：99911502】 Disable Deutshe14 【Pro CMD：99911501】 Enable Deutshe14， Transmit Check Digit 【Pro CMD：99911503】...

  • Page 84: Deutshe12

    Symbols Deutshe12 Tools Code Programming ON Load Factory Default Code Programming OFF Load Deutshe12 Factory Default Deutshe12 Factory Default Factory Default 【Pro CMD：99911600】 Disable/Enable Deutshe12 Enable Deutshe12，Do Not Transmit Check Digit 【Pro CMD：99911602】 Disable Deutshe12 【Pro CMD：99911601】 Enable Deutshe12， Transmit Check Digit 【Pro CMD：99911603】...

  • Page 85: Coop25（Japanese Matrix 25

    Symbols COOP25（Japanese Matrix 25） Tools Code Programming ON Load Factory Default Code Programming OFF Load COOP25 Factory Default 【Pro CMD：99911700】 Enable/ Disable COOP25 Enable COOP25 【Pro CMD：99911702】 Disable COOP25 【Pro CMD：99911701】 When the engine can not read COOP25, please read “Enable COOP25” and try again. COOP25（Japanese Matrix 25）...

  • Page 86: Check Digit

    Symbols COOP25（Japanese Matrix 25） Tools Code Programming ON Check Digit COOP25 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and transmit »...

  • Page 87: Select Message Length

    Symbols COOP25（Japanese Matrix 25） Tools Code Programming ON Select Message Length It is used to program the valid reading length of COOP25. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length. COOP25 Message Length is defined by “Min.

  • Page 88: Matrix 25( European Matrix 25)

    Symbols Matrix 25( European Matrix 25) Tools Code Programming ON Load Factory Default Code Programming OFF Load Matrix 25 Factory Default 【Pro CMD： 99912000 】 Enable/ Disable Matrix 25 Enable Matrix 25 【Pro CMD：99912002】 Disable Matrix 25 【Pro CMD：99912001】 When the engine can not read Matrix 25, please read “Enable Matrix 25” and try again. Matrix 25 Code ID Code ID Setting 【Pro CMD：99912010】...

  • Page 89: Check Digit

    Symbols Matrix 25( European Matrix 25) Tools Code Programming ON Check Digit Matrix 25 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All”...

  • Page 90: Select Message Length

    Symbols Matrix 25( European Matrix 25) Tools Code Programming ON Select Message Length It is used to program the valid reading length of Matrix 25. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length. Matrix 25 Message Length is defined by “Min.

  • Page 91: Industrial 25

    Symbols Industrial 25 Tools Code Programming ON Load Factory Default Code Programming OFF Load Industrial 25 Factory Default 【Pro CMD：99912100】 Enable/ Disable Industrial 25 Enable Industrial 25 【Pro CMD：99912102】 Disable Industrial 25 【Pro CMD：99912101】 When the engine can not read Industrial 25, please read “Enable Industrial 25” and try again.

  • Page 92: Check Digit

    Symbols Industrial 25 Tools Code Programming ON Check Digit Industrial 25 may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 93: Select Message Length

    Symbols Industrial 25 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Industrial 25. The engine Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 94: Standard 25

    Symbols Standard 25 Tools Code Programming ON Load Factory Default Code Programming OFF Load Standard 25 Factory Default 【Pro CMD：99912200】 Enable/ Disable Standard 25 Enable Standard 25 【Pro CMD：99912202】 Disable Standard 25 【Pro CMD：99912201】 When the engine can not read Standard 25, please read “Enable Standard 25” and try again. Standard 25 Code ID Code ID Setting 【Pro CMD：99912210】...

  • Page 95: Check Digit

    Symbols Standard 25 Tools Code Programming ON Check Digit Standard 25 may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it may be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 96: Select Message Length

    Symbols Standard 25 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Standard 25. The engine Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 97: Enable/Disable Code 39

    Symbols Code 39 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 39 Factory Default 【Pro CMD：99912400】 Enable/Disable Code 39 Enable Code 39 【Pro CMD：99912402】 Disable Code 39 【Pro CMD：99912401】 When the engine can not read Code 39, please read “Enable Code 39” and try again Code 39 Code ID Code ID Setting 【Pro CMD：99912414】...

  • Page 98: Check Digit

    Symbols Code 39 Tools Code Programming ON Check Digit Code 39 may include Check Digit (not compulsory) following its barcode message. It verifies the barcode message. Code Programming OFF "NO Check, Transmit All" means to read without check and transmit »...

  • Page 99: Transmit Start & Stop Character

    Symbols Code 39 Tools Code Programming ON Transmit Start & Stop Character Code 39 has one "*" before and another after digits as Start & Stop Character. Code Programming OFF Transmission of “*” can be selected. Transmit Both “*” 【Pro CMD：99912407】 Transmit Neither “*”...

  • Page 100: Select Message Length

    Symbols Code 39 Tools Code Programming ON Select Message Length Code 39 Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length “.It is used to program the valid reading length of Code 39. The engine will send an error beep, if the decoded data length does not match the valid length.

  • Page 101: Codabar

    Symbols Codabar Tools Code Programming ON Load Factory Default Code Programming OFF Load Codabar Factory Default 【Pro CMD：99912500】 Enable/Disable Codabar Enable Codabar 【Pro CMD：99912502】 Disable Codabar 【Pro CMD：99912501】 When the engine can not read Codabar, please read “Enable Codabar” and try again. Codabar Code ID Code ID Setting 【Pro CMD：99912516】...

  • Page 102: Check Digit

    Symbols Codabar Tools Code Programming ON Check Digit Codabar may include Check Digit (not compulsory) following its barcode message. It verifies the barcode message. Code Programming OFF "NO Check, Transmit All" means to read without check and transmit » all bytes including barcode message and Check Digit. "Check, Do Not Transmit Check Digit"...

  • Page 103: Transmit Start & Stop Character

    Symbols Codabar Tools Code Programming ON Transmit Start & Stop Character Code Programming OFF Do Not Transmit Both Start & Stop Character 【Pro CMD：99912506】 Transmit Both Start & Stop Character 【Pro CMD：99912507】 Use ABCD/ABCD As Start & Stop Character 【Pro CMD：99912510】 Use ABCD/TN*E As Start &...

  • Page 104: Select Message Length

    Symbols Codabar Tools Code Programming ON Select Message Length Codabar Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length “.It is used to program the valid reading length of Codabar. The engine will send an error beep, if the decoded data length does not match the valid length.

  • Page 105: Enable /Disable Code 93

    Symbols Code 93 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 93 Factory Default 【Pro CMD：99912600】 Enable /Disable Code 93 Enable Code 93 【Pro CMD：99912602】 Disable Code 93 【Pro CMD：99912601】 When the engine can not read Code 93, please read “Enable Code 93” and try again. Code 93 Code ID Code ID Setting 【Pro CMD：99912610】...

  • Page 106: Check Digit

    Symbols Code 93 Tools Code Programming ON Check Digit Code 93 may include Check Digits (not compulsory) following its barcode message. If included, they are the last two digits. They verifie the barcode Code Programming OFF message. "NO Check, Transmit All" means to read without check and transmit »...

  • Page 107: Select Message Length

    Symbols Code 93 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 93. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 108: Enable/ Disable Code 11

    Symbols Code 11 Tools Code Programming ON Load Factory Default Code Programming OFF Load Code 11 Factory Default 【Pro CMD：99912700】 Enable/ Disable Code 11 Enable Code 11 【Pro CMD：99912702】 Disable Code 11 【Pro CMD：99912701】 When the engine can not read Code 11, please read “Enable Code 11” and try again. Code 11 Code ID Code ID Setting 【Pro CMD：99912715】...

  • Page 109: Check Digit

    Symbols Code 11 Tools Code Programming ON Check Digit Code 11 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it may be the last one or two digits. It verifies the barcode message. “NO Check, Transmit All”...

  • Page 110: Select Message Length

    Symbols Code 11 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 11. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 111: Plessey

    Symbols Plessey Tools Code Programming ON Load Factory Default Code Programming OFF Load Plessey Factory Default 【Pro CMD：99913000】 Enable/ Disable Plessey Enable Plessey 【Pro CMD：99913002】 Disable Plessey 【Pro CMD：99913001】 When the engine can not read Plessey, please read “Enable Plessey” and try again. Plessey Code ID Code ID Setting 【Pro CMD：99913010】...

  • Page 112: Check Digit

    Symbols Plessey Tools Code Programming ON Check Digit Plessey may include Check Digits (not compulsory) following its barcode Code Programming OFF messages. If included, they are the last two digit. They verifie the barcode message. “NO Check, Transmit All” means to read without check and transmit »...

  • Page 113: Select Message Length

    Symbols Plessey Tools Code Programming ON Select Message Length It is used to program the valid reading length of Plessey. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 114: Msi-Plessey

    Symbols MSI-Plessey Tools Code Programming ON Load Factory Default Code Programming OFF Load MSI-Plessey Factory Default 【Pro CMD：99913100】 Enable/ Disable MSI-Plessey Enable MSI-Plessey 【Pro CMD：99913102】 Disable MSI-Plessey 【Pro CMD：99913101】 When the engine can not read MSI-Plessey, please read “Enable MSI-Plessey” and try again. MSI-Plessey Code ID Code ID Setting 【Pro CMD：99913113】...

  • Page 115: Check Digit

    Symbols MSI-Plessey Tools Code Programming ON Check Digit MSI-Plessey may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it may be the last one or two digits. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 116: Select Message Length

    Symbols MSI-Plessey Tools Code Programming ON Select Message Length MSI-Plessey Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length ”.It is used to program the valid reading length of MSI-Plessey. The engine will send an error beep, if the decoded data length does not match the valid length.

  • Page 117: Gs1 Databar

    Symbols GS1 Databar Tools Code Programming ON Load Factory Default Code Programming OFF Load GS1 Databar Factory Default 【Pro CMD：99913200】 Enable/ Disable RSS Enable GS1 Databar 【Pro CMD：99913202】 Disable GS1 Databar 【Pro CMD：99913201】 When the engine can not read GS1 Databar, please read “Enable GS1 Databar” and try again. GS1 Databar Code ID Code ID Setting 【Pro CMD：99913203】...

  • Page 118: Factory Default List

    Appendix Factory Default List Parameters Factory Default Remark General Programming Code Programming Send Pro Code Value Working Mode Hand-held Mode Time Length to Read a Barcode Range：0-15s，0 is infinite time. Interval Length 500ms Range：0-7.5s Sensitivity High Sensitivity Security Level Level 2 Medium Frequency &...
  • Page 119 Appendix Factory Default List Parameters Factory Default Remark Symbols Code 128 Enable Max Message Length Min Message Length UCC/EAN-128 Enable Max Message Length Min Message Length AIM 128 Enable Min Message Length EAN-8 Enable Send Check Digit Enable 2 Digits Addenda Code Enable 5 Digits Addenda Code Only Read With 2 digits Addenda Code Only Read With 5 digits Addenda Code...
  • Page 120 Appendix Factory Default List ISSN Enable ISBN Enable Use 10 Digits UPC-E Enable Send Check Digit Enable 2 Digits Addenda Code Enable 5 Digits Addenda Code Only Read With 2 digits Addenda Code Only Read With 5 digits Addenda Code Expand to UPC-A Expand and Change Type to UPC-A Send Default“0”...
  • Page 121 Appendix Factory Default List Deutsche 14 Enable Send Check Digit Deutsche 12 Enable Send Check Digit COOP 25(Japanese Matrix 25) Enable Check Send Check Digit Max Message Length Min Message Length No less than 4 Matrix 25(European Matrix 25) Enable Check Send Check Digit Max Message Length...
  • Page 122 Appendix Factory Default List Support Full ASCII Max Message Length Min Message Length No less than 4 Codabar Enable Check Send Check Digit Send Start & Stop Character ABCD/ABCD as Start & Stop Character ABCD/TN*E as Start & Stop Character Choose 1 In 4 abcd/abcd as Start &...
  • Page 123 Appendix Factory Default List Max Message Length Min Message Length No less than 1 MSI-Plessey Enable Send Check Digit No Check 1 Digit, MOD10 Check 2 Digits, MOD10/MOD10 Check 2 Digits, MOD10/MOD11 Check Max Message Length Min Message Length No less than 1 GS1 Databar Enable Max Message Length...
  • Page 124 Appendix AIM ID List Symbol AIM ID Possible AIM ID Modifiers(m) Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 EAN-13 with Addon ISSN ISBN UPC-E UPC-E with Addon UPC-A UPC-A with Addon 0,1,3 Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 25）...

  • Page 125: Code Id List

    Appendix Code ID List Symbol Code ID Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 25） Matrix 25(European Matrix 25) Industrial 25 Standard 25 Code 39 Codabar...

  • Page 126: Digit Code

    Appendix Appendix Digit Code Tools Code Programming ON It is must to read save after reading digit code. Code Programming OFF 【Pro CMD：99900000】 【Pro CMD：99900004】 【Pro CMD：99900001】 【Pro CMD：99900005】 【Pro CMD：99900002】 【Pro CMD：99900006】 【Pro CMD：99900003】 【Pro CMD：99900007】 nlscan.com Page 118...
  • Page 127 Appendix Digit Code Tools Code Programming ON Code Programming OFF 【Pro CMD：99900010】 【Pro CMD：99900014】 【Pro CMD：99900011】 【Pro CMD：99900015】 【Pro CMD：99900012】 【Pro CMD：99900016】 【Pro CMD：99900013】 【Pro CMD：99900017】 nlscan.com Page 119...

  • Page 128: Save And Abort

    Appendix Appendix Save and Abort Tools Tools Code Programming ON Code Programming ON In order to save the received data “Save” has to be read after data transition completed. If error occurs when reading data, the wrong data can be deleted and the setting up can be done again.. Code Programming OFF Code Programming OFF Eg, after a program code is received then ‘1 2 3”...
  • Page 129 Revisions Version Data Source Description Date Approved Pre-release version 20090826 nlscan.com Page 121...
