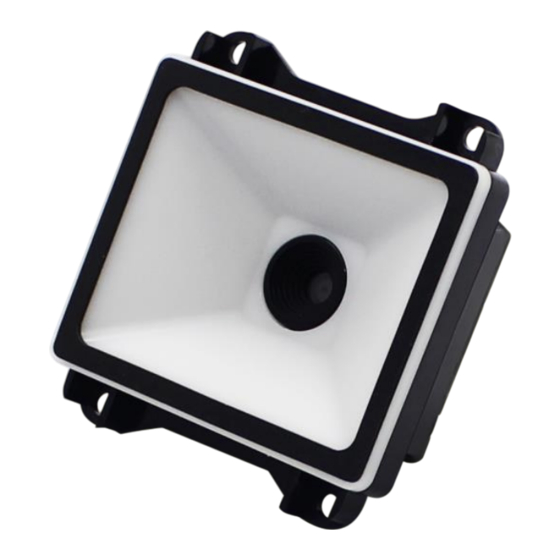

Summary of Contents for Newland NLS-EM20-80

  • Page 1 NLS-EM20-80 OEM Scan Engine Integration Guide...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.
  • Page 3: Revision History

    Revision History Version Description Date V1.0.0 Initial release. May 05, 2019 V1.0.1 Updated the Table 2-1. July 12, 2019 V1.0.2 Updated the Table 4-2 in 4-pin Box Connector August 13, 2019 V1.0.3 Updated the Figure 2-1, Figure 2-3 and Figure 2-4. April 16, 2020 V1.0.4 Updated the Figure 4-6.
  • Page 5: Table Of Contents

    Table of Contents Revision History ..................................- 3 - About This Guide..................................1 Introduction ..................................1 Chapter Description ................................1 Explanation of Symbols ..............................1 Related Documents ................................2 Chapter 1 Getting Started ................................3 Introduction ..................................3 Illumination ..................................4 Good Read LED ................................
  • Page 6 Ripple Noise ................................... 12 DC Characteristics ................................. 12 Operating Voltage / Current ........................... 12 I/O Voltage ................................13 Timing Sequence ................................13 Power Up and Power Down Timing Sequence ...................... 13 Chapter 4 Interfaces ................................... 14 Interface Pinouts ................................14 12-pin FPC Connector ............................
  • Page 7: About This Guide

    About This Guide Introduction The NLS-EM20-80 OEM scan engines (hereinafter referred to as “the EM20-80” or “the engine”) are armed with CMOS image capturer and the Newland patented , a computerized image recognition system-on-chip, featuring fast scanning and accurate decoding on barcodes on virtually any medium-paper, magnetic card, mobile phones and LCD displays.
  • Page 8: Related Documents

    Related Documents • 12-pin FPC connector specification, Xiamen PinToPin Electronic Technology Co., Ltd., Model: 0.5-18-12PBX-AL-P, http://www.ptpxm.com/ • 4-pin box connector specification, Fuzhou Aoke Electronics Co., Ltd., Model: 1.25T-4AWB. • Header specification, https://www.chinese.molex.com/molex/products/part-detail/pcb_headers/0532610271 • Terminal specification, https://www.chinese.molex.com/molex/products/part-detail/crimp_terminals/0500798000 • Housing specification, https://www.chinese.molex.com/molex/products/part-detail/crimp_housings/0510210200...
  • Page 9: Chapter 1 Getting Started

    Chapter 1 Getting Started Introduction The EM20-80 is an area image engine for barcode reading. It includes eight illumination LEDs, two Good Read LEDs, one 12-pin FPC connector and two 4-pin box connectors. LED Compliance Statement The EM20-80 complies with IEC 62471:2006 for LED safety. The EM20-80 contains: •...
  • Page 10: Illumination

    The 12-pin FPC connector/4-pin box connectors on the engine can be connected to a host device with an appropriate cable. Illumination The EM20-80 has eight LEDs for supplementary lighting, making it possible to scan barcodes even in complete darkness. The illumination can be programmed On or Off. Good Read LED The EM20-80 provides two green LEDs to indicate good read status.
  • Page 11: Chapter 2 Installation

    Chapter 2 Installation Introduction This chapter explains how to install the EM20-80, including general requirements, housing design, and physical and optical information. △ Caution: Do not touch the imaging lens when installing the engine. Be careful not to leave fingerprints on the lens. !...
  • Page 12: Thermal Considerations

    Thermal Considerations Electronic components in the EM20-80 will generate heat during the course of their operation. Operating the EM20-80 in continuous mode for an extended period may cause temperatures to rise on CPU, CIS, LEDs, DC/DC, etc. Overheating can degrade image quality and affect scanning performance. Given that, the following precautions should be taken into consideration when integrating the EM20-80.
  • Page 13: Housing Design

    Figure 2-1 Housing Design ※ Note: Conduct an optical analysis for the housing design to ensure optimal scanning and imaging performance. Housing design should make sure that internal reflections from the aiming and illumination system are not directed back to the engine.
  • Page 14: Window Placement

    Window Placement The window should be positioned properly to let the illumination and aiming beams pass through as much as possible and no reflections back into the engine (reflections can degrade the reading performance). The window should be mounted directly against the front of the engine (parallel, a=0). Figure 2-2 Window Material and Color Window material must be clear.
  • Page 15: Coatings And Scratch Resistance

    Table 2-2 Specification Description ≥ Spectral Transmittance Thickness 0.8-2.0mm PV maximum: 0.2λ Wavefront Distortion RMS maximum: 0.04λ Clear Aperture 1.0mm to edges Surface Quality 60-20 scratch/dig Pay extra attention to the wavefront distortion when using plastic materials. Colored windows are not recommended if the engine is used to scan barcodes on moving objects.
  • Page 16: Window Size

    Window Size The window must not block the field of view and should be sized to accommodate the aiming and illumination envelopes shown below. Horizontal: Figure 2-3 Vertical: Figure 2-4...
  • Page 17: Roll, Skew And Pitch

    Three different reading angles, roll, skew and pitch are illustrated in Figure 2-7. Roll refers to rotation around the Z axis, skew to rotation around the X axis and pitch to rotation around the Y axis. For the engine’s technical specifications, please visit the Newland website or contact your dealer. Figure 2-5 Ambient Light The EM20-80 shows better performance with ambient light.
  • Page 18: Chapter 3 Electrical Specifications

    Chapter 3 Electrical Specifications Power Supply Do not power up the EM20-80 until it is properly connected. Be sure the power is cut off before connecting a cable to or disconnecting a cable from the host interface connector. Hot-plugging could damage the engine. Make sure that the FFC cable is horizontally inserted into the connector when installing the cable to connect the engine’s 12-pin connector to the host.
  • Page 19: I/O Voltage

    I/O Voltage Table 3-2 VDD=3.3 V, VSS=0 V, T=23° C Parameter Minimum Maximum Unit -0.3 Timing Sequence Power Up and Power Down Timing Sequence Figure 3-1 1. In the diagram above, it takes A+B (about 940ms) for the engine to power up: A is reset time (about 280ms), B is time needed to start the engine (including bootloader execution, kernel boot and decoding chip initialization).
  • Page 20: Chapter 4 Interfaces

    Chapter 4 Interfaces Interface Pinouts The physical interface of the EM20-80 consists of a 12-pin FPC connector and two 4-pin box connectors: • 12-pin FPC connector can be used as TTL-232 interface or USB interface. • One 4-pin box connector can be used as standard USB interface and the other as RS-232 interface. Figure 4-1 12-pin FPC Connector The following table lists the pin functions of the 12-pin FPC connector.
  • Page 21: 4-Pin Box Connector

    ※ I = Input; O = Output; od = Open Drain; ※ 1 This external trigger signal can be either level trigger or pulse trigger. Level trigger: A trigger pull (i.e. driving the nTRIG pin low for over 10ms) activates a decode session. The decode session continues until a barcode is decoded or the trigger is released.
  • Page 22: Connector/Cable Specifications (Unit: Mm)

    Table 4-3 4-pin box connector (USB interface) PIN# Signal Function 3.3V-5V power supply input USB_D- USB D- differential data signal USB_D+ USB D+ differential data signal Power-supply ground Connector/Cable Specifications (Unit: mm) The EM20-80 is equipped with a 12-pin FPC connector and two 4-pin box connectors. 12-pin FPC Connector The 12-pin FPC connector on the EM20-80 is supplied by Xiamen PinToPin Electronic Technology Co., Ltd., Model No.
  • Page 23: 4-Pin Box Connector

    4-pin Box Connector The two 4-pin box connectors on the EM20-80 are supplied by Fuzhou Aoke Electronics Co., Ltd., Model No. 1.25T-4AWB. Figure 4-3 Note: For details about header, terminal and housing, please refer to Related Document.
  • Page 24: 12-Pin Ffc Cable

    12-pin FFC Cable A 12-pin cable can be used to connect the engine’s 12-pin FPC connector to a host device. Figure 4-4...
  • Page 25: Dedicated Cable For 4-Pin Box Connector

    Dedicated Cable for 4-pin Box Connector The dedicated cable can be used to connect the engine’s 4-pin box connector to a host device. Cable for 4-pin Box Connector (RS-232 interface): Figure 4-5...
  • Page 26 Cable for 4-pin Box Connector (USB interface): Figure 4-6...
  • Page 27: External Circuit Design

    External Circuit Design Good Read LED Circuit The circuit below is used to drive an external LED for indicating good read. The left part shows internal LED driver circuit on the decoder board and the right part shows external circuit that users may utilize in actual application. The nGoodRead signal is from PIN 3 of the 12-pin FPC connector.
  • Page 28: Trigger Circuit

    Trigger Circuit The circuit below is used to provide the engine with a signal to trigger a scan and decode session. The right part shows internal trigger processing circuit on the decoder board and the left part shows external circuit that users may utilize in actual application.
  • Page 29: Chapter 5 Auxiliary Tools

    12-pin FFC cable type 1 (contacts on the same side). Either USB connection or RS-232 connection can be used when connecting the EVK to a host device. EasySet EasySet is a Windows-based configuration tool developed by Newland, which can be used to configure the EM20-80.
  • Page 30 Newland Auto-ID Tech. Co., Ltd. (Headquarters) 3F, Building A, No.1, Rujiang West Rd., Mawei, Fuzhou, Fujian, China 350015 Tel: +86 - (0) 591-83978605 Fax: +86 - (0) 591-83979216 E-mail: marketing@nlscan.com Web: www.nlscan.com Newland Europe BV Rolweg 25, 4104 AV Culemborg, The Netherlands...
