NLS-HR200
General Scanner
User Guide
Latest:20080826

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLS-HR200 and is the answer not in the manual?

Questions and answers

Related Manuals for Newland NLS-HR200

Summary of Contents for Newland NLS-HR200

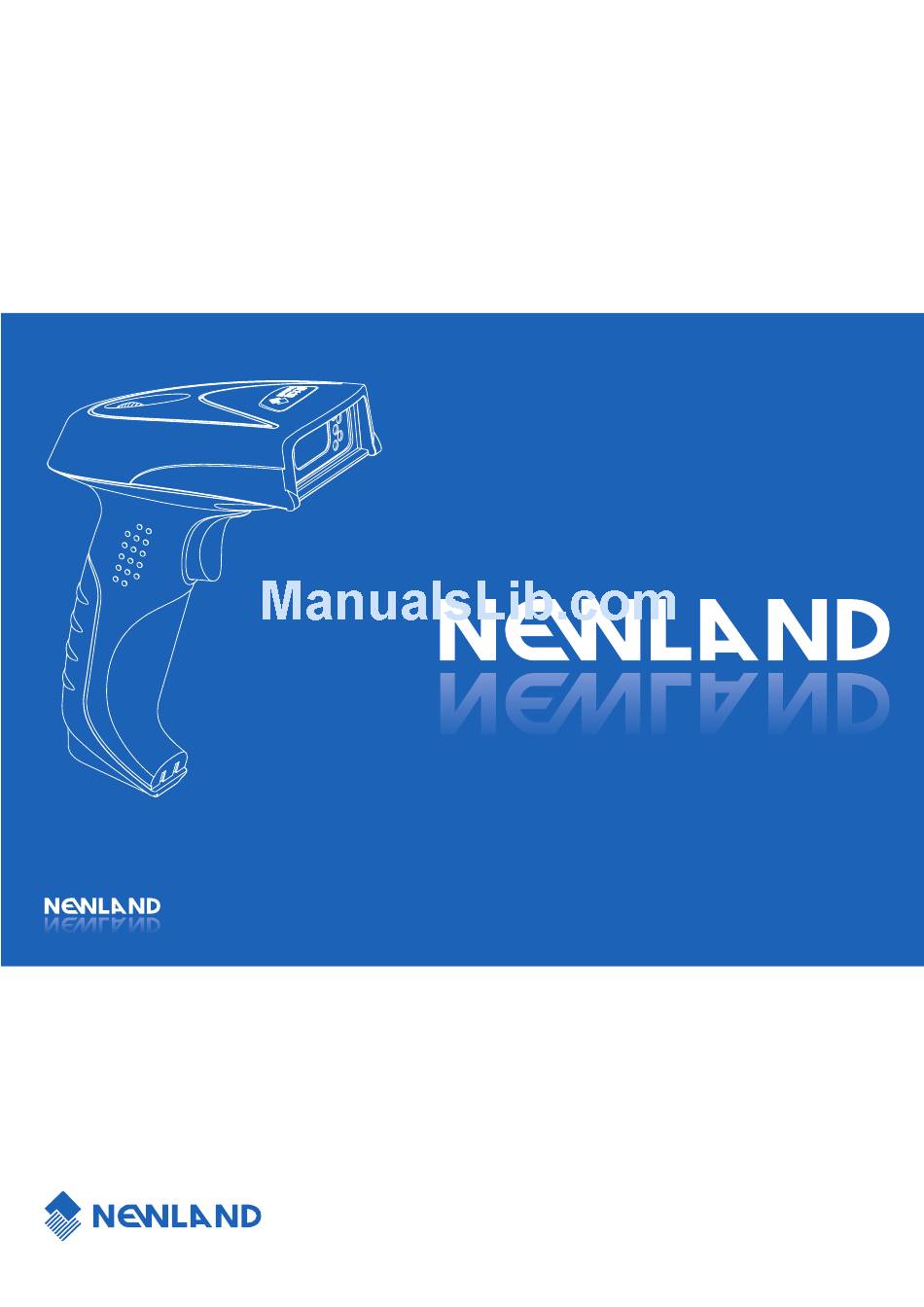

  • Page 1 NLS-HR200 General Scanner User Guide Latest:20080826...

  • Page 2: Table Of Contents

    目录 About This Reference Introducation Graphic Emphasis Chapter Description Getting Start Introducation Getting start HR200 Unpacking Outline Data Interface Connect HR200 & Host Communication Ports Connect HR200 & Host Install USB Cable Install RS232 Cable Install PS/2 Cable Remove Cable Remove Cable Off HR200 Remove Cable off Other Ports ON, OFF, IDLE, RESTART...
  • Page 3 Program Beeper System Information The system information is provided in such format Maintenance Maintenance USB Interface Introduction USB HID-KBW USB Country Keyboard Types USB Country Keyboard Types Unknown Characters, Beep Function Key Mapping ASCII Function Key Mapping Table Keystroke Delay CAPS Lock Override Convert Case Emulate Numeric Keypad...
  • Page 4 Read/Abort UCC/EAN-8 Check Byte 2 Digits Addenda Code 5 Digits Addenda Code EAN-8 expand to EAN-13 EAN-13 Load Factory Default Read/Abort EAN-13 Check Byte 2 Digits Addenda Code 5 Digits Addenda Code UPC-E Load Factory Default Read/Abort UPC-E Check Byte Transmit First ‘0’...
  • Page 5 Select Message Length Check Byte Code 93 Load Factory Default Read/Abort Code 93 Select Message Length Check Byte UCC/EAN-128 Load Factory Default Read/Abort UCC/EAN-128 PDF417 Load Factory Default Read/Abort PDF417 Select Message Length QR Code Load Factory Default Read/Abort QR Code Select Message Length QR Twin Code Aztec Code...
  • Page 6 Code ID Default Modify Code ID 8.4 User Suffix Prohibit or Allow User Suffix Program User Suffix Stop Prefix Prohibit or Allow Stop Suffix Program Stop Suffix Message Intersect & Pack Introducation Message Intersect introduction 1D, Program Intersect Option How to clear a certain 1D barcode Intersection Setting? Message Intersect 2D, Program Intersect Option How to clear a certain 2D barcode Intersection Setting?

  • Page 7: About This Reference

    About This Reference Introducation This product reference introduces a Newland Auto-ID Image product — NLS- HR200 (ab. " HR200"). Graphic Emphasis TOOL, facilitate use of the manual ATTENTION, be aware & read through E.g., help understand a certain operation. TIPS, help understand better.

  • Page 8: Getting Start

    Introducation HR200 is an omnidirectional Imager to capture, decode and transfer 1D & 2D barcode. Newland Auto-ID patented UIMG™ technology ensure its fast and acurate performance, and thus provide the best value. It works at hand-held and hands-free modes in a stand. The ergonomic design allows comfort and easy use.

  • Page 9: Getting Start Hr200

    Getting Start Getting start HR200 Unpacking Unpack HR200 and accessories. Check with the packing list to make sure that there is none damaged or missing. If any, please keep the original package and contact your supplier for services. Outline Beeper Power Indicator Scan Windows Tag（S/N，Cetifications，etc）...

  • Page 10: Data Interface

    Getting Start Getting start HR200 Data Interface Dismount hole Cable slot PIN 1 PIN 10 Functions RS232 - TXD RS232 - RXD RS232 - CTS RS232 - RTS USBC_D- USBC_D+ nlscan.com Page 4...

  • Page 11: Connect Hr200 & Host

    Getting Start Connect HR200 & Host Communication Ports HR200, An imager, Must connect with a Host to perform. A Host can be PC, POS. Or any intelligent terminal with supported communication ports. B ： USB port on host： RS23 2 ： RS232 port on host：...

  • Page 12: Connect Hr200 & Host

    Getting Start Connect HR200 & Host Install USB Cable Insert USB Cable (RJ45 male head) into cable slot (HR200); Insert USB Cable (USB male head) into USB slot (Host female slot); Switch ON and perform; You may need to install driver into the host to perform; See USB Interface nlscan.com Page 6...

  • Page 13: Install Rs232 Cable

    Getting Start Connect HR200 & Host Install RS232 Cable Insert RS232 cable (RJ 45 male head) into cable slot (HR200); Insert RS232 cable (RS232 male head) into RS232 slot (Host female slot); Connect RS232 cable and the mains with power adapter; Switch ON and perform nlscan.com Page 7...

  • Page 14: Install Ps/2 Cable

    Getting Start Connect HR200 & Host Install PS/2 Cable Insert PS/2 cable (RJ 45 male DIN) into HR200 cable slot; Insert PS/2 cable (PS/2 male DIN) into Host PS/2 female slot; Connect PS/2 cable and the mains with power adapter; If necessary, keyboard can connect to female slot on the PS/2 cable;...

  • Page 15: Remove Cable

    Getting Start Remove Cable Remove Cable Off HR200 A needle or similar object will perform. Stretch an end to fit penetration of the “Dismout Hole”. Follow the steps: Penetrate “Dismout Hole”and keep a certain pressure. Pull out the cable gentally. Pull out the pin after the cable is removed.

  • Page 16: Remove Cable Off Hr200

    Getting Start ON, OFF, IDLE, RESTART Power On Connect HR200 and Host. One hit on the "Trigger". HR200 power on and in "Idle" status (factory default). Communication Programming, Reading and User Preference Programming can be progressed when power ON. Power Off 4 ways to "Power OFF": »...

  • Page 17: Programming Outline

    Command Programming: a ASCII string, the Imager received from data cable as commands to set options; QuickSet：a programming software exclusively use by Newland Auto-ID products. It displays decoded data and images captured. Programming work on "choose & set options" base from dialog windows.

  • Page 18: Command Programming

    Getting Start Programming Outline Command Programming The Programming Command (Pro CMD) pairs a unique Programming Code. Sending commands to the Imager is identical with Code Programming. A full command is formed by [Start Symbol "nls" + Pro CMD = Parameters]. There are 4 ways to program a command: "nls"...

  • Page 19: Reading

    Getting Start Reading Ensure Imager, cables and the Host connected, then Power ON; Press & hold Trigger, Illumine LED and Aiming LED cast an Illumine Pattern (red) and an Aiming Pattern (blue); Keep Aiming Pattern in the center of a bar code. Zoom in and zoom out to allocate the Optimum Reading Stance.

  • Page 20: Illumination

    Getting Start Illumination Tools Code Programming ON Illumination LED lighting up barcodes is used to capture better images. There are 4 options: Code Programming OFF » “Illumination Wink”: LED keep flashing when reading » “Illumination Keep ON”: LED keep on when Power ON »...

  • Page 21: Aiming

    Getting Start Aiming Tools Code Programming ON Aiming LED focusing with a cross is used to allocate the Optimum Reading Stance. There are 4 options: Code Programming OFF » “Aim Wink”: LED keep flashing when reading » “Aim Keep ON”: LED keep on when Power ON »...

  • Page 22: Reading Mode

    Getting Start Reading Mode Tools Code Programming ON Mode Selection » Code Programming OFF Hand-held Mode: press and keep holding the trigger to read. Complete one reading or release the trigger to terminate reading status. » Sensor Mode: the environmental luminance changing in front of the engine automatically initiates reading status.

  • Page 23: Sensor Mode Sensitivity

    Getting Start Reading Mode Tools Code Programming ON Sensor Mode Sensitivity Sensitivity is the extent to which the engine responds environmental lamination change. Code Programming OFF Sensitivity value is 0~20(including). The lower the sensitivity value chosen, the higher sensitivity will be. The lower the sensitivity value chosen, the smaller illumination change will initiate reading.

  • Page 24: Hands-Free Mode

    Getting Start Hands-Free Mode Adjust Height For user comfort, select reading mode “sensor mode”or “continuous mode” when working in hands- free. For user comfort, adjust the stand height for the optimum reading stance. nlscan.com Page 18...

  • Page 25: Reading Stance

    Getting Start Reading Stance Reading Stance is defined as the distance between the Imager front and an object (barcode). It affects image capturing area and image quality, and thus affects reading performance. Field of View & Divergence Angle 71.4 41.6 23.8 36°...

  • Page 26: Constrain Multi-Reading

    Getting Start Constrain Multi-reading Tools Code Programming ON “Constrain Multi-reading” is used to avoid mis-reading on the same barcode (the same format and message) in a multi-reading timeout. Code Programming OFF Multi-reading Timeout 【Pro CMD：0313010】 2 constrain multi-reading options: Multi-reading Prohibition: By all means, constrain reading on the same barcode in the timeout. Multi-reading Semi-prohibition: Given a slight change on operation circumstances, the same barcode can be read more than once in the timeout.

  • Page 27: Default

    Getting Start Default Tools Code Programming ON Factory Default Read “Load All Factory Default” to reset all user option to factory default. Code Programming OFF Applicable Circumstance: User options programming error lead to reading malfunction Forgot details of previous programming and wish to decline their affection while programming commencing Resume default if unusual, unknown, unexpected options are selected.

  • Page 28: Beep

    Getting Start Beep Beep Denotation Beep Denotation low-higher-higher-higher Power ON completed 1 beep successful read of an ordinary barcode 2 beeps successful read of an programming barcode 3 short low-2 high failure read 1 long low Unknown Character, Virtual Keypad (USB connection) Tools Program Beeper Code Programming ON...

  • Page 29: System Information

    Getting Start System Information Tools “Send Sys Info”, the engine sends system information to the Host immediately. Code Programming ON “Power ON, Send Sys Info”, the engine sends system information to the Host right after Power Code Programming OFF Send Sys Info【Pro CMD：0003000】 ** Power ON, Not Send Sys Info Power ON, Send Sys Info 【Pro CMD：0007000】...

  • Page 30: Maintenance

    Getting Start Maintenance Maintenance » Keep the scan window clean is the only work needs to do. Improper maintenance will avoid limited warranty. » Avoid rough object damage or scratch the window. » Use brush to remove the stain. » Use soft cloth (cloth of glasses) to clean.

  • Page 31: Usb Interface

    Introduction When using a USB connection, the default protocol is USB DataPipe. USB DataPipe is a Newland Auto-ID Co., Ltd. developed protocol. The DataPipe driver should be installed on the Host. It supports data transmission and user preference programming. QuickSet can perform with DataPipe.

  • Page 32: Usb Hid-Kbw

    USB Interface USB HID-KBW Tools Code Programming ON USB connection (no driver needed) supports simulating the Imager transmission to be a USB keyboard input. The Host receives keystrokes of the virtual keyboard. It works in Code Programming OFF “Plug and Play” base. There is no driver required. Select USB HID-KBW 【Pro CMD：1100020】...

  • Page 33: Usb Country Keyboard Types

    USB Interface USB HID-KBW Tools Code Programming ON USB Country Keyboard Types » Code Programming OFF The keyboard arrangements and country codes vary in different countries. Refer country codes to the table “USB Country Keyboard Types”. Follow the steps bellow to program. »...

  • Page 34: Usb Country Keyboard Types

    USB Interface USB HID-KBW USB Country Keyboard Types Country/Language Number Country/Language Number U.S. Netherlands(Dutch) Belgium Norway Brazil Poland Canada(French) Portugal Czechoslovakia Romania Denmark Russia Finland(Sweden) Slovakia France Spain Germany/Austria Sweden Greece Switzerland(German) Hungary Turkey F Israel(Hebrew) Turkey Q Italy Latin-American Japan nlscan.com Page 28...

  • Page 35: Unknown Characters, Beep

    USB Interface USB HID-KBW Tools Code Programming ON Unknown Characters, Beep HID-KBW deams an unknown character to be a character is not included in a country keyboard Code Programming OFF type. It may not be able to allocate and send a keystroke, thus lead to an error beep. ** No Beep, Unkown Character Beep, Unkown Character 【Pro CMD：1103030】...
  • Page 36 USB Interface USB HID-KBW Tools Code Programming ON Emulate ALT + keypad When enabled, all characters are sent as ASCII sequences over the numeric keypad: Code Programming OFF → “ALT Make” “ALT Break” ** No Emulate ALT + keypad Emulate ALT + keypad 【Pro CMD：1103060】...

  • Page 37: Function Key Mapping

    USB Interface USB HID-KBW Tools Code Programming ON Function Key Mapping When enabled, function characters (0x00~0x1F) are sent as ASCII sequences over the numeric Code Programming OFF keypad. → → “Ctrl make” Hit function key “Ctrl Break” ** No Function Key Mapping Function Key Mapping 【Pro CMD：1103130】...

  • Page 38: Ascii Function Key Mapping Table

    USB Interface USB HID-KBW ASCII Function Key Mapping Table ASCII(HEX) Function key ASCII(HEX) Function Key nlscan.com Page 32...

  • Page 39: Keystroke Delay

    USB Interface USB HID-KBW Tools Code Programming ON Keystroke Delay This parameter sets the delay, in milliseconds, between emulated keystrokes. Scan programming Code Programming OFF code below to increase the delay when the Host require a slower transmission of data. ** No Delay 【Pro CMD：1103050】...

  • Page 40: Convert Case

    USB Interface USB HID-KBW Tools Code Programming ON Convert Case The Imager converts all barcode messages to the selected case. Code Programming OFF ** No Case Conversion 【Pro CMD：1103040】 Convert All to Upper Case Convert All to Lower Case 【Pro CMD：1103041】 【Pro CMD：1103042】...

  • Page 41: Emulate Numeric Keypad

    USB Interface USB HID-KBW Tools Code Programming ON Emulate Numeric Keypad Code Programming OFF Read “Emulate Numeric Keypad” to enable the function.“0~9./*-+”of the barcode message will be emulated as keystrokes on numeric keypad. Otherwise “0~9./*-+” is emulated as keystrokes on main keyboard. This function is affected by the current state of “Num Lock”...

  • Page 42: Usb Datapipe

    USB DataPipe Tools Code Programming ON This protocol is defined by Newland Auto-ID. A driver has to be installed before using this protocol to communicate with reader, Code Programming OFF The advantage of using this protocol is the speedy data transmission. Meanwhile, the SDK can be easily integrated into the application system.

  • Page 43: Usb Visual Rs232

    USB Interface USB Visual RS232 Tools Code Programming ON When the USB port is connected to host RS232 port in order to receive data from scanner, the model of imitating USB-to-RS232 has to be chosen. Hence, the engine and the host must Code Programming OFF communicate at the same parameters and the parameters of real RS232 and visual RS232 must be same.

  • Page 44: Rs232 Interface

    RS232 Interface Inteuduction Under RS232 connection, the engine and the Host should use the same communication parameters: baud rate, parity check, data bits select and stop bits select. nlscan.com Page 38...

  • Page 45: Baud Rate

    RS232 Interface Baud Rate Tools Code Programming ON Baud rate is the bits transmitted per second (8 bits per bytes). The engine and the Host must communicate at the same baud rate. Code Programming OFF The reader supports baud rate as following: 1200 ** 9600 【Pro CMD：0100000】...

  • Page 46: Parity Check

    RS232 Interface Parity Check Tools Code Programming ON Parity check options should be the same on the engine and the Host. Code Programming OFF ** NO Check 【Pro CMD：0101000】 Even Check Odd Check 【Pro CMD：0101010】 【Pro CMD：0101020】 nlscan.com Page 40...

  • Page 47: Data Bits Transmitted

    RS232 Interface Data Bits Transmitted Tools Code Programming ON Select data bits transmitted to be 5, 6, 7 and 8. Ensure the selections on the engine and the Host are the same. Code Programming OFF ** 8 Data Bits 6 Data Bits 【Pro CMD：0103030】...

  • Page 48: Stop Bits

    RS232 Interface Stop Bits Tools Code Programming ON Stop bit follows every byte to indicate the end of transmission and the start of the next Code Programming OFF transmission. ** 1 Stop Bit 2 Stop Bits 【Pro CMD：0102000】 【Pro CMD：0102010】 nlscan.com Page 42...

  • Page 49: Ps/2 Interface

    PS/2 Interface Intruducation PS/2 connection is emulated to be an HID-KBW input. Tools Code Programming ON It can only transmit data to the Host, and does not support programming commands from the Host. Code Programming OFF It does not support hot plug. Plugging when the Imager on will cause permanently damage.

  • Page 50: Introduction

    Symbologies Introduction This chapter describes symbology features and provides the programming barcodes for selecting these features. Disable reading of the symbologies which do not apply, will improve reading performance. Symbologies Selections Barcode type Factory default 1D Barcode C o d e 1 2 8 Allow Reading U C C / E A N - 8 Allow Reading...

  • Page 51: General Options

    Symbologies General Options Tools Prohibit Reading All Code Programming ON Prohibit Reading All = allow reading programming codes only. Code Programming OFF Prohibit Reading All 【Pro CMD：0001010】 Allow Reading All Allow Reading All = enable to read all symbologies and programming codes. Allow Reading All 【Pro CMD：0001020】...

  • Page 52: Code 128

    Symbologies Code 128 Tools Load Factory Default Code Programming ON Read to load Code 128 factory default. Code Programming OFF ** Load Code 128 Factory Default 【Pro CMD：0400000】 Read/Abort Code 128 ** Read Code 128 Abort Code 128 【Pro CMD：0400020】 【Pro CMD：0400010】...

  • Page 53: Select Message Length

    Symbologies Code 128 Tools Code Programming ON Select Message Length It is used to program the valid reading length (bytes) of Code 128. The engine will produce an error beep, if the data length captured does not match the valid reading length. Code Programming OFF Code 128 Message Length is defined by "Min.

  • Page 54: Ucc/Ean-8

    Symbologies UCC/EAN-8 Tools Code Programming ON Load Factory Default Read to load UCC/EAN-8 factory default. Code Programming OFF ** Load UCC/EAN-8Factory Default 【Pro CMD：0401000】 Read/Abort UCC/EAN-8 ** Read UCC/EAN-8 Abort UCC/EAN-8 【Pro CMD：0401020】 【Pro CMD：0401010】 "Abort UCC/EAN-8" prohibits the engine to read UCC/EAN-8. Please read programming code "Read UCC/EAN-8”...

  • Page 55: Digits Addenda Code

    Symbologies UCC/EAN-8 Tools 2 Digits Addenda Code Code Programming ON Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The right one with red circle is the 2 digits addenda code.

  • Page 56: Expand To Ean-13

    Symbologies UCC/EAN-8 Tools UCC/EAN-8 Code Programming ON EAN-8 expand to EAN-13 Code Programming OFF Expand EAN-8 to EAN-13, by adding 5 bytes of “0” to the left, and then transmit. ** Not Expand to EAN-13 Expand to EAN-13 【Pro CMD：0401090】 【Pro CMD：0401100】...

  • Page 57: Load Factory Default

    Symbologies EAN-13 Tools Code Programming ON Load Factory Default Code Programming OFF Read to load EAN-13 factory default. ** Load EAN-13 Factory Default 【Pro CMD：0402000】 Read/Abort EAN-13 ** Read EAN-13 Abort EAN-13 【Pro CMD：0402020】 【Pro CMD：0402010】 "Abort EAN-13" prohibits the engine to read EAN-13. Please read programming code "Read EAN-13”...

  • Page 58: Digits Addenda Code

    Symbologies EAN-13 Tools 2 Digits Addenda Code Code Programming ON Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The right one with red circle is the 2 digits addenda code.

  • Page 59: Upc-E

    Symbologies UPC-E Tools Code Programming ON Load Factory Default Read to load UPC-E factory default. Code Programming OFF ** UPC-E Load Code 128 Factory Default 【Pro CMD：0403000】 Read/Abort UPC-E ** Read UPC-E Abort UPC-E 【Pro CMD：0403020】 【Pro CMD：0403010】 "Abort UPC-E” prohibits the engine to read UPC-E. Please read programming code "Read UPC-E”...
  • Page 60 Symbologies UPC-E Tools 2 Digits Addenda Code Code Programming ON Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The right one with red circle is the 2 digits addenda code.

  • Page 61: Transmit First '0' Selections

    Symbologies UPC-E Tools Code Programming ON Transmit First ‘0’ Selections Code Programming OFF The first character of UPC-E is a system digit. The value of system digit is fixed as “0”. ** Don’t Transmit First ‘0’ Transmit First ‘0’ 【Pro CMD：0403090】 【Pro CMD：0403100】...

  • Page 62: Upc-A

    Symbologies UPC-A Tools Load Factory Default Code Programming ON Read to load UPC-A factory default. Code Programming OFF **Load UPC-A Factory Default 【Pro CMD：0404000】 Read/Abort UPC-A ** Read UPC-A Abort UPC-A 【Pro CMD：0404020】 【Pro CMD：0404010】 "Abort UPC-A " prohibits the engine to read UPC-A. Please read programming code "Read UPC-A”...

  • Page 63: Digits Addenda Code

    Symbologies UPC-A Tools Code Programming ON 2 Digits Addenda Code Addenda code is the one follows on the right side of an ordinary code. Picture bellow shows an ordinary code with a 2 digits addenda code. The left one with blue circle is an ordinary code. The Code Programming OFF right one with red circle is the 2 digits addenda code.
  • Page 64 Symbologies UPC-A Tools Code Programming ON Selections Transmit Code Programming OFF UPC-A the first byte (very left one) is default “0” ** No Transmit “0” Transmit “0” 【Pro CMD：0404090】 【Pro CMD：0404100】 UPC-A has the default “0”but it is not printed out, not like UPC-E. Read “Transmit 0” will add a “0”...

  • Page 65: Interleaved 2 Of 5

    Symbologies Interleaved 2 of 5 Tools Load Factory Default Code Programming ON Read to load Interleaved 2 of 5 factory default. Code Programming OFF ** Load Interleaved 2 of 5 Factory Default 【Pro CMD：0405000】 Read/Abort Interleaved 2 of 5 ** Read Interleaved 2 of 5 Abort Interleaved 2 of 5 【Pro CMD：0405020】...

  • Page 66: Select Message Length

    Symbologies Interleaved 2 of 5 Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of Interleaved 2 of 5. The engine will produce an error beep, if the data length captured does not match the valid reading length. Interleaved 2 of 5 Message Length is defined by "Min.

  • Page 67: Check Byte

    Symbologies Interleaved 2 of 5 Tools Code Programming ON Check Byte Interleaved 2 of 5 may include Check Byte (not compulsory) following its barcode messages. It Code Programming OFF verifies the barcode message. "NO Check, Transmit All" enables to read without check and transmit all bytes including barcode message and Check Byte.

  • Page 68: Fixed Length Selection

    Symbologies Interleaved 2 of 5 Tools Code Programming ON Fixed Length Selection Program the engine to read fixed length or fixed length area Interleaved 2 of 5. Command Code Programming OFF programming use 3 decimal digits to define length value. The fixed length value MUST be 2 to 64 even value (32 even values).

  • Page 69: Itf-14

    Symbologies Interleaved 2 of 5 Tools Code Programming ON ITF-14 ITF-14 is a fixed length 14 bytes Interleaved 2 of 5 barcode with parity check. For factory Code Programming OFF default, the engine deems ITF-14 as ordinary Interleaved 2 of 5. And selections of Interleaved 2 of 5 will affect ITF-14.

  • Page 70: Itf-6

    Symbologies Interleaved 2 of 5 Tools Code Programming ON ITF-6 Code Programming OFF ITF-6 is a fixed length 6 bytes Interleaved 2 of 5 barcode with parity check. As it to user selections, factory default, the engine deems ITF-6 as ordinary Interleaved 2 of 5. And selections of Interleaved 2 of 5 will affect ITF-6.

  • Page 71: China Post 25

    Symbologies China Post 25 Tools Load Factory Default Code Programming ON Read to load China Post 25 factory default. Code Programming OFF ** Load China Post25 Factory Default 【Pro CMD：0406000】 Read/Abort China Post 25 ** Abort China Post 25 Read China Post 25 【Pro CMD：0406010】...

  • Page 72: Select Message Length

    Symbologies China Post 25 Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of China Post 25. The engine will produce an error beep, if the data length captured does not match the valid reading length. China Post 25 Message Length is defined by "Min.

  • Page 73: Check Byte

    Symbologies China Post 25 Tools Code Programming ON Check Byte CHINA POST 25 may include Check Byte (not compulsory) following its barcode message. Code Programming OFF Check Byte verifies the barcode message. "NO Check, Transmit All" enables to read without check and transmit all digits including barcode message and Check Byte.

  • Page 74: Load Factory Default

    Symbologies Code 39 Tools Load Factory Default Code Programming ON Code 39 Read to load Code 39 factory default. Code Programming OFF ** 39 Load Code 39 Factory Default 【Pro CMD：0408000】 Read/Abort Code 39 ** Read Code 39 Abort Code 39 【Pro CMD：0408020】...

  • Page 75: Select Message Length

    Symbologies Code 39 Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of Code 39. The engine will produce an error beep, if the data length captured does not match the valid reading length. Code 39 Message Length is defined by "Min.

  • Page 76: Check Byte

    Symbologies Code 39 Tools Code Programming ON Check Byte Code 39 may include Check Byte (not compulsory) following its barcode message. Check Byte is Code Programming OFF used to verify the barcode message. "NO Check, Transmit All" enables to read without check and transmit all digits including barcode message and Check Byte.

  • Page 77: Decode Ascii

    Symbologies Code 39 Tools Code Programming ON Decode ASCII Code Programming OFF Code 39 can include full ASCII characters. For factory default, the engine enabled to decode partial of them. Read “Enable Full ASCII decode” to select full ASCII functions. ** Partial ASCII Decode Enable Full ASCII Decode 【Pro CMD：0408100】...

  • Page 78: Codabar

    Symbologies Codabar Tools Load Factory Default Code Programming ON Read to load Codabar factory default. Code Programming OFF ** Load Codabar Factory Default 【Pro CMD：0409000】 Read/Abort Codabar ** Read Codabar Abort Codabar 【Pro CMD：0409020】 【Pro CMD：0409010】 "Abort Codabar” prohibits the engine to read Codabar. Please read programming code "Read Codabar”...

  • Page 79: Select Message Length

    Symbologies Codabar Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of Codabar. The engine will produce an error beep, if the data length captured does not match the valid reading length. Codabar Message Length is defined by "Min.

  • Page 80: Check Byte

    Symbologies Codabar Tools Code Programming ON Check Byte Codabar may include Check Byte (not compulsory) following its barcode message. Check Byte is Code Programming OFF used to verify the barcode message. "NO Check, Transmit All" enables to read without check and transmit all digits including barcode message and Check Byte.

  • Page 81: Code 93

    Symbologies Code 93 Tools Code Programming ON Load Factory Default Read to load Code 93 factory default. Code Programming OFF ** Load Code 93 Factory Default 【Pro CMD：0410000】 Read/Abort Code 93 ** Abort Code 93 Read Code 93 【Pro CMD：0410010】 【Pro CMD：0410020】...

  • Page 82: Select Message Length

    Symbologies Code 93 Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of Code 93. The engine will produce an error beep, if the data length captured does not match the valid reading length. Code 93 Message Length is defined by "Min.

  • Page 83: Check Byte

    Symbologies Code 93 Tools Code Programming ON Check Byte Codd 93 may include Check Byte (not compulsory) following its barcode message. Check Byte Code Programming OFF is used to verify the barcode message. "NO Check, Transmit All" enables to read without check and transmit all digits including barcode message and Check Byte.

  • Page 84: Ucc/Ean-128

    Symbologies UCC/EAN-128 Tools Code Programming ON Load Factory Default Read to load UCC/EAN-128 factory default. Code Programming OFF ** Load UCC/EAN-128 Factory Default 【Pro CMD：0412000】 Read/Abort UCC/EAN-128 ** Read UCC/EAN-128 Abort UCC/EAN-128 【Pro CMD：0412020】 【Pro CMD：0412010】 "Abort UCC/EAN-128" prohibits the engine to read UCC/EAN-128. Please read programming code "Read UCC/EAN-128”...

  • Page 85: Pdf417

    Symbologies PDF417 Tools Load Factory Default Code Programming ON Read to load PDF417 factory default. Code Programming OFF ** Load PDF417 Factory Default 【Pro CMD：0501000】 Read/Abort PDF417 ** Read PDF417 Abort PDF417 【Pro CMD：0501020】 【Pro CMD：0501010】 "Abort PDF417" prohibits the engine to read PDF417. Please read programming code "Read PDF417”...

  • Page 86: Select Message Length

    Symbologies PDF417 Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of PDF417. The engine will produce an error beep, if the data length captured does not match the valid reading length. PDF417 Message Length is defined by "Min.

  • Page 87: Qr Code

    Symbologies QR Code Tools Load Factory Default Code Programming ON Read to load QR Code factory default. Code Programming OFF ** Load QR Code Factory Default 【Pro CMD：0502000】 Read/Abort QR Code ** 允许识读 QR Code Abort QR Code 【Pro CMD：0502020】 【Pro CMD：0502010】...

  • Page 88: Select Message Length

    Symbologies QR Code Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of QR Code. The engine will produce an error beep, if the data length captured does not match the valid reading length. QR Code Message Length is defined by "Min.

  • Page 89: Qr Twin Code

    Symbologies QR Code Tools Code Programming ON QR Twin Code Code Programming OFF QR twin code is 2 QR barcodes paralleled vertically or horizontally. There are 3 options for reading QR Code: Single QR Only: Select to read only one QR Code, and abort twin code. Twin QR Only: Select to read only twin code, and abort single QR Code code.

  • Page 90: Aztec Code

    Symbologies Aztec Code Tools Load Factory Default Code Programming ON Read to load Aztec Code factory default. Code Programming OFF ** Load Aztec Code Factory Default 【Pro CMD：0503000】 Read/Abort Aztec Code ** Read Aztec Code Abort Aztec Code 【Pro CMD：0503020】 【Pro CMD：0503010】...

  • Page 91: Select Message Length

    Symbologies Aztec Code Tools Code Programming ON Select Message Length Code Programming OFF It is used to program the valid reading length (bytes) of Aztec. The engine will produce an error beep, if the data length captured does not match the valid reading length. Aztec Message Length is defined by "Min.

  • Page 92: Multi-Barcode Processing Feature

    Symbologies Aztec Code Tools Multi-Barcode Processing feature Code Programming ON The Aztec Codes can be lined up horizontal or vertical. The scanner processes multi-Barcodes simultaneously. There are 3 options can be chosen: Code Programming OFF Model 1: Disable multi-Barcodes feature. Read the single Aztec Code only. Model 2: Enable Multi-Barcodes feature, with the number of bar codes specified.

  • Page 93: Data Matrix

    Symbologies Data Matrix Tools Load Factory Default Code Programming ON Read to load Data Matrix factory default. Code Programming OFF ** Load Data Matrix Factory Default 【Pro CMD：0504000】 Read/Abort Data Matrix ** 允许识读 Data Matrix Abort Data Matrix 【Pro CMD：0504020】 【Pro CMD：0504010】...

  • Page 94: Select Message Length

    Symbologies Data Matrix Tools Code Programming ON Select Message Length It is used to program the valid reading length (bytes) of Data Matrix. The engine will produce an error beep, if the data length captured does not match the valid reading length. Code Programming OFF Data Matrix Message Length is defined by "Min.

  • Page 95: Data Matrix Twin Code

    Symbologies Data Matrix Tools Code Programming ON Data Matrix Twin Code Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. Code Programming OFF There are 3 options for reading Data Matrix: Single Data Matrix Only: select to read only one Data Matrix, and abort twin code. Twin Data Matrix Only: select to read only twin code, and abort single Data Matrix code.

  • Page 96: Chinese-Sensible Code

    Symbologies Chinese-Sensible Code Tools Code Programming ON Load Factory Default Read to load Chinese-Sensible Code factory default. Code Programming OFF ** Load Chinese-Sensible Code Factory Default 【Pro CMD：0508000】 Read/Abort Chinese-Sensible Code ** Read Chinese-Sensible Code Abort Chinese-Sensible Code 【Pro CMD：0508020】 【Pro CMD：0508010】...

  • Page 97: Select Message Length

    Symbologies Chinese-Sensible Code Tools Code Programming ON Select Message Length It is used to program the valid reading length (bytes) of Chinese-Sensible Code. The engine will produce an error beep, if the data length captured does not match the valid reading length. Code Programming OFF Chinese-Sensible Code Message Length is defined by "Min.

  • Page 98: Ocr Selections

    OCR Selections Inrtuducation Tools OCR (Optical Character Recognition) is the technology that capture image of printed Code Programming ON information, and recognize the image to editable characters. The engine satisfy OCR B standard and support specific typeface. Code Programming OFF ** Disable OCR 【Pro CMD：0600010】...

  • Page 99: Prefix/Suffix

    Prefix/Suffix Intruducation 1D barcode message could contain digits, letters and symbols, etc. 2D barcode message could contain more data such as Chinese characters and other 2 bytes characters. Practically, barcode message is insufficient for usage. For example, the barcode format, the date or a “new line character”...

  • Page 100: General Programming

    Prefix/Suffix General Programming Tools Code Programming ON Prohibit or Allow Prefix/Suffix Code Programming OFF Prohibit All Prefix/Suffix: Transmit barcode message with no Prefix/Suffix. Allow All Prefix/Suffix: Allow appending CodeID prefix, AIM prefix, User prefix, User suffix and Stop suffix to the barcode message. ** Prohibit All Prefix/Suffix Allow All Prefix/Suffix 【Pro CMD：0311000】...

  • Page 101: User Prefix

    Prefix/Suffix User Prefix Tools Code Programming ON Prohibit or Allow User Prefix Code Programming OFF User Prefix append to the left of barcode message. For example, program “AB” as user prefix, and the barcode message is “123”. The Host receives “AB123”. ** Prohibit User Prefix Allow User Prefix 【Pro CMD：0305000】...

  • Page 102: Aim Prefix

    Prefix/Suffix AIM Prefix Tools Code Programming ON AIM (Automatic Identification Manufactures) defines AIM prefix for many standard barcode formats. Code Programming OFF There are 3 types of AIM prefix. Character Mode: Append AIM prefix. For example, append “C” for Code128. Characters Mode: Append AIM prefix + “0”...

  • Page 103: Code Id Prefix

    Prefix/Suffix Code ID Prefix Tools Code Programming ON Code ID Prefix Code Programming OFF Apart from AIM prefix, Code ID prefix can be used to denote barcode format and can be customized. The Code ID prefix MUST be 1 visible English letter, only. ** No CodeID Prefix Allow CodeID Prefix 【Pro CMD：0307000】...

  • Page 104: Modify Code Id

    Prefix/Suffix Code ID Prefix Tools Code Programming ON Modify Code ID Code Programming OFF Modify Code ID steps: 1. “Code Programming ON” 2. Read the programming code to enable modifying Code ID for symbologies 3. Read the hex of a visible English letter. 4.
  • Page 105 Prefix/Suffix Code ID Prefix Tools Code Programming ON Code Programming OFF Modify Code 128 Modify UCC/EAN-128 【Pro CMD：0004020】 【Pro CMD：0004030】 Modify EAN-13 Modify UPC-E Modify EAN-8 【Pro CMD：0004050】 【Pro CMD：0004060】 【Pro CMD：0004040】 Modify Interleaved 2 of 5 Modify China Post25 Modify UPC-A 【Pro CMD：0004080】...

  • Page 106: User Suffix

    Prefix/Suffix User Suffix Tools Code Programming ON Prohibit or Allow User Suffix Code Programming OFF User suffix append to the right of barcode message. For example, program “AB” as user suffix, and the barcode message is “123”. The Host receives “123 AB”. ** Prohibit User Suffix Allow User Suffix 【Pro CMD：0306000】...

  • Page 107: Stop Prefix

    Prefix/Suffix Stop Prefix Tools Code Programming ON Prohibit or Allow Stop Suffix Code Programming OFF “Stop Suffix” is the termination for a string of barcode messages. It can not be formatted like other suffix and prefix. It is fixed to the right and the very end of a barcode transmission.

  • Page 108: Message Intersect & Pack

    Message Intersect & Pack Introducation This chapter introduces Message Intersect & Pack. Message intersection only affects plain barcode message. Plain barcode message usually consists of several information sections. Sections may consist of several bytes and have specific indications such as merchandise ID, manufacturer and so on.

  • Page 109: Message Intersect

    Message Intersect & Pack Message Intersect Tools Code Programming ON introduction » Code Programming OFF Intersection Rule No.1: only affects selected symbologies’ plain barcode message. Note that one intersection option affects all barcodes of the barcode format. » Intersection Rule No.2: Maximum 3 intersection options can be restored in the non-volatile memory.

  • Page 110: Program Intersect Option

    Message Intersect & Pack Message Intersect 1D, Program Intersect Option A command input consists of 3 decimals. The first input is for barcode format; Refer to “Symbologies ID Number”. The second input is for intersecting direction; “000” denotes ascending (left to right) and “001” denotes descending.

  • Page 111: Message Intersect

    Message Intersect & Pack Message Intersect 2D, Program Intersect Option A command input consists of 3 or 6 decimals. The first input is for barcode format; Refer to “Symbologies ID Number”. The second input is for intersecting direction; “000”denotes ascending and “001”denotes descending. The following 2 inputs are for start digital and end digital.

  • Page 112: Symbologies Id Number

    Message Intersect & Pack Message Intersect Symbologies ID Number： Symbologies ID Number Code 128 UCC/EAN128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 OF 5 China Post25 Code 39 Codabar Code 93 PDF417 QR Code Aztec DataMatrix Chinese-Sensible Code User-Define Code SPEC_OCR_B nlscan.com Page 106...

  • Page 113: Message Pack

    Message Intersect & Pack Message Pack Tools Code Programming ON Introduction Data Pack is for the special requirements of barcode message. There are 3 types of data Code Programming OFF pack. Data pack affects all data formats, in that be sure to load the default “Disable Pack” if pack is not required.

  • Page 114: Esc_Bank Pack

    Message Intersect & Pack Message Pack Tools Code Programming ON ESC_Bank Pack ESC_BANK pack format: Code Programming OFF [STX] + [DATA] + [ETX] + [BCC] » STX：0x02。 » DATA：Barcode message » ETX：0x03。 » BCC：Parity byte The algorithm: 1. computation sequence is BCC = [STX] + [DATA] + [ETX] 2.

  • Page 115: Esc_Addlen Pack

    Message Intersect & Pack Message Pack Tools Code Programming ON ESC_AddLen Pack ESC_AddLen pack format: Code Programming OFF [STX] +[LEN] + [DATA] + [ETX] + [BCC] STX：0x02。 LEN：Barcode message length is expressed by 4 bytes. Every byte for an ASCII, and thus it ranges “0~9999”.

  • Page 116: Batch Programming

    Batch Programming Itruducation Tools Batch Programming can integrate a programming sequence into one barcode. Code Programming ON Batch Programming Rules: 1. Sub-command is in this format: Programming Command + Parameters 2. Sub-commands are terminated by semicolons. Note that there is no blank between a sub- command and its terminator semicolon.

  • Page 117: Appendix

    Appendix Digit Code It is must to be read save after read digit code. 【Pro CMD：0000000】 【Pro CMD：0000020】 【Pro CMD：0000010】 【Pro CMD：0000030】 【Pro CMD：0000050】 【Pro CMD：0000040】 【Pro CMD：0000060】 【Pro CMD：0000080】 【Pro CMD：0000070】 【Pro CMD：0000090】 【Pro CMD：0000100】 【Pro CMD：0000110】 【Pro CMD：0000120】 【Pro CMD：0000130】...

  • Page 118: Save And Abort

    Appendix Save and Abort Tools Code Programming ON In order to save the data received “Save” has to be read after data transition completed. If error occurs when reading data, Code Programming OFF the wrong data can be deleted and the setting up can be done again.. Eg, after a program code is received then ‘1 2 3”...
