Page 1 NLS-BS80 Pocket Bluetooth Barcode Scanner User Guide...
Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.
Page 3: Revision History
Revision History Version Description Date V1.0 Initial release. March 18, 2015 V1.1 Added the content concerning the 2D version. May 19, 2015 1. Added the Enable/Disable USB HID-KBW feature in Chapter 2. V1.2 September 16, 2015 2. Added barcode parameters in Chapter 3. Added the USB country keyboard types in Chapter 2.
Page 4 1. Added the Bluetooth Device Name, Barcode Separator, Packet Mode, ACK/NAK Retry Count and ACK/NAK Timeout features, and modified the Inter-Keystroke Delay for KBW options in Chapter 2. 2. Added Chapter 6 Data Formatter. V2.1.0 May 25, 2017 3. Modified the “Factory Defaults Table”, and added the “Digit Barcodes”, “Save/Cancel Barcodes”...
Page 5: Table Of Contents
Table of Contents Revision History ............................- 3 - Preface ................................1 Introduction ............................... 1 Chapter Descriptions ..........................1 Safety Instructions ............................. 2 Chapter 1 Getting Started ..........................3 Introduction ............................... 3 Unpacking ..............................3 BS80 Scanner ............................4 Button Functions ............................5 Charging the Battery ..........................
Page 6 NAK/ACK Retry Count ........................25 NAK/ACK Timeout ..........................25 Product Serial Number ..........................26 Time Stamp ............................. 26 Set Date Format ..........................26 Set Date & Time ..........................27 Parameters of USB HID-KBW ......................... 28 USB Country Keyboard Types ......................28 Character Encoding ..........................
Page 7 EAN-8 Extension ........................50 Transmit Check Character ......................50 EAN-13 ............................. 51 Restore Factory Defaults ......................51 Enable/Disable EAN-13 ......................51 Transmit Check Character ......................51 2-Digit Add-On Code ........................52 5-Digit Add-On Code ........................53 EAN-13 Beginning with 290 Add-On Code Required ..............54 EAN-13 Beginning with 378/379 Add-On Code Required ............
Page 8 Restore Factory Defaults ......................68 Enable/Disable Interleaved 2 of 5 ....................68 Check Character Verification ...................... 68 Set Length Range for Interleaved 2 of 5 ..................69 ITF-6 ..............................70 ITF-14 ............................... 71 Deutsche 14 ............................72 Restore Factory Defaults ......................72 Enable/Disable Deutsche 14 ......................
Page 9 Set Length Range for Code 39 ....................84 Enable/Disable Code 32 ......................85 Code 32 Prefix ........................... 85 Transmit Code 32 Check Character ................... 86 Transmit Code 32 Start/Stop Character ..................86 Codabar ............................87 Restore Factory Defaults ......................87 Enable/Disable Codabar ......................
Page 10 Enable/Disable 2D Symbologies ....................101 Video Reverse ......................... 102 Code 128 ............................103 Restore Factory Defaults ......................103 Enable/Disable Code 128 ......................103 Set Length Range for Code 128 ....................104 GS1-128 (UCC/EAN-128) ....................... 105 Restore Factory Defaults ......................105 Enable/Disable GS1-128 ......................
Page 11 Add-On Code Required ......................119 ISBN ..............................120 Restore Factory Default ......................120 Enable/Disable ISBN ....................... 120 Set ISBN Format ........................120 Add-On Code ........................... 121 Add-On Code Required ......................121 UPC-E ............................. 122 Restore Factory Defaults ......................122 Enable/Disable UPC-E ......................122 Transmit Check Character .......................
Page 12 Check Character Verification ....................138 Standard 25 (IATA 2 of 5) ........................ 139 Restore Factory Defaults ......................139 Enable/Disable Standard 25 ....................139 Set Length Range for Standard 25 ..................140 Check Character Verification ....................141 Code 39 ............................142 Restore Factory Defaults ......................
Page 13 Check Character Verification ....................156 Plessey ............................157 Restore Factory Defaults ......................157 Enable/Disable Plessey ......................157 Set Length Range for Plessey ....................158 Check Character Verification ....................159 MSI-Plessey ............................ 160 Restore Factory Defaults ......................160 Enable/Disable MSI-Plessey ....................160 Set Length Range for MSI-Plessey ..................
Page 14 Custom Prefix ..........................176 Enable/Disable Custom Prefix ....................176 Set Custom Prefix ........................176 AIM ID Prefix ........................... 177 Code ID Prefix ..........................178 Restore All Default Code IDs ....................178 Modify Code ID ........................178 Custom Suffix ..........................182 Enable/Disable Custom Suffix ....................
Page 15 Programming with Barcodes ......................198 Programming with Serial Commands ....................200 Enable/Disable Data Formatter ......................201 Non-Match Error Beep .......................... 202 Enable Data Format ..........................202 Change Data Format for a Single Scan....................203 Clear Data Format ..........................203 Query Data Formats ..........................204 Formatter Command Type 6 .........................
Page 17: Preface
Preface Introduction This manual provides detailed instructions for setting up and using the NLS-BS80 barcode scanner (hereinafter referred to as “the BS80” or “the scanner”). Chapter Descriptions  Chapter 1, Getting Started : This chapter provides information on getting the scanner up and running for the first time.
Page 18: Safety Instructions
Safety Instructions Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. ...
Page 19: Chapter 1 Getting Started
Chapter 1 Getting Started Introduction The BS80 is a wireless pocket barcode scanner equipped with 1D or 2D scan engine to meet different needs. It is a great space-saver for busy or limited workspaces. It also supports iOS, Android, and Windows devices through Bluetooth HID or SPP or BLE communication.
Page 20: Bs80 Scanner

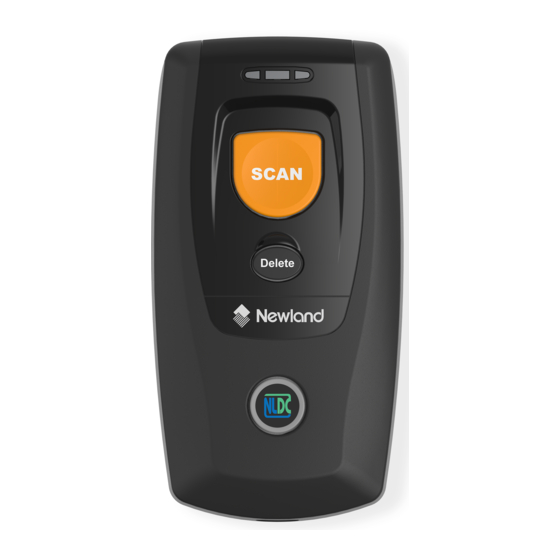

BS80 Scanner Charging/Battery LED Good Read LED Data LED Scan/Power Button Delete/Reset Button Function Button/Function LED Micro USB Port Product Label Scan Window* *Note: Please peel off the protective film from the scan window before reading barcodes.
Page 21: Button Functions
Button Functions Scan/Power Button *Press the button to scan barcode. *Hold down the button for 3 seconds to power the scanner on. Delete/Reset Button *Press the button to remove the corresponding data from the flash memory in one of the following conditions before scanning the barcode to be deleted: (i) Bluetooth mode enabled but no Bluetooth connection established;...
Page 22: Charging The Battery
Charging the Battery Charge the scanner by connecting it to a host device with Micro USB cable, as shown below. Note: Low battery may result in failure or misoperation of the scanner. Before your first use, charge the battery for 3-4 hours.
Page 23: Connecting The Bs80 To Smartphone/Tablet
Connecting the BS80 to Smartphone/Tablet 1. Make sure your device has HID or SPP or BLE profile. 2. If the red Function LED on the scanner is on, hold down the Scan/Power button and Function button at the same time for 3 seconds or scan the Bluetooth Mode barcode to switch to the Bluetooth mode. Hold down the Delete/Reset button and Function button at the same time or scan the Delete Bluetooth Pairing barcode to remove existing pairing information from the scanner.
Page 24 (1) Click “Settings”. (2) Click “General”. (3) Click “Bluetooth”. (5) Select “BS80XXXX” to (6) The “Connected” message (4) Turn it on and search the devices. connect. means the connection is OK. BS80XXXX Connected BS80XXXX 6. After the connection is completed, the blue Function LED on the scanner will illuminate. 7.
Page 25: Led Notifications
LED Notifications Charging/Battery LED Red LED on Charging in progress. Green LED on Fully charged. Red and green LEDs flash alternately Battery not found. Red LED flashes Low battery alert. When the scanner is on, pressing the Scan/Power button and Delete/Reset button at the same time for 3 seconds can display the battery level with the Charging/Battery LED.
Page 26: Turning The Bs80 On/Off
Turning the BS80 On/Off Turn the scanner on: Press the Scan/Power button for 3 seconds. Turn the scanner off: By default, the scanner automatically powers off if no operation is performed on the scanner for 30 minutes. You can adjust the auto power-off timer. You can also turn off the scanner by scanning the Power Off barcode.
Page 27: Scanning Instructions
Scanning Instructions Scanning 1D Barcode Adjust the scan angle (Do not read barcode at vertical degree) or the distance between barcode and the scanner to ensure that the length of the scan line is roughly 8mm greater than that of the barcode, as shown below.
Page 28: Chapter 2 System Settings
Chapter 2 System Settings Introduction This chapter describes how to configure the basic system parameters on the scanner. Restore Factory Defaults Restore Factory Defaults Operating Modes The scanner provides two operating modes: Bluetooth mode and USB mode. To switch between these two modes, press the Scan/Power and Function buttons for 3 seconds at the same time or scan the USB Mode or Bluetooth Mode barcode.
Page 29: Bluetooth Mode
Bluetooth Mode Bluetooth Mode (default) When the scanner is in the Bluetooth mode, you can select a desired profile by scanning the appropriate barcode below. HID (default) There are three types of data transmission via Bluetooth: Synchronous transmission, Asynchronous transmission and Batch transmission. (1) Synchronous transmission (default): When you scan barcodes, the data will be sent to smartphone/tablet directly.
Page 30 Synchronous Transmission, Bluetooth (default) Asynchronous Transmission, Bluetooth Batch Transmission, Bluetooth Transmit Stored Data The following feature is enabled automatically when the scanner is in Bluetooth Batch mode. Verify Receipt of Data: The scanner will keep all the stored data after transmission, which offers users the opportunity to verify if the data is properly received and to resend the data when needed.
Page 31: Usb Mode
PC or not. You can sync the data from the flash memory to your PC via USB by following the procedure described below. Step 1: Download CDC-Virtual COM Driver from Newland website at www.newlandaidc.com and Install it on your PC.
Page 32 Batch Transmission, USB Asynchronous Transmission, USB (default) Transmit Stored Data The following feature is enabled automatically when the scanner is in USB Batch mode. Moreover, you can scan the appropriate barcode below to enable or disable this feature for USB Asynchronous mode. Verify Receipt of Data: The scanner will keep all the stored data after transmission, which offers users the opportunity to verify if the data is properly received and to resend the data when needed.
Page 33: Query Product Information
Query Product Information Query the Firmware Version of Embedded Scan Engine Query the Manufacture Date of Product Query the Serial Number of Product Query the Firmware & Hardware Versions of Product Query/Delete Stored Data in Flash Query the Number of Stored Barcodes Clear All Stored Data...
Page 34: Sound Notifications
Sound Notifications Turn sound notifications on or off by scanning the appropriate barcode below. After this feature is enabled, the scanner beeps when one of the following events occurs: 1. The scanner is turned on. 2. The scanner resets. 3. A barcode is decoded (including good read for removing barcode data from the flash memory). 4.
Page 35: Vibration Notifications
Vibration Notifications Turn vibration notifications on or off by scanning the appropriate barcode below. After this feature is enabled, the scanner vibrates when one of the following events occurs: 1. A barcode is decoded (including good read for removing barcode data from the flash memory). 2.
Page 36: Inter-Character Delay For Bluetooth Hid
Inter-Character Delay for Bluetooth HID Select an appropriate inter-character delay to avoid data loss during transmission. This parameter is only valid in the Bluetooth HID mode. 15ms (default) 25ms 35ms 45ms Query Inter-Character Delay Delete Bluetooth Pairing Delete Bluetooth Pairing...
Page 37: Automatic/Manual Power-Off
Automatic/Manual Power-Off By default, the scanner automatically powers off if no operation is performed on the scanner for 30 minutes. This feature can help to extend battery life. Query Auto Power-Off Timer Set the auto power-off timer: Scan the Set Auto Power-Off Timer barcode then one of the timers listed below.
Page 38: Bluetooth Device Name
You can power off your scanner manually by scanning the barcode below. Power Off Note: After the Power Off barcode is scanned, the scanner emits a long beep and then turns off. Bluetooth Device Name The default Bluetooth device name for a BS80 scanner combines the model name “BS80+” (user-programmable) with the last 4 characters of the MAC address of the device (for example, BS80+E4AC).
Page 39: Barcode Separator
Barcode Separator A separator with length up to 10 characters (default: none) can be inserted between barcodes. This feature is only available when the following two conditions are met: Bluetooth or USB batch transmission is selected and Packet mode is off. Scan the appropriate barcode below to enable or disable this feature. When barcode separator is enabled, the preset separator will be inserted between barcodes and it will be sent three times after batch transmission is completed.
Page 40: Packet Mode
Packet Mode When Packet mode is off, data is sent in raw format (unpacketed). When Packet mode is on, data is sent with the packet format defined below to ensure integrity of data when received by the host or the scanner. For batch transmission, the scanner sends 0x7E, 0x01, 0x30, 0x30, 0x30, 0x30, 0x00, 0x00, 0x3B, 0x03, 0x00 to notify the host of the completion of batch transmission.
Page 41: Nak/Ack Retry Count
NAK/ACK Retry Count This parameter specifies the number of times the scanner retries a barcode transmission when it awaits an ACK response from the host. Note that Packet mode must be turned on for this parameter to function. The selection range is from 1 to 8 retries. The default value is 2 (retries). Set ACK/NAK Retry Count Example: Set the ACK/NAK retry count to 1 Scan the Set ACK/NAK Retry Count barcode.
Page 42: Product Serial Number
Product Serial Number You can select whether to send product serial number or not by enabling or disabling it. Enable Product Serial Number Disable Product Serial Number (default) Time Stamp You can select whether to send date & time or not by enabling or disabling time stamp. Enable Time Stamp Disable Time Stamp (default) Set Date Format...
Page 43: Set Date & Time
Set Date & Time Step 1: Double click on BS80Setting.exe to run BS80 Date&Time Setting Tool. Then check the “Auto-sync date and time with the host” item on it. Step 2: After the time in the box is in sync with the system clock, click the “Generate Barcode” button. Step 3: Scan the barcode generated to set the date and time on the scanner.
Page 44: Parameters Of Usb Hid-Kbw
Parameters of USB HID-KBW USB Country Keyboard Types US English (default) Belgium Brazil Canada Czech Danmark Finland France...
Page 45 Germany, Austria Greece Hungary Israel Italy Latin America, South America Netherland Norway Poland Portugal...
Page 46 Romania Russia Slovakia Spain Sweden Switzerland Turkey_F Turkey_Q Japan...
Page 47: Character Encoding
Character Encoding ISO-8859-1 (default) UTF-8 Convert Case No Case Conversion (default) Convert All to Upper Case Convert All to Lower Case Invert Upper and Lower Case Characters...
Page 48: Emulate Alt+Keypad
Emulate ALT+Keypad This feature allows any ASCII character (0x00 - 0xFF) to be sent over the numeric keypad no matter which keyboard type is selected. Since sending a character involves multiple keystroke emulations, this method appears less efficient. The following options are available: ...
Page 49: Function Key Mapping
Function Key Mapping When Function Key Mapping is enabled, function characters (0x00 - 0x1F) are sent as ASCII sequences over the keypad. For more information, see the “ASCII Function Key Mapping Table” in Appendix. Disable Function Key Mapping (default) Enable Function Key Mapping Example: Barcode data 0x16 Enable Function Key Mapping Ctrl+V...
Page 50: Code Page
Code Page The Code Page programming feature is provided to support more international characters. This feature is only effective when ASCII characters are sent in the ALT+Keypad way. Windows 1251 (Cyrillic) Windows 1252 (Latin I) (default) Example 1: Set the scanner to get proper output for Russian encoded with ISO-8859-1 1.
Page 51: Inter-Keystroke Delay For Kbw
Inter-Keystroke Delay for KBW To set the inter-keystroke delay, scan the Set Inter-Keystroke Delay barcode and a desired value barcode below. Set Inter-Keystroke Delay 0ms (default)
Page 52 10ms 11ms 12ms 13ms 14ms 15ms...
Page 53: Upgrade The Firmware
Step 1: Contact the technical support to get the BS80 Firmware Upgrade Utility and the latest firmware. Step 2: Download CDC-Virtual COM Driver from the Newland website at www.newlandaidc.com. Install it on PC by following the on-screen instructions. (Skip this step if it is already installed on your PC.) Make sure that the driver is properly installed.
Page 54 Step 6: Wait for the “Firmware upgraded!” window to pop up and click “OK” to exit the program.
Page 55 Notes: 1. If this utility does not operate normally, check to see if the FirmwarePath in the UpdataTool.ini file is correct (its value should be identical with the name of the .bin file). If there is a higher version of firmware, replace the .bin file.
Page 56: Chapter 3 Symbologies
Chapter 3 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various barcode symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner. Note: Maximum barcode length supported by the scanner is 3072 bytes.
Page 57: Code 128
Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 Enable Code 128 (default) Disable Code 128...
Page 58: Set Length Range For Code 128
Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 128 barcodes with either the minimum or maximum length.
Page 59: Ucc/Ean-128
UCC/EAN-128 Restore Factory Defaults Restore the Factory Defaults of UCC/EAN-128 Enable/Disable UCC/EAN-128 Enable UCC/EAN-128 (default) Disable UCC/EAN-128...
Page 60: Set Length Range For Ucc/Ean-128
Set Length Range for UCC/EAN-128 The scanner can be configured to only decode UCC/EAN-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes UCC/EAN-128 barcodes with either the minimum or maximum length.
Page 61: Aim 128
AIM 128 Restore Factory Defaults Restore the Factory Defaults of AIM 128 Enable/Disable AIM 128 Enable AIM 128 Disable AIM 128 (default)
Page 62: Set Length Range For Aim 128
Set Length Range for AIM 128 The scanner can be configured to only decode AIM128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes AIM128 barcodes with either the minimum or maximum length.
Page 63: Restore Factory Defaults
EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 Enable EAN-8 (default) Disable EAN-8...
Page 64: 2-Digit Add-On Code
2-Digit Add-On Code An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 2-digit add-on barcode. It can also decode EAN-8 barcodes without 2-digit add-on codes.
Page 65: 5-Digit Add-On Code
5-Digit Add-On Code An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 5-digit add-on barcode. It can also decode EAN-8 barcodes without 5-digit add-on codes.
Page 66: Ean-8 Extension
EAN-8 Extension  Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is.  Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.  Convert EAN-8 to EAN-13: Add five leading zeros to decoded EAN-8 barcodes to make them compatible in format to EAN-13 barcodes.
Page 67: Restore Factory Defaults
EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 Enable EAN-13 (default) Disable EAN-13 Transmit Check Character EAN-13 is 13 digits in length with the last one as its check character used to verify the integrity of the data.
Page 68: 2-Digit Add-On Code
2-Digit Add-On Code An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 2-digit add-on barcode. It can also decode EAN-13 barcodes without 2-digit add-on codes.
Page 69: 5-Digit Add-On Code
5-Digit Add-On Code An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 5-digit add-on barcode. It can also decode EAN-13 barcodes without 5-digit add-on codes.
Page 70: Ean-13 Beginning With 290 Add-On Code Required
EAN-13 Beginning with 290 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “290” must have a 2-digit or 5-digit add-on code.
Page 71: Ean-13 Beginning With 414/419 Add-On Code Required
EAN-13 Beginning with 414/419 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “414” or “419”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code.
Page 72: Ean-13 Beginning With 977 Add-On Code Required
EAN-13 Beginning with 977 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code.
Page 73: Ean-13 Beginning With 979 Add-On Code Required
EAN-13 Beginning with 979 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code.
Page 74: Issn
ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN Disable ISSN (default)
Page 75: Isbn
ISBN Restore Factory Defaults Restore the Factory Defaults of ISBN Enable/Disable ISBN Enable ISBN Disable ISBN (default) Set ISBN Format ISBN-13 (default) ISBN-10...
Page 76: Upc-E
UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E Enable UPC-E (default) Disable UPC-E Transmit Check Character UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data. Transmit UPC-E Check Character (default) Do Not Transmit UPC-E Check Character...
Page 77: 2-Digit Add-On Code
2-Digit Add-On Code A UPC-E barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 2-digit add-on barcode. It can also decode UPC-E barcodes without 2-digit add-on codes.
Page 78: 5-Digit Add-On Code
5-Digit Add-On Code A UPC-E barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 5-digit add-on barcode. It can also decode UPC-E barcodes without 5-digit add-on codes.
Page 79: Transmit Preamble Character
Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble.
Page 80: Upc-A
UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A Enable UPC-A (default) Disable UPC-A Transmit Check Character UPC-A is 13 digits in length with the last one as its check character used to verify the integrity of the data. Transmit UPC-A Check Character (default) Do Not Transmit UPC-A Check Character...
Page 81: Transmit Preamble Character
Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble.
Page 82: 2-Digit Add-On Code
2-Digit Add-On Code A UPC-A barcode can be augmented with a two-digit add-on code to form a new one.  Disable 2-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 2-digit add-on barcode. It can also decode UPC-A barcodes without 2-digit add-on codes.
Page 83: 5-Digit Add-On Code
5-Digit Add-On Code A UPC-A barcode can be augmented with a five-digit add-on code to form a new one.  Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 5-digit add-on barcode. It can also decode UPC-A barcodes without 5-digit add-on codes.
Page 84: Interleaved 2 Of 5
Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable Interleaved 2 of 5 (default) Disable Interleaved 2 of 5 Check Character Verification Do Not Transmit Check Character After Verification Disable (default) Transmit Check Character After Verification...
Page 85: Set Length Range For Interleaved 2 Of 5
Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Page 86: Itf-6
ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. Restore the Factory Defaults of ITF-6 Disable ITF-6 (default) Enable ITF-6, Do Not Transmit Check Character Enable ITF-6, Transmit Check Character Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time.
Page 87: Itf-14
ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. Restore the Factory Defaults of ITF-14 Enable ITF-14, Do Not Transmit Check Character Disable ITF-14 (default) Enable ITF-14, Transmit Check Character Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time.
Page 88: Deutsche 14
Deutsche 14 Restore Factory Defaults Restore the Factory Defaults of Deutsche 14 Enable/Disable Deutsche 14 Enable Deutsche 14, Do Not Transmit Check Character Disable Deutsche 14 (default) Enable Deutsche 14, Transmit Check Character Note: It is advised not to enable Deutsche 14 unless necessary, because Deutsche 14, ITF-14 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause confusion with each other when decoding.
Page 89: Deutsche 12
Deutsche 12 Restore Factory Defaults Restore the Factory Defaults of Deutsche 12 Enable/Disable Deutsche 12 Enable Deutsche 12, Do Not Transmit Check Character Disable Deutsche 12 (default) Enable Deutsche 12, Transmit Check Character Note: It is advised not to enable Deutsche 12 unless necessary, because Deutsche 12, ITF-12 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause confusion with each other when decoding.
Page 90: Coop 25 (Japanese Matrix 2 Of 5)
COOP 25 (Japanese Matrix 2 of 5) Restore Factory Defaults Restore the Factory Defaults of COOP 25 Enable/Disable COOP 25 Enable COOP 25 Disable COOP 25 (default) Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification...
Page 91: Set Length Range For Coop 25
Set Length Range for COOP 25 The scanner can be configured to only decode COOP 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes COOP 25 barcodes with either the minimum or maximum length.
Page 92: Matrix 2 Of 5 (European Matrix 2 Of 5)
Matrix 2 of 5 (European Matrix 2 of 5) Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 (default) Disable Matrix 2 of 5 Check Character Verification Disable (default) Transmit Check Character After Verification...
Page 93: Set Length Range For Matrix 2 Of 5
Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Page 94: Industrial 25
Industrial 25 Restore Factory Defaults Restore the Factory Defaults of Industrial 25 Enable/Disable Industrial 25 Enable Industrial 25 (default) Disable Industrial 25 Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification...
Page 95: Set Length Range For Industrial 25
Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25 barcodes with either the minimum or maximum length.
Page 96: Standard 25
Standard 25 Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 Enable Standard 25 (default) Disable Standard 25 Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification...
Page 97: Set Length Range For Standard 25
Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25 barcodes with either the minimum or maximum length.
Page 98: Code 39
Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 Enable Code 39 (default) Disable Code 39 Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification...
Page 99: Transmit Start/Stop Character
Transmit Start/Stop Character Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. Transmit Start/Stop Character (default) Do Not Transmit Start/Stop Character Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below.
Page 100: Set Length Range For Code 39
Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes with either the minimum or maximum length.
Page 101: Enable/Disable Code 32
Enable/Disable Code 32 Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this parameter to function. Disable Code 32 (default) Enable Code 32 Code 32 Prefix...
Page 102: Transmit Code 32 Check Character
Transmit Code 32 Check Character Code 32 must be enabled for this parameter to function. Do Not Transmit Code 32 Check Character (default) Transmit Code 32 Check Character Transmit Code 32 Start/Stop Character Code 32 must be enabled for this parameter to function. Do Not Transmit Code 32 Start/Stop Character (default) Transmit Code 32 Start/Stop Character...
Page 103: Codabar
Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar Enable Codabar (default) Disable Codabar Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification...
Page 104: Transmit Start/Stop Character
Transmit Start/Stop Character Do Not Transmit Start/Stop Character Transmit Start/Stop Character (default) ABCD/ABCD as the Start/Stop Character (default) ABCD/TN*E as the Start/Stop Character abcd/abcd as the Start/Stop Character abcd/tn*e as the Start/Stop Character...
Page 105: Set Length Range For Codabar
Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes with either the minimum or maximum length.
Page 106: Code 93
Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 Enable Code 93 (default) Disable Code 93 Check Character Verification Disable Transmit Check Character After Verification Do Not Transmit Check Character After Verification (default)
Page 107: Set Length Range For Code 93
Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes with either the minimum or maximum length.
Page 108: Code 11
Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 Disable Code 11 (default)
Page 109: Check Character Verification
Check Character Verification Disable One Check Character, MOD11 (default) Two Check Characters, MOD11/MOD11 Two Check Characters, MOD11/MOD9 One Check Character, MOD11 (Len <= 10) One Check Character, MOD11 (Len <= 10) Two Check Characters, MOD11/MOD11 (Len > 10) Two Check Characters, MOD11/MOD9 (Len > 10) Do Not Transmit Check Character (default) Transmit Check Character...
Page 110: Set Length Range For Code 11
Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes with either the minimum or maximum length.
Page 111: Plessey
Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey Enable Plessey Disable Plessey (default) Check Character Verification Disable Transmit Check Character After Verification Do Not Transmit Check Character After Verification (default)
Page 112: Set Length Range For Plessey
Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes with either the minimum or maximum length.
Page 113: Msi-Plessey
MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey Enable MSI-Plessey Disable MSI-Plessey (default)
Page 114: Check Character Verification
Check Character Verification Disable One Check Character, MOD10 (default) Two Check Characters, MOD10/MOD10 Two Check Characters, MOD10/MOD11 Do Not Transmit Check Character (default) Transmit Check Character...
Page 115: Set Length Range For Msi-Plessey
Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length.
Page 116: Gs1 Databar
GS1 Databar Restore Factory Defaults Restore the Factory Defaults of GS1 Databar Enable/Disable GS1 Databar Enable GS1 Databar (default) Disable GS1 Databar...
Page 117: 2D Scanner
2D Scanner Global Settings Enable/Disable All Symbologies If the Disable All Symbologies feature is enabled, the scanner will not be able to read any non-programming barcodes except the programming barcodes. Enable All Symbologies Disable All Symbologies Enable/Disable 1D Symbologies If the Disable 1D Symbologies feature is enabled, the scanner will not be able to read any 1D barcodes. Enable 1D Symbologies Disable 1D Symbologies Enable/Disable 2D Symbologies...
Page 118: Video Reverse
Video Reverse The Video Reverse feature only applies to 2D barcodes. Regular barcode: Dark image on a bright background. Inverse barcode: Bright image on a dark background. The examples of regular barcode and inverse barcode are shown below. Regular Barcode Inverse Barcode Video Reverse allows the scanner to read barcodes that are inverted.
Page 119: Code 128
Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 Enable Code 128 (default) Disable Code 128...
Page 120: Set Length Range For Code 128
Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 128 barcodes with either the minimum or maximum length.
Page 121: Gs1-128 (Ucc/Ean-128)
GS1-128 (UCC/EAN-128) Restore Factory Defaults Restore the Factory Defaults of GS1-128 Enable/Disable GS1-128 Enable GS1-128 (default) Disable GS1-128...
Page 122: Set Length Range For Gs1-128
Set Length Range for GS1-128 The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128 barcodes with either the minimum or maximum length.
Page 123: 107
AIM-128 Restore Factory Defaults Restore the Factory Defaults of AIM-128 Enable/Disable AIM-128 Enable AIM-128 (default) Disable AIM-128...
Page 124: Set Length Range For Aim-128
Set Length Range for AIM-128 The scanner can be configured to only decode AIM-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes AIM-128 barcodes with either the minimum or maximum length.
Page 125: 109
EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 Enable EAN-8 (default) Disable EAN-8 Transmit Check Character EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data. Transmit EAN-8 Check Character (default) Do Not Transmit EAN-8 Check Character...
Page 126: Add-On Code
Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.
Page 127: Ean-8 Add-On Code Required
Add-On Code Required When EAN-8 Add-On Code Required is selected, the scanner will only read EAN-8 barcodes that contain add-on codes. EAN-8 Add-On Code Required EAN-8 Add-On Code Not Required (default) EAN-8 Extension Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is. Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.
Page 128: 112
EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 Enable EAN-13 (default) Disable EAN-13 Transmit Check Character Transmit EAN-13 Check Character (default) Do Not Transmit EAN-13 Check Character...
Page 129: Add-On Code
Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes.
Page 130: Beginning With 290 Add-On Code Required (For Bs8060-2T)
EAN-13 Beginning with 290 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “290” must have a 2-digit or 5-digit add-on code.
Page 131: Beginning With 414/419 Add-On Code Required (For Bs8060-2T)
EAN-13 Beginning with 414/419 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “414” or “419”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code.
Page 132: Beginning With 977 Add-On Code Required (For Bs8060-2T)
EAN-13 Beginning with 977 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code.
Page 133: Beginning With 979 Add-On Code Required (For Bs8060-2T)
EAN-13 Beginning with 979 Add-On Code Required (For BS8060-2T) This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code.
Page 134: Issn
ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN Disable ISSN (default)
Page 135: Add-On Code
Add-On Code An ISSN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISSN barcodes with and without 2-digit/5-digit add-on codes.
Page 136: Isbn
ISBN Restore Factory Default Restore the Factory Defaults of ISBN Enable/Disable ISBN Enable ISBN (default) Disable ISBN Set ISBN Format ISBN-13 (default) ISBN-10...
Page 137: Add-On Code
Add-On Code An ISBN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISBN barcodes with and without 2-digit/5-digit add-on codes.
Page 138: Upc-E
UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E Enable UPC-E (default) Disable UPC-E Transmit Check Character Transmit UPC-E Check Character (default) Do Not Transmit UPC-E Check Character...
Page 139: Add-On Code
Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit/5-digit add-on codes.
Page 140: Transmit System Character "0
Transmit System Character “0” The first character of UPC-E barcode is the system character “0”. Transmit System Character “0” Do Not Transmit System Character “0” (default) UPC-E Extension Disable UPC-E Extend: Transmit UPC-E barcodes as is. Enable UPC-E Extend: Extend UPC-E barcodes to make them compatible in length to UPC-A. Enable UPC-E Extend Disable UPC-E Extend (default)
Page 141: Upc-A
UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A Enable UPC-A (default) Disable UPC-A Transmit Check Character Transmit UPC-A Check Character (default) Do Not Transmit UPC-A Check Character...
Page 142: Add-On Code
Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (default) Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit/5-digit add-on codes.
Page 143: Transmit Preamble Character
Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only or transmit system character and country code (“0” for USA). System Character &...
Page 144: Interleaved 2 Of 5
Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Enable Interleaved 2 of 5 (default) Disable Interleaved 2 of 5...
Page 145: Set Length Range For Interleaved 2 Of 5
Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Page 146: Check Character Verification
Check Character Verification A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check character algorithm.
Page 147: 131
ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. Restore the Factory Defaults of ITF-14 Disable ITF-14 Enable ITF-14 But Do Not Transmit Check Character Enable ITF-14 and Transmit Check Character (default) Note: It is advisable not to enable ITF-14 and Interleaved 2 of 5 at the same time.
Page 148: 132
ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. Restore the Factory Defaults of ITF-6 Disable ITF-6 (default) Enable ITF-6 But Do Not Transmit Check Character Enable ITF-6 and Transmit Check Character Note: It is advisable not to enable ITF-6 and Interleaved 2 of 5 at the same time.
Page 149: Matrix 2 Of 5
Matrix 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5 (default)
Page 150: Set Length Range For Matrix 2 Of 5
Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Page 151: Check Character Verification
Check Character Verification Disable Do Not Transmit Check Character After Verification Transmit Check Character After Verification (default)
Page 152: Industrial 2 Of 5
Industrial 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Industrial 2 of 5 Enable/Disable Industrial 2 of 5 Enable Industrial 2 of 5 (default) Disable Industrial 2 of 5...
Page 153: Set Length Range For Industrial 2 Of 5
Set Length Range for Industrial 2 of 5 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Page 154: Check Character Verification
Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification...
Page 155: Standard 25 (Iata 2 Of 5)
Standard 25 (IATA 2 of 5) Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 Enable Standard 25 (default) Disable Standard 25...
Page 156: Set Length Range For Standard 25
Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25 barcodes with either the minimum or maximum length.
Page 157: Check Character Verification
Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification...
Page 158: Code 39
Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 Enable Code 39 (default) Disable Code 39 Transmit Start/Stop Character Transmit Start/Stop Character Do not Transmit Start/Stop Character (default)
Page 159: Set Length Range For Code 39
Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes with either the minimum or maximum length.
Page 160: Check Character Verification
Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below. Enable Code 39 Full ASCII (default) Disable Code 39 Full ASCII Enable/Disable Code 32 (For BS8060-2T)
Page 161: Code 32 Prefix (For Bs8060-2T)
Code 32 Prefix (For BS8060-2T) Scan the appropriate bar code below to enable or disable adding the prefix character “A” to all Code 32 barcodes. Code 32 must be enabled for this parameter to function. Disable Code 32 Prefix (default) Enable Code 32 Prefix Transmit Code 32 Check Character (For BS8060-2T) Code 32 must be enabled for this parameter to function.
Page 162: Codabar
Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar Enable Codabar (default) Disable Codabar...
Page 163: Set Length Range For Codabar
Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes with either the minimum or maximum length.
Page 164: Check Character Verification
Check Character Verification Disable (default) Transmit Check Character After Verification Do Not Transmit Check Character After Verification Transmit Start/Stop Character Transmit Start/Stop Character Do not Transmit Start/Stop Character (default)
Page 165: Start/Stop Character Format
Start/Stop Character Format You can choose your desired start/stop character format by scanning the appropriate barcode below. ABCD/ABCD as the Start/Stop Character (default) ABCD/TN*E as the Start/Stop Character Start/Stop Character in Uppercase Start/Stop Character in Lowercase...
Page 166: Code 93
Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 Enable Code 93 (default) Disable Code 93...
Page 167: Set Length Range For Code 93
Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes with either the minimum or maximum length.
Page 168: Check Character Verification
Check Character Verification Disable Do Not Transmit Check Character After Verification Transmit Check Character After Verification (default)
Page 169: Gs1-Databar (Rss)
GS1-Databar (RSS) Restore Factory Defaults Restore the Factory Defaults of GS1-Databar Enable/Disable GS1 Databar Enable GS1-DataBar (default) Disable GS1-DataBar Transmit Application Identifier “01” Transmit Application Identifier “01” Do Not Transmit Application Identifier “01” (default)
Page 170: Code 11
Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 (default) Disable Code 11...
Page 171: Set Length Range For Code 11
Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes with either the minimum or maximum length.
Page 172: Transmit Check Character
Transmit Check Character Transmit Check Character Do Not Transmit Check Character (default) Check Character Verification Disable One Check Character, MOD11 (default) Two Check Characters, MOD11/MOD11 Two Check Characters, MOD11/MOD9 One Check Character, MOD11 (Len<=10) One Check Character, MOD11 (Len<=10) Two Check Characters, MOD11/MOD11 (Len>10) Two Check Characters, MOD11/MOD9 (Len>10)
Page 173: Plessey
Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey Enable Plessey (default) Disable Plessey...
Page 174: Set Length Range For Plessey
Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes with either the minimum or maximum length.
Page 175: Check Character Verification
Check Character Verification Disable Do Not Transmit Check Character After Verification Transmit Check Character After Verification (default)
Page 176: Msi-Plessey
MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey Enable MSI-Plessey (default) Disable MSI-Plessey...
Page 177: Set Length Range For Msi-Plessey
Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length.
Page 178: Transmit Check Character
Transmit Check Character Transmit Check Character Do Not Transmit Check Character (default) Check Character Verification Disable One Check Character, MOD10 (default) Two Check Characters, MOD10/MOD10 Two Check Characters, MOD10/MOD11...
Page 179: Pdf 417
PDF 417 Restore Factory Defaults Restore the Factory Defaults of PDF 417 Enable/Disable PDF 417 Enable PDF 417 (default) Disable PDF 417...
Page 180: Set Length Range For Pdf 417
Set Length Range for PDF 417 The scanner can be configured to only decode PDF 417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes PDF 417 barcodes with either the minimum or maximum length.
Page 181: Pdf 417 Twin Code
PDF 417 Twin Code PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading PDF417 twin codes: Single PDF417 Only: Read either PDF417 code.
Page 182: Qr Code
QR Code Restore Factory Defaults Restore the Factory Defaults of QR Code Enable/Disable QR Code Enable QR Code (default) Disable QR Code Micro QR Enable Micro QR (default) Disable Micro QR...
Page 183: Set Length Range For Qr Code
Set Length Range for QR Code The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes QR Code barcodes with either the minimum or maximum length.
Page 184: Qr Twin Code
QR Twin Code QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading QR twin codes: Single QR Only: Read either QR code.
Page 185: Data Matrix
Data Matrix Restore Factory Defaults Restore the Factory Defaults of Data Matrix Enable/Disable Data Matrix Enable Data Matrix (default) Disable Data Matrix...
Page 186: Set Length Range For Data Matrix
Set Length Range for Data Matrix The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Data Matrix barcodes with either the minimum or maximum length.
Page 187: Rectangular Barcode
Rectangular Barcode Enable Rectangular Barcode (default) Disable Rectangular Barcode Mirror Image Decode Mirror Images (default) Do Not Decode Mirror Images...
Page 188: Data Matrix Twin Code
Data Matrix Twin Code Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together. There are 3 options for reading Data Matrix twin codes: Single Data Matrix Only: Read either Data Matrix code.
Page 189: Chinese Sensible Code
Chinese Sensible Code Restore Factory Defaults Restore the Factory Defaults of Chinese Sensible Code Enable/Disable Chinese Sensible Code Enable Chinese Sensible Code Disable Chinese Sensible Code (default)
Page 190: Set Length Range For Chinese Sensible Code
Set Length Range for Chinese Sensible Code The scanner can be configured to only decode Chinese Sensible Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes Chinese Sensible Code barcodes with either the minimum or maximum length.
Page 191: Chapter 4 Prefix & Suffix
Chapter 4 Prefix & Suffix 1D Scanner After a successful barcode reading, a string containing numbers, letters or symbols will be returned. In real applications, barcode data may be found insufficient for your needs. You may wish to include additional information such as barcode type, data acquisition time or delimiter in data being scanned. Adding extra information to printed barcodes does not seem like a sensible solution since that will increase the barcode size and make them inflexible.
Page 192: Custom Prefix
Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 11 characters. For example, if barcode data is “123” and custom prefix is “AB”, the host device will receive “AB123”. Disable Custom Prefix (default) Enable Custom Prefix Set Custom Prefix...
Page 193: Aim Id Prefix
AIM ID Prefix AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the “AIM ID Table (1D Scanner)” section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding. Enable AIM ID Prefix Disable AIM ID Prefix(default)
Page 194: Code Id Prefix
Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters. Disable Code ID Prefix (default) Enable Code ID Prefix Restore All Default Code IDs For the information of default Code IDs, see the “Code ID Table (1D Scanner)”...
Page 195 Modify Code 128 Code ID Modify UCC/EAN 128 Code ID Modify AIM 128 Code ID Modify EAN-8 Code ID Modify EAN-13 Code ID Modify ISSN Code ID Modify ISBN Code ID Modify UPC-E Code ID Modify UPC-A Code ID Modify Interleaved 2 of 5 Code ID...
Page 196 Modify ITF-6 Code ID Modify ITF-14 Code ID Modify Deutsche 14 Code ID Modify Deutsche 12 Code ID Modify COOP25 Code ID Modify Matrix 2 of 5 Code ID Modify Industrial 25 Code ID Modify Standard 25 Code ID Modify Code 39 Code ID Modify Codabar Code ID...
Page 197 Modify Code 93 Code ID Modify Code 11 Code ID Modify Plessey Code ID Modify MSI-Plessey Code ID Modify GS1 Databar Code ID...
Page 198: Custom Suffix
Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 11 characters. For example, if barcode data is “123” and custom suffix is “AB”, the host device will receive “123AB”. Disable Custom Suffix (default) Enable Custom Suffix Set Custom Suffix...
Page 199: Terminating Character Suffix
Terminating Character Suffix Enable/Disable Terminating Character Suffix A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it. A terminating character suffix cannot exceed 7 characters.
Page 200: 2D Scanner
2D Scanner In many applications, barcode data needs to be edited and distinguished from one another. Usually AIM ID and Code ID can be used as identifiers, but in some special cases customized prefix and terminating character suffix like Carriage Return or Line Feed can also be the alternatives. Data formatting may include: ...
Page 201: Custom Prefix
Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 11 characters. Enable Custom Prefix Disable Custom Prefix (default) Set Custom Prefix To set a custom prefix, scan the Set Custom Prefix barcode and the numeric barcodes representing the hexadecimal values of a desired prefix and then scan the Save barcode.
Page 202: Aim Id Prefix
AIM ID Prefix AIM (Automatic Identification Manufacturers) IDs and ISO/IEC 15424 standards define symbology identifiers and data carrier identifiers. (For the details, see the “AIM ID Table (2D Scanner)” section in Appendix. If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding.
Page 203: Code Id Prefix
Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters. Enable Code ID Prefix Disable Code ID Prefix (default) Restore All Default Code IDs For the information of default Code IDs, see the “Code ID Table (2D Scanner)”...
Page 204 Modify PDF417 Code ID Modify Data Matrix Code ID Modify QR Code ID Modify Chinese Sensible Code ID Modify Code 128 Code ID Modify GS1-128 Code ID Modify AIM-128 Code ID Modify EAN-8 Code ID Modify EAN-13 Code ID Modify UPC-E Code ID...
Page 205 Modify UPC-A Code ID Modify ISBN Code ID Modify ISSN Code ID Modify Code 39 Code ID Modify Code 93 Code ID Modify Interleaved 2 of 5 Code ID Modify ITF-14 Code ID Modify ITF-6 Code ID Modify Codabar Code ID Modify Industrial 25 Code ID...
Page 206 Modify Standard 25 Code ID Modify Matrix 25 Code ID Modify COOP 25 Code ID Modify Code 11 Code ID Modify Plessey Code ID Modify MSI/Plessey Code ID Modify GS1 Databar Code ID...
Page 207: Custom Suffix
Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 11 characters. Enable Custom Suffix Disable Custom Suffix (default) Set Custom Suffix To set a custom suffix, scan the Set Custom Suffix barcode and the numeric barcodes representing the hexadecimal values of a desired suffix and then scan the Save barcode.
Page 208: Terminating Character Suffix
Terminating Character Suffix A terminating character can be used to mark the end of data, which means nothing can be added after it. A terminating character suffix can contain 1-7 characters. Enable/Disable Terminating Character Suffix To enable/disable terminating character suffix, scan the appropriate barcode below. Enable Terminating Character Suffix (default) Disable Terminating Character Suffix...
Page 209: Set Terminating Character Suffix
Set Terminating Character Suffix The scanner provides a shortcut for setting the terminating character suffix to CR (0x0D) or CRLF (0x0D,0x0A) and enabling it by scanning the appropriate barcode below. Terminating Character CR (0x0D) (default) Terminating Character CRLF (0x0D,0x0A) To set a terminating character suffix, scan the Set Terminating Character Suffix barcode and the numeric barcodes representing the hexadecimal value of a desired terminating character and then scan the Save barcode.
Page 210: Chapter 5 Scanning Preferences (For 2D Scanner Only)
Chapter 5 Scanning Preferences (For 2D Scanner Only) Introduction This chapter contains information as to how to adapt your scanner to various applications with preference setting. For instance, to narrow the field of view of the scanner to make sure it reads only those barcodes intended by the user.
Page 211: Specify Decoding Area
Specify Decoding Area If Specific Area Decoding is enabled, the scanner only reads barcodes that intersect the predefined decoding area. The default decoding area is an area of 40% top, 60% bottom, 40% left and 60% right of the scanner’s field of view, as shown in the figure below.
Page 212 Top of Decoding Area Bottom of Decoding Area Left of Decoding Area Right of Decoding Area Example: Set the decoding area to 20% top, 80% bottom, 20% left and 80% right: Scan the Specific Area Decoding barcode. Scan the Top of Decoding Area barcode. Scan the numeric barcodes “2”...
Page 213: Chapter 6 Data Formatter
Chapter 6 Data Formatter Introduction You may use the Data Formatter to modify the scanner’s output. For example, you can use the Data Formatter to insert characters at certain points in barcode data or to suppress/ replace/ send certain characters in barcode data as it is scanned. Normally, when you scan a barcode, it gets outputted automatically;...
Page 214: Programming With Barcodes
Programming with Barcodes The following explains how to program a data format by scanning the specific barcodes. Scanning any irrelevant barcode or failing to follow the setting procedure will result in programming failure. To find the alphanumeric barcodes needed to create a data format, see the “Digit Barcodes” section in Appendix. Step 1: Scan the Add Data Format barcode.
Page 215 Example: Program format_0 using formatter command type 6, Code 128 containing 10 characters applicable, send all characters followed by “A”. 1. Scan the Add Data Format barcode Add a data format 2. Scan the 0 barcode Select format_0 3. Scan the 6 barcode Select formatter command type 6 4.
Page 216: Programming With Serial Commands
Programming with Serial Commands A data format can also be created by serial commands sent from the host device. The maximum size of a command string is 128 characters. The syntax consists of the following elements: Add Data Format Command: $$%^5917 (8 characters). Data format: 0~3 (1 character).
Page 217: Enable/Disable Data Formatter
Enable/Disable Data Formatter When Data Formatter is disabled, the data format you have enabled becomes invalid. ** Disable Data Formatter You may wish to require the data to conform to a data format you have created. The following settings can be applied to your data format: Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled).
Page 218: Non-Match Error Beep
Enable Data Formatter, Not Required, Keep Prefix/Suffix Enable Data Formatter, Not Required, Drop Prefix/Suffix Non-Match Error Beep If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not match your required data format. ** Non-Match Error Beep ON Non-Match Error Beep OFF Enable Data Format...
Page 219: Change Data Format For A Single Scan
Change Data Format for a Single Scan You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here, then reverts to the format you have selected above. For example, you may have set your scanner to the data format you saved as Format_3.
Page 220: Query Data Formats
Query Data Formats You may scan the following barcode to get the information of data format(s) you have created. For instance, if you have added Format_0 as per the example in the “Programming with Barcodes” section in this chapter, then the query result will be Data Format 0:069990020010F141;. Query Data Formats...
Page 221: Formatter Command Type 6
Formatter Command Type 6 When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For the hex value of ASCII characters involved in the commands, refer to the “ASCII Table”...
Page 222 F3 Send all characters up to a particular character Syntax=F3ssxx (ss: The particular character’s hex value; xx: The insert character’s hex value) Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular character “ss,” followed by character “xx.”...
Page 223 E9 and F4 Example: Send all but the last characters, followed by 2 tabs Send all characters except for the last 8 from the barcode above, followed by 2 tabs. Command string: E908F40902 E9 is the “Send all but the last characters” command 08 is the number of characters at the end to ignore F4 is the “Insert a character multiple times”...
Page 224: Move Commands
B3 and B4 Example: Insert the symbology name and length Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with spaces. End with a carriage return. Command string: B3F42001B4F42001F10D B3 is the “Insert symbology name” command F4 is the “Insert a character multiple times”...
Page 225 F5 Example: Move the cursor forward and send the data Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above. End with a carriage return. Command string: F503F10D F5 is the “Move the cursor forward a number of characters” command 03 is the number of characters to move the cursor F1 is the “Send all characters”...
Page 226: Search Commands
Search Commands F8 Search forward for a character Syntax＝F8xx (xx: The search character’s hex value) Search the input message forward for “xx” character from the current cursor position, leaving the cursor pointing to the “xx” character. F8 Example: Send barcode data that starts after a particular character Search for the letter “D”...
Page 227 B0 Search forward for a string Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string) Search forward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example, B0000454657374 will search forward for the first occurrence of the 4-character string “Test.”...
Page 228 E6 Search forward for a non-matching character Syntax=E6xx (xx: The search character’s hex value) Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character. E6 Example: Remove zeros at the beginning of barcode data This example shows a barcode that has been zero filled.
Page 229: Miscellaneous Commands
Miscellaneous Commands FB Suppress characters Syntax＝FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of the characters to be suppressed) Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands.
Page 230 E4 Replace characters …zz Syntax＝E4nnxx (nn: The total count of the number of characters (characters to be replaced plus replacement characters; xx : The characters to be replaced, xx : The replacement characters, continuing through zz and zz Replace up to 15 characters in the output message, without moving the cursor. E4 Example: Replace zeros with CRs in barcode data If the barcode has characters that the host application does not want included, you can use the E4 command to replace those characters with something else.
Page 231: Appendix
Appendix Factory Defaults Table Parameter Factory Default Remark System Settings Operating Mode Bluetooth mode Bluetooth Profile Data Transmission via Bluetooth Synchronous transmission USB Interface Type USB HID-KBW Data Transmission via USB Asynchronous transmission Verify Receipt of Data Disabled Sound Notifications Enabled Disabled Vibration Notifications...
Page 232 Parameter Factory Default Remark Prefix & Suffix 1D Scanner Prefix Sequence Code ID+Custom Prefix+AIM ID AIM ID Prefix Disabled Code ID Prefix Disabled 1 or 2 English letters Disabled Custom Prefix Max: 11 characters None Disabled Custom Suffix Max: 11 characters None Disabled Terminating Character Suffix...
Page 233 Parameter Factory Default Remark Symbologies 1D Scanner Code 128 Code 128 Enabled Maximum Length Minimum Length UCC/EAN-128 UCC/EAN-128 Enabled Maximum Length Minimum Length AIM 128 AIM 128 Disabled Maximum Length Minimum Length EAN-8 EAN-8 Enabled Check Character Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled...
Page 234 EAN-13 Beginning with 378/379 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 414/419 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 434/439 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 977 Add-On Code Do Not Require Add-On Code Required EAN-13 Beginning with 978 Add-On Code...
Page 235 System Character Transmit Country Code Do not transmit Interleaved 2 of 5 Interleaved 2 of 5 Enabled Check Character Verification Enabled Check Character Do not transmit Maximum Length Minimum Length No less than 2 ITF-6 ITF-6 Disabled Check Character Do not transmit ITF-14 ITF-14 Disabled...
Page 236 Check Character Verification Disabled Check Character Do not transmit Maximum Length Minimum Length No less than 4 Standard 25 Standard 25 Enabled Check Character Verification Disabled Check Character Do not transmit Maximum Length Minimum Length No less than 4 Code 39 Code 39 Enabled Check Character Verification...
Page 237 Minimum Length No less than 1 Code 11 Code 11 Disabled Check Character Do not transmit Enabled Check Character Verification 1 Check Character, MOD11 Maximum Length Minimum Length No less than 3 Plessey Plessey Disabled Check Character Verification Enabled Check Character Do not transmit Maximum Length Minimum Length...
Page 238 Parameter Factory Default Remark 2D Scanner Video Reverse Disabled Applicable to all symbologies. Code 128 Code 128 Enabled Maximum Length Minimum Length GS1-128 (UCC/EAN-128) GS1-128 Enabled Maximum Length Minimum Length AIM 128 AIM 128 Enabled Maximum Length Minimum Length EAN-8 EAN-8 Enabled Check Character...
Page 239 EAN-13 Beginning with 977 Add-On Code Do Not Require Add-On Code For BS8060-2T Required EAN-13 Beginning with 978 Add-On Code Do Not Require Add-On Code For BS8060-2T Required EAN-13 Beginning with 979 Add-On Code Do Not Require Add-On Code For BS8060-2T Required ISSN ISSN...
Page 240 Check Character Do not transmit Maximum Length Minimum Length ITF-6 ITF-6 Disabled Check Character Do not transmit ITF-14 ITF-14 Enabled Check Character Do not transmit Matrix 2 of 5 Matrix 2 of 5 Disabled Check Character Verification Disabled Check Character Do not transmit Maximum Length Minimum Length...
Page 241 Code 32 Check Character Do not transmit For BS8060-2T Code 32 Start/Stop Character Do not transmit For BS8060-2T Maximum Length Minimum Length Codabar Codabar Enabled Check Character Verification Disabled Check Character Do not transmit Start/Stop Character Do not transmit Start/Stop Character Format ABCD/ABCD Maximum Length Minimum Length...
Page 242 Maximum Length Minimum Length PDF417 PDF417 Enabled Maximum Length 2710 Minimum Length PDF 417 Twin Code Read single PDF417 only QR Code QR Code Enabled Micro QR Enabled Maximum Length 7089 Minimum Length QR Twin Code Read single QR only Data Matrix Data Matrix Enabled...
Page 243: Digit Barcodes (1D Scanner)
Digit Barcodes (1D Scanner) 0 ~ 9...
Page 244 A ~ F...
Page 245: Digit Barcodes (2D Scanner)
Digit Barcodes (2D Scanner) 0 ~ 9...
Page 246 A ~ F...
Page 247: Digit Barcodes
Digit Barcodes 0 ~ 9...
Page 248 A ~ F...
Page 249: Save/Cancel Barcodes (1D Scanner)
Save/Cancel Barcodes (1D Scanner) After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.
Page 250: Save/Cancel Barcodes (2D Scanner)
Save/Cancel Barcodes (2D Scanner) After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.
Page 251: Save/Cancel Barcodes
Save/Cancel Barcodes Save Cancel Delete the Last Digit Delete All Digits...
Page 252: Aim Id Table (1D Scanner)
AIM ID Table (1D Scanner) Symbology AIM ID Possible AIM ID Modifiers (m) Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 EAN-13 with Addon ISSN ISBN UPC-E UPC-E with Addon UPC-A UPC-A with Addon Interleaved 2 of 5 0,1,3 ITF-6 ITF-14 Deutsche 14...
Page 253: Aim Id Table (2D Scanner)
AIM ID Table (2D Scanner) Symbology AIM ID Remark Standard EAN-13 EAN-13 EAN-13 + 2/5-Digit Add-On Code Standard EAN-8 ]E4…]E1… EAN-8 EAN-8 + 2-Digit Add-On Code ]E4…]E2… EAN-8 + 5-Digit Add-On Code Standard UPC-E UPC-E UPC-E + 2/5-Digit Add-On Code Standard UPC-A UPC-A UPC-A + 2/5-Digit Add-On Code...
Page 254 Symbology AIM ID Remark MOD11; transmit check character MOD11/MOD11; transmit check character Code 11 Do not transmit check character after verification No check character verification GS1-DataBar (RSS) Standard GS1-DataBar Plessey Standard Plessey MOD10; transmit check character MOD10; do not transmit check character MSI-Plessey MOD10/ MOD11;...
Page 255: Code Id Table (1D Scanner)
Code ID Table (1D Scanner) Barcode Code ID Code 128 UCC/EAN-128 AIM 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 2 of 5） Matrix 2 of 5(European Matrix 2 of 5) Industrial 25 Standard 25 Code 39...
Page 256: Code Id Table (2D Scanner)
Code ID Table (2D Scanner) Symbology Code ID Code 128 GS1-128(UCC/EAN-128) AIM-128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Matrix 2 of 5 Industrial 2 of 5 Standard 2 of 5 Code 39 Codabar Code 93 Code 11 Plessey MSI-Plessey...
Page 257: Ascii Table
ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3) (Device Control 4)
Page 258 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Left/ Opening Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign)
Page 259 Char > (Greater Than) (Question Mark) (AT Symbol) (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket)
Page 260 Char (Caret / Circumﬂex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)
Page 261: Ascii Function Key Mapping Table
ASCII Function Key Mapping Table ASCII Value No Function Key ASCII Function Function Key Mapping (HEX) Mapping (Null char.) Null Ctrl+2 (Start of Header) Keypad Enter Ctrl+A Caps Lock Ctrl+B (Start of Text) Null Ctrl+C (End of Text) Null Ctrl+D (End of Transmission) Null Ctrl+E...
Page 262 ASCII Function Key Mapping Table (Continued) The function key mappings of the last five characters in the previous table differ from one keyboard layout to another. Function Key Mapping Country/ Keyboard Layout United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+- Belgium Ctrl+[ Ctrl+<...
Page 263: Symbology Id Number
Symbology ID Number Symbology ID Number Code 128 UCC/EAN-128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5, Febraban ITF-14 ITF-6 Matrix 2 of 5 Code 39, Code 32 Codabar Code 93 AIM-128 COOP 25 ISSN ISBN Industrial 25 Standard 25 Plessey Code 11 MSI-Plessey...
Page 264 Newland Auto-ID Tech. Co., Ltd. (Headquarters) 3F, Building A, No.1, Rujiang West Rd., Mawei, Fuzhou, Fujian, China 350015 Tel: +86 - (0) 591-83978605 Fax: +86 - (0) 591-83979216 E-mail: contact@nlscan.com Web: www.newlandaidc.com Newland Europe BV Rolweg 25, 4104 AV Culemborg, The Netherlands...
