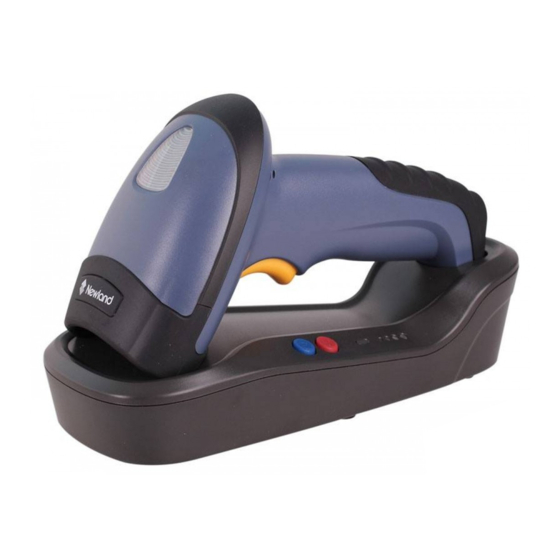

Newland HR3260-CS User Manual

Cordless 2d barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NLS-HR3260 Series
Cordless 2D Barcode Scanner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR3260-CS and is the answer not in the manual?

Questions and answers

Related Manuals for Newland HR3260-CS

Summary of Contents for Newland HR3260-CS

  • Page 1 NLS-HR3260 Series Cordless 2D Barcode Scanner User Guide...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.

  • Page 3: Revision History

    Revision History Version Description Date V1.0.0 Initial release. June 26, 2013 Updates: 1. Added the Germany keyboard, Emulate Alt+Keypad, Function V1.0.1 Key Mapping and Emulate Numeric Keypad features in Chapter April 16, 2014 2. Added ASCII Function Key Mapping Table in Appendix. Modified the default length range of Code 39, PDF417, QR Code V1.0.2 March 27, 2015...

  • Page 4: Table Of Contents

    Table of Contents Revision History ............................- 3 - Preface ................................1 Introduction ............................1 Chapter Description ..........................1 Explanation of Icons ..........................2 Chapter 1 Getting Started ..........................3 Introduction ............................3 Features of the HR32 ..........................3 Unpacking .............................. 3 Scanner ..............................
  • Page 5 Pairing Settings ............................ 19 Pair Scanner with Cradle ....................... 19 Pair Cradle with Zigbee Router ..................... 19 Search Paired Scanners........................ 19 Operating Mode Options ........................20 Power-Off Timeout ..........................21 Illumination ............................22 Aiming ..............................23 Beep ..............................24 Good Read Beep ........................... 24 Good Read Beep Type ........................
  • Page 6 Baud Rate ............................38 Parity Check ..........................39 Stop Bit ............................39 Hareware Flow Control ........................40 Data Bit ............................40 USB Interface ............................41 USB HID-KBW ..........................41 Examine KBW Connection ..................... 41 USB Country Keyboard Types ....................42 Inter-Keystroke Delay ......................
  • Page 7 Enable/Disable EAN-8 ........................56 Transmit Check Digit ........................56 Add-On Code ..........................57 Add-On Code Required ......................... 58 EAN-8 Extension ........................... 58 EAN-13 ..............................59 Restore Factory Defaults ....................... 59 Enable/Disable EAN-13 ......................... 59 Transmit Check Digit ........................59 Add-On Code ..........................60 Add-On Code Required .........................
  • Page 8 Code 39..............................77 Restore Factory Defaults ....................... 77 Enable/Disable Code 39 ........................ 77 Transmit Start/Stop Character ....................... 77 Set Length Range for Code 39 ...................... 78 Check Digit Verification ........................79 Enable/Disable Code 39 Full ASCII ....................80 Codabar ............................... 81 Restore Factory Defaults .......................
  • Page 9 Restore Factory Defaults ....................... 97 Enable/Disable ISSN ........................97 Add-On Code ..........................98 Add-On Code Required ......................... 99 AIM-128.............................. 100 Restore Factory Defaults ......................100 Enable/Disable AIM-128 ......................100 Set Length Range for AIM-128 ....................101 Industrial 25 ............................102 Restore Factory Defaults ......................
  • Page 10 Restore Factory Defaults ......................119 Enable/Disable Data Matrix ......................119 Set Length Range for Data Matrix ....................120 Rectangular Barcode ........................121 Mirror Image ..........................121 Chapter 6 Prefix & Suffix ..........................122 Introduction ............................122 General Settings ..........................123 Enable/Disable All Prefix/Suffix ....................

  • Page 11: Preface

    Preface Introduction This manual provides detailed instructions for setting up and using the NLS-HR3260 Series cordless 2D barcode scanner (hereinafter referred to as “HR32 cordless scanner” or “the scanner”). Chapter Description  Chapter 1, Getting Started Gives a general description of HR32 cordless scanner. ...

  • Page 12: Explanation Of Icons

    Explanation of Icons This icon indicates something relevant to this manual. This icon indicates this information requires extra attention from the reader. This icon indicates handy tips that can help you use or configure the scanner with ease. This icon indicates practical examples that can help you to acquaint yourself with operations.

  • Page 13: Chapter 1 Getting Started

    The HR32 cordless scanner reads a 1D or 2D barcode by capturing its image. Adopting the advanced technology independently developed by Newland Auto-ID Tech, it provides users with three scan modes, including Manual Mode, Sense Mode and Continuous Mode, tailored to different scanning needs.

  • Page 14: Scanner

    Scanner Logo Decode/Transmission LED Decode/Transmission LED: Scan Window Green: Barcode decoded successfully. Label Battery is fully charged. Trigger Blue: Zigbee is available. Red: Data transmission failed. Device is charging. Purple: Firmware update is in progress. Reset Button There is data in FLASH memory. Fig.

  • Page 15: Cd32 Cradle

    CD32 Cradle Buttons: P: Batch Transmission M: Pair/Search LEDs: Zigbee LED (blue): Batch Transmission Zigbee is available. Battery LEDs Pair/Search Battery LEDs (green): Indicates battery level (four levels) Zigbee LED Fig. 1-2 Power Port Data Port DIP Switch Fig. 1-3...

  • Page 16: Communication Mode

    Communication Mode Communication modes: synchronous mode (default), asynchronous mode and batch mode.  Synchronous Mode: If Zigbee is available, scanned data will be transferred to the cradle immediately after a good read; if Zigbee is unavailable, the transmission of decoded data cannot be accomplished.

  • Page 17: Usb/Rs-232 Port

    USB/RS-232 Port CD32 cradle must be connected to a Host in actual application, such as PC, POS or any intelligent terminal with USB or RS-232 port, via a communication cable, either USB or RS-232 cable. USB port on the Host RS-232 RS-232 port on the Host Note: Please check the port on the Host and purchase the right cable.

  • Page 18: Use Usb Cable

    Use USB Cable Fig. 1-6 Connect the CD32 cradle to a Host through a USB cable with RJ45 and USB connectors: Plug the RJ45 connector into the data port (see Fig.1-3) on the cradle. Plug the USB connector into the USB port on the Host. Plug the supplied power adapter into the power port (see Fig.1-3) on the cradle.

  • Page 19: Use Rs-232 Cable

    Use RS-232 Cable Fig. 1-7 Connect the CD32 cradle to a Host through an RS-232 cable with RJ45 and RS-232 connectors: Plug the RJ45 connector into the data port (see Fig.1-3) on the cradle. Plug the RS-232 connector into the RS-232 port on the Host. Plug the supplied power adapter into the power port (see Fig.1-3) on the cradle.

  • Page 20: Power On, Sleep, Power Off, Reboot

    Power On, Sleep, Power Off, Reboot Powering on the scanner Hold down the trigger on the scanner for 1 second or longer. Entering the sleep mode If no operation is performed on the scanner for 5 seconds, it will automatically enter the sleep mode. (Applicable to the Manual mode only) Powering off the scanner Scan the Power Off barcode.

  • Page 21: Dimensions Of Scanner

    Dimensions of Scanner Side View unit: mm Fig. 1-8 Front View unit: mm Fig. 1-9 Top View unit: mm Fig. 1-10...

  • Page 22: Dimensions Of Cd32 Cradle

    Dimensions of CD32 Cradle Fig. 1-11...

  • Page 23: Scanning Instructions

    Scanning Instructions When the scanner is in the Manual scan mode, you can follow the steps below to scan a barcode: Press and hold the trigger. Then the scanner will project a red aiming beam. Aim the red beam across the center of barcode, as shown in Fig.1-12. Release the trigger when the red beam goes off.
  • Page 24 Scan Angle The scanner is designed to function within a certain range of scan angles. Any unreasonable deviation may cause decoding failure. Scan angles of the scanner:  Pitch: ±55°, 0° Roll and 0° Skew (Fig. 1-13)  Roll: 360°, 0 Pitch and 0° Skew (Fig. 1-14) ...

  • Page 25: Chapter 2 System Settings

    【Enter Setup】 Chapter 2 System Settings Introduction There are two ways to configure the scanner: barcode programming and command programming. Barcode Programming The scanner can be configured through scanning programming barcodes. In the following sections, we will explain the available options and features and provide the barcodes to program them. This programming method is most straightforward.

  • Page 26: Programming Barcode/Command/Function

    【Enter Setup】 Programming Barcode/Command/Function The figure above is an example that shows you the programming barcode and command for the Exit Setup function: 1. The Exit Setup barcode 2. The Exit Setup command 3. The function/feature that can be enabled by using the programming barcode or command listed above.

  • Page 27: Use Of Programming Barcodes

    【Enter Setup】 Use of Programming Barcodes Scanning the Enter Setup barcode can enable the scanner to enter the setup mode. Then you can scan a number of programming barcodes to configure your scanner. To exit the setup mode, scan the Exit Setup barcode.

  • Page 28: Factory Defaults

    【Enter Setup】 Factory Defaults Scanning the Reset Scanner barcode/the Reset Cradle barcode can restore the scanner/cradle to the factory default settings. You may need to reset your scanner/cradle when: 1. scanner/cradle is not properly configured so that the scanner fails to decode barcodes or to communicate with cradle;...

  • Page 29: Pairing Settings

    【Enter Setup】 Pairing Settings Pair Scanner with Cradle A cradle with its DIP switch (see Fig. 1-3) in the “C” position works as a normal cradle. The scanner and cradle must be paired for communication to occur. A cradle can be paired with multiple scanners.

  • Page 30: Operating Mode Options

    【Enter Setup】 Operating Mode Options 【Power Off】 【Reboot Scanner】 【Reboot Scanner】 **【Exit Setup】...

  • Page 31: Power-Off Timeout

    【Enter Setup】 Power-Off Timeout Power-off timeout specifies the amount of time the scanner remains in sleep mode before it powers off automatically. Scan the barcode below to set this parameter. **【5 Minutes】 【10 Minutes】 【20 Minutes】 【30 Minutes】 【60 Minutes】 【Disable Auto Power Off】...

  • Page 32: Illumination

    【Enter Setup】 Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture:  Normal: Illumination LEDs are turned on only when scanner is reading barcode.  Always ON: Illumination LEDs keep ON after scanner is powered on. ...

  • Page 33: Aiming

    【Enter Setup】 Aiming When scanning/capturing image, the scanner projects an aiming pattern which allows positioning the target barcode within its field of view and thus makes decoding easier.  Normal: The scanner projects an aiming pattern only during barcode scanning/capture. ...

  • Page 34: Beep

    【Enter Setup】 Beep Good Read Beep Scan the appropriate barcode below to enable or disable the emission of beep when a non-programming barcode is decoded. **【Good Read Beep On】 【Good Read Beep Off】 Good Read Beep Type 【Type 1】 **【Type 3】 【Type 2】...

  • Page 35: Good Read Beep Volume

    【Enter Setup】 Good Read Beep Volume **【Loud】 【Low】 【Medium】 Startup Beep **【Startup Beep On】 【Startup Beep Off】 **【Exit Setup】...

  • Page 36: Transmit Ngr Message

    【Enter Setup】 Transmit NGR Message Scan a barcode below to select whether or not to transmit a user-defined NGR (Not Good Read) message when a barcode is not decoded. 【Transmit NGR Message】 **【Do Not Transmit NGR Message】 Edit NGR Message To edit an NGR message, scan the Edit NGR Message barcode and the numeric barcodes corresponding to the ASCII values (decimal) of desired character(s) and then scan the Save barcode.

  • Page 37: Scan Mode

    【Enter Setup】 Scan Mode Manual Mode A trigger pull activates a decode session. The decode session continues until the barcode is decoded or you release the trigger or decode session timeout expires. **【Manual Mode】 Decode Session Timeout This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 1ms to 3,600,000ms.

  • Page 38: Timeout Between Decodes (Same Barcode)

    【Enter Setup】 Timeout between Decodes (Same Barcode) Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below. Enable Timeout between Decodes: Do not allow the scanner to re-read same barcode before the timeout between decodes (same barcode) expires.

  • Page 39: Sense Mode

    【Enter Setup】 Sense Mode The scanner waits for the image stabilization timeout to expire before activating a decode session every time it detects a change in ambient illumination. Decode session continues until the barcode is decoded or the decode session timeout expires. In the Sense mode, a trigger pull can also activate a decode session.

  • Page 40: Image Stabilization Timeout

    【Enter Setup】 Image Stabilization Timeout The scanner waits for the image stabilization timeout to expire before activating a decode session every time it detects a change in ambient illumination. The image stabilization timeout is programmable in 1ms increments from 0ms to 1,600ms. The default setting is 500ms. 【Image Stabilization Timeout】...

  • Page 41: Timeout Between Decodes (Same Barcode)

    【Enter Setup】 Timeout between Decodes (Same Barcode) Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below. Enable Timeout between Decodes: Do not allow the scanner to re-read same barcode before the timeout between decodes (same barcode) expires.

  • Page 42: Sensitivity

    【Enter Setup】 Sensitivity Sensitivity specifies the degree of acuteness of the scanner’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the scanner. You can select an appropriate degree of sensitivity that fits the ambient environment. 【Medium Sensitivity】...

  • Page 43: Continuous Mode

    【Enter Setup】 Continuous Mode If the Continuous mode is enabled, the scanner automatically starts one decode session after another. To suspend/resume barcode reading, simply press the trigger. 【Continuous Mode】 Decode Session Timeout This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 1ms to 3,600,000ms.

  • Page 44: Timeout Between Decodes

    【Enter Setup】 Timeout between Decodes This parameter sets the timeout between decode sessions. When a decode session ends, next session will not happen until the timeout between decodes expires. It is programmable in 1ms increments from 0ms to 65,535ms. The default setting is 1,000ms. 【Timeout between Decodes】...

  • Page 45: Chapter 3 Inquiry Command

    【Enter Setup】 Chapter 3 Inquiry Command Introduction This chapter provides programming barcodes you may need to obtain device information. Obtain Scanner Information You can scan the barcode below to inquire the scanner information (such as model number, serial number, manufacture date and firmware version). The result will be sent to the Host. 【Inquire All Information About Scanner】...

  • Page 46: Obtain Flash Information

    【Enter Setup】 Obtain FLASH Information To inquire the number of the barcodes stored in flash memory or empty the memory, scan the appropriate barcode below. 【Inquire the Number of Barcodes in Flash Memory】 【Delete All Barcodes in Flash Memory】 **【Exit Setup】...

  • Page 47: Chapter 4 Communication Settings

    【Enter Setup】 Chapter 4 Communication Settings Introduction Three types of wireless communication between scanner and cradle: synchronous, asynchronous and batch modes. Two types of wired communication between cradle and the Host: RS-232 and USB. Wireless Communication Wireless communication modes include Synchronous (default), Asynchronous and Batch modes. ...

  • Page 48: Rs-232 Interface

    【Enter Setup】 RS-232 Interface Baud Rate When the CD32 cradle is connected to the Host via serial port, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) to match the host device. Baud rate is the number of bits of data transmitted per second. Set the cradle’s baud rate to match the Host requirements.

  • Page 49: Parity Check

    【Enter Setup】 Parity Check By default, the None option is enabled. **【None】 【Even】 【Odd】 Stop Bit By default, the 1 Stop Bit option is enabled. **【1 Stop Bit】 【2 Stop Bits】 **【Exit Setup】...

  • Page 50: Hareware Flow Control

    【Enter Setup】 Hareware Flow Control By default, the hardware flow control is disabled. **【Disable Hardware Flow Control】 【Enable Hardware Flow Control】 Before enabling hardware flow control, make sure that RTS/CTS signal line is contained in RS-232 cable. Without the signal line, RS-232 communication errors will occur.

  • Page 51: Usb Interface

    【Enter Setup】 USB Interface Two communication options are provided when the cradle is connected to the Host via USB interface: USB HID-KBW and USB COM Port Emulation USB HID-KBW **【USB HID-KBW】 Examine KBW Connection By default, the scanner examines whether KBW connection is available before data transmission by sending the Caps Lock key to the host device first.

  • Page 52: Usb Country Keyboard Types

    【Enter Setup】 USB Country Keyboard Types Keyboard layouts vary from country to country. The default setting is U.S. keyboard. **【U.S.】 【Japanese】 【Denmark】 【Finland】 【France】 【Turkey F】 【Italy】 【Norway】 **【Exit Setup】...
  • Page 53 【Enter Setup】 【Spain】 【Turkey Q】 【UK】 【Germany】 【Belgium】 【Russia】 【Sweden】 【Portugal】 **【Exit Setup】...

  • Page 54: Inter-Keystroke Delay

    【Enter Setup】 Inter-Keystroke Delay This parameter specifies the delay between emulated keystrokes. **【No Delay】 【40ms】 【20ms】 【60ms】 【80ms】 **【Exit Setup】...

  • Page 55: Convert Case

    【Enter Setup】 Convert Case Scan the appropriate barcode below to convert barcode data to your desired case. **【No Case Conversion】 【Convert All to Lower Case】 【Convert All to Upper Case】 【Invert Upper and Lower Case Characters】 When the Invert Upper and Lower Case Characters feature is enabled, barcode data “AbC”...

  • Page 56: Emulate Alt+Keypad

    【Enter Setup】 Emulate ALT+Keypad This feature allows any ASCII character (0x00 - 0xFF) to be sent over the numeric keypad no matter which keyboard type is selected. Since sending a character involves multiple keystroke emulations, this method appears less efficient. The following options are available: ...

  • Page 57: Function Key Mapping

    【Enter Setup】 Function Key Mapping When Function Key Mapping is enabled, function characters (0x00 - 0x1F) are sent as ASCII sequences over the keypad. For more information, see ASCII Function Key Mapping Table in Appendix. 【Enable Function Key Mapping】 **【Disable Function Key Mapping】 Example: Barcode data 0x16 Enable Function Key Mapping Ctrl+V...

  • Page 58: Emulate Numeric Keypad

    【Enter Setup】 Emulate Numeric Keypad When this feature is disabled, sending barcode data is emulated as keystroke(s) on main keyboard. To enable this feature, scan the Emulate Numeric Keypad barcode. Sending a number (0-9) is emulated as keystroke(s) on numeric keypad, whereas sending other character like “+”, “_”, “*” , “/” and “.” is still emulated as keystrokes on main keyboard.

  • Page 59: Usb Com Port Emulation

    【Enter Setup】 USB COM Port Emulation To use this feature, a driver is required. 【USB COM Port Emulation】 USB HID-POS Introduction The USB HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than keyboard emulation. Features: ...

  • Page 60: Acquire Scanned Data

    Output data (1-62) VID/PID USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland’s vendor ID is 1EAB (Hex). A PID is assigned to each interface. Product Interface...

  • Page 61: Chapter 5 Symbologies

    【Enter Setup】 Chapter 5 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various barcode symbologies. The more symbologies you enable, the slower your scanner decodes. It is recommended to disable those that are rarely used to improve the performance of the scanner.

  • Page 62: Enable 1D Symbologies

    【Enter Setup】 Enable 1D Symbologies 【Enable 1D Symbologies】 Disable 1D Symbologies 【Disable 1D Symbologies】 Enable 2D Symbologies 【Enable 2D Symbologies】 Disable 2D Symbologies 【Disable 2D Symbologies】 **【Exit Setup】...

  • Page 63: Video Reverse

    【Enter Setup】 Video Reverse Regular barcode: Dark image on a bright background. Inverse barcode: Bright image on a dark background. The examples of regular barcode and inverse barcode are shown below. Regular Barcode Inverse Barcode Video Reverse is used to allow the scanner to read barcodes that are inverted. Video Reverse ON: Read both regular barcodes and inverse barcodes.

  • Page 64: Code 128

    【Enter Setup】 Code 128 Restore Factory Defaults 【Restore the Factory Defaults of Code 128】 Enable/Disable Code 128 **【Enable Code 128】 【Disable Code 128】 If the scanner fails to identify Code 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 128 barcode. **【Exit Setup】...

  • Page 65: Set Length Range For Code 128

    【Enter Setup】 Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 66: Restore Factory Defaults

    【Enter Setup】 EAN-8 Restore Factory Defaults 【Restore the Factory Defaults of EAN-8】 Enable/Disable EAN-8 **【Enable EAN-8】 【Disable EAN-8】 Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the data. **【Transmit EAN-8 Check Digit】...

  • Page 67: Add-On Code

    【Enter Setup】 Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.

  • Page 68: Add-On Code Required

    【Enter Setup】 Add-On Code Required EAN-8 Add-On Code Required: The scanner only decodes EAN-8 barcodes that contain add-on codes. EAN-8 Add-On Code Not Required: The scanner decodes a mix of EAN-8 barcodes with and without add-on codes. 【EAN-8 Add-On Code Required】 **【EAN-8 Add-On Code Not Required】...

  • Page 69: Restore Factory Defaults

    【Enter Setup】 EAN-13 Restore Factory Defaults **【Restore the Factory Defaults of EAN-13】 Enable/Disable EAN-13 **【Enable EAN-13】 【Disable EAN-13】 Transmit Check Digit **【Transmit EAN-13 Check Digit】 【Do Not Transmit EAN-13 Check Digit】 **【Exit Setup】...

  • Page 70: Add-On Code

    【Enter Setup】 Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is add-on code.

  • Page 71: Add-On Code Required

    【Enter Setup】 Add-On Code Required EAN-13 Add-On Code Required: The scanner only decodes EAN-13 barcodes that contain add-on codes. EAN-13 Add-On Code Not Required: The scanner decodes a mix of EAN-13 barcodes with and without add-on codes. 【EAN-13 Add-On Code Required】 **【EAN-13 Add-On Code Not Required】...

  • Page 72: Upc-E

    【Enter Setup】 UPC-E Restore Factory Defaults **【Restore the Factory Defaults of UPC-E】 Enable/Disable UPC-E **【Enable UPC-E】 【Disable UPC-E】 If the scanner fails to identify UPC-E barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-E barcode. Transmit Check Digit UPC-E is 8 digits in length with the last one as its check digit used to verify the integrity of the data.

  • Page 73: Add-On Code

    【Enter Setup】 Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is add-on code.

  • Page 74: Add-On Code Required

    【Enter Setup】 Add-On Code Required UPC-E Add-On Code Required: The scanner only decodes UPC-E barcodes that contain add-on codes. UPC-E Add-On Code Not Required: The scanner decodes a mix of UPC-E barcodes with and without add-on codes. 【UPC-E Add-On Code Required】 **【UPC-E Add-On Code Not Required】...

  • Page 75: Upc-E Extension

    【Enter Setup】 UPC-E Extension Disable UPC-E Extend: Transmit UPC-E barcodes as is. Enable UPC-E Extend: Extend UPC-E barcodes to make them compatible in length to UPC-A. **【Disable UPC-E Extend】 【Enable UPC-E Extend】 **【Exit Setup】...

  • Page 76: Upc-A

    【Enter Setup】 UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A】 Enable/Disable UPC-A **【Enable UPC-A】 【Disable UPC-A】 If the scanner fails to identify UPC-A barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-A barcode. Transmit Check Digit UPC-A is 12 digits in length with the last one as its check digit used to verify the integrity of the data.

  • Page 77: Add-On Code

    【Enter Setup】 Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is add-on code.

  • Page 78: Add-On Code Required

    【Enter Setup】 Add-On Code Required UPC-A Add-On Code Required: The scanner only decodes UPC-A barcodes that contain add-on codes. UPC-A Add-On Code Not Required: The scanner decodes a mix of UPC-A barcodes with and without add-on codes. 【UPC-A Add-On Code Required】 **【UPC-A Add-On Code Not Required】...

  • Page 79: Interleaved 2 Of 5

    【Enter Setup】 Interleaved 2 of 5 Restore Factory Defaults 【Restore the Factory Defaults of Interleaved 2 of 5】 Enable/Disable Interleaved 2 of 5 **【Enable Interleaved 2 of 5】 【Disable Interleaved 2 of 5】 If the scanner fails to identify Interleaved 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Interleaved 2 of 5 barcode.

  • Page 80: Set Length Range For Interleaved 2 Of 5

    【Enter Setup】 Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 81: Check Digit Verification

    【Enter Setup】 Check Digit Verification A check digit is optional for Interleaved 2 o 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm.
  • Page 82 【Enter Setup】 ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. 【Restore the Factory Defaults of ITF-14】 **【Disable ITF-14】 【Enable ITF-14 But Do Not Transmit Check Digit】 【Enable ITF-14 and Transmit Check Digit】...
  • Page 83 【Enter Setup】 ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. 【Restore the Factory Defaults of ITF-6】 **【Disable ITF-6】 【Enable ITF-6 But Do Not Transmit Check Digit】 【Enable ITF-6 and Transmit Check Digit】...

  • Page 84: Matrix 2 Of 5

    【Enter Setup】 Matrix 2 of 5 Restore Factory Defaults 【Restore the Factory Defaults of Matrix 2 of 5】 Enable/Disable Matrix 2 of 5 【Enable Matrix 2 of 5】 **【Disable Matrix 2 of 5】 If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Matrix 2 of 5 barcode.

  • Page 85: Set Length Range For Matrix 2 Of 5

    【Enter Setup】 Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 86: Check Digit Verification

    【Enter Setup】 Check Digit Verification A check digit is optional for Matrix 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Matrix 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that the data complies with the check digit algorithm.

  • Page 87: Code 39

    【Enter Setup】 Code 39 Restore Factory Defaults 【Restore the Factory Defaults of Code 39】 Enable/Disable Code 39 **【Enable Code 39】 【Disable Code 39】 If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 39 barcode. Transmit Start/Stop Character Code 39 uses an asterisk (*) for both the start and the stop characters.

  • Page 88: Set Length Range For Code 39

    【Enter Setup】 Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 89: Check Digit Verification

    【Enter Setup】 Check Digit Verification A check digit is optional for Code 39 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Code 39 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check digit algorithm.

  • Page 90: Enable/Disable Code 39 Full Ascii

    【Enter Setup】 Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below. 【Disable Code 39 Full ASCII】 **【Enable Code 39 Full ASCII】 **【Exit Setup】...

  • Page 91: Codabar

    【Enter Setup】 Codabar Restore Factory Defaults 【Restore the Factory Defaults of Codabar】 Enable/Disable Codabar **【Enable Codabar】 【Disable Codabar】 If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Codabar barcode. **【Exit Setup】...

  • Page 92: Set Length Range For Codabar

    【Enter Setup】 Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. 【Set the Minimum Length (Default: 1)】...

  • Page 93: Check Digit Verification

    【Enter Setup】 Check Digit Verification A check digit is optional for Codabar and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Codabar barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check digit algorithm.

  • Page 94: Start/Stop Character

    【Enter Setup】 Start/Stop Character You can set the start/stop characters and choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. 【Transmit Start/Stop Character】 **【Do Not Transmit Start/Stop Character】 **【ABCD/ABCD as the Start/Stop Character】 【Start/Stop Character in Uppercase】 【ABCD/TN*E as the Start/Stop Character】...

  • Page 95: Code 93

    【Enter Setup】 Code 93 Restore Factory Defaults 【Restore the Factory Defaults of Code 93】 Enable/Disable Code 93 **【Enable Code 93】 【Disable Code 93】 If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 93 barcode. **【Exit Setup】...

  • Page 96: Set Length Range For Code 93

    【Enter Setup】 Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 97: Check Digit Verification

    【Enter Setup】 Check Digit Verification Check digits are optional for Code 93 and can be added as the last two digits, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Code 93 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the data complies with the check digit algorithm.

  • Page 98: Ucc/Ean-128

    【Enter Setup】 UCC/EAN-128 Restore Factory Defaults 【Restore the Factory Defaults of UCC/EAN-128】 Enable/Disable UCC/EAN-128 **【Enable UCC/EAN-128】 【Disable UCC/EAN-128】 If the scanner fails to identify UCC/EAN-128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UCC/EAN-128 barcode. **【Exit Setup】...

  • Page 99: Set Length Range For Ucc/Ean-128

    【Enter Setup】 Set Length Range for UCC/EAN-128 The scanner can be configured to only decode UCC/EAN-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. 【Set the Minimum Length (Default: 1)】...

  • Page 100: Gs1 Databar

    【Enter Setup】 GS1 Databar Restore Factory Defaults 【Restore the Factory Defaults of GS1 Databar】 Enable/Disable GS1 Databar **【Enable GS1 Databar】 【Disable GS1 Databar】 If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Databar barcode. Transmit Application Identifier “01”...

  • Page 101: Code 11

    【Enter Setup】 Code 11 Restore Factory Defaults 【Restore the Factory Defaults of Code 11】 Enable/Disable Code 11 **【Enable Code 11】 【Disable Code 11】 If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 11 barcode. **【Exit Setup】...

  • Page 102: Set Length Range For Code 11

    【Enter Setup】 Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 103: Check Digit Verification

    【Enter Setup】 Check Digit Verification Check digits are optional for Code 11 and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits Code 11 barcodes as is. 【Disable】...

  • Page 104: Isbn

    【Enter Setup】 ISBN Restore Factory Defaults 【Restore the Factory Defaults of ISBN】 Enable/Disable ISBN 【Enable ISBN】 **【Disable ISBN】 If the scanner fails to identify ISBN barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISBN barcode. Set ISBN Format **【ISBN-13】...

  • Page 105: Add-On Code

    【Enter Setup】 Add-On Code An ISBN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. 【Enable 2-Digit Add-On Code】 **【Disable 2-Digit Add-On Code】 【Enable 5-Digit Add-On Code】 **【Disable 5-Digit Add-On Code】 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISBN barcodes with and without 2-digit/5-digit add-on codes.

  • Page 106: Add-On Code Required

    【Enter Setup】 Add-On Code Required ISBN Add-On Code Required: The scanner only decodes ISBN barcodes that contain add-on codes. ISBN Add-On Code Not Required: The scanner decodes a mix of ISBN barcodes with and without add-on codes. 【ISBN Add-On Code Required】 **【ISBN Add-On Code Not Required】...

  • Page 107: Issn

    【Enter Setup】 ISSN Restore Factory Defaults 【Restore the Factory Defaults of ISSN】 Enable/Disable ISSN 【Enable ISSN】 **【Disable ISSN】 If the scanner fails to identify ISSN barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISSN barcode. **【Exit Setup】...

  • Page 108: Add-On Code

    【Enter Setup】 Add-On Code An ISSN barcode can be augmented with a two-digit or five-digit add-on code to form a new one. 【Enable 2-Digit Add-On Code】 **【Disable 2-Digit Add-On Code】 【Enable 5-Digit Add-On Code】 **【Disable 5-Digit Add-On Code】 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of ISSN barcodes with and without 2-digit/5-digit add-on codes.

  • Page 109: Add-On Code Required

    【Enter Setup】 Add-On Code Required ISSN Add-On Code Required: The scanner only decodes ISSN barcodes that contain add-on codes. ISSN Add-On Code Not Required: The scanner decodes a mix of ISSN barcodes with and without add-on codes. 【ISSN Add-On Code Required】 **【ISSN Add-On Code Not Required】...

  • Page 110: Aim-128

    【Enter Setup】 AIM-128 Restore Factory Defaults 【Restore the Factory Defaults of AIM-128】 Enable/Disable AIM-128 【Disable AIM-128】 **【Enable AIM-128】 If the scanner fails to identify AIM-128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable AIM-128 barcode. **【Exit Setup】...

  • Page 111: Set Length Range For Aim-128

    【Enter Setup】 Set Length Range for AIM-128 The scanner can be configured to only decode AIM-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. 【Set the Minimum Length (Default: 1)】...

  • Page 112: Industrial 25

    【Enter Setup】 Industrial 25 Restore Factory Defaults 【Restore the Factory Defaults of Industrial 25】 Enable/Disable Industrial 25 **【Enable Industrial 25】 【Disable Industrial 25】 If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Industrial 25 barcode. **【Exit Setup】...

  • Page 113: Set Length Range For Industrial 25

    【Enter Setup】 Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 114: Check Digit Verification

    【Enter Setup】 Check Digit Verification A check digit is optional for Industrial 25 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Industrial 25 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check digit algorithm.

  • Page 115: Standard 25

    【Enter Setup】 Standard 25 Restore Factory Defaults 【Restore the Factory Defaults of Standard 25】 Enable/Disable Standard 25 **【Enable Standard 25】 【Disable Standard 25】 If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Standard 25 barcode. **【Exit Setup】...

  • Page 116: Set Length Range For Standard 25

    【Enter Setup】 Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 117: Check Digit Verification

    【Enter Setup】 Check Digit Verification A check digit is optional for Standard 25 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Standard 25 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check digit algorithm.

  • Page 118: Plessey

    【Enter Setup】 Plessey Restore Factory Defaults 【Restore the Factory Defaults of Plessey】 Enable/Disable Plessey 【Enable Plessey】 **【Disable Plessey】 If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Plessey barcode. **【Exit Setup】...

  • Page 119: Set Length Range For Plessey

    【Enter Setup】 Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. 【Set the Minimum Length (Default: 1)】...

  • Page 120: Check Digit Verification

    【Enter Setup】 Check Digit Verification Check digits are optional for Plessey and can be added as the last two digits, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Plessey barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check digit algorithm.

  • Page 121: Msi-Plessey

    【Enter Setup】 MSI-Plessey Restore Factory Defaults 【Restore the Factory Defaults of MSI-Plessey】 Enable/Disable MSI-Plessey 【Enable MSI-Plessey】 **【Disable MSI-Plessey】 If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable MSI-Plessey barcode. **【Exit Setup】...

  • Page 122: Set Length Range For Msi-Plessey

    【Enter Setup】 Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. 【Set the Minimum Length (Default: 2)】...

  • Page 123: Check Digit Verification

    【Enter Setup】 Check Digit Verification Check digits are optional for MSI-Plessey and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is. 【Disable】...

  • Page 124: Pdf417

    【Enter Setup】 PDF417 Restore Factory Defaults **【Restore the Factory Defaults of PDF417】 Enable/Disable PDF417 **【Enable PDF417】 【Disable PDF417】 If the scanner fails to identify PDF417 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable PDF417 barcode. **【Exit Setup】...

  • Page 125: Set Length Range For Pdf417

    【Enter Setup】 Set Length Range for PDF417 The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. 【Set the Minimum Length (Default: 1)】...

  • Page 126: Qr Code

    【Enter Setup】 QR Code Restore Factory Defaults 【Restore the Factory Defaults of QR Code】 Enable/Disable QR Code **【Enable QR Code】 【Disable QR Code】 If the scanner fails to identify QR Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable QR Code barcode. **【Exit Setup】...

  • Page 127: Set Length Range For Qr Code

    【Enter Setup】 Set Length Range for QR Code The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 128: Micro Qr

    【Enter Setup】 Micro QR 【Disable Micro QR】 **【Enable Micro QR】 **【Exit Setup】...

  • Page 129: Data Matrix

    【Enter Setup】 Data Matrix Restore Factory Defaults 【Restore the Factory Defaults of Data Matrix】 Enable/Disable Data Matrix **【Enable Data Matrix】 【Disable Data Matrix】 If the scanner fails to identify Data Matrix barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Data Matrix barcode. **【Exit Setup】...

  • Page 130: Set Length Range For Data Matrix

    【Enter Setup】 Set Length Range for Data Matrix The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 131: Rectangular Barcode

    【Enter Setup】 Rectangular Barcode Data Matrix has two formats: Square barcodes having the same amount of modules in length and width: 10*10, 12*12..144*144. Rectangular barcodes having different amounts of models in length and width: 6*16, 6*14... 14*22. **【Enable Rectangular Barcode】 【Disable Rectangular Barcode】...

  • Page 132: Chapter 6 Prefix & Suffix

    【Enter Setup】 Chapter 6 Prefix & Suffix Introduction A 1D barcode could contain digits, letters, symbols, etc. A 2D barcode could contain more data, such as Chinese characters and other multi-byte characters. However, in real applications, they do not and should not have all information we need, such as barcode type, data acquisition time and delimiter, in order to keep the barcodes short and flexible.

  • Page 133: General Settings

    【Enter Setup】 General Settings Enable/Disable All Prefix/Suffix Disable All Prefix/Suffix: Transmit barcode data with no prefix/suffix. Enable All Prefix/Suffix: Allow user to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character to the barcode data before the transmission. 【Disable All Prefix/Suffix】...

  • Page 134: Custom Prefix

    【Enter Setup】 Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters. For example, if the custom prefix is “AB” and the barcode data is “123”, the Host will receive “AB123”.

  • Page 135: Aim Id Prefix

    【Enter Setup】 AIM ID Prefix AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the AIM ID Table in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding. **【Disable AIM ID Prefix】...

  • Page 136: Restore All Default Code Ids

    【Enter Setup】 Restore All Default Code IDs For the information of default Code IDs, see the Code ID Table in Appendix. 【Restore All Default Code IDs】 Modify Code ID See the examples below to learn how to modify a Code ID and restore the default Code IDs of all symbologies.
  • Page 137 【Enter Setup】 【Modify PDF417 Code ID】 【Modify Data Matrix Code ID】 【Modify QR Code ID】 【Modify Matrix 25 Code ID】 【Modify ISSN Code ID】 【Modify AIM-128 Code ID】 【Modify EAN-8 Code ID】 【Modify ITF-6 Code ID】 **【Exit Setup】...
  • Page 138 【Enter Setup】 【Modify EAN-13 Code ID】 【Modify Code 39 Code ID】 【Modify UPC-E Code ID】 【Modify Codabar Code ID】 【Modify UPC-A Code ID】 【Modify Code 93 Code ID】 【Modify Interleaved 2 of 5 Code ID】 【Modify Code 128 Code ID】 **【Exit Setup】...
  • Page 139 【Enter Setup】 【Modify ITF-14 Code ID】 【Modify ISBN Code ID】 【Modify UCC/EAN-128 Code ID】 【Modify Industrial 25 Code ID】 【Modify Code 11 Code ID】 【Modify Standard 25 Code ID】 【Modify Plessey Code ID】 【Modify MSI-Plessey Code ID】 【Modify GS1 Databar Code ID】 **【Exit Setup】...

  • Page 140: Custom Suffix

    【Enter Setup】 Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters. For example, if the custom suffix is “AB” and the barcode data is “123”, the Host will receive “123AB”.

  • Page 141: Terminating Character Suffix

    【Enter Setup】 Terminating Character Suffix Enable/Disable Terminating Character Suffix A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it. 【Disable Terminating Character Suffix】...
  • Page 142 【Enter Setup】 To set a terminating character suffix, scan the Set Terminating Character Suffix barcode and the numeric barcodes representing the hexadecimal value of a desired terminating character and then scan the Save barcode. Refer to the ASCII Table in Appendix for hexadecimal values of terminating characters.

  • Page 143: Chapter 7 Ambient Illumination

    【Enter Setup】 Chapter 7 Ambient Illumination Ambient lighting conditions may vary from one operating environment to another, such as fluorescent lit warehouses or sunlit open spaces. Fluorescent lights may flicker when using AC power source in 50-60Hz. Usually indoor illuminance is around 1,000 lux while outdoor illuminance may reach 60,000 lux or even over 100,000 lux.

  • Page 144: Appendix

    Appendix Digit Barcodes After scanning numeric barcode(s), you need to scan the Save barcode to save the data. 【0】 【1】 【2】 【3】 【4】 【5】...
  • Page 145 【6】 【7】 【8】 【9】...
  • Page 146 【A】 【B】 【C】 【D】 【E】 【F】...

  • Page 147: Save/Cancel Barcodes

    Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.

  • Page 148: Factory Defaults Table

    Factory Defaults Table Parameter Factory Default Remark System Settings Disabled Barcode Programming Applicable to Manual 5 minutes Auto Power-Off Timeout mode only Normal Illumination Normal Aiming Enabled Startup Beep Notification Enabled Good Read Beep Beep Type Type 3 Beep Volume Loud Do not transmit NGR (Not Good Read) Message...
  • Page 149 Parameter Factory Default Remark Communication Settings Wireless Communication Mode Synchronous Mode USB HID-KBW USB HID-KBW Baud Rate 115200 Parity Check None RS-232 Number of Data Bits Number of Stop Bits Hardware Flow Control Disabled Examine KBW Connection Enabled USB Country Keyboard Type U.S.
  • Page 150 Parameter Factory Default Remark Symbologies Applicable to all Video Reverse Disabled symbologies. Code 128 Code 128 Enabled Maximum Length Minimum Length UCC/EAN-128 UCC/EAN-128 Enabled Maximum Length Minimum Length AIM-128 AIM-128 Enabled Maximum Length Minimum Length EAN-8 EAN-8 Enabled Check Digit Transmit 2-Digit Add-On Code Disabled...
  • Page 151 Parameter Factory Default Remark ISBN ISBN Disabled ISBN Format ISBN-13 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required UPC-E UPC-E Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Extend to UPC-A Disabled System Character “0”...
  • Page 152 Parameter Factory Default Remark ITF-14 ITF-14 Disabled Do not transmit Check Digit 出 Matrix 2 of 5 Matrix 2 of 5 Disabled Check Digit Verification Enabled Check Digit Do not transmit Maximum Length Minimum Length Industrial 2 of 5 Industrial 2 of 5 Enabled Check Digit Verification Disabled...
  • Page 153 Parameter Factory Default Remark Codabar Codabar Enabled Check Digit Verification Disabled Check Digit Do not transmit Start/Stop Character Do not transmit Start/Stop Character Format ABCD/ABCD Maximum Length Minimum Length Code 93 Code 93 Enabled Check Digit Verification Enabled Check Digit Do not transmit Maximum Length Minimum Length...
  • Page 154 Parameter Factory Default Remark MSI-Plessey MSI-Plessey Disabled Check Digit Verification One check digit, MOD10 Check Digit Do not transmit Maximum Length Minimum Length PDF 417 PDF 417 Enabled Maximum Length 1024 Minimum Length QR Code QR Code Enabled Micro QR Enabled Maximum Length 1024...

  • Page 155: Aim Id Table

    AIM ID Table Symbology AIM ID Remark Standard EAN-13 EAN-13 EAN-13 + 2/5-Digit Add-On Code Standard EAN-8 ]E4…]E1… EAN-8 EAN-8 + 2-Digit Add-On Code ]E4…]E2… EAN-8 + 5-Digit Add-On Code Standard UPC-E UPC-E UPC-E + 2/5-Digit Add-On Code Standard UPC-A UPC-A UPC-A + 2/5-Digit Add-On Code Code 128...
  • Page 156 Symbology AIM ID Remark Standard Codabar Codabar Transmit check digit after verification Do not transmit check digit after verification Code 93 Standard Code 93 One check digit MOD11; transmit check digit Two check digits, MOD11/MOD11; transmit check digit Code 11 Do not transmit check digit after verification No check digit verification GS1-DataBar (RSS)
  • Page 157 Symbology AIM ID Remark 2005 version, ECI excluded 2005 version, ECI included QR Code 2005, ECI excluded, FNC1 is the 1st character after the start character QR Code QR Code 2005, ECI included, FNC1 is the 1st character after the start character QR Code 2005,ECI excluded,FNC1 is the 2nd character after the start character...

  • Page 158: Code Id Table

    Code ID Table Symbology Code ID Code 128 UCC/EAN-128 AIM-128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Matrix 2 of 5 Industrial 2 of 5 Standard 2 of 5 Code 39 Codabar Code 93 Code 11 Plessey MSI-Plessey GS1 Databar...

  • Page 159: Ascii Table

    ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3) (Device Control 4)
  • Page 160 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Right / Closing Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) <...
  • Page 161 Char > (Greater Than) (Question Mark) (AT Symbol) (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket)
  • Page 162 Char (Caret / Circumflex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)

  • Page 163: Ascii Function Key Mapping Table

    ASCII Function Key Mapping Table ASCII Function ASCII Value (HEX) No Function Key Mapping Function Key Mapping NUL (Null char.) Null Ctrl+2 Keypad Enter Ctrl+A SOH (Start of Header) Caps Lock Ctrl+B STX (Start of Text) Null Ctrl+C ETX (End of Text) EOT (End of Transmission) Null Ctrl+D...
  • Page 164 ASCII Function Key Mapping Table (Continued) The function key mappings of the last five characters in the previous table differ from one keyboard layout to another. Country/ Function Key Mapping Keyboard Layout United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+- Belgium Ctrl+[ Ctrl+<...
