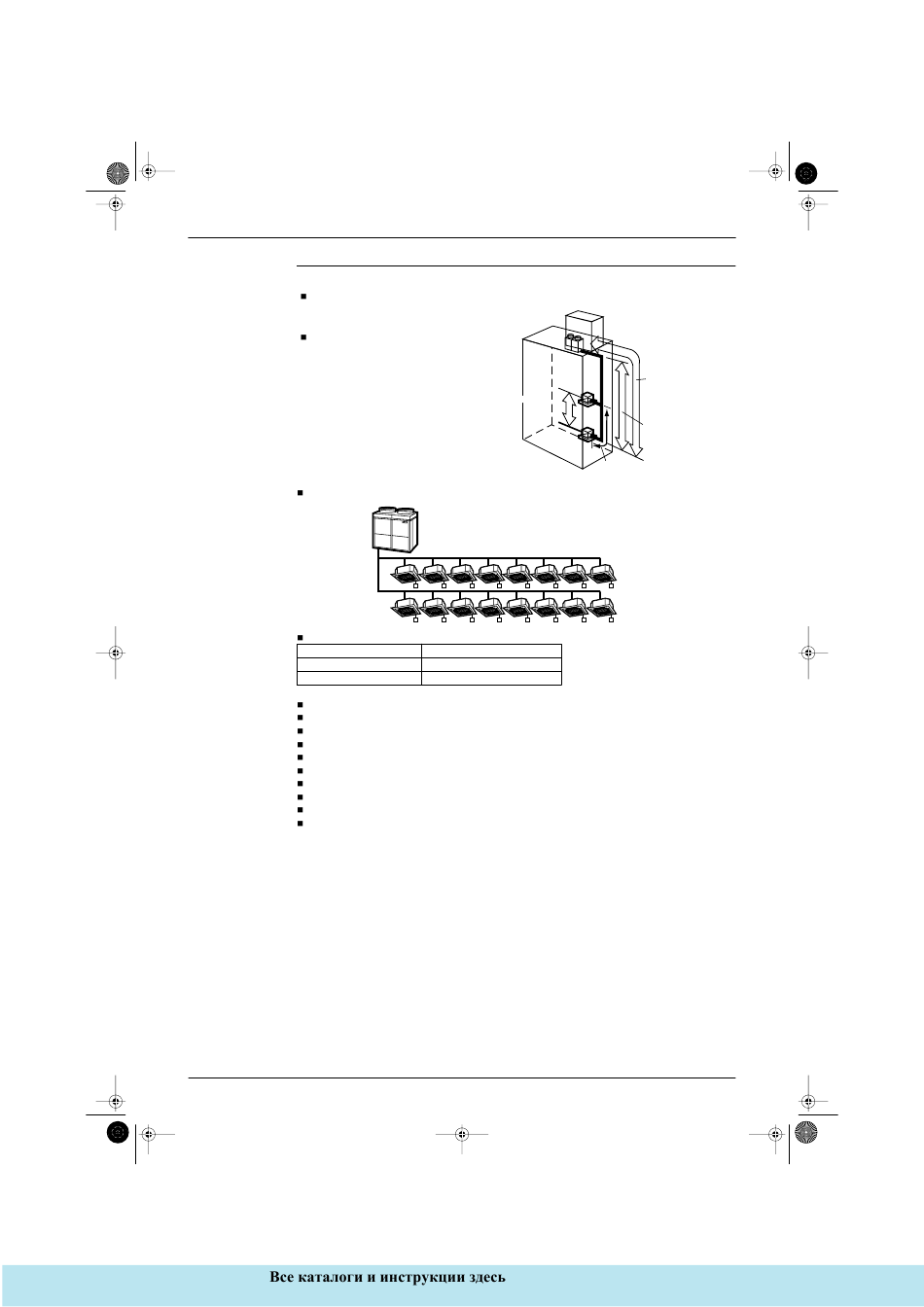

Product Outline
Other versatile
functions are
Long refrigerant piping : equivalent
provided
length of 125, actual length of 100 m
and height difference of 50 m.
Connection of indoor unit of varying
capacities and types totaling 130%
(max.) of outdoor unit by capacity.
Individual control of up to 20 indoor units with one 20HP class outdoor unit
For VRV PLUS
Outdoor unit name
RSXY16~20KAY1(E)/YAL(E)
RSXY24~30KAY1(E)/YAL(E)
Others
High efficiency with power factor of 90% or higher
Cooling operation with outdoor air temperature as low as –5˚C
Heating operation with outdoor air temperature as low as –15˚C
Simple REFNET piping system
Super wiring system
Automatic address setting function
Built-in wiring error check function
Equipped with sequential start function
Nighttime low-noise mode for reduced operating sound
4
Height difference
between indoor units
15m
No. of indoor units connectable
20 units
32 units

: http://splitoff.ru/tehn-doc.html

SiE33-102
100m
(In case of the outdoor
unit located upper position
than the indoor unit)
Actual height difference
between indoor unit and
50 m
outdoor unit
40 m
from first Branch
to last indoor unit. (V0804)
(V0805)
General Information
