SiE33-102
6.3

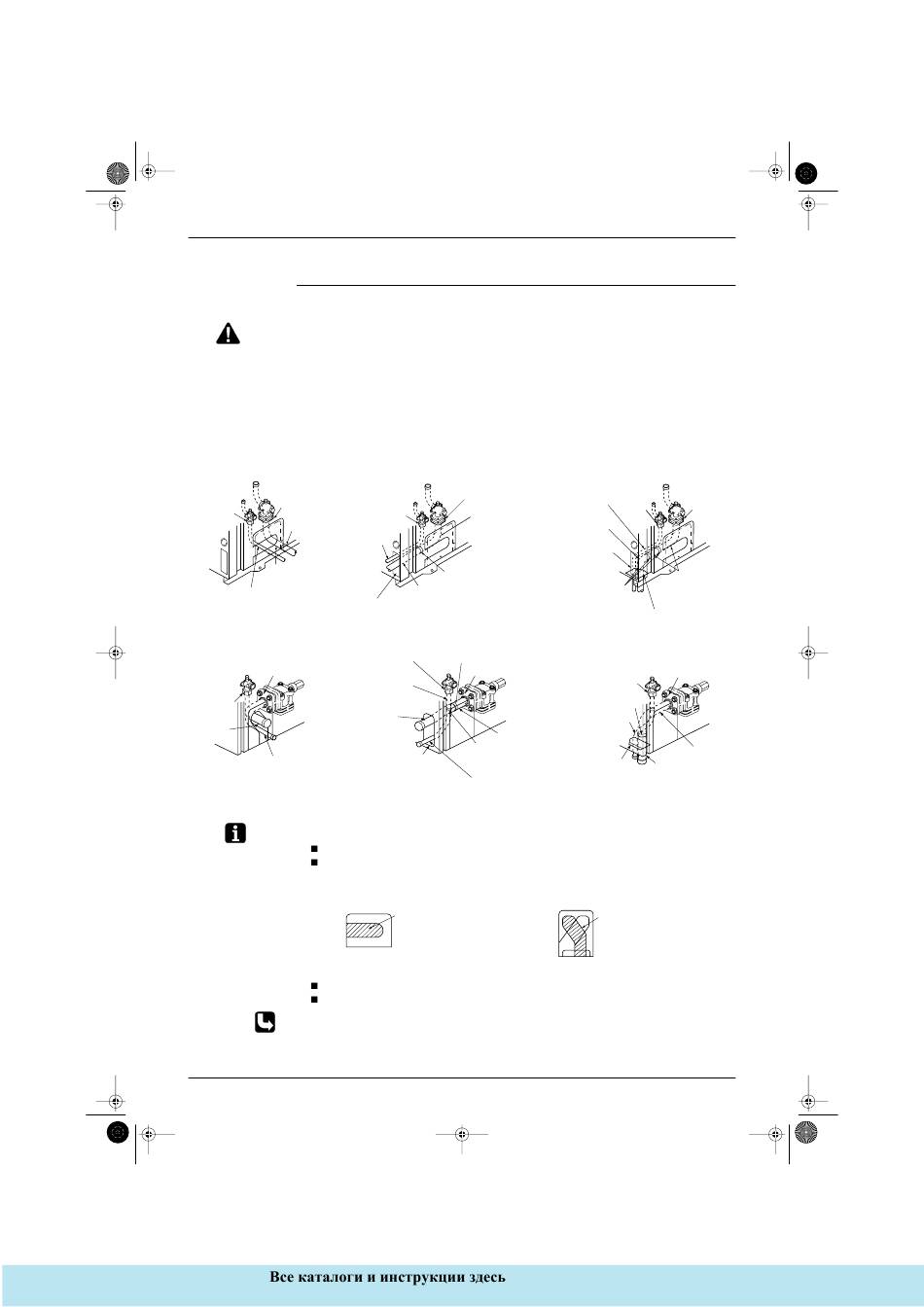

Connecting the Refrigerant Piping

1. Piping Installation of refrigerant piping is possible as front connection, side connection and bottom connection.
Installation
Caution Be sure to use the attached pipe when carrying out piping work in the field.
Separately use the optional "KHF30A30L" or "KHF30A30U" piping kit when carrying out connections for
the side and bottom on RSXY24, 26, 28, and 30.
Connect the flange on the valve on the gas side before connecting the flare nut on the valve on the
liquid side.
(Connecting the liquid side first will make it harder to connect the gas side.)
Be sure that the local piping does not touch other pipes, the bottom panel or side panel. Especially
for the bottom and side connection, be sure to protect the gas piping with the provided insulation,
to prevent it from coming into contact with the casing.
RSXY16,18,20
Flange
Flare nut
Brazing
Liquid side pipe
(Field supply)
Gas side
attached
pipe
Liquid side pipe
(Field supply)
RSXY24,26,28,30
Flange
Liquid side optional pipe
(Field supply,in case of
RSXY24)
Flare nut
Gas side
attached
pipe
Liquid side attached pipe
(Field supply,in case
of RSXY24)
Notes: 1. Front Connection
Make sure to close the piping intake hole again after installation work.
Stop valve cover
2. Side Connection
Use a hammer and knock out the hole.
Piping kit "KHF30A30L" is required for RSXY24,26,28 and 30.
Refer the optional "KHF30A30L" or "KHF30A30U" piping kit on page 107 for more detail.
Installation Manual
Flange
Gas side
Flare nut
attached
pipe
Brazing
Gas side pipe
(Field supply)
Knock out hole
(Use a hammer)
Flare nut
Brazing
Flange
Gas side
optional
pipe
Gas side
optional
Brazing
pipe
Knock out hole
(Use a hammer)
Liquid side optional pipe
(Field supply,in case of
RSXY24)
RSXY16,18,20
Part to cut off
(Cut off the slit part.)
: http://splitoff.ru/tehn-doc.html
Refrigerant Piping
Liquid side pipe
(Field supply)
Flare nut
Flange
Elbow(Field supply)
Knock out hole
(Use a hammer)
Gas side
attached
brazing
pipe
Gas side pipe
(Field supply)
(V1839)
Flange
Flare nut
Brazing
Liquid side optional pipe
(Field supply,in case of
RSXY24)
Gas side
optional
Knock out hole
Gas side
pipe
(Use a hammer)
optional
pipe
(V1840)
RSXY24,26,28,30
Part to cut off
(Cut grooves on
the back side.)
(V1841)
